2001 Windstar Workshop Manual
SECTION 307-01: Automatic Transaxle/Transmission
IN-VEHICLE REPAIR
Main Control — Pump

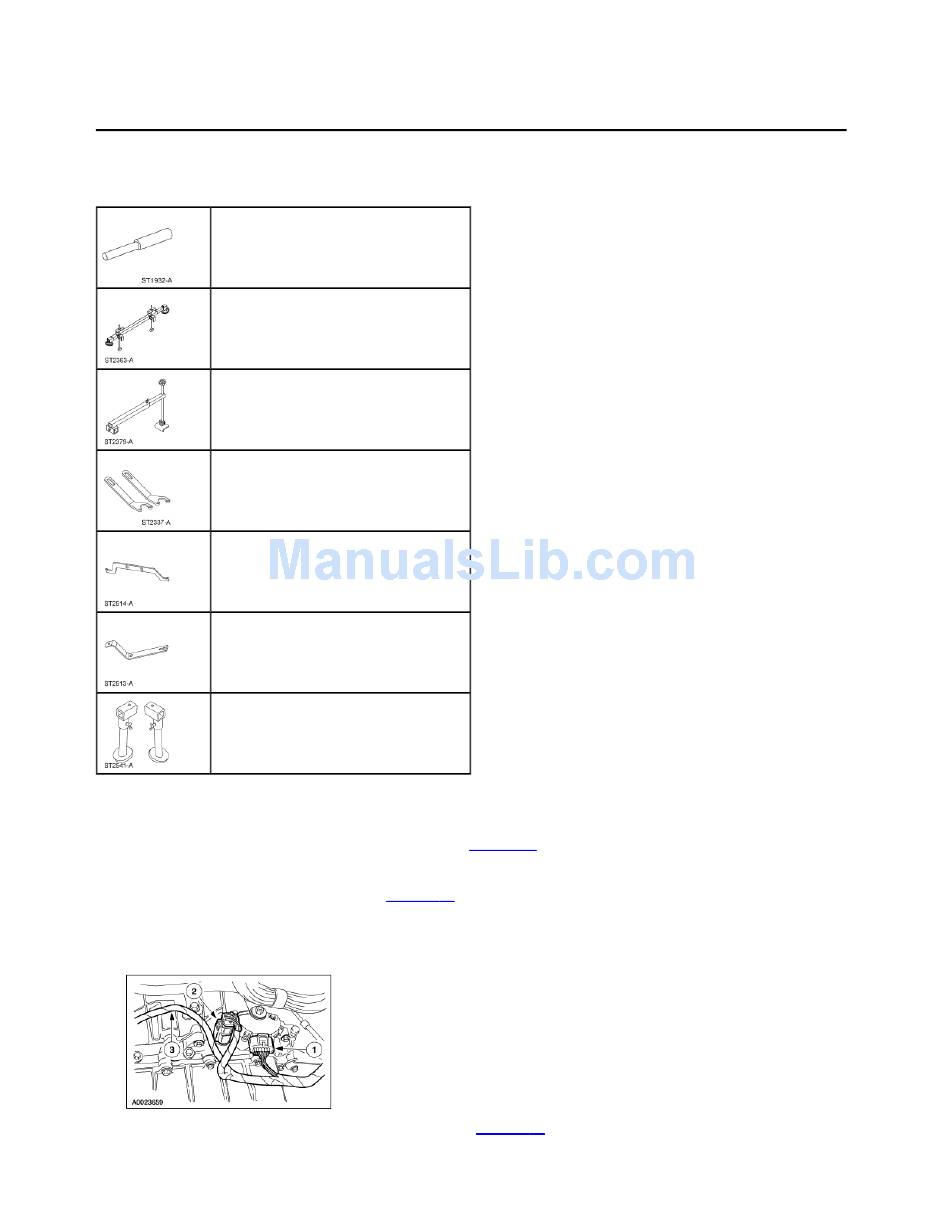

Special Tool(s)
Aligner, Valve Body
307-167 (T86P-70100-C)
Support Bar, Engine
303-290A or equivalent
Adapter for 303-290A (Support Leg)
303-290A-03A
Lifting Bracket Set, Engine
303-D095 (D94L-6001-A) or equivalent
Adapter for 303-290A (Spreader Bar)
303-290A-10
Adapter for 303-290A (Support Bracket)
303-290A-11
Adapter for 303-290A (Strut)
303-290A-09
Removal
1. Place the transaxle range selector lever in the PARK position.
2. Remove the engine air cleaner assembly. For additional information, refer to
3. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy.
Disconnect the battery. For additional information, refer to
4. Disconnect the electrical connectors.
1. Disconnect the digital transmission range (TR) sensor electrical connector.
2. Disconnect the transaxle electrical connector.
3. Disconnect the wire harness from the bracket.
5. Remove the wiper arm and pivot assembly. For additional information, refer to
http://www.fordtechservice.dealerconnection.com/pubs/content/~WS1W/~MUS~LEN/19/...
Section
303-12.
Section
414-01.
Section
501-16.
Page 1 of 7
2001 Windstar Workshop Manual
Procedure revision date: 06/13/2000
