Operator's Manual / Manual del operador / Manuel de l'utilisateur
READ THIS BOOK
LEA ESTE MANUAL
LISEZ CE MANUEL
This book has important information for the use and safe operation of this machine. Failure to read this
book prior to operating or attempting any service or maintenance procedure to your Clarke American
Sanders machine could result in injury to you or to other personnel; damage to the machine or to other
property could occur as well. You must have training in the operation of this machine before using it.
If your operator(s) cannot read this manual, have it explained fully before attempting to operate this
machine.
All directions given in this book are as seen from the operator's position at the rear of the machine.
Form No. 70781A 11/10 revised 1/12
S
B
EXT
POT™

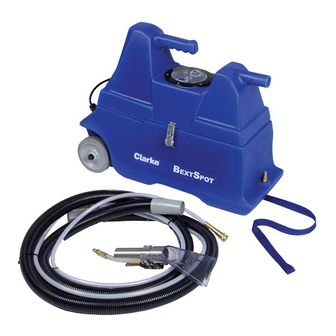

Model: 04153A
English (2 - 7)
EN
Español (8 - 13)
ES
Français (14 - 19)
FR
Advertisement
Chapters
Table of Contents
Related Manuals for Clarke BEXTSPOT 04153A
Summary of Contents for Clarke BEXTSPOT 04153A
- Page 1 This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke American Sanders machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well.
-
Page 2: Table Of Contents
SECTION II PARTS AND SERVICE Assembly Drawing ......................22 Parts List ......................... 23 Tool Assembly Drawing and Parts List ................24 Vacuum and Solution Hose Drawing and Parts List ............25 Authentic Clarke Products ....................26 Wiring Diagram ........................27 SPECIFICATIONS Part Number 04153A... -
Page 3: Operator Safety Instructions
Keep all fasteners tight. Keep the adjustments according to specifi cations. Make sure that all the labels, decals, warnings, cautions and instructions are fastened to the machine. Replace them when necessary by ordering them from Clarke. Do not use water that is hotter than 120 F (40 °... -
Page 4: Grounding Instructions
1. Make sure that the product is connected to an outlet having the same confi guration as the plug. No adapter should be used with this product. WARNING: DO NOT use an extension cord with this unit. ® -4- FORM NO. 70781A Clarke Operator's Manual (EN) -
Page 5: How To Prepare The Machine For Operation
Do not use water that is hotter than 140° 2. Use only brand name cleaner and mix the cleaner per package instructions. Lift Handle Switches Vacuum Inlet Latch Quick Disconnect Figure2 ® Clarke Operator's Manual (EN) FORM NO. 70781A - 5 -... -
Page 6: Operating The Machine
Repair or replace the hose, if necessary. Check spray tips daily. Clean spray tips, if plugged. Monthly or as often as necessary, clean out any debris which may be in the vacuum tubing and hose. ® -6- FORM NO. 70781A Clarke Operator's Manual (EN) -
Page 7: How To Correct Problems In The Machine
HOW TO CORRECT PROBLEMS IN THE MACHINE WARNING: Maintenance and repairs must be done by authorized personnel only. Use only Clarke parts. Maintenance performed by someone other than a Clarke distributor or Clarke replacement parts could void your warranty. Electrical System PROBLEM... - Page 8 Todas las indicaciones de dirección dadas en este libro están dadas desde la posición del operador en la parte de atrás de la máquina. Puede Ud. conseguir libros suplementarios dirigiéndose a su distribuidor Clarke. Índice Instrucciones de seguridad para el operador ..............9 Instrucciones de conexión a tierra ..................
-
Page 9: Instrucciones De Seguridad Para El Operador
Mantenga ajustados todos los sujetadores. Mantenga todos los ajustes de acuerdo con as especifi caciones técnicas. Compruebe que todas las etiquetas, calcomanías, advertencias, precauciones e instrucciones estén bien aseguradas a la máquina. Reemplácelas cuando sea necesario para lo cual debe solicitarlas a Clarke Technology. No utilice agua cuya temperatura supere los 120º F (40º C). -
Page 10: Instrucciones De Conexión A Tierra
No se debe utilizar ningún adaptador con este producto. Figura 1 ADVERTENCIA: NO utilice un alargador con esta unidad. Clarke ® -10- FORM NO. 70781A Manual del operador (ES) -
Page 11: Preparación De La Máquina Para El Funcionamiento
Utilice sólo limpiadores de marcas recono- Palanca de elevación cidas y mézclelos respetando las instrucciones incluidas en el envase. Tapa Interruptores Entrada de aspiración Seguro Desconexión rápida Figura 2 Clarke ® Manual del operador (ES) FORM NO. 70781A - 11 -... -
Page 12: Funcionamiento De La Máquina
Verifi que diariamente las puntas del pulverizador. Límpielas si están conectadas. Mensualmente o con la frecuencia que resulte necesaria, elimine todos los residuos que pueda haber en los tubos o mangueras de la aspiradora. Clarke ® -12- FORM NO. 70781A Manual del operador (ES) -
Page 13: Corrección De Problemas De La Máquina
ADVERTENCIA: Solamente personal autorizado puede realizar el mantenimiento y las reparaciones. Utilice únicamente piezas de Clarke. Si el mantenimiento no es llevado a cabo por un distribuidor de Clarke o si se utilizan repuestos que no sean de Clarke se podría anular la garantía. - Page 14 Toutes les indications de direction fi gurant dans ce manuel sont visualisées depuis la position du conduc- teur, à l’arrière de la machine. Pour toute commande de manuels, adressez-vous à votre revendeur Clarke. Table des matières Instructions de sécurité...
-
Page 15: Instructions De Sécurité De L'opérateur
Gardez toutes les fi xations biens resserrées. Maintenez les ajustages conformément aux spécifi cations. Assurez-vous que toutes les étiquettes, décalcomanies, avertissements, indications et instructions sont bien fi xés à la machine. Remplacez-les lorsque nécessaire en les commandant à Clarke Technology. N'utilisez pas de l'eau d'une température supérieure à 40°C. -
Page 16: Instructions De Mise À La Terre
à une prise électrique murale présentant la même confi guration que la prise. Il est interdit d’utiliser un adaptateur avec ce produit. ATTENTION : N’UTILISEZ PAS de rallonge avec cet appareil. ® -16- FORM NO. 70781A Clarke Manuel de l’utilisateur (FR) -
Page 17: Préparation De L'appareil Avant Sa Mise En Route
2. Utilisez uniquement un détergent de marque et mé- langez le détergent conformément aux instructions fi gurant sur l’emballage de celui-ci. Poignée de levage Couvercle Commutateurs Admission d'aspiration Attache Débranchement rapide Figure2 ® Clarke Manuel de l’utilisateur (FR) FORM NO. 70781A - 17 -... -
Page 18: Fonctionnement De La Machine
5. Tous les mois ou aussi souvent que possible, nettoyez tous les débris qui peuvent se trouver dans les tuyaux et les conduites d’aspiration. ® -18- FORM NO. 70781A Clarke Manuel de l’utilisateur (FR) -
Page 19: Correction Des Problèmes Liés À La Machine
AVERTISSEMENT : La maintenance et les réparations doivent être effectuées par du personnel au- torisé uniquement. Utilisez uniquement des pièces Clarke. Si une personne autre que le distributeur Clarke effectue la maintenance ou si des pièces autres que les pièces Clarke sont utilisées, la garantie risque d’être annulée. - Page 20 NOTES Clarke ® -20- FORM NO. 70781A Operator's Manual...
- Page 21 Section II Parts and Service Manual (70781A) ® Clarke Operator's Manual FORM NO. 70781A -21-...
-
Page 22: Section Ii Parts And Service Assembly Drawing
1/12 BEXTSPOT ASSY ® -22- FORM NO. 70781A Clarke Operator's Manual... -
Page 23: Parts List
Chain 8 W/ D Couplings Both E 805USP Screw #6 X 3/8 Ss Trusshead Phllip 325C Bolt 8-32 X 1/2 Pan Head 382C Screw 8-32 X 7/8 Panhead Phi = Revised or new since last update ® Clarke Operator's Manual FORM NO. 70781A -23-... -
Page 24: Tool Assembly Drawing And Parts List
1/12 ACCESSORIES ® -24- FORM NO. 70781A Clarke Operator's Manual... -
Page 25: Vacuum And Solution Hose Drawing And Parts List
All Purposes Spotter Case NOTE 2 [ ] = Not Shown = Revised or new since last update NOTE 1: The Deluxe Accessory Kit 10592A is included in machine package 04154A. NOTE 2: 6 Quart Bottles ® Clarke Operator's Manual FORM NO. 70781A -25-... -
Page 26: Authentic Clarke Products
WIRING DIAGRAM Clarke ® -26- FORM NO. 70781A Operator's Manual... - Page 28 14600 21st Avenue North Plymouth, MN 55447-3408 www.clarkeus.com Phone: 800-253-0367 Fax: 800-825-2753 ©2011 Nilfi sk-Advance, Inc. A Nilfi sk-Advance Brand...
