Summary of Contents for Jensen VR209

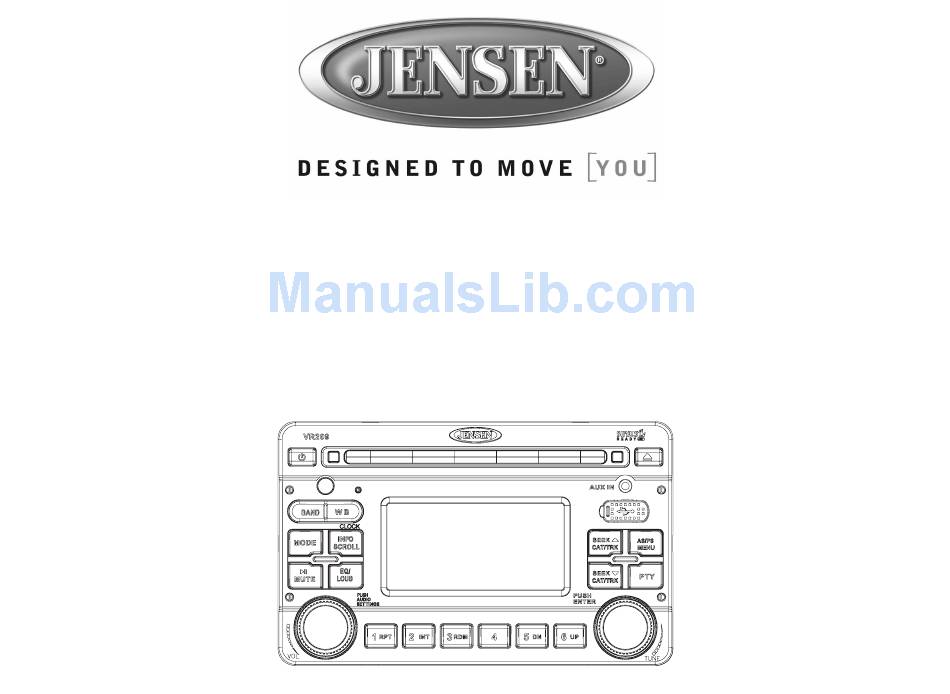

- Page 1 VR209 MOBILE AUDIO SYSTEM Installation and Operation Manual...
-
Page 2: Safety Information
SERVICING TO A QUALIFIED TECHNICIAN. WARNING: • TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO WATER. • TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES. VR209... -
Page 3: Disc Notes
VR209 DISC NOTES Depending on the recording status, conditions of the disc, and the equipment used for recording, some CD-Rs/CD-RWs may not play on this unit. For more reliable playback, please adhere to the following recommendations: • Use CD-RWs with speed 1x to 4x and write with speed 1x to 2x. -
Page 4: Installation
Make sure the ignition is turned off, and then disconnect the cable from the vehicle’s bat- tery negative (-) terminal. Insert the removal keys straight into the holes on the front of the unit, as far as they will Pull the radio straight out. VR209 DASHBOARD TABS SCREWDRIVER... - Page 5 VR209 WIRING iPOD Connector SIRIUS Connector Antenna Connector GROUND POWER ANTENNA Connect to power antenna or amplifier. Connect to ground terminal or clean If not used, tape bare end of wire. unpainted metal part of chassis. IR Remote Connector Aux-In RCA...
-
Page 6: Basic Operation
Once the desired menu item appears on the display, adjust that option by turning the VOL/AUDIO SETTINGS control (1) within 5 seconds. The unit will automatically exit the Audio Menu after five seconds of inactivity. The following menu items can be adjusted. VR209... -
Page 7: Auxiliary Input
VR209 Use the volume control to adjust the Bass level range from “-6” to “+6”. Treble Level Use the volume control to adjust the Treble level range from “-6” to “+6”. Balance (BAL) Use the volume control to adjust the Balance between the left and right speakers from “12L”... -
Page 8: Tuner Operation
Press the BAND (16) or MODE (4) button to exit weather band mode. NOAA Weather Alert The VR209 is equipped with a Weather Band Alert (WB Alert) and Weather Alert Power (Alert Pwr) feature that will cause the radio to turn on automatically when a weather alert is detected, adding an additional level of user safety. - Page 9 VR209 Stereo (ST) The unit will automatically pick up an FM stereo signal, when available. When in stereo mode, the “ST” icon appears in the display. When no stereo signal is available, the unit will automatically revert to mono operation, and no icon will be displayed.
-
Page 10: Cd/Mp3/Wma Operation
Press the RDM button (7) on the control panel during disc play to play all tracks on a CD in random, shuffled order. Press RDM again to stop random play. INFO SCROLL Button In iPod/USB/MP3 mode, press the INFO SCROLL button (14) to scroll the Title, Artist, Album information across the LCD. VR209... -
Page 11: Usb Operation
VR209 USB OPERATION Inserting and Removing a USB Device Inserting a USB Device Insert the USB device into the USB jack (12) and the unit will read the files on the USB device automatically. Removing a USB Device Press the MODE, WB, or BAND button, insert a CD, or connect an iPod to change to another mode and then remove the USB device from the USB connector. -
Page 12: Sirius Radio Operation
Turn the TUNE/ENTER control to select a number for the tens digit position. Press the TUNE/ENTER control again to confirm entry of the tens digit. The ones digit will flash on/off. Turn the TUNE/ENTER control to select a number for the ones digit position. VR209... -
Page 13: Parental Lock
VR209 Press the TUNE/ENTER control to tune to the selected channel. Parental Lock User code setting Press and hold the PTY button (13) to access user code setting mode. “CODE: _ _ _ _” appears on the screen indicating that the user should input the default user code. -
Page 14: Ipod Operation
Press the SEEK /\ button (20) once to play the song from the start position or press SEEK \/ twice to play the previous track. Press and hold the SEEK \/ / /\ button (19, 20) to fast reverse/forward the song. iPod playback will continue when the button is released. VR209... - Page 15 VR209 REMVRCC CARD REMOTE CONTROL (SOLD SEPARATELY) • POWER: Powers on/off. • MODE: Cycles through all available play modes (Radio, CDP, SAT, iPod, Aux). • VOL /\ / \/: Adjusts volume level. • AUDIO MENU: Accesses Audio and System Menu.
-
Page 16: Care And Maintenance
Noise can be picked up from passing automobiles. Although AM is subject to environmental noise, it can received at great distances. This is because broadcasting signals follow the curvature of the earth and are reflected back by the upper atmosphere. VR209... -
Page 17: Troubleshooting
VR209 TROUBLESHOOTING Symptom Cause No power The vehicle’s ignition is not The fuse is blown Disc cannot be loaded or Presence of CD disc inside ejected the player Inserting the disc in reverse direction Compact disc is extremely dirty or disc is defective... -
Page 18: Specifications
SPECIFICATIONS Signal to Noise Ratio..........> 60dB Channel Separation .
