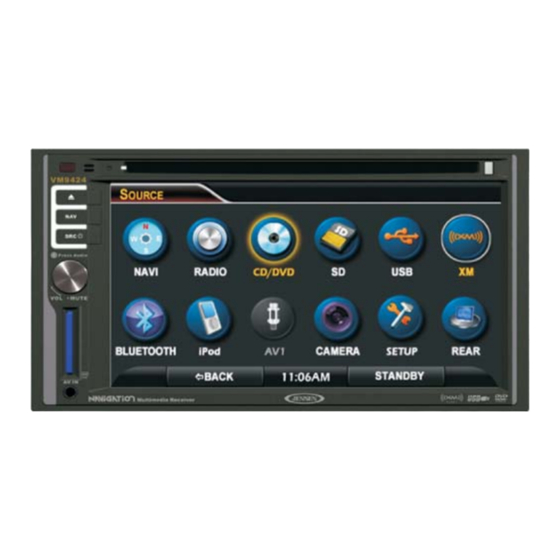

Jensen VM9424 Operating Instructions Manual

Jensen VM9424 Operating Instructions Manual

Mobile multimedia receiver
Hide thumbs Also See for VM9424:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
VM9424
Operating Instructions
160
watts peak
40W x 4

Advertisement

Table of Contents
loading

Related Manuals for Jensen VM9424

Summary of Contents for Jensen VM9424

  • Page 1 VM9424 Operating Instructions watts peak 40W x 4...

  • Page 2: Table Of Contents

    VM9424 CONTENTS Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen VM9424 Mobile Multimedia Receiver for maximum enjoyment.
  • Page 3 VM9424 VCD PBC - Play Back Control ............26 Playback Information ..............26 MPEG Playback On-Screen Controls ..........26 General Disc Information ..............27 CD/DVD/MP3 Audio Operation ............28 Accessing a USB Device ..............28 Accessing an SD Card..............29 Accessing Disc Mode..............
  • Page 4 VM9424 NavMate Table of Contents Horizon NavMate Introduction ............59 Key Features .................. 59 About GPS and GNSS..............59 Horizon NavMate Navigation / Tele Atlas Map Data....... 60 Safety Information................61 User Agreement................61 Driver Safety Rules ................. 61 Basic Operation................... 63 Acquiring a Satellite Signal .............
  • Page 5 VM9424...

  • Page 6: Features

    VM9424 FEATURES Congratulations on your purchase of the Jensen VM9424 Mobile Multimedia Receiver. It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen VM9424 installed by a qualified installation shop. •...
  • Page 7 VM9424 General • MediaLink USB - 3.5mm AV input and USB input • Built-In navigation (See “Horizon NavMate Introduction” on page 59.) • Bluetooth ready (with purchase of BTM10) providing hands-free profile for safety/convenience and A2DP profile for streaming music from a PDA/ phone •...

  • Page 8: Optional Equipment

    See “Bluetooth Operation” on page 42. • Rear Camera The VM9424 is "camera ready." Before accessing any camera features, you must purchase and install a rear video camera. Once the rear camera is connected and operating properly, the CAMERA source mode will...

  • Page 9: Warnings

    VM9424 WARNINGS WARNING! Never install this unit where operation and viewing could interfere with safe driving conditions. WARNING! To reduce the risk of a traffic accident (except when using for rear view video camera) never use the video display function while driving the vehicle.

  • Page 10: Controls And Indicators

    VM9424 CONTROLS AND INDICATORS 1. Reset Press to reset system settings to factory default (except the password and parental lock setting). 2. Touch Display 3. Disc Slot 4. NAV Press to access the navigation interface (see “Horizon NavMate Introduction” on page 59).
  • Page 11 VM9424 VM9424 / SRC Press Audio Mute AV N Multimedia Rec...

  • Page 12: Remote Control

    VM9424 REMOTE CONTROL See remote control tables in various sections for button functions. MUSIC VIDEO...

  • Page 13: Using The Tft Monitor

    VM9424 USING THE TFT MONITOR Aspect Ratio Press the WIDE button (4) on the monitor to adjust the aspect ratio as follows: FULL The entire screen is extended horizontally to the aspect ratio of 16 to 9. The extension ratio is the same at any point.

  • Page 14: Operating Instructions

    VM9424 OPERATING INSTRUCTIONS Power On / Off Press the SRC/ button (10) on the unit (or the button (4) on the remote control) to turn the unit on. The buttons on the front of the unit light up. Press and hold the button to power off the unit.
  • Page 15 VM9424 Source Menu You can also use he touch screen to change the source through the Source menu. To access the Source menu, touch the top left corner of the screen or press the SRC button on the front panel (10) or remote control (8).

  • Page 16: Volume Adjustment

    VM9424 to access auxiliary devices. You cannot directly control external devices connected to the AV IN connector. For information regarding the use of USB devices, see “Accessing a USB Device” on page 28. Volume Adjustment To increase or decrease the volume level, turn the VOL rotary encoder (5) on the front panel or press the VOL-/+ buttons (15, 16) on remote control.

  • Page 17: System Reset

    VM9424 NOTE: The EQ SETTING mode will automatically change to “USER” when individual audio functions are adjusted. The Audio menu will automatically exit after a few seconds of inactivity. To exit quickly, touch the top left corner of the screen or press the VOL rotary encoder (5).

  • Page 18: Steering Wheel Control (Swc)

    VM9424 Steering Wheel Control (SWC) The VM9424 is compatible with the PAC (Pacific Accessory Corporation) steering wheel control adapter SWI-PS. A 3.5mm female connector (labeled “SWC Interface”) on the back of the head unit allows connectivity to the PAC adapter. Please refer to the instructions included with the PAC adapter for detailed installation information.

  • Page 19: Setup Menu

    VM9424 SETUP MENU To access system settings, press the MENU button (1) on the remote control or touch the top left corner of the screen where the current source is indicated, and then touch the on-screen SETUP button. The “Setup” menu appears, with the current sub-menu highlighted in yellow.

  • Page 20: Adjusting A Feature

    VM9424 Adjusting a Feature 1. Use the touchscreen or press the buttons (26, 27) on the remote control to highlight the audio feature to be adjusted. 2. Use the touchscreen or press the OK button (30) on the remote control to view submenu choices.
  • Page 21 VM9424 Video Sub-menu Features Setting Options Function TV Shape 16 9 Aux IN Auto The color signal output is switched automatically based on the current video input signal - NTSC or PAL. The color signals are output in the standard PAL format.
  • Page 22 VM9424 Setting Options Function iPod Gain -7 to 7 Increase or reduce the relative volume (Gain). Auxin -7 to 7 Increase or reduce the relative volume (Gain). Gain SAT Gain -7 to 7 Increase or reduce the relative volume (Gain).

  • Page 23: Exiting The System Setup Menu

    VM9424 Setting Options Function Parental 1. Kid Select the appropriate rating level for the intended audience. Control Safe You may override higher ratings by using your password. 2. G 3. PG 4. PG-13 5. PG-R 6. R 7. NC-17 8. Adult Factory Select “Yes”...

  • Page 24: Tuner Operation

    VM9424 TUNER OPERATION Accessing Radio Tuner Mode To access the “Radio” screen, press the SRC button (10) on the front panel or touch the top left corner of the screen to access the Source menu, and then touch the “RADIO” icon. You can also press the SRC button (8) on the remote control until “RADIO”...

  • Page 25: Touch Buttons

    VM9424 Touch Buttons • : Seek tuning lower • : Incremental tuning lower • Scan: Scan the AM or FM band for a preview of available stations in your area • : Incremental tuning higher • |: Seek tuning higher •...

  • Page 26: Using Preset Stations

    VM9424 Using Preset Stations Six numbered preset buttons store and recall stations for 1 87.50MHz each band. All six stored stations (P1-P6) for the current band appear on the screen. 2 90.10MHz Storing a Station 3 98.10MHz 1. Select a band (if needed), then select a station.

  • Page 27: Dvd/Vcd Video Operation

    VM9424 DVD/VCD VIDEO OPERATION NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless the parking brake is applied. If you attempt to play a DVD while the vehicle is moving, the TFT screen displays “PARKING”...

  • Page 28: Dvd Playback On-Screen Controls

    VM9424 DVD Playback On-Screen Controls To access the on-screen controls, touch the screen while a DVD is playing. The following on-screen controls appear at the top and bottom of the screen: INFO CHAP SUB.T MENU • INFO: View on-screen playback information •...
  • Page 29 VM9424 Table 4: DVD/VCD Remote Control Functions Button Function Name ROOT Access DVD menu. Turns on/off PBC when playing TITLE Enter the title menu of the disc AUDIO Select alternate audio language Select Left Channel, Right Chan- nel, Mix or and Stereo output...

  • Page 30: Accessing The Dvd Menu

    VM9424 Accessing the DVD Menu Press the MENU button (1) on the remote control to recall the main DVD menu. Use the direc ional (arrow) buttons on the remote control to select a title from the menu or touch the title on screen.

  • Page 31: Vcd Pbc - Play Back Control

    VM9424 VCD PBC - Play Back Control For VCDs with play back functionality, play back control (PBC) provides additional controls for VCD playback. Press the ROOT button (21) on the remote control to toggle the PBC function “On”/”Off”. Once PBC is on, playback starts from track one of the play list.

  • Page 32: General Disc Information

    VM9424 General Disc Information Table 5: Disc Properties Symbol 12cm Disc Properties Max Play Time Single side single layer (DVD-5) (MPEG 2 Method) Single side double layer (DVD-9) 133 minutes Double side single layer (DVD-10) 242 minutes Double side double layer (DVD-18)

  • Page 33: Cd/Dvd/Mp3 Audio Operation

    Instructions for TFT control and Insert/Eject are the same for DVD and CD operation. Please see the DVD/Disc Video Operation section for information about these topics. The VM9424 will play music or other audio files from the following disc media: • CD-DA •...

  • Page 34: Accessing An Sd Card

    VM9424 Accessing an SD Card 1. Locate the SD connector (7) on the front of the radio. 2. Insert the SD card into the SD connector. 3. Press he SRC button (10) on the front panel or touch the top left corner of the screen to access the Source menu, and then touch he “SD”...

  • Page 35: Accessing Disc Mode

    VM9424 Accessing Disc Mode To access the DISC screen, press he SRC button (10) on he front panel or touch the top left corner of the screen to access the Source menu, and then touch the “CD/DVD” icon. You can also press the SRC button (8) on the remote control until “DISC”...

  • Page 36: Indicators/Controls

    VM9424 Indicators/Controls 1. (a) Current source (b) Touch to view “Source” menu and select a new source 2. Current track and total number of tracks on disc 3. Song title 4. Artist name (if available for MP3) 5. Album name (if available for MP3) 6.

  • Page 37: Direct Track Entry

    VM9424 Table 7: CD/DVD/MP3 Audio Remote Control Functions Press once to repeat song, twice to repeat album Repeat playback from time frame A to time frame B Up/down track list Page up/page down Select highlighted option or resume playback when paused/...

  • Page 38: Mp3/Wma File Requirements

    VM9424 MP3/WMA File Requirements This player allows you to play back MP3 and WMA files recorded onto CD-R/ RWs, DVD+R/RWs, and DVD-R/RWs. For CD-RW discs, please make sure it is formatted using the full method and not the quick method to prevent illegal disc operation.
  • Page 39 For example, a medium with the following folder/file hierarchy is subject to Folder Search, File Search or Folder Select, as shown below. The VM9424 player will only recognize three folder levels and does not display folders containing only other folders. In the example above, the unit will display folders 3, 4, 6, and 8, but not 2 and 7 since they do not contain any tracks directly.

  • Page 40: Xm ® Radio Operation

    VM9424 RADIO OPERATION ® ® Listeners can subscribe to XM Radio on the Web by visiting www.xmradio.com, or by calling (800) 967-2346. Customers should have their Radio ID ready (see “Displaying the Identification (ID) Code”). Customers can receive a limited number of free-to-air channels without activation.

  • Page 41: Indicators/Controls

    VM9424 Indicators/Controls 1. (a) Current source (b) Touch to view “Source” menu and select a new source 2. Current category 3. Channel name 4. Channel number 5. Artist name 6. Song name 7. Clock 8. Signal strength indicator 9. Current MENU level (CHANNELS, CATEGORY, PRESETS) 10.

  • Page 42: Direct Channel Entry

    VM9424 Direct Channel Entry To select a channel directly, touch the button on screen to display the direct entry menu. Enter the desired track using the on-screen number pad. Press OK to play the selected track number. To backspace, touch...

  • Page 43: Operation

    VM9424 iPod OPERATION ® NOTE: Be sure your iPod has the latest Apple firmware installed to avoid connectivity issues. This unit is Made for iPod. You can control your iPod via touch screen to access Playlist, Artist, Album, Songs, etc. Supported models include, but are not limited to, the following: •...

  • Page 44: Indicators/Controls

    VM9424 Indicators/Controls 1. (a) Current source (b) Touch to view “Source” menu and select a new source 2. File number and total number of files 3. Song title 4. Artist name 5. Album name 6. Playback progress indicator 7. Elapsed playing time/total playing time for current file 8.

  • Page 45: Using The Ipod Menu

    VM9424 Table 8: iPod Remote Control Functions Press once to repeat song, twice to repeat album SUB-T Select video menu ANGLE Select music menu Navigate iPod menu Select highlighted option or resume playback when paused/ stopped Previous file Next file...

  • Page 46: Direct Track Entry

    Enter the desired track using the on-screen number pad. Press OK to play the selected file number. To backspace, touch NOTE: To transmit the video from your iPod to the VM9424 screen, you must set the following options through the iPod video settings menu: TV Out = On, TV Signal = NTSC, and Widescreen = On.

  • Page 47: Bluetooth Operation

    Before attempting to use the Bluetooth functions on the VM9424, you must purchase and install the BTM10. When connected properly, the blue light appears illuminated. Bluetooth features are only available when the BTM10 is installed.

  • Page 48: Accessing Bluetooth Mode

    VM9424 • Some mobile phones (like Sony Ericsson) may have a "Power Saving Mode" option. PLEASE DO NOT use the power saving mode with the VM9424. • Before accepting or making a call, make sure your mobile phone's Bluetooth function is turned on.

  • Page 49: Touch Screen Buttons

    However, depending on your phone, the connection may be made using HSP (Head Set Profile), making some functions unavailable. This is a limitation of your phone, not the VM9424. Since there are a number of Bluetooth mobile phone implementations available on the market, operations with your Bluetooth mobile phone using this unit vary greatly.

  • Page 50: Managing Incoming Calls

    4. Select the set ing on your phone that allows you to add a new device. 5. Select “VM9424” from the pairing list on the mobile phone. 6. A prompt to pair or bond should appear on your wireless phone. Accept the request to initiate pairing.

  • Page 51: Making An Outgoing Call

    VM9424 Volume Control To increase or decrease the volume level, turn the VOL rotary encoder (5) on the front panel or press the VOL+/ VOL- buttons on the remote control (16, 15). Making an Outgoing Call Outgoing calls can be made using the direct dial screen or by selecting a number from the “Call Logs”...

  • Page 52: Bluetoo H Auto Connect

    3. Touch a number to dial it automa ically. NOTE: Some mobile phones do not support Phone Book upload through Bluetooth. This is a limitation of the phone, not the VM9424. Dialed Numbers The Dialed Numbers list retrieves the list of dialed numbers from your phone.

  • Page 53: Bluetoo H Streaming Music

    Bluetooth provides an Advanced Audio Distribution Profile (A2DP) for streaming music from a wireless phone or portable multimedia player (PMP), often called an MP3 player. The VM9424 allows you to play audio files from your phone or PMP using a Bluetooth connection.

  • Page 54: Viewing Jpeg Photos

    VM9424 VIEWING JPEG PHOTOS JPEG images stored as individual images or stored in folders can be accessed using the DISC/SD/USB interface. When a disc/card is loaded and read by the unit, the root menu will display the contents of the disc. Press the folder image to view the contents of a folder.
  • Page 55 VM9424 REAR CAMERA FUNCTION This unit is “camera ready.” Before accessing any camera features, you must install a rear video camera. When the camera is not installed and the function is accessed by gear selector being placed in reverse or by the unit’s menu, the message “VIDEO NOT DETECTED”...

  • Page 56: Rear Monitor Video Display

    VM9424 REAR MONITOR VIDEO DISPLAY This unit allows you to install one or two additional monitors (sold separately) for DVD/CD playback. You can play DVD video and another source simultaneously. For example, the unit’s screen can be set to Radio function while the rear passengers can watch a DVD/CD using an optional rear monitor.

  • Page 57: Troubleshooting

    VM9424 TROUBLESHOOTING Table 9: Troubleshooting Problem Cause Corrective Action GENERAL Unit will not Radio Fuse blown Install new fuse with correct rating power on Car battery fuse blown Install new fuse with correct rating Illegal operation Press the RESET button located in the...
  • Page 58 VM9424 Table 9: Troubleshooting Problem Cause Corrective Action Prolonged Improper aspect ratio Use correct aspect ratio setting image or setup improper height/width ratio display TUNER Weak station Auto antenna is not fully Connect the auto antenna control cable searching extended...

  • Page 59: Error Messages

    VM9424 Error Messages Table 10: Error Messages Message Cause Corrective Action Displayed Loading Disc is being read No Disc Disc is dirty Clean disc with soft cloth Disc is upside down Insert disc with label side up Disc not present in loading...

  • Page 60: Care And Maintenance

    VM9424 Care and Maintenance 1. Use only a clean silicone cloth and neutral detergent to clean the front panel or monitor. A rough cloth and non-neutral detergent (such as alco- hol) may result in scratching or discoloration. 2. Do not get water or cleaning fluids on the unit.

  • Page 61: Specifications

    VM9424 SPECIFICATIONS DVD/CD Player Compatible Disc Media: DVD + R / RW (Single and Dual Layer) and CD-R / Compatible Media Formats: CD-DA, MP3, WMA, VCD, SVCD, MPEG1 / 2 Signal to Noise Ratio: >95dBA Dynamic Range: >95dB Frequency Response: 20Hz to 20 kHz, -3dB Channel Separation: >...
  • Page 62 VM9424 DIN chassis dimensions: 7" X 7" X 2" (178mm x 178mm x 50mm) CEA Power Ratings Power Output: 13 Watts RMS x 4 channels into 4-Ohms @ < 1% THD+N Signal to Noise Ratio: 70dBA below reference (Reference: 1 Watt, 4-Ohms) Frequency Response: 20 Hz - 20 kHz, -3dB.
  • Page 63 VM9424...

  • Page 64: Horizon Navmate Introduction

    Turn by Turn Voice Guidance About GPS and GNSS The VM9424 uses a vehicle GPS (Global Positioning System)-based navigation device which utilizes digital map data to guide you from your selected location A to location B, using location information obtained from a Global Navigation Satellite System (GNSS).

  • Page 65: Horizon Navmate Navigation / Tele Atlas Map Data

    VM9424 Horizon NavMate Navigation / Tele Atlas Map Data The navigation map data covers the continental US, Alaska and Hawaii. The initial GPS location lock is best established when your vehicle is parked. If the device is in motion, the signal can take longer to initially connect. Once the initial coordinates are established, the software will follow you as you move and navigate.

  • Page 66: Safety Information

    VM9424 SAFETY INFORMATION User Agreement When the unit is first turned on, you will see the following message, warning you to operate your navigation system appropriately: You must agree to the above notice before using the navigation software. Touch the bar labeled “Press to accept.” to proceed to the Main Menu.
  • Page 67 • Do not use the VM9424 to navigate to a police station, hospital, etc. in an emergency. Call 911 for assistance. • Laws in some states prohibit wearing stereo headphones or may prohibit use or placement of a navigation device while operating a motor vehicle.

  • Page 68: Basic Operation

    VM9424 BASIC OPERATION Acquiring a Satellite Signal Drive your vehicle to an open area where the GPS signal can be clearly received and park the vehicle. If the device is in motion, the signal can take longer to initially connect.

  • Page 69: Using The Keyboard

    VM9424 Using the Keyboard Keyboard Command Buttons Table 1: Keyboard Command Buttons Press to clear your selection and start over. Press to switch to City entry. Press to switch to Postal Code entry. Press to add a space when entering a multi-word location.

  • Page 70: Selecting From Lists

    VM9424 After entering the second character, only letters that can be used to spell an existing destination will be available for selection of the third character, the fourth character, and so on. SPACE NOTE: On the keyboard screen, the “SPACE" button is located in the bottom center of the screen.
  • Page 71 VM9424 • Touch the marked item to select it. LINE ITEM UP SCROLL BAR LINE ITEM DOWN NOTE: Some lists keep track of the five most recently used selections, which are placed at the top of the screen. This feature allows you to...

  • Page 72: Function Buttons

    VM9424 Function Buttons Table 2: Common Command Buttons Press the map icon to view your current location on the map or to return to map mode. Zoom in the map to show a smaller area. Zoom out the map to show a larger area.

  • Page 73: Main Menu

    VM9424 Main Menu The main menu is your central point of access to all functions of the navigation software. It allows you to set your destination, manage your favorites and control all set ings of your device. The “Main Menu” consists of the following options: •...
  • Page 74 VM9424 Map Tracking Screen During navigation, the screen displays your route (in yellow) and your surroundings. A red/blue arrow identifies your current position. The upcoming maneuver is visualized in the upper left corner, along with the distance and approximate time before that turn. When you come up to a turn, you will hear a voice command at the appropriate time.
  • Page 75 VM9424 • To add a POI destination to your route, press the button. • For one-way streets, the transit direc ion is indicated with a red arrow. • For more information about navigation, see “Navigating” on page 92. Map Browsing Screen Touch (and hold) he screen to access Map Browsing Mode.

  • Page 76: Trip Computer

    VM9424 2D/3D/Split Screen During navigation or map browsing, you can click the button to switch between 2D (default), 3D and Split Screen map views. SPLIT Trip Computer The Trip Computer provides information about your vehicle speed, trip related timing, elevation, odometer and clock.
  • Page 77 VM9424 • Press the “i” icon to view detailed readings for each field. • Press the blue /\ / V arrow buttons or use the scroll bar on the right side of the screen to navigate the list. • Use the buttons to move hrough he list page by page.

  • Page 78: Selecting A Destination

    VM9424 SELECTING A DESTINATION There are five different ways to find and choose a destina ion. Some methods allow you to select from a list using the arrow keys, while others allow you to search using an on-screen keyboard. NOTE: If a route is in progress when you exit the navigation system, the unit will prompt “Do you want to resume guidance?”...
  • Page 79 VM9424 The “Go To...” menu appears, allowing you to search for an Address or Intersection, select a POI (Point of Interest), enter map Coordinates, or select a favorite or recent destination. State or Province Address or Intersection After choosing the destination State or Province, press the Address or...
  • Page 80 VM9424 address or intersection in the previously selected state beginning with the City or by entering the Postal Code. To toggle between City and Postal Code entry, press the button. 1. Begin entering the city by typing the City name or Postal Code. The navi- gation software will utilize it’s look-ahead feature and only offer characters...

  • Page 81: Choosing A Location On The Map

    VM9424 Coordinates Press the Coordinates button to route to a destination by directly entering latitude and longitude values. Choosing a Location on the Map 1. From the “Main Menu”, press the button. The “Map - Tracking” win- dow will be displayed, indicating your last location:...
  • Page 82 VM9424 2. Touch any part of the map area to enter browsing (panning) mode and navigate the map. Use he +/– buttons to zoom in/out. 3. Press the button to view and select the address nearest the crosshair, or press Quick POI to locate a POI in the visible map area.

  • Page 83: Navigating To A Recent Location

    VM9424 4. Touch the address to view the “Set” screen, where you can choose to set the address as your destination, your home address, or your vehicle position or choose to add this location to your address book. Navigating to a Recent Location Previous destinations are automatically saved to memory as “History”.
  • Page 84 VM9424 2. From the “Go To...” menu, select History. 3. A list of recent locations will appear on the screen. 4. Press to select a recent destination from the “History” list and view the “Start Route” screen. • Press the blue /\ / V arrow buttons or use the scroll bar on the right side of the screen to navigate the list.

  • Page 85: Navigating To Your Home Or Office Address

    VM9424 Navigating to your Home or Office Address The Home Address and Office Address buttons allow you to quickly navigate to your home or office address. If the home or office address is not already saved, a screen like the following will appear: Press the check mark to enter and save your home or office address.

  • Page 86: Choosing A Location From Your Address Book

    VM9424 Choosing a Location from your Address Book 1. On the “Main Menu”, press Go To..2. On the “Go To...” menu, press Favorites. 3. Press Address Book to view a list of Address Book entries. 4. Select an Address Book entry.

  • Page 87: Following A Trail

    VM9424 Following a Trail The Trail Book feature allows you to create a path using map points when navigation data is not available. To navigate to a saved Trail, perform the following steps: 1. Press the button to view the “Main Menu” (if not already doing so).
  • Page 88 VM9424 7. Follow the red line to begin traveling along he trail. You can press the button and then press Stop Trail at any time to cancel the route.

  • Page 89: Selecting A Point Of Interest

    VM9424 SELECTING A POINT OF INTEREST From the main menu, press the Go To... button and then press the Point of Interest button. The “Point of Interest” window will be displayed: The previously selected State or Province is automatically selected for the POI search.
  • Page 90 VM9424 • Use the buttons to move through the list page by page. 2. Click an item on the list to select that category OR press the button to access the keyboard and enter a category directly. City 1. Press the City button to enter the city in which you would like to find a point of interest.

  • Page 91: Browsing Poi Destinations

    VM9424 1. Press the button 2. Press Sort by Distance or Sort by Name to retrieve a list of POI’s within the parameters you entered. • Press the blue /\ / V arrow buttons or use the scroll bar on the right side of the screen to navigate the list.

  • Page 92: My Poi

    VM9424 2. Press to select Hospital, Restaurant, Parking Lot, Hotel, Gasoline Station or Atm and display a list of POI’s in that category. Straight Line Distance to POI/Phone Number POI Address POI Name • Press the blue /\ / V arrow buttons or use the scroll bar on the right side of the screen to navigate the list.
  • Page 93 VM9424 Add Category Before My POI can work properly, you must create a category before adding a new POI destination. Use the keyboard to create a new POI category name and set the Icons, Sound and Distance of your choice for the new category.
  • Page 94 VM9424 • Distance: Press to choose the distance from the destination at which you would like the chosen sound to be played. 4. Press the green check mark to complete the Category setup and confirm the Category entry. 5. Press the green check mark to confirm and add your new POI Category to the directory.
  • Page 95 VM9424 1. To add a destination to a My POI Category, press he following sequences of menu buttons: Go To... > Favorites > Edit Favorites > My POI > Add from the “Main Menu”. 2. Refer to information in the section titled “Selecting a Destination” on page 73 to locate a destination.
  • Page 96 VM9424 4. Press the green check mark to save your POI entry. A confirmation screen appears. 5. Press the green check mark to confirm and save the current entry under the selected Category in your My POI list. Edit My POI List To edit items on your My POI list, press the following sequences of menu buttons: Go To...

  • Page 97: Navigating

    VM9424 NAVIGATING The powerful capabilities of your navigation software will guide you along the shortest or quickest route from A to B – with voice commands and in 3D (optional). To begin navigation, select a location using the Go To... feature (see “Selecting a Destination”...
  • Page 98 VM9424 Intersection Zoom As you approach an intersection, the map will automatically zoom in to show a close-up view of the roads near the intersection point on the right side of the screen. Route Interruptions If you intentionally or accidentally leave the current route, the NavMate software will automa ically recalculate the route and prompt you to get back on track to your destination.

  • Page 99: Browsing The Map During Navigation

    VM9424 Press the button to return to the map screen. Browsing the Map During Navigation You can browse the map while navigating without interrupting the current route – you will still be guided through voice commands. • To browse during navigation, touch (and hold) the screen to ac ivate the Map Browsing feature.

  • Page 100: Arriving At Your Destination

    VM9424 2. Press Detour to view the “Detour” screen. 3. Choose a parameter for the Detour from the on-screen list. • Press the blue /\ / V arrow buttons or use the scroll bar on the right side of the screen to navigate the list.

  • Page 101: Managing Favorites

    VM9424 MANAGING FAVORITES The “Edit Favorites” menu allows you to save your home and work locations, as well as other frequent destina ions for easy recall. After entering an address or searching for a POI, you can choose the Save option to bookmark your...

  • Page 102: Edit Address Book

    VM9424 Edit Address Book The “Address Book” feature allows you to store and edit address book entries. To edit your address book, perform the following steps: 1. Press the button to access the “Main Menu” screen. 2. Press the following on-screen buttons in the order listed: a.

  • Page 103: Edit Trip Book

    VM9424 Edit Home/Office Address 1. On the “Edit Favorites” menu, press the Home Address or Office Address icon to add or replace the home or office address. A window like the following will appear: 2. Refer to information in the section titled “Selecting a Destination” on page 73 to locate the home or work address.
  • Page 104 VM9424 2. Press the Add button to create a new Trip or the Edit button to edit an existing Trip. Add New Trip 1. After pressing the Add button, use the on-screen keyboard to enter a name for your trip.
  • Page 105 VM9424 • Press the button to save the Trip name and go to the “Trip Book” screen. 2. Refer to information in the section titled “Selecting a Destination” on page 73 to locate the home or work address. Edit Trip 1.

  • Page 106: Edit Trail Book

    VM9424 3. Press to highlighted a Trip and view the destination screen for your trip. 4. Use the buttons at the bottom of the screen to make changes to you trip destinations or to add a new destination. • Touch to highlight a destination.
  • Page 107 VM9424 1. To access the Trail Book function, press the Trail Book button on the “Edit Favorites” menu. 2. Press the Add button to create a new Trail or the Edit button to edit an existing Trail.
  • Page 108 VM9424 Create a New Trail After pressing the Add button to create a new trail, you will see the “Name Trail Book Entry” screen, shown below: 1. Press the button to clear the default entry, if desired. 2. Use the keyboard to enter the name for your Trail. (See “Using the Keyboard”...
  • Page 109 VM9424 6. Continue adding waypoints until your trail is complete. 7. When finished, press the button and then choose Stop Trail. Edit Trail 1. To edit an existing Trail press the following sequences of menu buttons: Go To... > Favorites > Edit Favorites > Trail Book > Edit from the “Main...
  • Page 110 VM9424 2. Press to highlight the Trail you want to modify. The “Edit” screen appears. 3. Press Color to choose from ten colors for your dotted line guidance. Press the desired color to apply that color and return to the “Edit” menu.
  • Page 111 VM9424 Delete Trail 1. To edit an existing trail press the following sequences of menu buttons: Go To... > Favorites > Edit Favorites > Trail Book > Edit from the “Main Menu”. 2. Press to highlight the trail you want to delete.
  • Page 112 VM9424 2. Press to select the desired map scale. 3. Press the green check mark next to each trail to which you would like to apply he map scale setting.

  • Page 113: Setup Menu

    VM9424 SETUP MENU When using the navigation software for the first time, it is recommended that you customize the system parameter settings. For example, regarding navigation, you can choose to avoid or allow toll roads or ferries or change your map orientation. You can also edit display set ings, including the display of on-screen navigation icons.

  • Page 114: Display Options

    VM9424 • Simulation: Enable simulation mode (perform simulated navigation when not traveling). • Auto Recalculation: Automatically recalculate the route if a wrong turn is made. • Voice Guidance: When on, the system will give voice prompts. • Announcement Tone: When on, the system will give a double tone to alert you of the next turn.

  • Page 115: User Preferences

    VM9424 • Enlarged Intersection User Preferences Language Settings Press to choose from a list of available languages for on-screen text. Once a new language is selected, you will return the initial screen and be required to review safety information in the chosen language.
  • Page 116 VM9424 Day/Night Settings From the Day/Night Settings menu, press to select Day or Night mode, shown below. Press Auto. to allow the mode to be chosen automatically based on the time of day. DAY MODE NIGHT MODE Point of Interest Icon Setup This option allows you to choose a specific POI icon scale for selected POI categories.

  • Page 117: Location Reset

    VM9424 Location Reset Press to reset the location of your vehicle. System Volume From the “System” menu, select Volume to modify he volume of voice commands. • Press the + button to increase the volume. • Press the – button to decrease the volume.
  • Page 118 VM9424 System Information View software version, map version and copyright information.
  • Page 119 VM9424...
  • Page 120 Audiovox Electronics Corporation Hauppauge, NY 11788 Technical Assistance: 1-800-323-4815 www.jensen.com © 2010 Audiovox Ver. 030510 Printed in China...

  • Page 121: Tools And Supplies

    Installation Guide VM9424 What’s in the Box Tools and Supplies You will need these tools and supplies to VM9424 Head Unit Left and Right Double DIN install your VM9424: • Torx type, À at-head and Philips Mounting Brackets Double DIN Half Sleeve Install Bracket screwdrivers •...

  • Page 122: Disconnecting The Battery

    To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to in- stallation. NOTE: If the VM9424 is to be installed in a car equipped with an on-board drive or navigation computer, do not disconnect the battery cable. If the cable is disconnected, the computer memory may be lost. Under these conditions, use extra caution during installation to avoid causing a short circuit.

  • Page 123: Using The Cosmetic Trim Ring

    Installation Using Half-Sleeve Step 1-b Install half-sleeve in the dashboard. Install adapter if necessary (optional). Install half-sleeve into adapter or dashboard (use only the supplied screws). Do not force the sleeve into the opening or cause it to bend or bow. WARNING! Only connect the unit to a 12-volt power supply with proper grounding.

  • Page 124: Wiring Diagram

    Wiring Diagram IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the installation handled by an experienced technician. Need Help? For technical assistance, call the Jensen customer support line at 1-800-323-4815. MediaLink USB (Included)

Table of Contents
