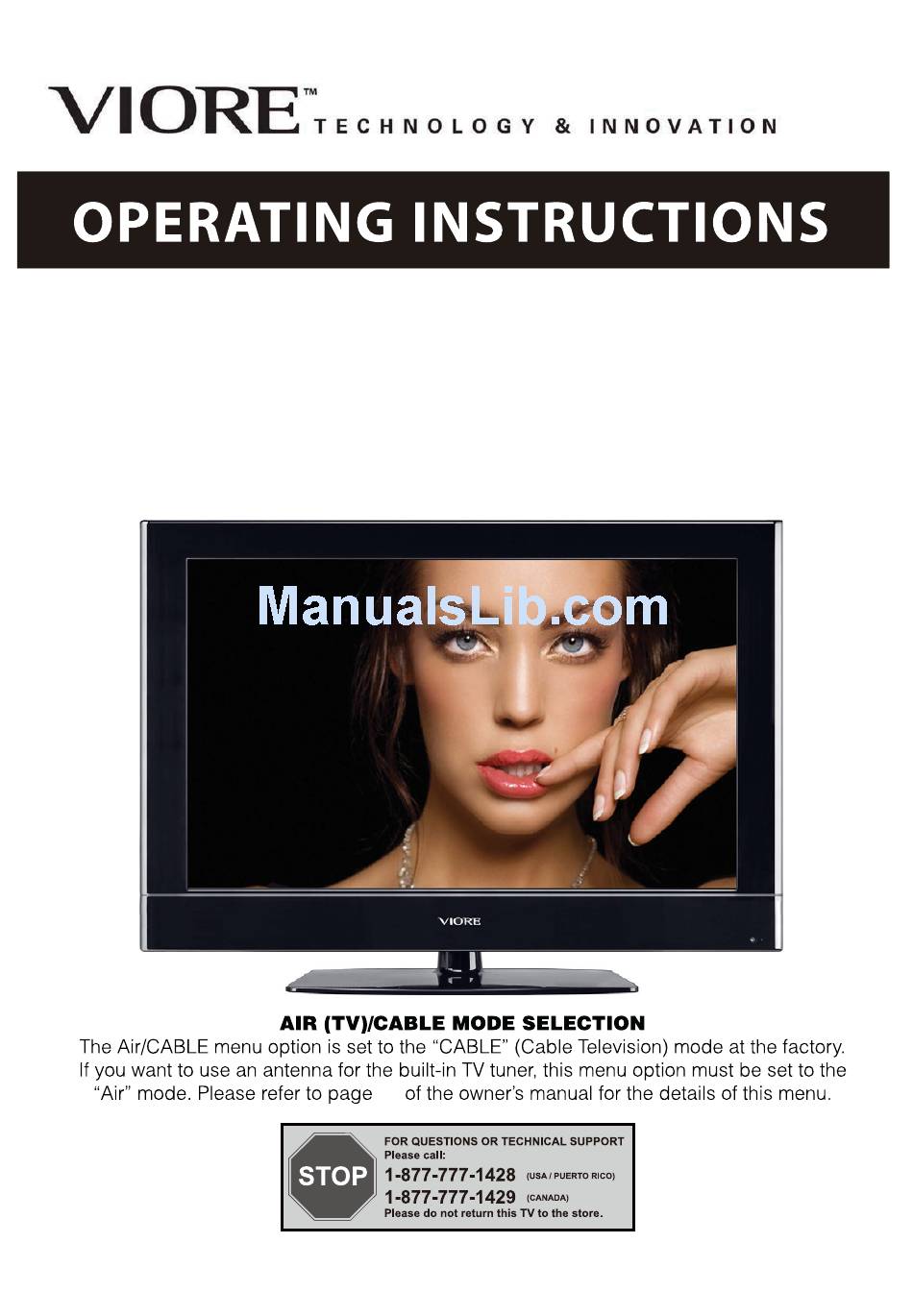

- Page 1 40" Internet-Connected 1080p LCD Television LC40VF60CN Ver. 110720-1...
-
Page 3: Table Of Contents
3. Instruction for Wall Mount 4. Remote Control Basic Operation OSD Menu 11-22 1. Picture menu 2. Sound menu 3. Entertainment menu 4. Channels menu 14-15 5. Lock menu 16-17 6. Setup menu 18-19 7. Software Upgrade 20-21 8. USB menu Simple Troubleshooting VIORE... -
Page 4: Caution
Caution Caution is intended to alert the user to the presence of un-insulated "dangerous to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information Electrical safety Physical safety... -
Page 6: Unit And Accessories
ASPECT TV set Remote control Batteries: 2xAAA LC40VF60CN Stand Installation Guide Step 1. Place the TV with display side down at the edge of the table or desk (flat surface), and insert the Part B (Stand) to the Part A (Slit provided on the bottom of the TV). -
Page 7: Introduction
Introduction Introduction 1. Front View Remote Control window Led Indicator (Keep clear) 1). (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off. Indicator on(Red) Standby mode Indicator on(Green) Power on mode The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30 to the left or right side and 20... -
Page 8: Rear View
Introduction 2. Rear View R-IN L-IN HDMI3 PC audio Coax VIDEO R-IN L-IN Headphone RJ45 : Connect to the network. : For service, Multimedia and Wireless network. HDMI1/2/3 : Connect it to the HDMI output of the external device. COAX : Digital Audio Output. YPbPr : Connect them to the video output terminal of the external device. -
Page 9: Instruction For Wall Mount
- 4 pcs of type M6 screws are required for installing the wall mount bracket to your VIORE TV. Do not use screws that are longer than 15 mm. Screws that are too long may cause damage to the inside of the TV set. - Page 10 Introduction The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. POWER SOURCE SOURCE: Press to display the input source menu.
-
Page 11: Remote Control
Remote Control Introduction Installing Batteries 1. Open the battery compartment cover on the back of the remote control. 2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery compartment. Don’t mix different types or used batteries with new ones. 3. -
Page 12: Basic Operation
Basic Operation Power on/off 1. Connect to the power supply with the power cord, and turn on the switch. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Input Source select Press INPUT/SOURCE button on the TV set or remote control to display input source menu, and use CH+/- button on the TV set or... -
Page 13: Osd Menu
OSD MENU 1. Picture menu Standard Description Picture Mode: Select your desired picture mode. You may select the picture mode directly by pressing the PICTURE button on the remote control. Note 1: the values of the Contrast, Brightness, Color, Tint and Sharpness are Unchanged in Standard, Movie, Sport, Energy Saving picture mode. -
Page 14: Sound Menu
OSD Menu OSD MENU 2. Sound menu Standard Description Sound Mode: Select your desired sound mode. You may select the sound mode directly by pressing the SOUND button on the remote control. Note: the values of the Bass, Treble and Balance are Unchanged in Standard, Music, Movie, and News sound mode. -
Page 15: Entertainment Menu
OSD MENU 3. Entertainment menu Description NETFLIX: Enter the Netflix Apps. VUDU: Enter the Vudu Apps. USB Multimedia: Enter the USB multimedia menu when there’s USB device connected. Note: You can not enter the menu when there’s no network connected or no USB device connected. -
Page 16: Channels Menu
OSD Menu OSD MENU 4. Channels Description Tuning Band: Allow you to select antenna between Air and Cable. Channel Auto Scan: Enter the Channel Auto Scan menu to start auto scan. The receivable channels will be stored automatically. When searching channels, press OK to stop and exit. It will take a while to auto scan DTV and ATV channels, please wait patiently. - Page 17 OSD Menu OSD MENU Favorite Channels Setting: Enter the Favorite Channels Setting menu to edit the channels. Select the channel by button, and press OK button to add(Yes) the channel to the favorite channel list or delete(No) it. You could press the FAV button on the remote control to display the favorite channel list.
-
Page 18: Lock Menu
OSD Menu OSD MENU 5. Lock menu Description You must enter the password to gain access to the Lock menu. The default password is 0000. Lock On/Off: Allow you to turn on or off the system lock. If deactivated, the functions described below don’t work. - Page 19 OSD Menu OSD MENU Advanced Ratings: buttons to select, and press OK buttons to confirm. Select OK item to store and exit, Select Cancel item to exit without storing the settings. Change PIN: Change the password, you must enter the new password twice to confirm it. Note: Do not forget the password.
-
Page 20: Setup Menu
OSD Menu OSD MENU 6. Setup menu Description Menu Language: Select OSD menu language. Closed Caption: Mode: Allow you to select the CC Mode among: CC On, CC Off and CC on Mute. Digital Caption: Allow you to select the digital caption among: off, Service1, Service2, Service3 Service4, Service 5 and Service 6. - Page 21 OSD Menu OSD MENU Input Labeling: buttons to select, and press OK buttons to confirm. Select OK item to store and exit, Select Reset item to reset the settings. PC Setting: If the video input signal comes from your PC, you may adjust the Vertical Position, Horizontal Position, Clock Phase, Sampling Clock or even perform an Auto adjust.
-
Page 22: Software Upgrade
OSD MENU 7. Software Upgrade Software Upgrade via Internet: You can update your TV by downloading and installing the newer version software via internet. Note: 1. Your TV detects the availability of the newer version software via internet. 2. If the newer version software is not available, upgrading is NOT necessary. 3. - Page 23 OSD MENU If the menu for upgrading is not displayed or upgrading failed during the process, you can try the following procedure. Check your internet connection. Make sure that you have a stable internet connection. Press MENU button on the remote control to display the OSD menu shown in the right.
-
Page 24: Usb Menu
OSD MENU 8. USB menu 1). Insert the USB device. 2). Press MEDIA button on the remote control. The TV will search and detect the device automatically, and display the menu as shown below. Note: You can also enter the menu by selecting "USB Multimedia" in the Entertaiment menu. Note: The TV will display the USB menu automatically when you insert the device. -
Page 25: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV. - Page 26 LCD Panel Panel Size 40 inch (diagonal) Brightness 450 cd/m Dynamic Contrast 10000:1 Resolution 1920x1080 Input Connector Video Audio(L/R) PC Audio HDMI YPbPr RJ45 Headphone Output Connector COAX Power Source 100-240V~ 50/60Hz Max Power consuption 200W * Product specifications and appearance are subject to change without notice. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
-
Page 27: Viore Limited Warranty
VIORE will repair or if repairs cannot be made, VIORE will replace this Product at no charge with the same, like or similar Product if the Product is defective as specified in this limited warranty during the limited warranty period. VIORE may use new or remanufactured parts or products to repair or replace the Product at its sole discretion. - Page 28 VIORE, Inc. 7801 Hayvenhurst Avenue, Van Nuys, California 91406 Printed in China...
