Summary of Contents for VIORE LC32VH70

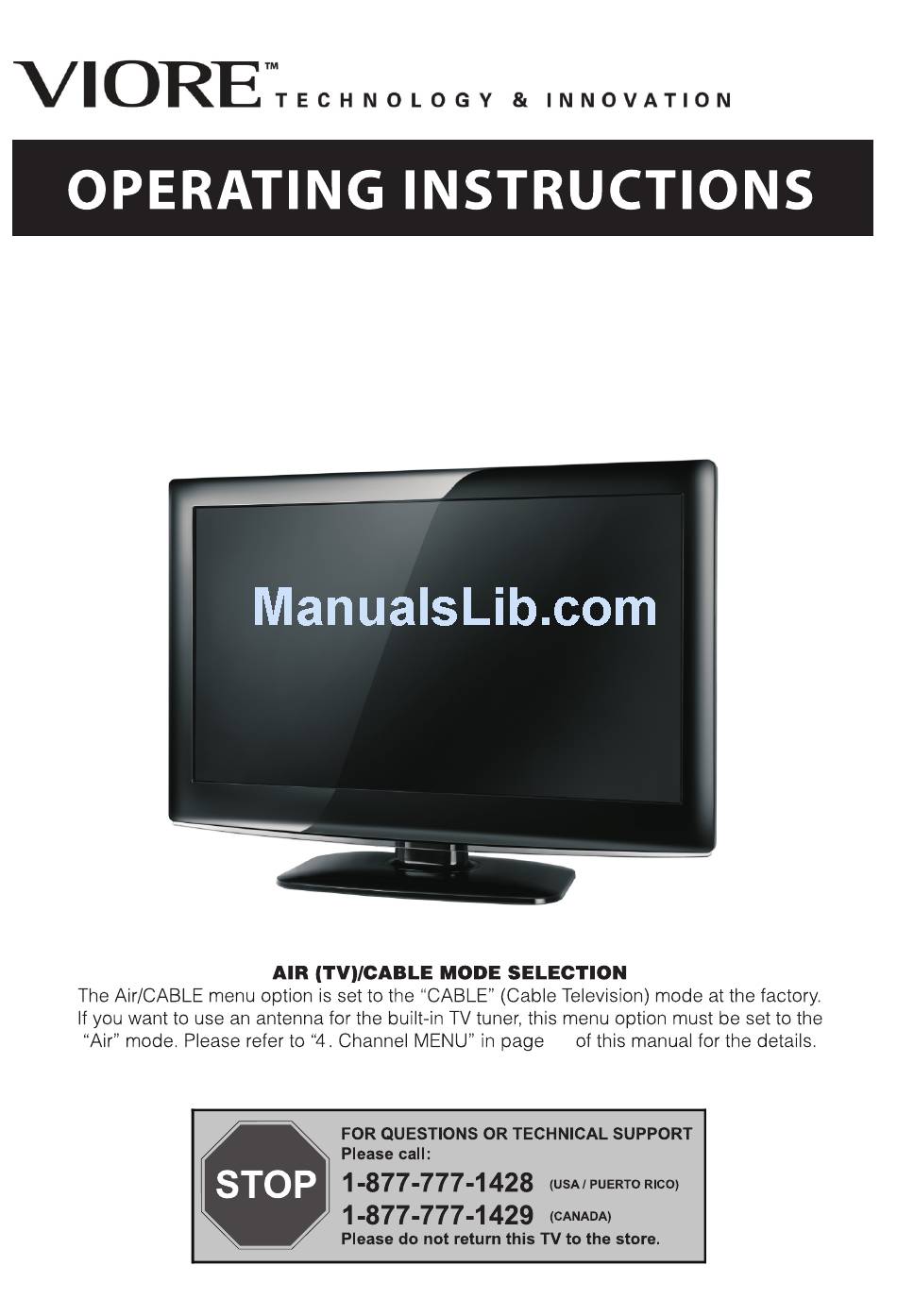

- Page 1 32" HD LCD Television LC32VH70...
-
Page 2: Table Of Contents
Contents Safety and warnings..................2-3 Introduction....................4 Installation....................5-8 Wall Mount ....................9 Remote Control...................10 Operation.....................11-15 Trouble Shooting..................16... - Page 3 SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION CAUTION 1) Read these instructions. RISK OF ELECTRIC SHOCK 2) Keep these instructions. DO NOT OPEN! 3) Heed all warnings. CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO 4) Follow all instructions. NOT REMOVE COVER (OR BACK).NO USER 5) Do not use this apparatus near water.
-
Page 4: Safety And Warnings
SAFETY AND WARNINGS High voltages are used in the operation of this television Never stand on, lean on, or suddenly push the television or receiver. Do not remove the cabinet back from your set. its stand. You should pay special attention to children. Refer servicing to qualified service personnel. -
Page 5: Introduction
INTRODUCTION Main features Accessories 1366 x 768 native resolution for HD performance ■ Power Cable........Integrated ATSC TV tuner for HDTV broadcast reception ■ High brightness provides a vivid and brilliant picture Infrared Remote Control... ■ Deeper blacks and brighter whites with high contrast ■... -
Page 6: Installation
INSTALLATION Side panel Front panel SOURCE MENU VOL+ VOL- VIDEO STANDBY VIDEO HDMI3 INPUT 1．SOURCE：Display the input source menu. 2．MENU：Display main MENU. 3．CH+/CH-:In TV mode，press“CH+”or“CH-”to change the channel up and down.In MENU mode, press “CH+”or“CH-”to select items .In standby mode, press“CH+”or“CH-”to turn on the TV. - Page 7 INSTALLATION STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to VGA mode. 4.Power on the VGA. This sequence is very important. HDMI1 INPUT HDMI2 INPUT VGA INPUT...
- Page 8 INSTALLATION ANTENNA 400mm Note: Aerial connections:IEC(female). Input impendance:75 unbalanced.
- Page 9 INSTALLATION AV EQUIPMENT This TV provides two group of AV ,one group of YPbPr for convenient connectionto VCR,DVD or other video equipment. Please refer to the owner s manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows. VIDEO EQUIPMENT with YPbPr Yellow (video) White(audio L)
-
Page 10: Wall Mount
- 4 pcs of type M4 screws are required for installing the wall mount bracket to your VIORE TV. Do not use screws that are longer than 10 mm. Screws that are too long may cause damage to the inside of the TV set. -
Page 11: Remote Control
REMOTE CONTROL 1: POWER POWER MUTE To set the TV standby or on. 2: NUMBER KEY For direct access to program. RECALL 3: MENU To display TV menu or to return to the previous menu. 4: CURSOR To move within the menu. 5: EXIT Used to exit menu. -
Page 12: Operation
OPERATION 1.SETUP WIZARD 2)If "Retail" mode is selected, the following menu will be displayed to confirm your selection. Select The Setup Wizard is provided so that you can select "Yes" by using "left/right arrow" keys on your remote "Home" mode or "Retail" mode for the initial picture control, and press "ENTER"... -
Page 13: Setup Menu
OPERATION 4. SETUP MENU 2. PICTURE MENU The first item of the MENU is PICTURE MENU. The third item of the MENU is SETUP MENU. You can adjust picture effect here, such as contrast, brightness, etc. You can setup system here. Press to select and press to adjust. -
Page 14: Change Password
OPERATION Change Password: Press button and the screen will display as follows: Content Rating Content (Fantasy (Violence) (Sexual (Adult (Sexually violence) situation) language) suggestive dialog) TV-Y (All children) ---- TV-Y7(Direct to Old password order children) ---- Suggested New password TV-G(General ---- audience) Confirm password... - Page 15 OPERATION 4.2 Timer Description Rating You can adjust timer here. Press to select, and press to adjust. Press MENU Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming. to exit. Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of securityand well-being.
-
Page 16: Channel Menu
OPERATION 4.4 Menu Settings You can adjust Menu Settings here. Press to select. Press to adjust. Press MENU to exit. Are you sure? < > Transparency Press“ENTER”Key To Select < > Menu Language English Adjust Select Menu Exit Select“yes”and press the ENTER button. You will see the following screen that shows progress of Auto Scan. -
Page 17: Trouble Shooting
TROUBLE SHOOTING Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost Normal audio or connection electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume(check if mute is activated or if the audio system Normal Picture connections are not correct) Mute... - Page 18 Ver.110929-1 Viore,Inc. 7801 Hayvenhurst Avenue, Van Nuys,CA 91406 Printed in China...
