40" Commercial Grade 1080p LCD Television
LC4OVFSHTL
AIR (TV)/CABLE
MODE
SELECTION
The Air/CABLE
menu option is set to the "CABLE" (Cable Television)
mode at the factory.
If you want to use an antenna for the built-in TV tuner, this menu option must be set to the
"Air" mode. Please refer to page 17 of the owner's manual for the details of this menu.
Advertisement
Table of Contents
Related Manuals for VIORE LC40VF5HTL
Summary of Contents for VIORE LC40VF5HTL

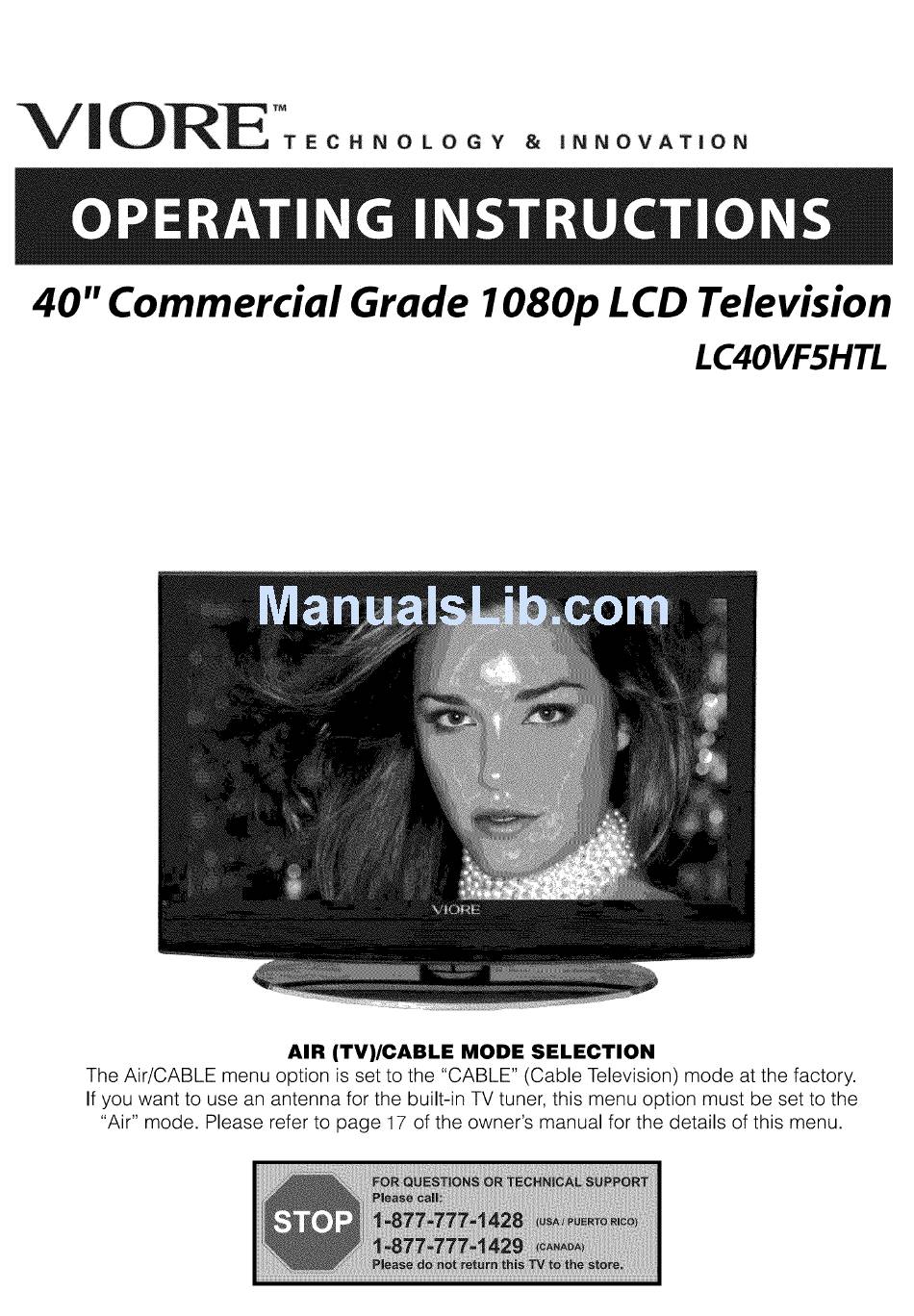

- Page 1 ORETTEC H N O LOGY & NOVAT|ON 40" Commercial Grade 1080p LCD Television LC4OVFSHTL AIR (TV)/CABLE MODE SELECTION The Air/CABLE menu option is set to the "CABLE" (Cable Television) mode at the factory. If you want to use an antenna for the built-in TV tuner, this menu option must be set to the "Air"...
-
Page 2: Table Of Contents
Contents Contents Caution Safety Information Instructions for fixing stand Unit and Accessories Product Feature Introduction 1. Front View 2. Rear View 3. Remote Control Basic Operation 10-11 OSD Menu 12-20 1. Picture menu 2. Audio menu 3. Time menu 4. Setup menu 5. -
Page 3: Caution
Caution Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the... -
Page 4: Safety Information
Safety Injbrmation Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below. Electrical safety • The TV set should only be connected to a mains supply which matches that stated on the label on the mains adaptor •... -
Page 5: Instructions For Fixing Stand
Instructions for fixing stand Instructions for fixing stand Note: the pictures below are only for reference 1. Insert stand(part A) into unit(part B). Bottom of the stand 2. Screw the stand in the position as the picture shows. Screws (6 x ST4 x 12F) are provided with stand. -
Page 6: Unit And Accessories
Unit and Accessories and Product Feature Unit and Accessories TV set Stand Security Cover User's Manual User's manual Remote control Mains cable Lock Batteries: 2xAAA Screws for security plate(6xST4x20C) d',t Screw driver= (3xM3xl0) (3xST3xl0C) Screws for security cover Screw driver= Security Plate Screws for stand... -
Page 7: Introduction
Introduction Introduction 1. Front View t,-a Remote control window(keep clear) LED Indicator 1. (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press Power Button to turn on and off. Indicator on(Red) Standby mode Power on mode Indicator on(Green) The effective receiving... -
Page 8: Rear View
Introduction 2. Rear View POWER SWITCH POWER AC POWER IN: Connect to an earth 100-240V, 50/60Hz AC outlet with the PowerCable. POWER SWITCH: Switch on or off the power suply. HDMII/2: Connect them to the video output terminal of DVD.(used in HDTVl mode) PC AUDIO... -
Page 9: Remote Control
Introduction 3. Remote Control The remote control is usin9 Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i! ¸ii... -
Page 10: Introduction
Introduction Installing Batteries 1. Open the battery compartment cover on the back of the remote control. 2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery compartment. Don't mix different types or used batteries with new ones. 3. -
Page 11: Basic Operation
Basic Operadon Basic Operation Power on/off 1. Connect to the power with a mains cable and an adaptor (page9). 2.-To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. -
Page 12: Basic Operation
Basic Operation Basic OSD Menu operation Press MENU button to display the OSD menu as below: Use ( / > button to select the main menu, and press V button to enter the submenu. In the submenu, use A / V button to select the function item, and you could: adjust ("Contrast"... -
Page 13: Osd Menu
OSD Menu OSD Menu 1. Picture menu Picture mode: Select between Standard, Dynamic, Mild, Sports and User. You may select the picture mode directly by pressing the PICTURE button on the remote control. Contrast: Control the difference between the bright and dark regions of the screen picture. Brightness: Adjust brightness of the picture. -
Page 14: Audio Menu
OSD Menu 2. Audio menu Sound Mode: Select your desired picture mode as follow: Flat, Music, Movie, Sports and User You may select the sound mode directly by pressing the SOUND button on the remote control. Bass: Low frequencies intensity. Treble: High frequencies intensity. -
Page 15: Time Menu
OSD Menu 3. Time menu Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or deactivate this function. Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central and Mountain. Daylight Saving Time: Select between On and Off. Clock: User can not change time manually during DTV mode, for time is from signal source... -
Page 16: Setup Menu
OSD Menu 4. Setup menu Menu Language: Select OSD menu language. Transparency: Turn on or off the transparency menu function. Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom. Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle. -
Page 17: Lock Menu
OSD Menu 5. Lock menu You must enter the password to gain access to the Lock menu. The default password is 0000. You may modify the following options: Change password: Change the password, you must enter the new password twice to confirm it. -
Page 18: Channel Menu
OSD Menu 6. Channel menu Air/Cable: Allow you to select antenna between Air and Cable. If you selet "Cable", the following items(Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to use. Auto Scan: Enter the Auto Scan menu to start auto scan. "k If you select "Cable"... - Page 19 OSD Menu Show/Hide: Allow you to show or hide the channels. Use A / V button to highlight the desired item, then press OK button to show or hide the highlighted channel. > Channel No.: Show and select the channel. Channel Label: Allow you to setup a label for the channel.
-
Page 20: Specialty Hotel And Commercial Features
Specialty Hotel and Commercial Features Specialty Hotel and Commercial Features Securing the TV This TV can be secured to the surface of a desk or table using the included security plate and lock. To secure the TV: • Affix the security plate firmly to the surface of a desk or table in the position where you would like the TV to be located using 6xST4x20C type screws. - Page 21 SpecialtyHoteland Commercial Features Lower the TV carefully onto the security pin. Always use 2 or more people for this task. • Lock the TV to the security pin using the included lock. Swivel Stand Optimum viewing angle for your guest. Using the connector security cover...
- Page 22 Specialty Hotel and Commercial Features Bend cables downwards and tie together Fix cover in place with provided 6 x security screws and screwdriver. Take care not to capture cables between TV and cover. 3xM3xl0 Screw driver= 3xST3xl0C...
- Page 23 Specialty Hotel and Commercial Features Configuring Hotel Mode settings This TV includes a specialized Hotel Mode Menu that allows you to configure settings for hotel and commercial use. You may restrict users' access to TV features and control channel and volume settings.
- Page 24 Specialty Hotel and Commercial Features Details of settings are below (2) To block access to tuner settings • Set Channel Menu Display to ON. User cannot access channel menu so tuner settings cannot be changed. (3) To lock channel to current selection •...
- Page 25 Specialty Hotel and Commercial Features • Cloning Support Master TV settings can be easily transferred to multiple guest room TVs using the optional Cloning Tool CLIO0. Please refer to CLIO0 user manual for details. Master TV TVs for Guest Rooms Cloning Tool Model: CLIO0 (Optional) Upload setting...
-
Page 26: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. -
Page 27: Technical Specifications
