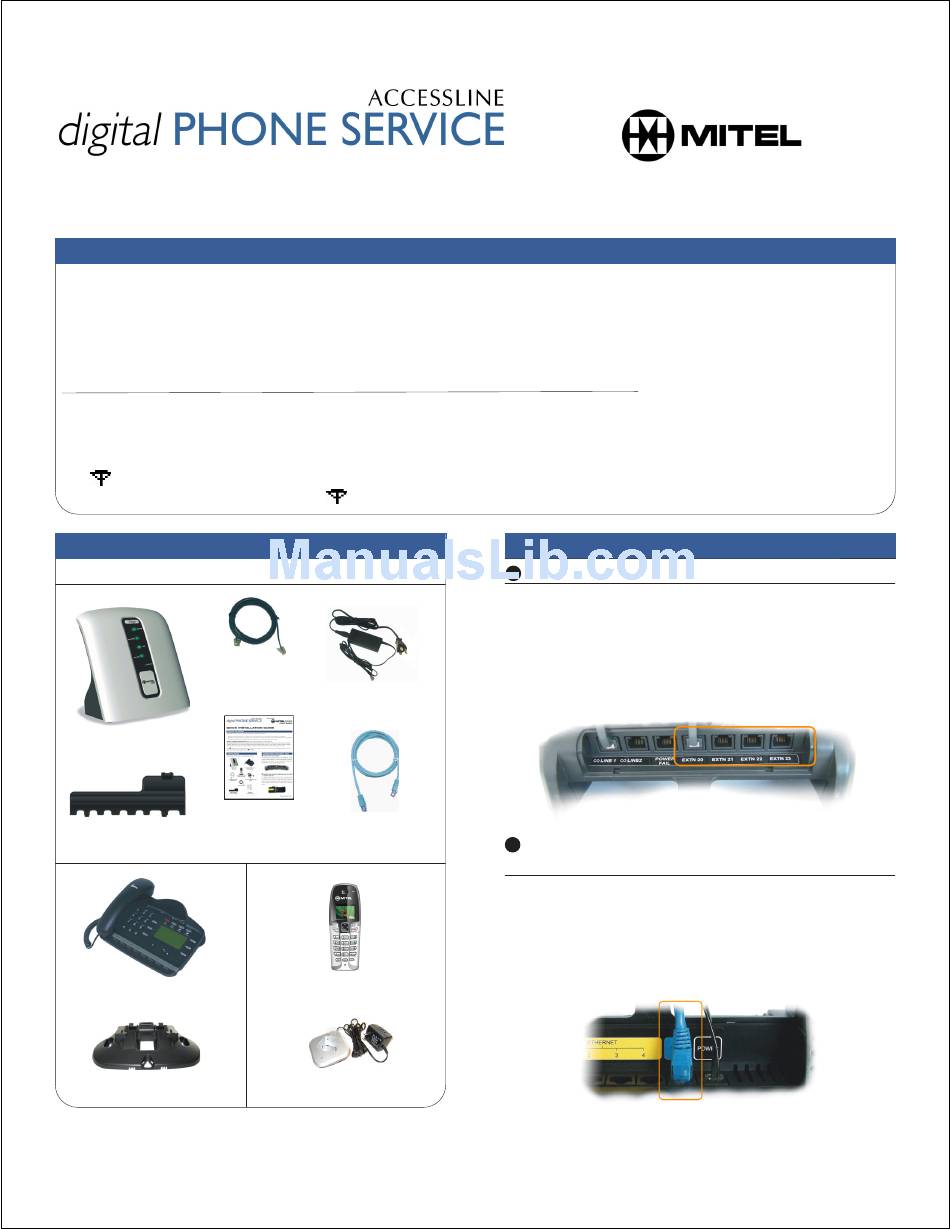

QUICK INSTALLATION GUIDE

BEFORE YOU BEGIN

When selecting the location for the Base Unit please consider the following:
• Distance from your existing router - You will need to connect the Base Unit to your router with a WAN cable (one is supplied).
• Distance from the Base Unit to the Desk Phones - You will need to connect the Desk Phones to the Base Unit using phone cords (supplied)
• The range of the optional cordless handsets should be considered to ensure you have satisfactory coverage.
DIGITAL CORDLESS PHONE RANGE (skip if you do not intend to use Cordless phones)
The Digital Cordless phones have a range of 650ft outdoors when there is a clear line of sight between the Mitel 1000 and the
handset. When there is no clear line of sight between the handset and the system, e.g. the system is indoors and the handset is
either indoors or outdoors, the range could be reduced to 160ft. Thick stone walls will severely affect the range.
The symbol on your handset indicates when you are in range. If you move too far away from the Mitel 1000 during a call
your phone will sound an alert tone and

PARTS CHECK

Your package should arrive containing the following:
BASE UNIT
2 Line Cable (Gray)
1 MITEL 1000
Base Unit
This Quick
1 Main Distributor Installation Guide
Frame Cover (MDF)
DESK PHONE
1 or More MITEL 1000
Desk Phone(s) with cord
Desk Phone
Plinth
895-MPL-001
will flash.
1 Power Supply MITEL 1000
(PSU)
1 Blue (Ethernet WAN)
Cable RJ-45
CORDLESS PHONE (optional)
Optional MITEL 1000
Cordless Phone(s)
Cordless Phone
Stand & Charger
featuring the

CONNECTING YOUR MITEL 1000

CONNECTING DESK PHONES
1
At a minimum, your system will have one Desk Phone. Please
connect it into extension 20. Other Desk Phones connect to
extensions 21, 22 and 23. To do so, plug the phone cord
(already attached to the phones) into the extension sockets
on the back of the Base Unit.
2 CONNECTING THE MITEL 1000 BASE UNIT TO YOUR
EXISTING ROUTER
Use the blue WAN cable and connect one end to the WAN
port (located next to the Power port) on the back of the base
station. Connect the other end of the blue WAN cable to an
unused LAN port on the back of your existing router or modem/
router.
1000

Phone System

CONTINUED ON BACK...
