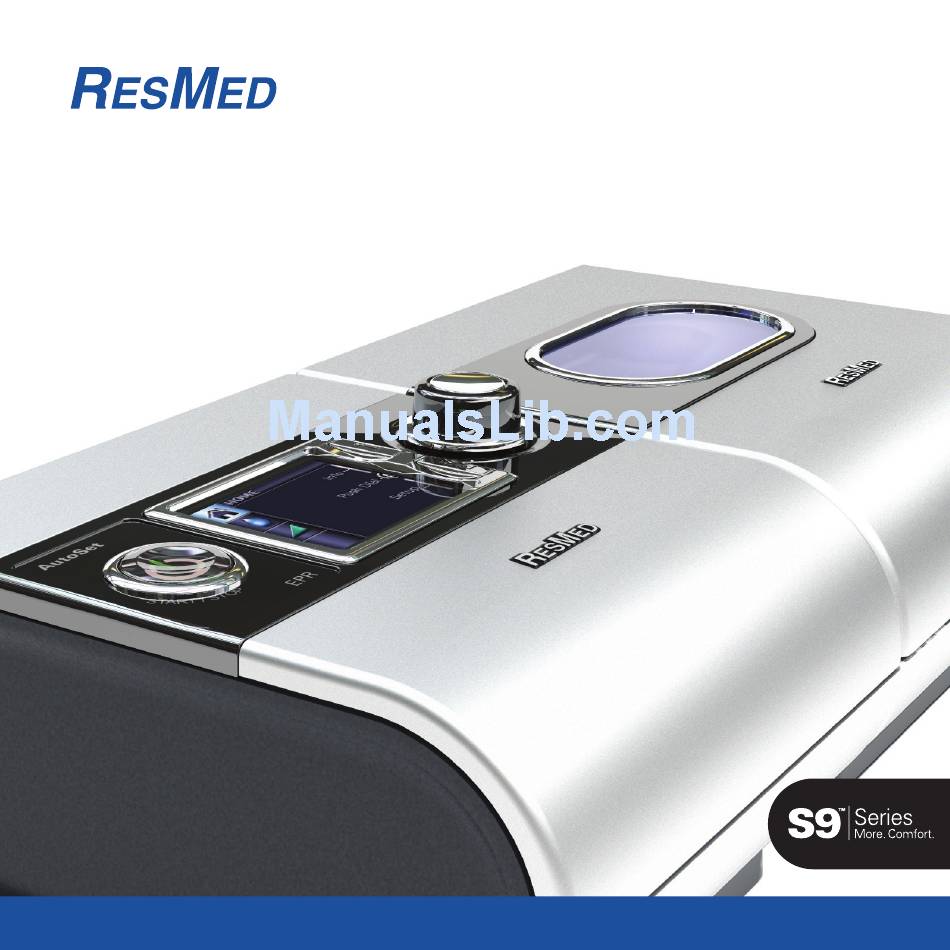

- Page 1 AutoSet™ Elite™ Escape Auto™ Escape™ POSITIVE AIRWAY PRESSURE DEVICES H5i™ HEATED HUMIDIFIER Welcome Guide English...
- Page 3 Welcome Thank you for choosing the S9 Series or H5i. Before operating these devices, please read the entire Welcome and Information Guides. SD card slot Module/Adapter port DC power inlet Air filter Air outlet S9 at a glance The S9 system comprises the following elements: •...
- Page 4 Flip lid seal Flip lid Air outlet Release button ClimateLine connection port Latch H5i at a glance The H5i system comprises the following elements: water tub • H5i heated humidifier • H5i water tub. Optional components include: • ClimateLine heated tubing • H5i cleanable water tub. Traveling tips When moving or traveling with your H5i: •...
- Page 5 Connect the assembled mask system to the free end of the air tubing. Notes: • For more information on assembling your mask see your mask user guide. • Recommended masks are available on www.resmed.com on the Products page under Service & Support. English...
- Page 6 Filling the water tub Slide the latch and lift open the flip lid. Remove the water tub. Fill the water tub (through the center hole) with distilled or deionized water up to the maximum water level mark (380 mL). Return the water tub to the H5i. Close the flip lid ensuring that it clicks into place.
- Page 7 LCD screen Home menu Start/ Stop button Starts or stops treatment. Key: Home Humidity level Ramp Setup menu Allows you to Heated tube make changes to settings. Climate Control Info menu Allows you to view your sleep Start/ Stop statistics. Push dial Push dial Turning the dial...
- Page 8 Adjusting humidity level Ranging from OFF to 6, you can adjust the humidity level at any time to find the setting that is most comfortable for you. To adjust your level of humidity: From your HOME Turn until Press Press screen, turn the humidity level The selection is...
- Page 9 Using mask-fit Available in S9 AutoSet and S9 Elite, mask-fit helps you fit your mask properly. This feature delivers treatment pressure for a three-minute period, prior to starting treatment, during which you can check and adjust your mask-fit to minimize leaks.
- Page 10 Turn until the mask Push to return to the Press to confirm your setting that you require is HOME screen. choice. displayed. Note: Mask Fit is only available in S9 AutoSet and S9 Elite.
- Page 11 To stop treatment at any time, remove your mask and/or press Notes: • SmartStart is only available in S9 AutoSet and S9 Elite. • If your clinician has enabled SmartStart your device will start automatically when you breathe into the mask and stop automatically when you remove your mask.
-
Page 12: Cleaning And Maintenance
Cleaning and maintenance You should regularly carry out cleaning and maintenance as described in this section. Daily Remove the air tubing by pulling on the finger grips on the cuff. Hang it in a clean, dry place until next use. Slide the H5i latch. - Page 13 Remove the air filter cover from the back of the S9 device. Remove and discard the old air filter. Insert a new ResMed air filter ensuring that it is sitting flat in the air filter cover. Replace the air filter cover.
- Page 14 S9 SD Card Protective Folder provided with your device. Please retain the S9 SD Card Protective Folder for future use. Notes: • For Troubleshooting information refer to the Information Guide. • For more product information see www.resmed.com.
- Page 16 1377403, NZ 411762, NZ 413090. Other designs pending. H5i: Protected by AU 2002233025, CN ZL02804936.5, HK 1065483, NZ 527088, US 6935337. Other patents pending. Designs pending. S9 and H5i are trademarks of ResMed Ltd and S9 is registered in U.S.
