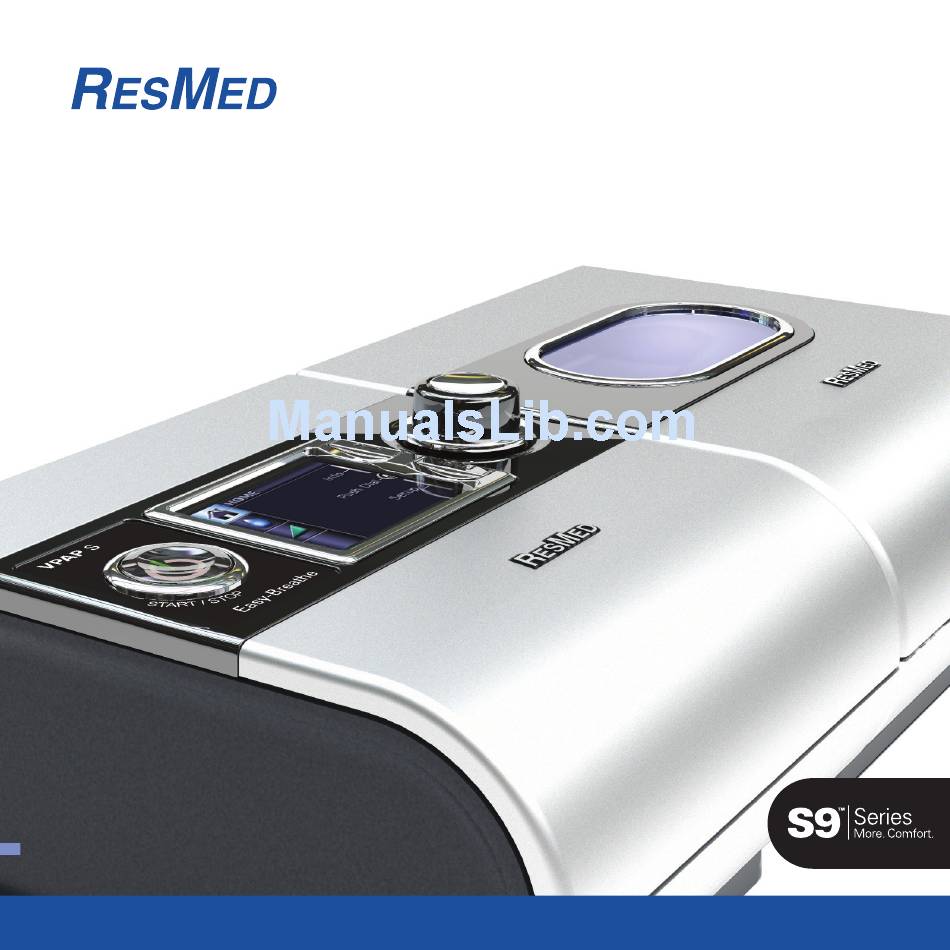

- Page 1 VPAP Auto ™ VPAP ™ VPAP ™ POSITIVE AIRWAY PRESSURE DEVICE ™ HEATED HUMIDIFIER Welcome Guide English...
- Page 3 Welcome Thank you for choosing the S9 VPAP Series or H5i. Before operating these devices, please read the entire Welcome and Information Guides. DC power inlet Module/Adapter port Air filter Air outlet SD card slot S9 at a glance The S9 system comprises the following elements: •...
- Page 4 Flip lid seal Flip lid Air outlet Release button ClimateLine or ClimateLine connection port Latch H5i water tub H5i at a glance The H5i system comprises the following elements: • H5i heated humidifier • H5i water tub • ClimateLine heated air tubing (if sold as a Climate Control Kit).
- Page 5 6. Connect the assembled mask system to the free end of the air tubing. Notes: • For more information on assembling your mask see your mask user guide. • Recommended masks are available on www.resmed.com on the Products page under Service & Support. English...
-
Page 6: Filling The Water Tub
Filling the water tub 1. Slide the latch and lift open the flip lid. 2. Remove the water tub. 3. Fill the water tub (through the center hole) with distilled or deionized water up to the maximum water level mark (380 mL). 4. - Page 7 LCD screen Displays the menus, treatment screens and reminders. Start/Stop button Starts or stops treatment. Key: Home Humidity level Ramp Setup menu Allows you to Heated tube make changes to settings or Climate Control exit from the Info menu menu. Allows you to Start/ Stop view your sleep...
- Page 8 Adjusting humidity level Ranging from OFF to 6, you can adjust the humidity level at any time to find the setting that is most comfortable for you. To adjust your level of humidity: 1. From your HOME 3. Turn until 2.
-
Page 9: Using Mask-Fit
Adjusting ramp time Designed to make the beginning of treatment more comfortable, ramp time is the period during which the pressure increases from a low start pressure to the treatment pressure. To adjust your ramp time: 1. From your HOME 2. -
Page 10: Selecting The Mask Type
Selecting the mask type To select your type of mask: 1. Press . The SETTINGS 2. Turn until Mask is 3. Press . The selection is screen is displayed. displayed in blue. highlighted in orange. 4. Turn until the mask 6. -
Page 11: Getting Started
Getting started 1. Make sure the power is connected. 2. Adjust the ramp time or humidification level if required. 3. Fit your mask as described in your mask user guide. 4. To start therapy, simply breathe into the mask and/or press 5. -
Page 12: Viewing The Treatment Screens
Viewing the treatment screens Depending on how the system has been configured, you will see one of the following example screens once therapy has started: 9 H5i humidifier 9 H5i humidifier 9 H5i humidifier 9 ClimateLine or ClimateLine 9 ClimateLine or ClimateLine heated air tube heated air tube 9 Climate Control –... - Page 13 To toggle between treatment screens 1 and 2, press from your HOME screen. 9 (ST mode) Treatment with 9 (ST mode) Treatment with device trigger (Timed) and spontaneous trigger and cycle (Timed, Ti Max or Ti cycled breaths Min) breath indicators Viewing the Info menu The Info menu has a series of screens showing your sleep quality, sleep report and service information.
-
Page 14: Cleaning And Maintenance
Cleaning and maintenance You should regularly carry out cleaning and maintenance as described in this section. Daily 1. Remove the air tubing by pulling on the finger grips on the cuff. Hang it in a clean, dry place until next use. - Page 15 1. Remove the air filter cover from the back of the S9 device. 2. Remove and discard the old air filter. 3. Insert a new ResMed air filter ensuring that it is sitting flat in the air filter cover. 4. Replace the air filter cover.
- Page 16 S9 SD Card Protective Folder provided with your device. Please retain the S9 SD Card Protective Folder for future use. Notes: • For Troubleshooting information refer to the Information Guide. • For more product information see www.resmed.com.
- Page 18 ResMed locations worldwide. S9 VPAP Auto: Protected by patents: AU 691200, AU 697652, AU 699726, AU 702820, AU 709279, AU 713679, AU 724589, AU 730844, AU 731800, AU 736723, AU 750095, AU 750761, AU 756622, AU 764761, AU 779327, AU 2002306200, AU 2005200987,...
