Panasonic EY7541 Simplified Service Manual

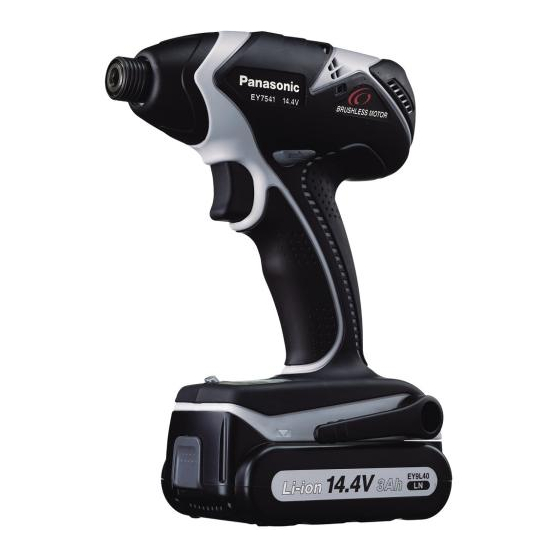

Cordless impact driver

Hide thumbs Also See for EY7541:

Download this manual

Please file and use this manual together with the service manual for Model No. EY7540-X8, Order No.

PTD0609X43CE.

TABLE OF CONTENTS

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Exploded View and Replacement Parts List ------------ 3

Model No. EY7541

Europe

Oceania

PAGE

reserved. Unauthorized copying and distribution is a

violation of law.

Order Number PTD0703X31AE

Cordless Impact Driver

PAGE

Page 1 Order Number PTD0703X31AE Cordless Impact Driver Model No. EY7541 Europe Oceania Please file and use this manual together with the service manual for Model No. EY7540-X8, Order No. PTD0609X43CE. TABLE OF CONTENTS PAGE PAGE 1 Warning -------------------------------------------------------------- 2 2 Specifications ----------------------------------------------------- 2 3 Exploded View and Replacement Parts List ------------ 3 ©...
Page 2: Specifications
1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long.
Page 3 3 Exploded View and Replacement Parts List 3.1. Exploded View...
Page 4 3.2. Replacement Parts List Safety Ref. No. Part No. Part Name & Description Quantity Remarks WEY7541K3079 HOUSING AB SET (for EUROPE) WEY7541K3070 HOUSING AB SET (for OCEANIA) WEY7541K4058 FIXATION COVER ASSEMBLY WEY7540K3107 NOSE PROTECTOR WEY7540L0847 ADHESIVE TAPE WEY7541L3137 FIXATION COVER WEY6631K0867 SLIDER WEY7541L1128...
