Casio 2353 General Manual

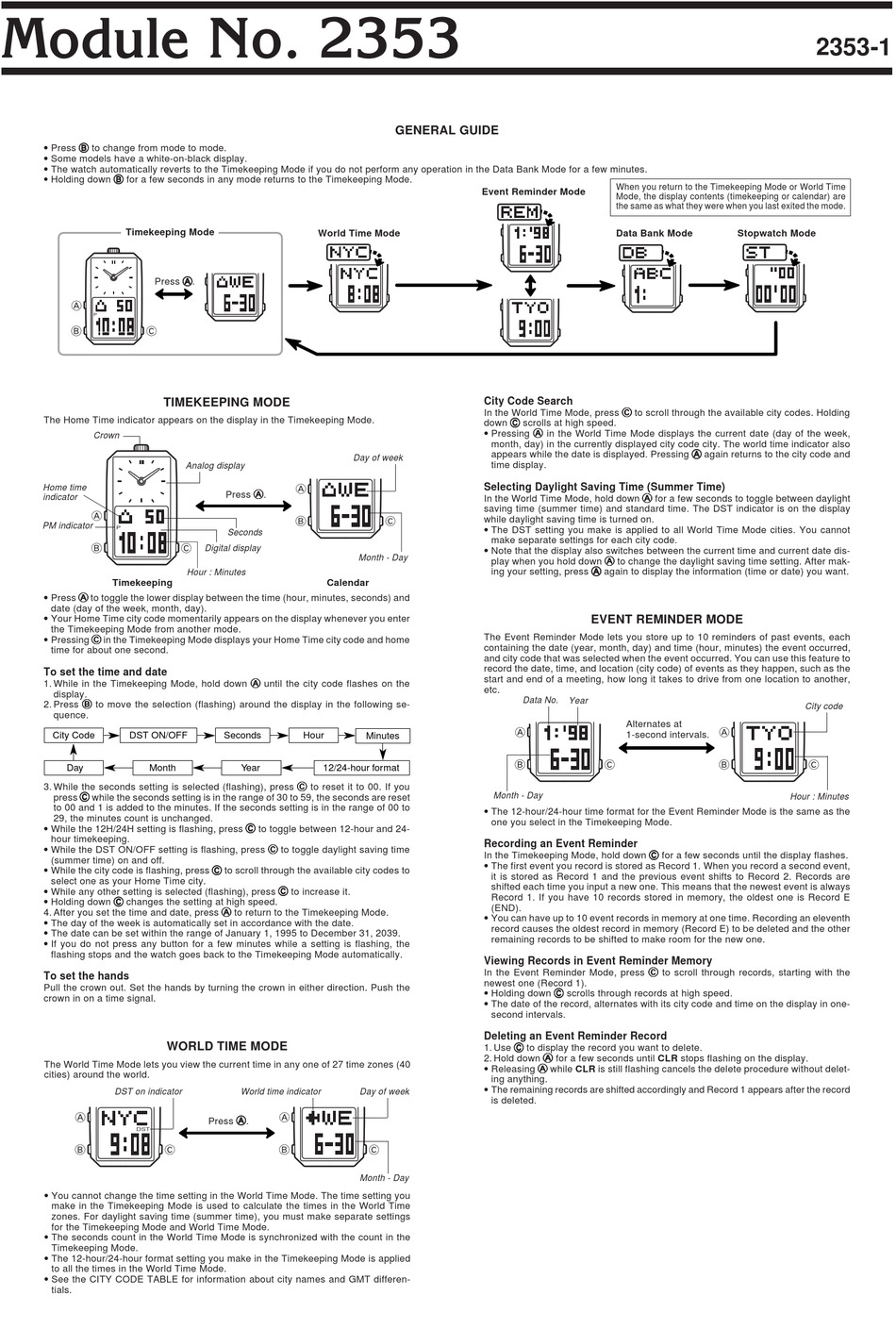

Module No. 2353
• Press B B B B B to change from mode to mode.
• Some models have a white-on-black display.
• The watch automatically reverts to the Timekeeping Mode if you do not perform any operation in the Data Bank Mode for a few minutes.
• Holding down B B B B B for a few seconds in any mode returns to the Timekeeping Mode.
Timekeeping Mode
Press A A A A A .
TIMEKEEPING MODE
The Home Time indicator appears on the display in the Timekeeping Mode.
Crown
Home time
indicator
PM indicator
Timekeeping
• Press A A A A A to toggle the lower display between the time (hour, minutes, seconds) and
date (day of the week, month, day).
• Your Home Time city code momentarily appears on the display whenever you enter
the Timekeeping Mode from another mode.
• Pressing C C C C C in the Timekeeping Mode displays your Home Time city code and home
time for about one second.
To set the time and date
1. While in the Timekeeping Mode, hold down A A A A A until the city code flashes on the
display.
2. Press B B B B B to move the selection (flashing) around the display in the following se-
quence.
City Code DST ON/OFF
Day Month
3. While the seconds setting is selected (flashing), press C C C C C to reset it to 00. If you
press C C C C C while the seconds setting is in the range of 30 to 59, the seconds are reset
to 00 and 1 is added to the minutes. If the seconds setting is in the range of 00 to
29, the minutes count is unchanged.
• While the 12H/24H setting is flashing, press C C C C C to toggle between 12-hour and 24-
hour timekeeping.
• While the DST ON/OFF setting is flashing, press C C C C C to toggle daylight saving time
(summer time) on and off.
• While the city code is flashing, press C C C C C to scroll through the available city codes to
select one as your Home Time city.
• While any other setting is selected (flashing), press C C C C C to increase it.
• Holding down C C C C C changes the setting at high speed.
4. After you set the time and date, press A A A A A to return to the Timekeeping Mode.
• The day of the week is automatically set in accordance with the date.
• The date can be set within the range of January 1, 1995 to December 31, 2039.
• If you do not press any button for a few minutes while a setting is flashing, the
flashing stops and the watch goes back to the Timekeeping Mode automatically.
To set the hands
Pull the crown out. Set the hands by turning the crown in either direction. Push the
crown in on a time signal.
WORLD TIME MODE
The World Time Mode lets you view the current time in any one of 27 time zones (40
cities) around the world.
DST on indicator
• You cannot change the time setting in the World Time Mode. The time setting you
make in the Timekeeping Mode is used to calculate the times in the World Time
zones. For daylight saving time (summer time), you must make separate settings
for the Timekeeping Mode and World Time Mode.
• The seconds count in the World Time Mode is synchronized with the count in the
Timekeeping Mode.
• The 12-hour/24-hour format setting you make in the Timekeeping Mode is applied
to all the times in the World Time Mode.
• See the CITY CODE TABLE for information about city names and GMT differen-
tials.
World Time Mode
Day of week
Analog display
Press A A A A A .
Seconds
Digital display
Hour : Minutes
Calendar
Seconds Hour
Year 12/24-hour format
World time indicator
Press A A A A A .
GENERAL GUIDE
Event Reminder Mode
City Code Search
In the World Time Mode, press C C C C C to scroll through the available city codes. Holding
down C C C C C scrolls at high speed.
• Pressing A A A A A in the World Time Mode displays the current date (day of the week,
month, day) in the currently displayed city code city. The world time indicator also
appears while the date is displayed. Pressing A A A A A again returns to the city code and
time display.
Selecting Daylight Saving Time (Summer Time)
In the World Time Mode, hold down A A A A A for a few seconds to toggle between daylight
saving time (summer time) and standard time. The DST indicator is on the display
while daylight saving time is turned on.
• The DST setting you make is applied to all World Time Mode cities. You cannot
make separate settings for each city code.
• Note that the display also switches between the current time and current date dis-
Month - Day
play when you hold down A A A A A to change the daylight saving time setting. After mak-
ing your setting, press A A A A A again to display the information (time or date) you want.
The Event Reminder Mode lets you store up to 10 reminders of past events, each
containing the date (year, month, day) and time (hour, minutes) the event occurred,
and city code that was selected when the event occurred. You can use this feature to
record the date, time, and location (city code) of events as they happen, such as the
start and end of a meeting, how long it takes to drive from one location to another,
etc.
Data No.
Minutes
Month - Day
• The 12-hour/24-hour time format for the Event Reminder Mode is the same as the
one you select in the Timekeeping Mode.
Recording an Event Reminder
In the Timekeeping Mode, hold down C C C C C for a few seconds until the display flashes.
• The first event you record is stored as Record 1. When you record a second event,
it is stored as Record 1 and the previous event shifts to Record 2. Records are
shifted each time you input a new one. This means that the newest event is always
Record 1. If you have 10 records stored in memory, the oldest one is Record E
(END).
• You can have up to 10 event records in memory at one time. Recording an eleventh
record causes the oldest record in memory (Record E) to be deleted and the other
remaining records to be shifted to make room for the new one.
Viewing Records in Event Reminder Memory
In the Event Reminder Mode, press C C C C C to scroll through records, starting with the
newest one (Record 1).
• Holding down C C C C C scrolls through records at high speed.
• The date of the record, alternates with its city code and time on the display in one-
second intervals.
Deleting an Event Reminder Record
1. Use C C C C C to display the record you want to delete.
2. Hold down A A A A A for a few seconds until CLR stops flashing on the display.
• Releasing A A A A A while CLR is still flashing cancels the delete procedure without delet-
ing anything.
• The remaining records are shifted accordingly and Record 1 appears after the record
Day of week
is deleted.
Month - Day
When you return to the Timekeeping Mode or World Time
Mode, the display contents (timekeeping or calendar) are
the same as what they were when you last exited the mode.
Data Bank Mode Stopwatch Mode
EVENT REMINDER MODE
Year
Alternates at
1-second intervals.
2353-1
City code
Hour : Minutes
