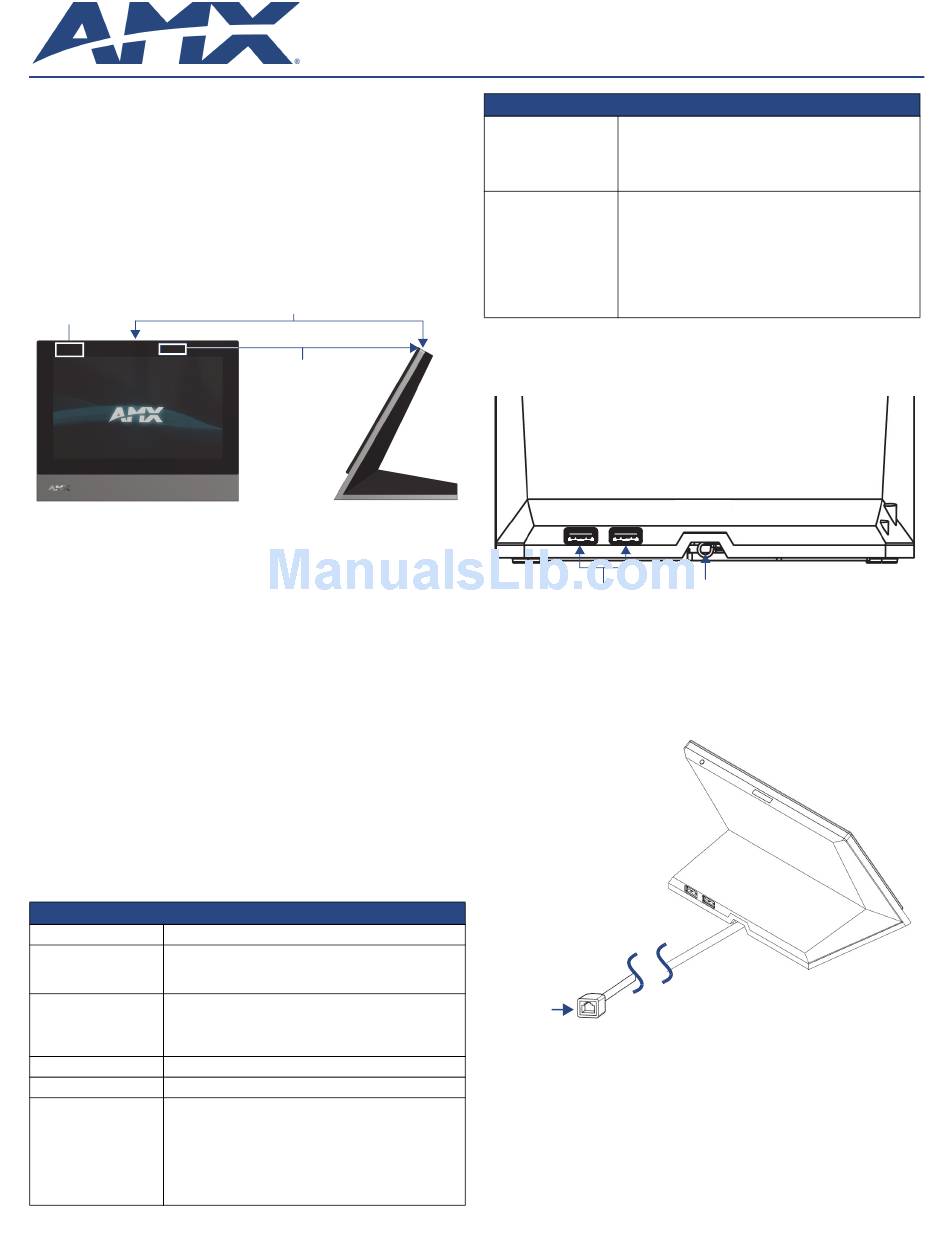

AMX MXT-701 Quick Start Manual

Overview
In the MXT-701 7" Modero X Series® G5 Tabletop Touch Panel (FG5968-53), the
most elegant interface designed specifically for dedicated room control has been
significantly enhanced to include a new G5 Graphic Engine to provide even faster and
smoother animations and transitions. It also quadruples the processing power with a
new Quad Core Processor. This new generation of touch panels is built for usability
offering edge-to-edge capacitive touch glass with multi-touch capabilities. It features
advanced technology empowering users to operate AV equipment seamlessly, while
providing the ultimate in audio and video quality. The distinctive appearance will
complement even the most sophisticated meeting facilities and homes. With a
lightning fast processor, brilliant graphics and enhanced capabilities, the Modero X
Series is the control surface that simply delivers more.
For more information on installation and configuration, please refer to the
MXT/MXD-701 Operation Reference Guide, available at www.amx.com.
NFC Sensor
Front
FIG. 1
MXT-701

Common Application

The MXT-701 is intended for boardrooms, conference rooms, or auditoriums where a
panoramic control surface is needed to provide access to multiple functions
simultaneously while remaining elegantly unobtrusive. In residences, it is perfect for
kitchens, home theaters, or home offices where the panoramic control surface can be
used to manage systems throughout the house.
Features
• G5 Graphics Engine and Quad Core Processing – The most powerful
processing in the industry delivers smooth gesturing, animations and transitions
all at higher speeds for an experience any user will enjoy.
• Apps - Modero X Series G5 touch panels now have the ability to run stand-alone
applications (apps) within the control environment.
• Simplified Enterprise Touch Panel Updates – Deploy and update touch panel
files from a network URL for simplified company-wide updates.
• Latest Communication Technologies – Supports Near Field Communication™
(NFC) - short-range wireless technologies that deliver peer-to-peer
communication by 'sharing, pairing and transaction' between RF devices like
exchanging data/identities.
• Enhanced Usability – HD video streaming.
• Perfect From Any Angle – Includes In-Plane Switching (IPS), the latest
technology in popular tablet/mobile devices that delivers the widest viewing
angles and the most accurate color reproduction on the market.

Product Specifications

MXT-701 (FG5968-53) Specifications
Power: PoE (Power over Ethernet), 802.3af, class 3
Power Consumption: • Full-On: 11.5 W maximum
• Standby: 5.8 W
• Shutdown: 1 W
Operating Environment: • Operating Temperature: 32° F to 104° F (0° C to 40° C)
• Storage Temperature: 4° F to 140° F (-20° C to 60° C)
• Humidity Operating: 20% to 85% RH
• Humidity Storage: 5% to 85% RH
Dimensions (HWD): 5" x 7 5/16" x 4 1/8" (126 mm x 187 mm x 105 mm)
Weight: 1.8 lbs (0.82 kg)
Certifications: • UL
• FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• IC
• IEC/EN-60950
• RoHS
MXT-701
Sleep Button
Proximity
Sensor
Side
7" Modero X Series
MXT-701 (FG5968-53) Specifications (Cont.)
Included Accessories: • MXT-701 Installation Guide (93-5968-53)
• MXA-USB-C, USB Port Cover Kit, Modero X Series Touch
Panel (FG5968-18)
• HPG-10 .75-inch HydraPort .75-IN. Grommet (FG570-01)
• MXA-CLK, Modero X Series Cleaning Kit (FG5968-16)
Other AMX Equipment: • PS-POE-AF-TC, POE Injector, 802.3af Compliant
(FG423-83)
• NXA-ENET8-2POE, Gigabit Switch, 8 Port POE, 2 Port
SFP (FG2178-63)
• MXA-MPL, Modero X Series Multi Preview Live
(FG5968-10)
• MXA-MP, Modero X Series Multi Preview (FG5968-20)
• MXA-STMK-07, Secure Table Mount Kit, 7" Modero X
Tabletop (FG5968-67)
Panel Connectors and Wiring
Any USB peripherals (mouse, keyboard, etc.) may be connected to one of the two
USB ports on the rear of the device (FIG. 2). Updates to the device's firmware are also
made via the USB ports
.
USB Ports
FIG. 2
Connectors on the rear of the MXT-701

Power via Power Over Ethernet

Power for the MXT-701 is supplied via Power Over Ethernet (PoE), utilizing an AMX-
certified, capacitive touch-compliant PoE injector such as the PS-POE-AT High Power
PoE Injector (FG423-81) or equivalent PoE device. If using a PoE injector, the PoE
injector should be installed between the MXT-701 and the incoming Ethernet cable,
and connected to the RJ45 port on the cable attached to the device (FIG. 3)
RJ45 Port
FIG. 3
Back of the MXT-701, showing RJ45 port and cable for PoE

Ethernet Cable Installation and Modification

In installations where you wish to conceal the Ethernet cable, a hole at least 1.00"
(2.54 cm) in diameter is required in the surface to allow passage of the female RJ45
connector (FIG. 3). If using a smaller hole is unavoidable, you will need to disconnect
the Ethernet cable (ECA5968-05) from the device.
NOTE: The minimum diameter hole through which the Ethernet cable may pass is
0.50" (1.27 cm).
Quick Start Guide
G5 Tabletop Touch Panel
®
Entry for RJ45/
PoE Cable
Cable length
edited for clarity
.
