ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver
, an adjustable
spanner
, and a rubber mallet
.

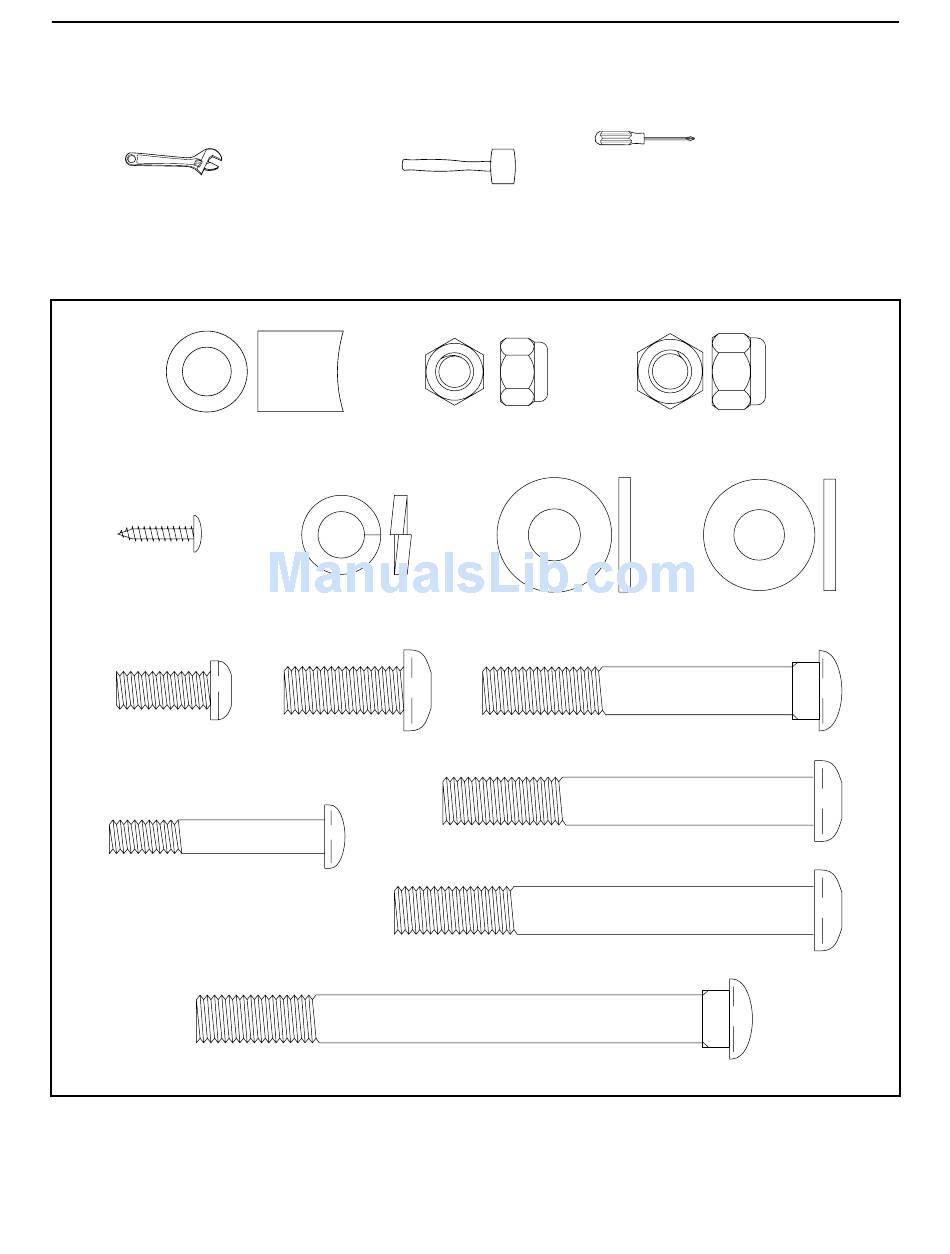

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 26. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M8 Nylon
M10 Nylon
Frame Spacer (83)–1
Locknut (46)–4
Locknut (29)–6
M4 x 16mm
M10 Split
M10.3 Black
M10
Screw (66)–2
Washer (70)–4
Washer (53)–2
Washer (38)–6
Adjustment Bolt (20)–2
M8 x 19mm Button
M10 x 27mm
Screw (22)–2
Screw (71)–3
M10 x 78mm Button Bolt (27)–2
M8 x 45mm Button Bolt (50)–4
M10 x 88mm Button Bolt (63)–1
M10 x 112mm Carriage Bolt (34)–4
