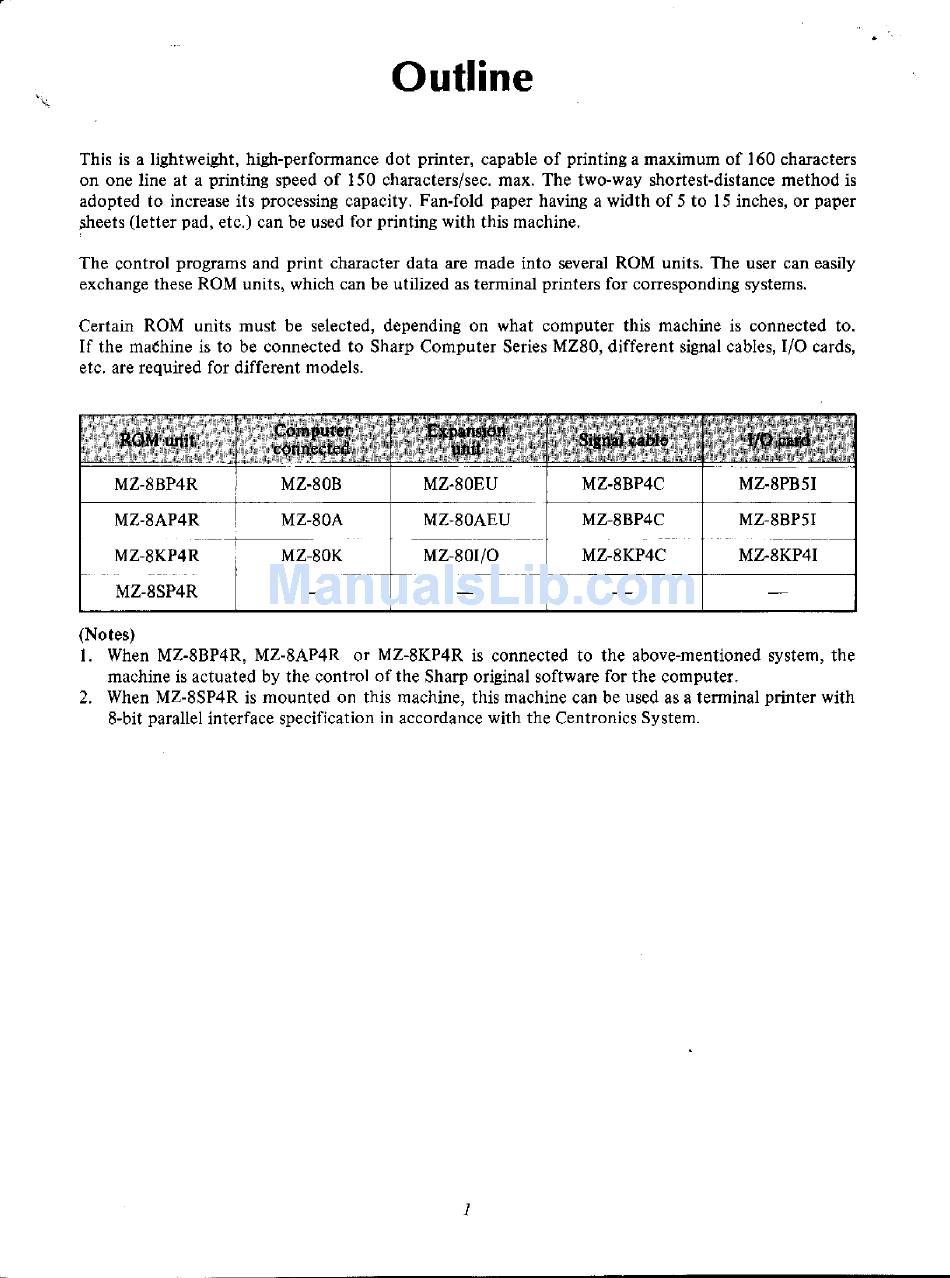

Outline
This is a lightweight, high-performance dot printer, capable of printing a maximum of 160 characters
on one line at a printing speed of 150 characters/sec. max. The two-way shortest-distance method is
adopted to increase its processing capacity. Fan-fold paper having a width of 5 to 15 inches, or paper
sheets (letter pad, etc.) can be used for printing with this machine.
The control programs and print character data are made into several ROM units. The user can easily
exchange these ROM units, which can be utilized as terminal printers for corresponding systems.
Certain ROM units must be selected, depending on what computer this machine is connected to.
If the mathine is to be connected to Sharp Computer Series MZ80, different signal cables, I/O cards,
etc. are required for different models.
MZ-8BP4R MZ-80B MZ-80EU MZ-8BP4C MZ-8PB51
MZ-8AP4R MZ-80A MZ-80AEU
MZ-8BP4C MZ-8BP51
MZ-8KP4R MZ-80K MZ-SOI/O MZ-8KP4C MZ-8KP41
. - ..
--+~~~~~~+~~~~~---j
MZ-8SP4R
(Notes)
l. When MZ-SBP4R, MZ-SAP4R or MZ-8KP4R is connected to the above-mentioned system, the
machine is actuated by the control of the Sharp original software for the computer.
2. When MZ-8SP4R is mounted on this machine, this machine can be used as a terminal printer with
8-bit parallel interface specification in accordance with the Centronics System.
1
