Summary of Contents for Mitsubishi VS-50FD10U

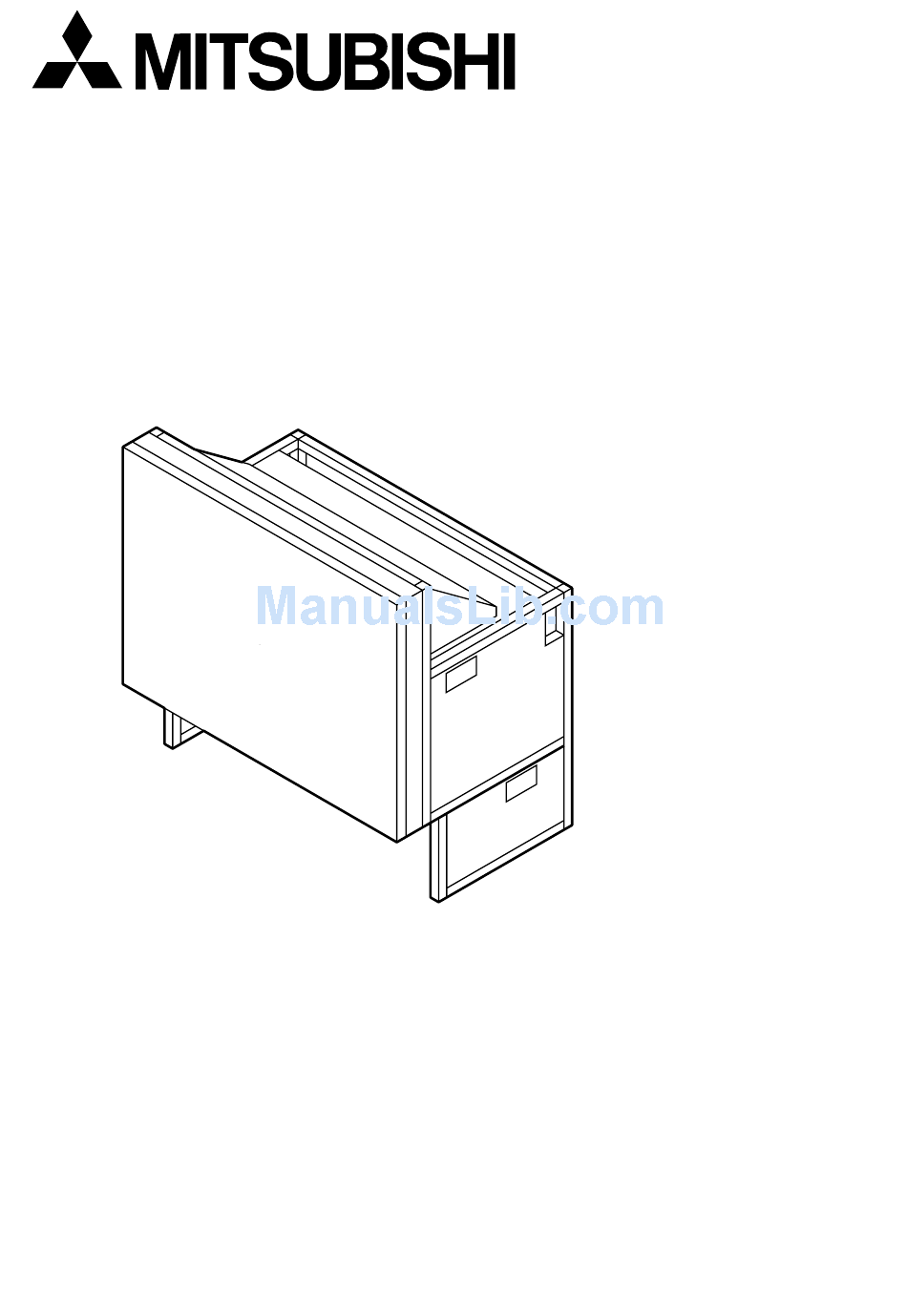

- Page 1 PROJECTOR MODEL VS-50FD10U User’s Manual...
- Page 3 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 4: Main Features
Main features •High brightness The new optical system employing the 0.7-inch DMD chip realizes displaying clear images of a high level visibility and high brightness of 500 cd/m •New Advanced Optical System “Compact” Design The depth of the display has been reduced to a mere 65 cm, enabling an extremely thin space-saving design. The weight has been reduced also to 55 kg only. -
Page 5: Table Of Contents
Contents Main features ..................4 Important safeguards ................6 Product overview ..................8 Assembling the units ................9 Specifications / Items sold separately ........... 10 Outline drawings ..................11 How to replace the lamp cartridge ............12 Maintenance ................... 14 Troubleshooting .................. -
Page 6: Important Safeguards
Important safeguards Power sources Please read all these instructions regarding your DLP This projector should be operated only from the projector and retain them for future reference. Follow type of power source indicated on the marking all warnings and instructions marked on the DLP label. - Page 7 WARNING: Unplug immediately if there is something Do not turn off the main power abruptly or wrong with your projector. unplug the projector during operation. It can lead to lamp breakage, fire, electric shock or Do not operate if smoke, strange noise or odor comes other trouble.
-
Page 8: Product Overview
Product overview Cabinet Screen unit Covered Lamp cartridge storage Covered 6 Axis adjustment Handles Terminal panel Input board VC-B10KA (option) VIDEO IN Stand-by switch Composite video input COMP STATUS 7-segment protect display LED Y/C video input STANDBY DIGITAL OUT REMOTE Wired remote control input Wired remote control output Digital output... -
Page 9: Assembling The Units
Assembling the units The following is an example of four screen video wall consisting of VS-50FD10U. • Ask for your Mitsubishi dealer or a trained serviceperson for assembling and adjustment of the cubes. • Be sure to fix the assembled video wall on the floor and the wall to prevent unpredictable falling down due to earthquakes and shocks. -
Page 10: Specifications / Items Sold Separately
Specifications / Items sold separately ¡VS-50FD10U Model VS-50FD10U Display system system (0.7-inch 1-Chip DMD Resolution 1024 ~768 dots Screen size 50 inches (1016 ~762 mm) Screen brightness 500 cd ^m iTYPICAL j Contrast ratio 300 F1 iTYPICAL j View angle Horizontal : 118 , Vertical : 50 Input scanning freq. -
Page 11: Outline Drawings
Outline drawings Unit : mm Top view Front view Side view 1016... -
Page 12: How To Replace The Lamp Cartridge
How to replace the lamp cartridge The lamp used as a light source in VS-50FD10U has an average life of about 8000 hours (under our test conditions.) However, the lamp may burn out before reaching 8000 hours of operation. You can project images after replacing the lamp cartridge. However, the following adjustments are required to enjoy the equivalent image quality to that offered before the replacement of the lamp cartridge. - Page 13 Hold the handle and pull out the lamp cartridge •Be sure to grip the handle with one hand and hold the lamp cartridge with the other hand to pull it out safely. •Do not touch the glass envelop of the lamp. It may cause burns.
-
Page 14: Maintenance
Maintenance • Be sure to unplug the power cord from the wall outlet before maintenance of the product. • Keep any volatile compounds such as an insecticide from attaching to the body or the screen of the projector. Do not leave any rubber or plastic materials touching the projector or the screen for a long time. -
Page 15: Troubleshooting
Troubleshooting Please check the following before contacting your dealer for service. Errors in signals are apt to be taken for problems in the projector. Problems Remedies •Check the power cord is connected firmly. No images appears on the screen •Check the correct input signals are selected for the terminals of the external devices. - Page 16 Manufactured by Mitsubishi Electric Corporation 1 Zusho Baba, Nagaokakyo-City, Kyoto Japan Printed in Japan 871D310A20...
