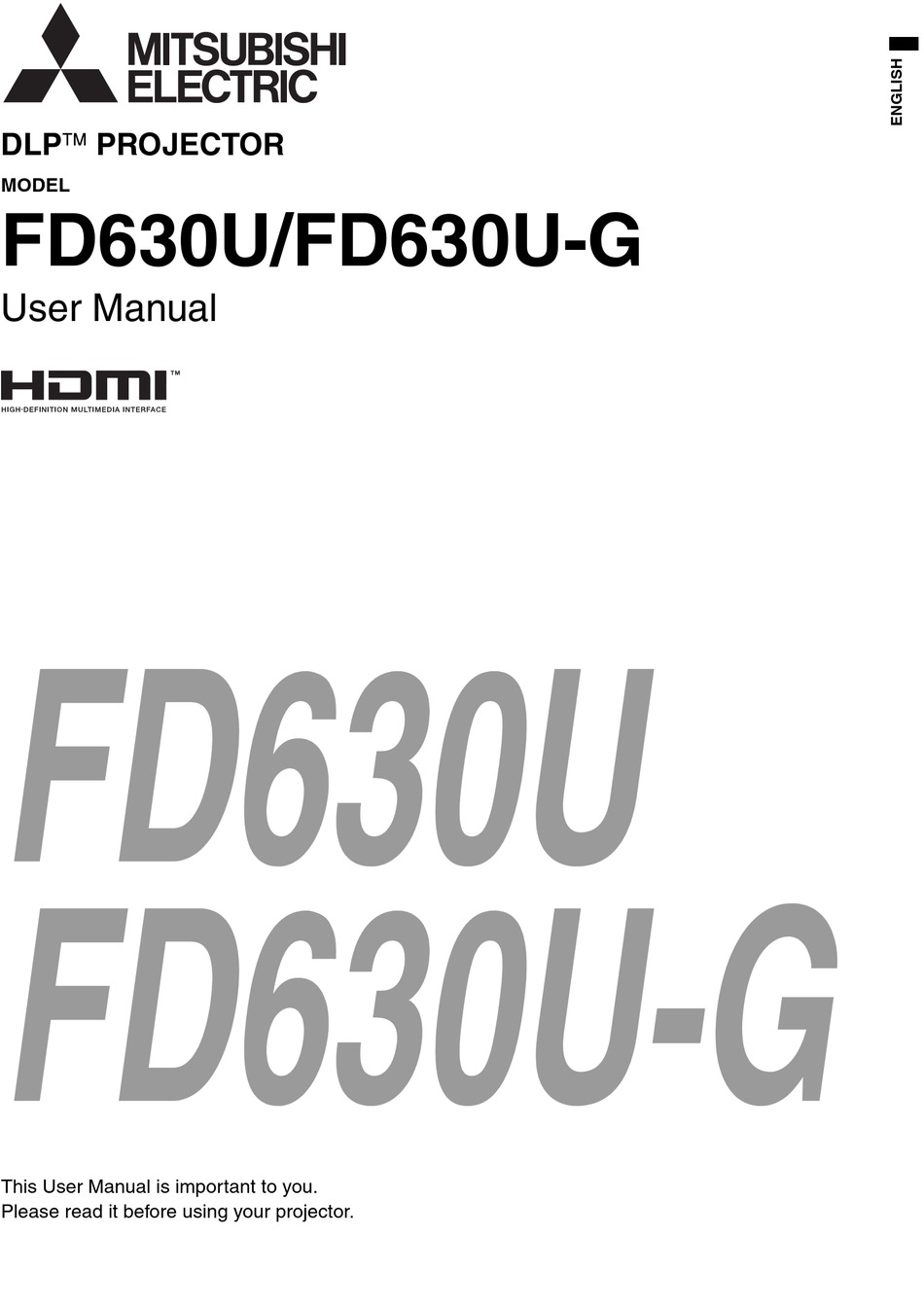

Page 1: User Manual
PROJECTOR MODEL FD630U/FD630U-G User Manual This User Manual is important to you. Please read it before using your projector. - Page 2 TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUT- LET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. NOTE: SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE. WARNING Use the attached specified power supply cord.
-
Page 3: Table Of Contents
Contents Important safeguards...4 Overview...6 Remote control ...7, 8 Installation ...9 Basic connections...11 Preparation ...14 Basic operation ...15 Menu operation...18 Image adjustment ...26 Network settings ...29 Advanced features ...32 Lamp replacement ...36 Troubleshooting ...38 Indicators ...41 Specifications ... 42 Trademark, Registered trademark Macintosh is registered trademark of Apple Computer Inc. -
Page 4: Important Safeguards
Water and moisture Do not use this projector near water or in contact with water. Accessories Do not place this projector on an unstable cart, stand, tripod, bracket or table. - Page 5 The heated air outlet grilles and bottom plate may cause injury or damage to other equip- ment. Also, do not put the projector on a desk that is easily affected by heat. Do not look into the air outlet grilles when projector is operating.
-
Page 6: Overview
This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System. Refer to the information that came with the Kensington System for instructions on how to use it to secure the projector. Please contact Kensington Technology Group below. -
Page 7: Remote Control
Overview (continued) Bottom side Remote control MAGNIFY KEYSTONE DOWN MENU ENTER MUTE VIEWER COMPUTER UNPLUG This model does not have these functions. WIRELESS STANDBY ASPECT This model does not PAGE have these functions. AUTO POSITION FREEZE VIDEO S-VIDEO HDMI Adjustment feet ON button MAGNIFY button VOLUME UP, DOWN buttons... -
Page 8: Remote Control
The maximum operation distance of the remote control is about 10 m (or about 32 feet) when the remote control is pointed at the remote control sensor of the projector. When the remote control is pointed to the screen, the distance from the remote control to the projector via the screen should be 5 m or less. -
Page 9: Installation
Installation Layout of the projector Image size varies depending on the distance between the screen and the projector. Front projection Screen Diagonal size Width : SW inch inch • The above figures are approximate and may be slightly different from the actual measurements. -
Page 10: Rear Projection
This isn’t a product malfunction. Ceiling Mount Installation If you wish to install the projector using a ceiling mount, please use the screw holes as the illustration shows. Important: •... -
Page 11: Basic Connections
Make sure that the connected device is turned off before starting connection. • Plug in the power cords of the projector and the connected devices firmly. When unplugging, hold and pull the plug. Do not pull the cord. • When the projector and the connected devices are located too close to each other, the projected image may be affected by their interference. -
Page 12: Connection (For Video Equipment Having An Hdmi Terminal)
You don’t have to connect any cable for audio input. You can input video and audio using an HDMI cable only. • When HDMI audio isn’t output, it may be output by turning off the power of the video equipment with the projector and the video equipment con- nected to each other and then turning back on the power. - Page 13 • After connecting a computer supporting this standard to this terminal, plug the power cord of the projector in the wall outlet first, and then boot up the computer. Necessary when outputting to both a PC monitor and the projector.
-
Page 14: Preparation
Remove the lens cap. Warning: • Do not look into the lens directly when the projector is on. • The lens cap is for protecting the lens. If you leave the lens cap on the lens with the projector turned on, it may be deformed because of heat build-up. -
Page 15: Basic Operation
In order to ensure the safety in case of trouble with the projector, use an electrical outlet having an earth leakage breaker to supply the power to the projector. If you do not have such outlet, ask your dealer to install it. -
Page 16: Setting The Aspect Ratio
If the power cord should be unplugged accidentally while either the air inlet fan or the air outlet fans are operating or the lamp is on, allow the projector to cool down for 10 min- utes with the power off. To light the lamp again, press the POWER button (or ON button). -
Page 17: How To Change The Settings
The lamp can’t be lit again for one minute after turned off for safety purpose. It will take another one minute for the STATUS indicator to go out. If you want to turn on the projector again, wait until the indicator goes out, and then press the POWER button. -
Page 18: Menu Operation
Comparing QUICK MENU with DETAIL MENU, if the contents in those two menus are same each other, the functions in those two menus are same as well. • To close QUICK MENU or DETAIL MENU, press MENU button when MENU is displayed. QUICK MENU * Menus are not displayed when no signal is supplied to the projector. QUICK MENU COLOR ENHANCER CONTRAST BRIGHTNESS COLOR TEMP. -
Page 19: Menu Options
When COLOR ENHANCER is switched, projected images may be distorted. • The STANDARD lamp mode is activated by default whenever the projector is turned on. When the LOW LAMP MODE has been chosen, the default STANDARD lamp mode is switched to the LOW lamp mode in 1 minute. - Page 20 Menu operation (continued) DETAIL MENU * Menus are not displayed when no signal is supplied to the projector. IMAGE COLOR ENHANCER CONTRAST BRIGHTNESS COLOR TEMP. COLOR *1 TINT *1 SHARPNESS *1 ADVANCED MENU INSTALLATION WALL SCREEN LAMP MODE STANDBY MODE...
- Page 21 Menu operation (continued) Basic operation Several settings can be adjusted using the menu. Example : Auto power off time setting Press the MENU button. Select the DETAIL MENU and press the ENTER button (or button). opt. IMAGE Press the button to select INSTALLATION. opt.
-
Page 22: Installation Menu
MIRROR INVERT • The STANDARD lamp mode is activated by default whenever the projector is turned on. When the LOW LAMP MODE has been chosen, the default STANDARD lamp mode is switched to the LOW lamp mode in 1 minute. - Page 23 Menu operation (continued) 3. FEATURE menu Menu option Setting AUTO ASPECT 16:9 REAL PASSWORD FUNCTION MENU POSITION 2 options AUTO CINEMA MODE FILM VIDEO VIDEO SIGNAL 8 options AUTO SETUP 3.75%/7.5% SPLIT LANGUAGE 12 languages QUICK MENU RESET ALL • You can select CINEMA MODE only when the input signal is a TV60, TV50, 480i, 576i or 1080p video signal.
-
Page 24: Signal Menu
The proper setting is automatically selected. Select this option when connecting the projector to high definition video equipment having R, G, and B output terminals. Select this option when connecting the projector to a DVD player or other device having Y, C , and C... - Page 25 Feature description Displays PROJECTOR NAME. Displays PROJECTOR NAME in blank when PROJECTOR NAME is not set. Set PROJECTOR NAME. Enter up to 15 characters (alphabets or numeric characters). Set the password for Web control or PJLink certification. Select this setting for IP Configuration.
-
Page 26: Image Adjustment
Image adjustment Adjusting projected images To adjust the brightness (CONTRAST and BRIGHT- NESS): You can make adjustments of the brightness of the projected image using the menu. (See page 19 or 21 for the menu options.) Display the QUICK MENU or the IMAGE menu. Select CONTRAST or BRIGHTNESS by pressing the button. -
Page 27: How To Adjust The Computer Image
How to adjust the computer image This projector automatically selects a proper signal format according to the type of video signal supplied from the computer. However, video signals from the computer may not be projected correctly depending on the types of the computer and images to be projected. In such a case, make adjust- ment according to the flowchart below. -
Page 28: Simple Method To Adjust The Image Position
Image adjustment (continued) How to adjust the image supplied from the computer using the menu: Carry out the following procedures according to the symptoms. Wide strips appear..Adjust TRACKING in the SIGNAL menu. The projected image flickers. The projected image is blurred..Adjust FINE SYNC. in the SIGNAL menu. The projected image is displaced horizontally. -
Page 29: Network Settings
Network settings You can set the network of the projector using the menu. opt. NETWORK PROJECTOR NAME NETWORK PASSWORD IP CONFIG PJLink CERTIFICATION NETWORK RESET Setting Projector Name Display the NETWORK menu. (See page 21 for menu setting.) Press the button to select PROJECTOR NAME. -
Page 30: Setting Or Clearing Dhcp
Network settings (continued) Setting or Clearing DHCP Display the IP CONFIG menu. Press the button to select DHCP. DHCP Press the ENTER button. • Confirmation dialog appears. Press the button to select ON Select the item to set, and press the ENTER button. •... - Page 31 Configure the IP CONFIG correctly. If the settings are not cor- rect, the communication may be unavailable. For the detail, consult the network administrator. • Depending on the settings of standby mode of the projector, LAN function may be unavailable. See page 22 for the detail of standby mode. Glossary For more detail of the glossary below, refer to the technical book that is commercially available.
-
Page 32: Advanced Features
Advanced features Setting of the image displayed during startup or muting You can display your desired image as the startup screen (or splash screen). Using the menu, you can also use such image as a back- ground that is displayed while the video is muted or no signal is sup- plied. -
Page 33: Password Function
Do not keep displaying a still picture for an extended period of time, as the afterimages may linger on the screen. Password function This projector provides the password function that is intended to pre- vent wrong operations by children and set controlled access for speci- fied users. -
Page 34: Supervising And Controlling By Computer
You can supervise and control the projector's operation using a personal computer via a LAN network. • To supervise and control the projector, install the software "ProjectorView Global+" contained in the attached CD-ROM. For the installation pro- cedure and usage of the software, see "LAN Control Utility User Manual" contained in the attached CD-ROM. - Page 35 Opening the LAN Control Utility User Manual: Load the CD-ROM into the CD-ROM drive. Open CD-ROM "FD630U/FD630U-G". Double-click on "MANUAL_LAN.HTML" within the CD-ROM. A language selection list for the LAN Control Utility User Manual will be displayed. Move the mouse pointer to the desired language and click.
-
Page 36: Lamp Replacement
• Be sure to use the lamp dedicated to this projector, VLT-XD600LP for FD630U/FD630U-G. Use of other lamps may cause a failure of the projector. A) When the projector is placed on the table Make sure that the projector is securely held in place. -
Page 37: Interval Of Lamp Replacement
(Caution) • Pull the lamp unit out of the projector slowly. If it is pulled out quickly, the lamp may break, scattering glass fragments. • Do not spill liquid on the removed lamp unit or do not place it near any flammable object or where children can reach to pre- vent injuries or fire. -
Page 38: Troubleshooting
Troubleshooting Before asking for repair of the projector, check the following. If the symptom persists, stop using the projector, be sure to unplug the power plug, and then contact your dealer. No image appears on the screen. Problem Power can not be turned on. -
Page 39: Images Are Not Displayed Correctly
• This phenomenon is normal for a DLP projector and is not a malfunction. (A very small number of pixels may visibly or invisibly be persistent all the time, but they are not a sign of system malfunctions. Over 99.99% of the pixels are effective.) - Page 40 Cleaning of the projector and the ventilation slots Use a soft cloth to clean the projector and the ventilation grilles. When the grilles become dirty, wipe them with a soft cloth dampened with diluted mild detergent, and then wipe them with a dry cloth.
-
Page 41: Indicators
Indicators This projector has two indicators, each of which shows the operation condition of the projector. The following offer solutions to possible problems. If these problem persist, turn the projector off and consult your dealer. STATUS indicator Normal condition POWER... -
Page 42: Specifications
Temperature, humidity ° F (+5 (performance guaranteed) • The specifications and outside appearance of the projector are subject to change without prior notice. EN-42 0.4W (when STANDBY MODE is LOW) 0.5W (when STANDBY MODE is LOW) : Y:1.0 Vp-p (negative sync.) °... -
Page 43: Connectors/Dimensional Drawings
J2552-0066-02 for UK J2552-0065-02 for KOREA J2552-0247-00 1 RGB cable for PC J2552-0072-03 Replacement part (Option / Not included in the box) Spare lamp for FD630U/FD630U-G VLT-XD600LP pin No. Spec. R(RED)/C G(GREEN)/Y B(BLUE)/C HD/CS 1 Remote control * One of power cords for the U.S., Europe, 1 Safety Manual/Quick Start up U.K. - Page 44 Specifications (continued) Specification of RGB signals in each computer mode of the projector Resolution Signal mode (H x V) TV60, 480i (525i) 720 x 480 TV50, 576i (625i) 720 x 576 1080i60 (1125i60) 1920 x 1080 1080i50 (1125i50) 1920 x 1080...
- Page 45 Important: • Some computers aren’t compatible with the projector. • The projector’s maximum resolution is 1920 x 1080 pixels. It may not display images of higher resolutions than 1920 x 1080 cor- rectly. • Images with SYNC on G (Green) signal may jitter.
