Invacare TDX SP User Manual

Hide thumbs Also See for TDX SP:
Table of Contents

Advertisement

Quick Links

See also: Operator's Maintenance Manual , Operating Manual
Yes, you can.
®

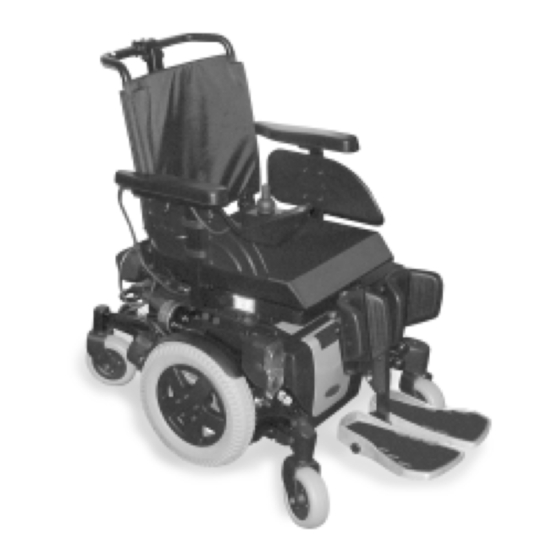

Invacare® TDX SP
Power wheelchair
User manual

Advertisement

Table of Contents
loading

Related Manuals for Invacare TDX SP

Summary of Contents for Invacare TDX SP

  • Page 1 Yes, you can. ® Invacare® TDX SP Power wheelchair User manual...
  • Page 3 How can you get in touch with Invacare®? If you have any questions or need support, please contact your authorised Invacare® Dealer, who has the necessary know-how and equipment plus the special knowledge concerning your Invacare® product, and can offer you all-round satisfactory service. Should you wish to contact Invacare® directly, you can reach us in Europe at the following addresses and phone numbers.
  • Page 4 +44 (0)1656 77 62 20 Pencoed uk@invacare.com Bridgend CF35 5AQ WWW: www.invacare.co.uk United Kingdom Invacare Mecc San s.r.l. +39 0445 38 00 59 Via dei Pini, 62 Fax: +39 0445 38 00 34 I - 36016 Thiene (VI) italia@invacare.com ITALIA WWW: www.invacare.it...
  • Page 5 Invacare® AB (Kundtjänst): +46 (0)8 761 70 90 Fagerstagatan 9 Fax (Kundtjänst): +46 (0)8 761 81 08 S-163 91 Spånga sweden@invacare.com Sverige finland@invacare.com WWW: www.invacare.se MÖLNDAL  : +46 (0)31 86 36 00 Fax: +46 (0)31 86 36 06 ginvacare@invacare.com LANDSKRONA ...

  • Page 6: Table Of Contents

    Table of Contents Chapter Page Introduction Important symbols in this manual ..................14 Important symbols found on the vehicle ................16 1.2.1 Explanation of symbols on lifter warning sticker............18 Type classification and permissible use................19 Indications..........................19 Usability............................20 Warranty ...........................21 Life expectancy........................21 Safety notes General safety notes .......................22 Safety information with regard to care and maintenance ...........25 Safety information on electromagnetic interference ............26...
  • Page 7 Driving Before driving for the first time....................38 Parking and stationary......................39 Taking Obstacles........................39 6.3.1 The ”SureStep“ System ....................39 6.3.2 Maximum obstacle height .....................39 6.3.3 Safety information when ascending obstacles .............40 6.3.4 The correct way to overcome obstacles ...............41 Driving up and down gradients....................41 Use on public roads ........................42 Pushing the wheelchair in freewheel mode Disengaging motors........................43...
  • Page 8 9.2.5 Adjusting the seat depth (Modulite seat unit) ...............56 Adjusting the seat angle ......................58 9.3.1 Electric ..........................58 9.3.2 Manual ..........................58 Adjusting the backrest......................59 9.4.1 Electrically adjusting the backrest angle...............59 9.4.2 Adjusting backrest angle using perforated plate............60 9.4.3 Flex and Contour seats....................61 9.4.4 Adjusting the backrest using the gas pressure spring..........62 9.4.5...
  • Page 9 9.11 Child seat (option) ........................82 9.11.1 The headrest of the child seat ..................82 9.11.1.1 Adjusting the angle / depth of the headrest.............82 9.11.1.2 Adjusting the height of the headrest................83 9.11.2 The armrests / setting the angle ...................84 9.11.3 The backrest .........................85 9.11.3.1 Adjusting the height of the sliding handles (option)..........85 9.11.3.2...
  • Page 10 10.2.1.4 Adjusting the length of the footrest................112 10.2.2 Vari-A legrests ......................113 10.2.2.1 Swivelling the legrest outward and/or removing............113 10.2.2.2 Setting the angle....................114 10.2.2.3 Setting the end stop of the legrest.................117 10.2.2.4 Adjusting the length of the legrest .................121 10.2.2.5 Adjusting the depth of the calf plate ..............122 10.2.2.6 Adjusting the height of the calf pad ...............123 10.2.2.7...
  • Page 11 11 Electrical system 11.1 Electronics protection system .....................145 11.1.1 The main fuse ......................146 11.2 Batteries ..........................147 11.2.1 Charging the batteries ....................147 11.2.1.1 General information on charging ................147 11.2.1.2 General instructions on charging................147 11.2.1.3 How to charge the batteries...................148 11.2.1.4 How to disconnect the batteries after charging .............149 11.2.2 Storage and Maintenance...................150 11.2.3 Instructions on using the batteries................150 11.2.4 Transporting batteries....................152...
  • Page 12 17 Inspections Performed...

  • Page 13: Introduction

    If you find that the font size in the print version of the user manual is difficult to read, you can download it as a pdf from the Invacare website. This can then be scaled on screen to a font size that is more comfortable for you.

  • Page 14: Important Symbols In This Manual

    Some maintenance and settings can be performed by the user or his/hers attendants. Certain adjustments do however require technical training and may only be carried out by your Invacare® specialist dealer. Damages and errors caused by nonobservance of the user manual or as a result of incorrect maintenance are excluded from all guarantees.
  • Page 15 BURN Risk! This symbol warns of the risk of burns, for example, as a result of hot motor surfaces. • Follow the instructions in order to avoid injury or damage to the product. RISK OF CRUSHING! This symbol warns of a risk of crushing caused by being careless with heavy components.

  • Page 16: Important Symbols Found On The Vehicle

    Requirements: • This symbol identifies a list of various tools, components and items which you will need in order to carry out certain work. Please do not attempt to carry out the work if you do not have the listed tools available. READ WELL BEFORE OPERATION! This symbol advises you to read information carefully.
  • Page 17 This wheelchair may be used as a vehicle seat, but only if it is equipped with a headrest that has been approved by Invacare for this purpose! • Please always make sure that the wheelchair is equipped with a headrest approved by Invacare before using it as a vehicle seat!

  • Page 18: Explanation Of Symbols On Lifter Warning Sticker

    This symbol indicates the maximum width to which an armrest may be adjusted. Pulling the armrest out further can cause it to fall out of it's fixation. For further information, see chapter "Adjusting the width of the armrests" on page 52. If the power wheelchair is fitted with a table, it is imperative that it is removed and safely stowed when transporting the wheelchair in a vehicle!

  • Page 19: Type Classification And Permissible Use

    Type classification and permissible use This vehicle was designed for persons whose ability to walk is impaired, but who are still in terms of their eyesight and physically and mentally able to operate an electric vehicle. It has been classified according to EN 12184 as a class B mobility product (for indoor and outdoor areas).

  • Page 20: Usability

    • You should immediately stop using your power wheelchair if its usability is restricted due to: - brake failure • You should immediately contact an authorised Invacare® dealer if the usability of your power wheelchair is restricted due to: - the lighting system failing or being defective...

  • Page 21: Warranty

    - unusual sounds developing or occurring Or if you have the feeling that something is wrong with your wheelchair. Warranty The terms and conditions of the warranty are part of the general terms and conditions particular to the individual countries in which this product is sold. Life expectancy We estimate a life expectancy of five years for this product, provided it is used in strict accordance with the intended use as set out in this document and all maintenance and service requirements...

  • Page 22: Safety Notes

    Safety notes READ WELL BEFORE OPERATION! General safety notes Danger of injury if mobility device is used in any other way than the purpose described in this manual! • Only ever use the mobility device in accordance with the instructions in this User's Manual (see chapter "Type classification and permissible use"...
  • Page 23 Danger of injury if the mobility device is switched off while driving, for example by pressing the On/Off Button or disconnecting a cable, due to it coming to an abrupt, sharp stop! • If you have to brake in an emergency, simply release the joystick which will bring you to a halt. (refer to the joystick operating manual for more information).
  • Page 24 Danger of fire or breaking down due to electric devices being connected! • Do not connect any electric devices to your mobility device that are not expressly certified by Invacare® for this purpose. Have all electrical installations done by your authorised Invacare® Dealer.

  • Page 25: Safety Information With Regard To Care And Maintenance

    Safety information with regard to care and maintenance Danger of accident and loss of guarantee if maintenance is insufficient! • For reasons of safety and in order to avoid accidents which result from unnoticed wear, it is important that this electric mobility product undergoes an inspection once every year under normal operating conditions (see inspection plan contained in service instructions).

  • Page 26: Safety Information On Electromagnetic Interference

    Safety information on electromagnetic interference This electric vehicle was successfully tested in accordance with International standards as to its compliance with Electromagnetic Interference (EMI) regulations. However, electromagnetic fields, such as those generated by radio and television transmitters, and cellular phones can influence the functions of electric vehicles.

  • Page 27: Safety Information On Driving And Freewheel Mode

    Safety information on driving and freewheel mode Danger of injury if the wheelchair tips over! • Inclines and declines can only be travelled up to the maximum safe slope (see chapter "Technical specifications" from page 173). • Always return the backrest of your seat or the seat tilt to an upright position before ascending slopes.
  • Page 28 Danger of breaking down in adverse weather conditions, i.e. extreme cold, in an isolated area! • If you are a user with severely limited mobility, we advise that in the case of adverse weather conditions DO NOT attempt a journey without an accompanying attendant! Danger of injury if your foot slides off the footrest and gets caught underneath the wheelchair when it is in motion! •...

  • Page 29: Safety Information Regarding Changes And Modifications To The Mobility Device

    EEC / MPG (Medical Devices Act) and only applies to the complete product. The CE marking is invalidated if components or accessories are replaced or added that have not been approved for this product by Invacare. In this case, the company that adds or replaces the components or accessories is responsible for the conformity assessment/ CE marking or for registering the wheelchair as a special design and for the relevant documentation.
  • Page 30 • Only use seating systems that have been approved by Invacare® for this power wheelchair. Electrical and electronic components which have not been approved by Invacare® for use with this mobility aid can cause fire hazards and lead to electromagnetic damage! •...

  • Page 31: Safety Information On Wheelchairs With A Lifter

    Safety information on wheelchairs with a lifter WARNING! Danger of injury by moving parts! • Never let objects get caught in the space underneath a raised lifter! • Make sure that neither you nor anyone else is injured by placing hands, feet other body extremities under the raised seat! •...
  • Page 32 CAUTION! Damage to mobility aid caused by one-sided loading on lifter pillar! • One-sided loading occurs if the seat is raised and/or tilted. Always return your seat backrest to the upright position and the seat tilting to the horizontal position before ascending slopes! ! Never subject the lifter pillar to continuous single-sided loading! The raising and tilting function of the seat only provides additional rest positions.

  • Page 33: Key Features

    Key features 1) Push handle 2) Armrest 3) Lever for disengaging a motor (only visible on right-hand side of picture) 4) Drive wheel 5) Remote 6) Legrests...

  • Page 34: The Position Of The Labels On The Product

    The position of the labels on the product 1) Note: Remove the table before transporting 2) Identification of the lashing eyes at the front and back Warning that the wheelchair may not be used as a vehicle seat Note on required head support if the wheelchair may be used as a vehicle seat 3) Warning regarding the use of the lifter 4) Identification label sticker on the chassis at...

  • Page 35: Getting In And Out Of The Wheelchair

    Getting in and out of the wheelchair Important information when side transferring in and out of the wheelchair In order to side transfer it is necessary for the armrest to either be raised or removed completely depending on the model. A skirtguard can be installed as an option in connection with the parallel sliding armrest.

  • Page 36: Raise The Parallel Sliding Armrest / Remove The Skirtguard (Optional)

    Raise the parallel sliding armrest / remove the skirtguard (optional) Swivelling the armrest up • Swivel the armrest up to access from the side. Removing the skirtguard (optional) to get on: • Release wing nut (1) . • Remove the skirtguard from the receptacle.
  • Page 37 Getting into the wheelchair: • Position your wheelchair as close as possible to your seat. This might have to be done by an attendant. • Switch your wheelchair off. • Apply the manual wheel lock of your wheelchair (if existing). •...

  • Page 38: Driving

    Driving NOTE The maximum load capacity that is stated in the technical data only states that the system is designed for this mass in total. However, this does not mean that one can sit a person with this body weight in the wheelchair without restrictions. Attention must be paid to the body proportions, such as height, weight distribution, abdominal girth, leg and calf girth and seat depth.

  • Page 39: Parking And Stationary

    • The rear mirror (if installed) is adjusted so you can look behind at all times without having to bend forward or shift your seating position. Parking and stationary When parking your vehicle or if your vehicle is stationary for a prolonged period: •...

  • Page 40: Safety Information When Ascending Obstacles

    6.3.3 Safety information when ascending obstacles CAUTION: Danger of Tipping Over! • Never approach obstacles at an angle but at 90 degrees as shown below. • Put your backrest into an upright position before climbing an obstacle. ATTENTION: Risk of falling out of the chair and damage to the power wheelchair such as broken castors! •...

  • Page 41: The Correct Way To Overcome Obstacles

    6.3.4 The correct way to overcome obstacles Ascending Right • Approach the obstacle or the kerb slowly, head-on and at a right angle. • Depending on the wheel drive type, stop in one of the following positions: - In the case of centrally driven wheelchairs: 5 - 10 cm before the obstacle. - For all other drives: approx.

  • Page 42: Use On Public Roads

    If you wish to use your wheelchair on public roads and lighting is required by national legislation, then your wheelchair needs to be equipped with an appropriate lighting system. Please contact your Invacare ® dealer if you have any questions.

  • Page 43: Pushing The Wheelchair In Freewheel Mode

    Pushing the wheelchair in freewheel mode The motors of the wheelchair are equipped with automatic brakes, preventing that the wheelchair starts rolling out of control when the joystick box is switched off. When pushing the wheelchair manually whilst freewheeling, the magnetic brakes must be disengaged. NOTE: Pushing the wheelchair by hand may require more physical force than expected (more than 100 N).

  • Page 44: Remotes

    Disengaging motors: • Switch off remote. • Push the engaging lever down (1). The motors are now disengaged. Re-engaging motors • Pull the engaging lever (1) upwards. The motors are now re-engaged. Remotes Your wheelchair may be equipped with one of several different remotes. For information on the different functions and how to operate a particular remote, please see its corresponding User Manual (enclosed).

  • Page 45: Adjusting The Wheelchair To The User's Seating Posture

    Adjusting the wheelchair to the user's seating posture CAUTION: Damage to wheelchair and accident hazard! It is possible that collisions can occur between wheelchair components due to various combinations of adjustment options and their individual settings! • The wheelchair is fitted with an individual, multiply adjustable seating system including adjustable legrests, armrests, a headrest or other options.

  • Page 46: Adjusting The Armrests And The Control Panel

    Adjusting the armrests and the control panel 9.1.1 Adapting the control panel to the length of the user’s arm Requirements: • Allen key 3 mm • Loosen the socket head screw (1). • Set remote to the desired length by pushing forward or backward.

  • Page 47: Setting The Height Of The Remote

    9.1.2 Setting the height of the remote Pre-requisites: • 1x 6 mm Allen key • Loosen the Allen screw (1). • Adjust the remote to the desired height. • Re-tighten the Allen screw.

  • Page 48: Setting The Height Of The Remote

    9.1.3 Setting the height of the remote If your wheelchair is fitted with a swing-away remote bracket, then the remote can be moved away to the side, for example to drive up close to a table.

  • Page 49: Setting The Height Of The Armrests

    9.1.4 Setting the height of the armrests • Loosen the bolt (1). • Set the armrest at the desired height. • Retighten the bolt.

  • Page 50: Setting The Height Of The Parallel Sliding Armrests

    9.1.5 Setting the height of the parallel sliding armrests Requirements: • Allen key 2 mm • Loosen the screws (1) with the 2 mm Allen key on both sides of the spindle. • Turn the spindle clockwise (A). The armrest is raised.

  • Page 51: Adjusting The Angle Of The Armpad On The Parallel Sliding Armrests

    9.1.6 Adjusting the angle of the armpad on the parallel sliding armrests Requirements: • Allen key 4 mm • Open-end spanner 10 mm • Loosen the screw (1, on the inner side of the armrest), which allows adjustment of the angle of the armpad, while countering the nut (2, outer side of the armrest) with the...

  • Page 52: Adjusting The Width Of The Armrests

    9.1.7 Adjusting the width of the armrests The distance between the side sections can be adjusted by 5.5 cm on both sides (11 cm in total). Requirements: • Allen key 8 mm Where to find the adjustment screws The figure below shows the position of the screws (1) which allow armrest width adjustment (only the left side is shown in the illustration).

  • Page 53: Adjustment Options For The Modulite Seat Unit

    Doing the adjustment • Loosen screw (1) • Adjust armrest to required position. • Retighten the screw. • Repeat this procedure for the second armrest. Adjustment options for the Modulite seat unit 9.2.1 Setting the height of the armrests • Loosen the wing screw (1). •...

  • Page 54: Adjusting The Width Of The Armrests

    9.2.2 Adjusting the width of the armrests WARNING! Serious injury hazard if one of the armrests falls out of its bracket because they have been adjusted to a width which exceeds the permissible value! • The width adjustment is fitted with small stickers with markings and the word "STOP"! The armrests must never be pulled out further than the point at which the word "STOP"...

  • Page 55: Adjusting The Position Of The Armrest In Depth (Modulite Seat Unit)

    The description of how the width is adjusted in contained in the service instructions for this mobility device. The service instructions can be ordered from Invacare®. However, they contain instructions for specially trained service technicians and describe operations that are not intended for the end...

  • Page 56: Adjusting The Seat Depth (Modulite Seat Unit)

    See "Adjusting the center of gravity of the seat" in the service instructions for this mobility device. The service instructions can be ordered from Invacare®. However, they contain instructions for specially trained technicians and describe operations that are not intended for the end user.
  • Page 57 • On both sides, loosen the bottom backrest screw (A). Do not remove the screws! • Move the backrest to the required seat depth. You can adjust the seat depth steplessly. Use scale (B) on the seat as a guide for this purpose. Ensure that the same seat depth is set on both sides.

  • Page 58: Adjusting The Seat Angle

    Adjusting the seat angle 9.3.1 Electric Please consult the user manual for your remote for information about electrical adjustment. 9.3.2 Manual The seat angle is adjusted using two perforated plates which are located right and left under the seat frames. Requirements: •...

  • Page 59: Adjusting The Backrest

    Adjusting the backrest 9.4.1 Electrically adjusting the backrest angle Please consult the user manual for your remote for information about electrical adjustment. Information on models with electrical backrest adjustment If your wheelchair is fitted with electrical backrest adjustment, the maximum adjustment to the rear is limited either by a microswitch or an angular sensor (depending on seating system and seat depth).

  • Page 60: Adjusting Backrest Angle Using Perforated Plate

    9.4.2 Adjusting backrest angle using perforated plate • Unscrew the hand screws (1) on both sides. • The backrest is adjusted by choosing a combination of one of the two bore holes in the backrest frame and one of the six bore holes in the fixing plate.

  • Page 61: Flex And Contour Seats

    9.4.3 Flex and Contour seats • Set the angle by turning the hand wheel (1).

  • Page 62: Adjusting The Backrest Using The Gas Pressure Spring

    9.4.4 Adjusting the backrest using the gas pressure spring The lever for adjusting the backrest is located on the opposite side from the Joystick Box under the armrest. Adjusting angle of the backrest • Pull lever (1) upward. • Adjust backrest angle by leaning forward or backward.

  • Page 63: Adjusting The Height Of The Backrest (Modulite Seat Unit)

    9.4.5 Adjusting the height of the backrest (Modulite seat unit) The following section describes the procedures for adjusting the height of the backrest plate. Note The sling back is only available in fixed heights of 48 and 54 cm. Prerequisites: •...

  • Page 64: Adjusting The Width Of The Backrest (Modulite Seat Unit)

    For a replacement description, see the service instructions for this mobility device. The service instructions can be ordered from Invacare®. However, they contain instructions for specially trained service technicians and describe operations that are not intended for the end user.

  • Page 65: Adjusting The Backrest Angle (Modulite Seat Unit)

    • Loosen and remove the backrest plate screw (A). • Loosen the backrest plate screws (B). Do not remove the screws! • Move the backrest plate halves to the required width. • Re-insert screw (A). • Re-tighten the screws. 9.4.7 Adjusting the backrest angle (Modulite seat unit) CAUTION Every change to the seat angle and every backrest angle change alters the geometry of the electric wheelchair and affects its tipping stability...

  • Page 66: Manual

    9.4.7.2 Manual Width-adjustable backrest Prerequisites: • 1x 5 mm Allen key • Loosen and remove the upper backrest screw (A) on both sides. • Set the required backrest angle. Use scale (B) on the backrest for this purpose. Ensure that you set the same angle on both sides. •...
  • Page 67 Simple backrest Prerequisites: • 1x 6 mm Allen key • On both sides, loosen and remove the middle backrest screw (A). • Set the required backrest angle in 7.5° steps. Ensure that you set the same angle on both sides. •...

  • Page 68: Adjusting The Tension Adjustable Backrest Upholstery

    9.4.8 Adjusting the tension adjustable backrest upholstery • Remove the backrest cushion (attached with Velcro strips) by pulling it up and off to access the adjustment straps. • Adjust the tension of the individual straps as desired. • Replace the backrest cushion.

  • Page 69: Adjusting The Vic Air Cushion

    9.4.9 Adjusting the VIC AIR Cushion • Remove the VIC AIR cushion (attached with Velcro strips) by pulling it forward. • Zip open the cover of the cushion.
  • Page 70 • Pull the inner cushion out. The inner cushion comprises five individual compartments filled with air-filled tetrahedrons (1). These can be added, removed or redistributed in the different compartments to adjust hardness and positioning. • To access the inner compartments, open the zipper. •...

  • Page 71: The Lifter

    Information regarding operation of the lifter at temperatures of less than 0 °C Invacare® mobility aids are fitted with safety mechanisms that prevent capacity overload of the electronic components. At operating temperatures below freezing point this can, in particular, lead to the lifter actuator being shut down after approx.

  • Page 72: Explanation Of Symbols On Lifter Warning Sticker

    9.5.1 Explanation of symbols on lifter warning sticker Do not lean out Do not drive up Do not allow any Never drive with Never drive over when the lifter is or down slopes body parts to get two people! uneven surfaces raised! when the lifter is under a raised...

  • Page 73: Adjusting The Headrest

    This can cause the neck to be hyperextended during collisions! • A headrest must be installed! The headrest optionally supplied for this mobility device by Invacare® is perfectly suitable for use during transport. • The headrest must be adjusted to the user's ear height.

  • Page 74: Postural Belts

    Postural belts A postural belt is an option which can either be fixed to the wheelchair ex-works or can be retrofitted by your specialist dealer. If your wheelchair is fitted with a postural belt, your specialist dealer will have informed you about fitting and usage. The postural belt is used to help the wheelchair user keep an optimum sitting position.

  • Page 75: Adjusting The Postural Belt Correctly

    If the belt is only fastened with a bolted connection, ensure that the connection has not loosened or undone. You can find more information about maintenance work on belts in the service manual, which is available from Invacare®.

  • Page 76: Adjusting The Trunk Supports

    Adjusting the trunk supports The trunk supports can be adjusted in three different ways: • Width • Height • Depth 9.8.1 Adjusting the width • Loosen the knobs (1) that hold the lateral supports. • Adjust the supports to the desired width. •...

  • Page 77: Adjusting The Height

    9.8.2 Adjusting the height Requirements: • Allen key 5 mm • Loosen the screws (1) that allow height adjustment of the lateral supports. • Adjust the supports to the desired height. • Re-tighten the screws.

  • Page 78: Adjusting The Depth

    9.8.3 Adjusting the depth Requirements: • Allen key 5 mm • Loosen the screws (1) that allows the support pads to slide forwards and backwards. • Adjust the supports to the desired position. • Re-tighten the screws.

  • Page 79: Adjusting The Height-Adjustable Push-Handle

    Adjusting the height-adjustable push-handle • Loosen the knobs (1) that hold the push-handle. • Adjust the handle to the desired height. • Re-tighten the knobs.

  • Page 80: Adjusting And Removing The Tray

    9.10 Adjusting and removing the tray CAUTION: Injury hazard or material damage if a power wheelchair which is fitted with a table is transported in a vehicle! • If a table is fitted, always remove it before transporting the wheelchair. 9.10.1 Laterally adjusting the tray •...

  • Page 81: Adjusting The Depth Of The Tray / Removing The Tray

    9.10.2 Adjusting the depth of the tray / removing the tray • Loosen the wing-screw (1). • Adjust the table to the desired depth (or remove it entirely). • Re-tighten the screw. 9.10.3 Swinging the tray away to the side CAUTION! Risk of injury! When the tray is raised it does not lock in place in this position! •...

  • Page 82: Child Seat (Option)

    9.11 Child seat (option) The child seat consists of the actual seat, a headrest and a laterally-mounted footrest. The following describes how these options can be adapted to the sitting posture of the user. 9.11.1 The headrest of the child seat 9.11.1.1 Adjusting the angle / depth of the headrest •...

  • Page 83: Adjusting The Height Of The Headrest

    9.11.1.2 Adjusting the height of the headrest • Loosen the clamping screw (1). • Move the headrest to the desired height. • Tighten the clamping screw.

  • Page 84: The Armrests / Setting The Angle

    9.11.2 The armrests / setting the angle Pre-requisites: • 13 mm open-ended spanner The adjusting screw for adjusting the angle of the armrest is to be found at the rear end of the armrest (A). • Loosen the counternut (1) using the open-ended spanner.

  • Page 85: The Backrest

    9.11.3 The backrest 9.11.3.1 Adjusting the height of the sliding handles (option) • Loosen the hand wheel (1 or 2). • Move the sliding handle to the desired position. • Tighten the hand wheel.

  • Page 86: Adjusting The Angle Of The Backrest Electrically

    9.11.3.2 Adjusting the angle of the backrest electrically The backrest can be optionally adjusted using an electric actuator. Please consult the instruction manual for your remote for information about electrical adjustment. 9.11.3.3 Adjusting the angle of the backrest manually • Loosen the hand wheel (1). •...

  • Page 87: The Legrest Of The Child Seat

    9.11.4 The legrest of the child seat 9.11.4.1 Setting the angle of the footrest Pre-requisites: • 5 mm Allen key • Loosen the Allen screws at both ends of the footrest (1) (only one side is shown in the illustration). •...

  • Page 88: Swivelling The Footrest Upward / Removing The Legrest

    9.11.4.2 Swivelling the footrest upward / removing the legrest In order to simplify getting into the vehicle and alighting, the footrest can be swivelled upward. The footrest must also be swivelled upward so that the width of the legrest can be adjusted or the legrest dismantled.
  • Page 89 • Press the release button (1) and swivel the legrest outward. • Remove the legrest in an upward direction.

  • Page 90: Adjusting The Width Of The Legrest

    9.11.4.3 Adjusting the width of the legrest Pre-requisites: • Flat screwdriver • 5 mm Allen key • 3 mm Allen key • 13 mm open-ended spanner • Swivel the footrest upward and dismantle the legrest (see section "Swivelling the footrest upward / "...
  • Page 91 • Remove the plastic studs carefully using a flat screwdriver. • Remove the rubber mat.
  • Page 92 • Remove the screws (1) using the 3 mm Allen key. • Adjust the footrest bracket (2) to the desired width. • Re-position and tighten the screws.
  • Page 93 • If the width of the footrest has been altered, the width of the legrest brackets (1) on the wheelchair frame must be adapted appropriately. • Loosen the four screws (2) using the 13 mm open- ended spanner.
  • Page 94 • Swivel the footrest slightly upward so that the legrest halves can be turned inward without colliding. • Hang the legrest halves on the left and right and turn inward until the locking mechanisms on both sides lock in place. •...
  • Page 95 • Tighten the screw (1). • Re-close the belt with the Velcro® fastener (2).

  • Page 96: Adjusting The Length Of The Legrest

    9.11.4.4 Adjusting the length of the legrest Pre-requisites: • 5 mm Allen key • Loosen the screw (1). • Adjust the lower leg length. • Tighten the screw.

  • Page 97: Adjusting The Angle Of The Legrest

    9.11.4.5 Adjusting the angle of the legrest Pre-requisites: • 6 mm Allen key • Metal pin 3 mm ∅, approx. 10 cm long • Hammer • Loosen the screw (1). • Insert the metal pin into the hole (2) and knock lightly with the hammer in order to loosen the halves of the plastic jacket.
  • Page 98 • Loosen the screw (1). • Insert the metal pin into the hole (2) and knock lightly with the hammer in order to loosen the halves of the plastic jacket. • Adjust the angle. • Tighten the screw. • Loosen the screw (1). •...

  • Page 99: Using The Klickfix Adapter

    Your wheelchair can be fitted with the mini-adapter from the Rixen + Kaul KLICKfix system. To this you can attach various accessories such as the cellphone case supplied by Invacare, which you can use to transport your cellphone, sports glasses etc.

  • Page 100: Adjusting Footrests And Legrests

    The adapter can turn in 90° steps, allowing you to attach an accessory from any of four different ® directions. Please refer to the installation instructions which are available from your Invacare ® dealer or directly from Invacare More information on the KLICKfix system is available at http://www.klickfix.com.
  • Page 101 • Remove the removable axle (1). • Hold the leg rest securely and pull the lever (1). • Remove the leg rest from the holder (2).

  • Page 102: Setting The Angle Of The Leg Rest

    10.1.2.2 Setting the angle of the leg rest CAUTION! If the leg rest is not secured and the lever (1) is removed, the leg rest will drop suddenly, which could cause an injury. • Secure the leg rest before you remove the lever to adjust the angle of the leg rest. •...

  • Page 103: Setting The Length Of The Leg Rest

    10.1.2.3 Setting the length of the leg rest Required items: • 1x Allen key 3/16'' You can adjust the length of the leg rests independently of one another. • Release the bolts (1) on the rear of the leg rest using the Allen key.

  • Page 104: Setting The Angle Of The Footplate

    10.1.2.4 Setting the angle of the footplate Required items: • 1x Allen key 5/32'' • Fold the footplates up in order to access the adjusting screws (1). • Set the adjusting screws using the Allen key. • Fold the footplate down again.

  • Page 105: Setting The Angle And Height Of The Calf Pad

    10.1.2.5 Setting the angle and height of the calf pad Required items: • 1x Allen key 3/16'' • Fold the calf pad forward in order to access the bolt (1). • Loosen the bolt using the Allen key and adjust the calf pad to the required angle and height.

  • Page 106: Laterally Mounted Legrests

    10.2 Laterally mounted legrests 10.2.1 Vari-F footrest 10.2.1.1 Swivelling the footrest outward and/or removing The small unlocking button is located on the upper section of the footrest. When the footrest is unlocked, it can be swivelled inward or outward when getting into the wheelchair as well as being removed completely.

  • Page 107: Setting The Angle

    10.2.1.2 Setting the angle PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! Pre-requisites: •...
  • Page 108 • Loosen the screw (1) using the Allen key. • Set the desired angle. • Re-tighten the screw.

  • Page 109: Setting The End Stop Of The Footrest

    10.2.1.3 Setting the end stop of the footrest Pre-requisites: • 1x 6 mm Allen key • 1x 10 mm open-ended spanner The end position of the footrest is determined by means of a rubber stop (1). The rubber stop can be screwed in or out (A) or pushed up or down (B).
  • Page 110 • Use the Allen key to loosen the screw (1) and swivel the footrest upward in order to access the rubber stop. • Use the open-ended spanner to loosen the counternut (1).
  • Page 111 • Move the rubber stop to the desired position • Re-tighten the counternut • Move the footrest to the desired position. • Re-tighten the screw.

  • Page 112: Adjusting The Length Of The Footrest

    10.2.1.4 Adjusting the length of the footrest PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! Pre-requisites: •...

  • Page 113: Vari-A Legrests

    10.2.2 Vari-A legrests 10.2.2.1 Swivelling the legrest outward and/or removing The small unlocking button is located on the upper section of the legrest. When the legrest is unlocked, it can be swivelled inward or outward when getting into wheelchair as well as being removed completely.

  • Page 114: Setting The Angle

    10.2.2.2 Setting the angle PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! •...
  • Page 115 • Hit the knob to release the locking mechanism. • Set the desired angle.
  • Page 116 • Turn the knob clockwise to tighten it.

  • Page 117: Setting The End Stop Of The Legrest

    10.2.2.3 Setting the end stop of the legrest Pre-requisites: • 1x 10 mm open-ended spanner The end position of the legrest is determined by means of a rubber stop (A). The rubber stop can be screwed in or out (A) or pushed up or down (B).
  • Page 118 • Loosen the locking knob (1) counter-clockwise at least one turn. • Hit the knob to release the locking mechanism.
  • Page 119 • Swivel the legrest upward in order to access the rubber stop. • Use the open-ended spanner to loosen the counternut (1).
  • Page 120 • Move the rubber stop to the desired position • Re-tighten the counternut • Move the legrest to the desired position. • Re-tighten the locking knob.

  • Page 121: Adjusting The Length Of The Legrest

    10.2.2.4 Adjusting the length of the legrest PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! Pre-requisites: •...

  • Page 122: Adjusting The Depth Of The Calf Plate

    10.2.2.5 Adjusting the depth of the calf plate The depth of the calf plate can be adjusted via the holding plate. The holding plate hole combinations allow 5 different depth settings. Pre-requisites: • 1x 10 mm open-ended spanner • Use the open-ended wrench to loosen the nut (1) and remove.

  • Page 123: Adjusting The Height Of The Calf Pad

    10.2.2.6 Adjusting the height of the calf pad Pre-requisites: • 1x 4 mm Allen key • Use the Allen key to loosen the screws (1). • Adjust to the desired position. • Re-tighten the screws.

  • Page 124: Unlocking And Swivelling The Calf Plate Backward When Alighting

    10.2.2.7 Unlocking and swivelling the calf plate backward when alighting • Press the calf plate straight down. • Unlock the legrest and swivel outward. The calf plate swivels backward on its own.

  • Page 125: Adjusting The Angle Adjustable Foot Plate

    • Lift leg over the heel strap and place on the ground. 10.2.2.8 Adjusting the angle adjustable foot plate Pre-requisites: • 1x 5 mm Allen key • Use the Allen key to loosen both set screws on the foot plate. •...

  • Page 126: Adjusting The Angle And Depth Adjustable Foot Plate

    10.2.2.9 Adjusting the angle and depth adjustable foot plate Pre-requisites: • 1x 5 mm Allen key • Use the Allen key to loosen the set screw on the foot plate (1). • Adjust the foot plate to the desired angle or depth. •...

  • Page 127: Adm Legrests

    10.2.3 ADM legrests 10.2.3.1 Swivelling the legrest outward and/or removing The small unlocking button is located on the upper section of the legrest. When the legrest is unlocked, it can be swivelled inward or outward when getting into wheelchair as well as being removed completely.

  • Page 128: Setting The Angle

    10.2.3.2 Setting the angle PLEASE NOTE: Danger of crushing! • Do not reach inside the swivelling range of the legrest! PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! •...
  • Page 129 • Lowering: Keep the legrest in the foot plate area, pull the lateral adjusting lever (1) and lower the legrest slowly.

  • Page 130: Adjusting The Length Of The Legrest

    10.2.3.3 Adjusting the length of the legrest PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! Pre-requisites: •...

  • Page 131: Adjusting The Depth Of The Calf Plate

    10.2.3.4 Adjusting the depth of the calf plate The depth of the calf plate can be adjusted via the holding plate. The holding plate hole combinations allow 5 different depth settings. Pre-requisites: • 1x 10 mm open-ended spanner • Use the open-ended wrench to loosen the nut (1) and remove.

  • Page 132: Adjusting The Height Of The Calf Pad

    10.2.3.5 Adjusting the height of the calf pad Pre-requisites: • 1x 4 mm Allen key • Use the Allen key to loosen the screws (1). • Adjust to the desired position. • Re-tighten the screws.

  • Page 133: Unlocking And Swivelling The Calf Plate Backward When Alighting

    10.2.3.6 Unlocking and swivelling the calf plate backward when alighting • Press the calf plate straight down. • Unlock the legrest and swivel outward. The calf plate swivels backward on its own.

  • Page 134: Adjusting The Angle Adjustable Foot Plate

    • Lift leg over the heel strap and place on the ground. 10.2.3.7 Adjusting the angle adjustable foot plate Pre-requisites: • 1x 5 mm Allen key • Use the Allen key to loosen both set screws on the foot plate. •...

  • Page 135: Adjusting The Angle And Depth Adjustable Foot Plate

    10.2.3.8 Adjusting the angle and depth adjustable foot plate Pre-requisites: • 1x 5 mm Allen key • Use the Allen key to loosen the set screw on the foot plate (1). • Adjust the foot plate to the desired angle or depth. •...

  • Page 136: Ade Legrests

    10.2.4 ADE legrests 10.2.4.1 Swivelling the legrest outward and/or removing The small unlocking button is located on the upper section of the legrest. When the legrest is unlocked, it can be swivelled inward or outward when getting into wheelchair as well as being removed completely.

  • Page 137: Setting The Angle

    10.2.4.2 Setting the angle PLEASE NOTE: Danger of crushing! • Do not reach inside the swivelling range of the legrest! PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! The electrically height-adjustable legrests are operated using the remote.

  • Page 138: Adjusting The Length Of The Legrest

    10.2.4.3 Adjusting the length of the legrest PLEASE NOTE: Danger of injury due to incorrect adjustment of the footrests and legrests. • Before and during every journey it is imperative to ensure that the legrests contact neither the castor wheels nor the ground! Pre-requisites: •...

  • Page 139: Adjusting The Depth Of The Calf Plate

    10.2.4.4 Adjusting the depth of the calf plate The depth of the calf plate can be adjusted via the holding plate. The holding plate hole combinations allow 5 different depth settings. Pre-requisites: • 1x 10 mm open-ended spanner • Use the open-ended wrench to loosen the nut (1) and remove.

  • Page 140: Adjusting The Height Of The Calf Pad

    10.2.4.5 Adjusting the height of the calf pad Pre-requisites: • 1x 4 mm Allen key • Use the Allen key to loosen the screws (1). • Adjust to the desired position. • Re-tighten the screws.

  • Page 141: Unlocking And Swivelling The Calf Plate Backward When Alighting

    10.2.4.6 Unlocking and swivelling the calf plate backward when alighting • Press the calf plate straight down. • Unlock the legrest and swivel outward. The calf plate swivels backward on its own.

  • Page 142: Adjusting The Angle Adjustable Foot Plate

    • Lift leg over the heel strap and place on the ground. 10.2.4.7 Adjusting the angle adjustable foot plate Pre-requisites: • 1x 5 mm Allen key • Use the Allen key to loosen both set screws on the foot plate. •...

  • Page 143: Adjusting The Angle And Depth Adjustable Foot Plate

    10.2.4.8 Adjusting the angle and depth adjustable foot plate Pre-requisites: • 1x 5 mm Allen key • Use the Allen key to loosen the set screw on the foot plate (1). • Adjust the foot plate to the desired angle or depth. •...

  • Page 144: Adjusting The Width Of Side-Mounted Legrests

    10.2.5 Adjusting the width of side-mounted legrests Pre-requisites: • 13 mm open-ended spanner The screws that allow width adjustment of side-mounted legrests are located under the seat (1). • Loosen the screws using the open-end spanner. • Adjust the legrest to the desired position. •...

  • Page 145: Electrical System

    Electrical system 11.1 Electronics protection system The vehicle drive electronics is fitted with an overload protection. If the drive is severely overloaded over a long period (e.g. during steep climbs) and, above all, at simultaneous high external temperatures, the electronic system can overheat. In this case, the vehicle performance is gradually reduced until it comes to a standstill.

  • Page 146: The Main Fuse

    NOTE A defective main fuse may be replaced only after checking the entire electric system. An Invacare® specialised dealer must perform the replacement. You can find information on the fuse type in chapter "Technical specifications" starting on page 173. All electrical equipment fitted to the wheelchair is protected against overload by the main fuse.

  • Page 147: Batteries

    11.2 Batteries Power is supplied by two 12 V batteries. The batteries are maintenance-free and only need regular charging. In the following, you find information on how to charge, handle, transport, store, maintain, and use batteries. 11.2.1 Charging the batteries 11.2.1.1 General information on charging New batteries should always be fully charged once before their first use.

  • Page 148: How To Charge The Batteries

    10 °C. • Use only charging devices in Class 2. This class of chargers may be left unattended during charging. All charging devices which are supplied by Invacare® comply with these requirements.

  • Page 149: How To Disconnect The Batteries After Charging

    Risk of explosion and destruction of batteries if the wrong battery charger is used! • Only ever use the battery charger supplied with your vehicle, or a charger that has been approved by Invacare®. Risk of electric shock and damage to the battery charger if it gets wet! •...

  • Page 150: Storage And Maintenance

    11.2.2 Storage and Maintenance Follow the instructions listed below to ensure safe use and longevity of the batteries: • Always store the batteries fully charged. • Do not leave the batteries in a low state of charge for an extended length of time. Charge a discharged battery as soon as possible.
  • Page 151 The last 3 LED (two red and one orange) mean a remaining capacity of about 15 %. • Driving with blinking red LED’s means an extreme stress for the battery and should be avoided under normal circumstances. • When only one red LED is blinking, the Battery Safe feature is enabled. From this time, speed and acceleration is reduced drastically.

  • Page 152: Transporting Batteries

    • Under normal operation, once a month the battery should be discharged until all green and orange LED are off. This should be done within one day. A 16 hour charge afterwards is necessary as reconditioning. 11.2.4 Transporting batteries The batteries supplied with your electric vehicle are not hazardous goods. This classification is based on the German GGVS Hazardous Goods Road Transport Ordinances, and the IATA/DGR Hazardous Goods Rail Transport / Air Transport Ordinances.
  • Page 153 • Only ever transport damaged batteries in an appropriate acid-resistant receptacle. • Wash all objects that have come into contact with acid with lots of water. Disposing of dead or damaged batteries correctly Dead or damaged batteries can be given back to your dealer or directly to Invacare®.

  • Page 154: Removing The Batteries

    11.2.5.3 Removing the batteries CAUTION: Risk of fire and burns if battery poles are bridged! • When replacing the batteries the battery poles MUST NOT come into contact with metal parts of the wheelchair causing bridging. • Be sure to replace the battery pole caps after the batteries have been replaced. WARNING: Risk of fire and burns due to damage to the battery cables! •...
  • Page 155 • Remove the side-mounted legrests if fitted. A centrally-fitted, manually adjustable legrest should be put in its top position by turning the spindle (1). • Remove the screws on the panelling (1) using the 1/4" Allen key.
  • Page 156 • Remove the panelling. • Pull the batteries forwards out of the slide.
  • Page 157 • Remove the terminal cover from the battery terminals (1). • First undo the bolt on the negative terminal (black cable) with the 11 mm jaw spanner. • After this, undo the bolt on the positive terminal (red cable). CAUTION! Danger of crushing! •...

  • Page 158: Care And Maintenance

    "Technical specifications" on page 173, or consult the Service Manual, available from Invacare® (in this connection please see the addresses and phone numbers in section "How can you get in touch with Invacare®?" on page 3). In case you require assistance, please contact your Invacare® Dealer.
  • Page 159 Maintenance Jobs Seat and backrest padding: - Check for perfect condition. Side part and armrest: - Are all fixing elements installed? - Can armrests / side panels be removed and installed without too much physical effort? - Are armrests secured in their positions? Legrests: - Do legrests lock into place without any problem (only applies to detachable legrests)?
  • Page 160 To ensure driving safety and roadworthiness, you should have your wheelchair inspected and serviced by your authorised dealer once a year. A complete checklist of necessary maintenance work can be found in the Workshop Manual, which can be obtained from Invacare®.

  • Page 161: Transport

    Transport CAUTION: Injury hazard or material damage if a power wheelchair which is fitted with a table is transported in a vehicle! • If a table is fitted, always remove it before transporting the wheelchair. 13.1 Transferring the wheelchair to a vehicle WARNING: The wheelchair is in danger of tipping over if it is transferred to a vehicle while the driver is still seated in the wheelchair! •...

  • Page 162: Use Of The Wheelchair As A Seat In A Vehicle

    • An alternative way to safely use this wheelchair as a vehicle seat may be by using the Docking Station system if the wheelchair is compatible with that system, available separately! Please contact Invacare if you require the details. WARNING: Danger of injury or damage to the wheelchair or to the transporting vehicle, if the legrests are in a raised position while the wheelchair is used as a vehicle seat! •...
  • Page 163 Caution: There is a danger of injury if the wheelchair is not properly secured during use as a vehicle seat! • If possible, the user should always leave the wheelchair to use a vehicle seat and the safety belts provided with the vehicle. •...
  • Page 164 (UK for example), but may also be obtained from Invacare® as an option in other countries. This power wheelchair complies with the requirements of ISO 7176-19:2001 and may be used as a vehicle seat in connection with an anchoring system that has been checked and approved in accordance with ISO 10542.

  • Page 165: How The Wheelchair Is Anchored In A Vehicle For Use As A Vehicle Seat

    13.2.1 How the wheelchair is anchored in a vehicle for use as a vehicle seat The power wheelchair is fitted with four anchoring points, which are labelled with the symbol shown on the right. Snap hooks or belt loops can be used for fixation.

  • Page 166: How The User Is Secured Within The Wheelchair

    13.2.2 How the user is secured within the wheelchair CAUTION: There is a danger of injury if the user is not properly secured within the wheelchair! • Even if the wheelchair is fitted with a postural belt, this is no substitute for a proper safety belt which complies with ISO 10542 in the transport vehicle.
  • Page 167 This can cause the neck to be hyperextended during collisions! • A headrest must be installed! The headrest optionally supplied for this mobility device by Invacare® is perfectly suitable for use during transport. • The headrest must be adjusted to the user's ear height.
  • Page 168 Seat belts may not be held at a distance The pelvic belt should be positioned in the from the user's body using parts of the area between the user's pelvis and thighs wheelchair such as armrests or wheels. so that it is unobstructed and not too loose. The ideal angle of the pelvic belt to the horizontal is between 45°...
  • Page 169 The safety belt installed in the transporting vehicle should be applied as shown in the illustration at right. 1) Centre line of the body 2) Centre of the sternum...

  • Page 170: Securing The Wheelchair For Transport Without Passengers

    CAUTION: Injury hazard! ® • If you are unable to fasten your electric wheelchair securely in a transport vehicle, Invacare recommends that you do not transport it! • Before transporting your wheelchair, make sure the motors are engaged and that the Joystick Box is switched off.

  • Page 171: Refurbishment

    • Cleaning and disinfection. Please see chapter "Care and maintenance" on page 158. • Inspection according to service plan. Please consult service instructions, available from Invacare®. • Adaptation to the user. Please see chapter "Adjusting the wheelchair to the user's seating...

  • Page 172: Disposal

    • Electric components and printed circuit boards are disposed of as electronic scrap. • Exhausted or damaged batteries can be returned to your medical equipment supplier or Invacare®. • Disposal must be carried out in accordance with the respective national legal provisions.

  • Page 173: Technical Specifications

    Electrical system Motors • 2 x 340 W Batteries • 2 x 12 V/73.5 Ah (C20) leakproof/gel (TDX SP) • 2 x 12 V/50 Ah (C20) leakproof/gel (TDX SP nb) Main fuse • 80 A Charging device Output current • 8 A ± 8 % Output voltage •...
  • Page 174 Driving characteristics Speed • 6 km/h (TDX SP and TDX SP nb) • 8 km/h (only TDX SP) • 10 km/h (TDX SP and TDX SP nb) Min. braking distance • 1000 mm (6 km/h) • 1500 mm (8 km/h) •...
  • Page 175 1420 mm 1350 mm 1350 mm Max. total width • 730 mm (with travelling armrests and seat width 48) • 650 mm (TDX SP) • 620 mm TDX SP Total length (incl. • 1160 mm standard legrests) Total length (without •...
  • Page 176 28°-seat angle • 520 mm (with central legrest) adjustment) Seat height **** (with • 490 - 790 mm lifter, only TDX SP) • 520 - 820 mm (with central legrest) Seat width (armrest • 430 mm • 480 mm • 380 mm •...
  • Page 177 +22.5°, (electr.) +30° (man.) • 0° ... +16° (electr.) Armrest height TDX SP • 250 - 350/290 - 390 mm • 280 mm Armrest height TDX SP • 290 - 360 • 250 - 350 • 250 - 350 • see Flex •...
  • Page 178 Overall height (with seat angle adjustment or lifter) • 1040 - 1170 mm (telescopic seat frame, moving the backrest plate) Max. total width • 620 mm (chassis TDX SP nb) • 650 mm (chassis TDX SP) • 675 mm (seat width 48) •...
  • Page 179 Seat cushion thickness • 50/75/100 mm Backrest angle • 90° … 120° Armrest height TDX SP • 245 - 310 mm (single-part seat frame) • 275 - 340 mm (telescopic seat frame) Legrest lengths: • Short (for leg length 320 - 380 mm) •...
  • Page 180 **** Measured without seat cushion ***** The actual kerb weight depends on the fittings your mobility aid has been supplied with. Every Invacare® mobility aid is weighed when leaving the works. Please refer to the nameplate for the kerb weight (including batteries) measured.

  • Page 181: Inspections Performed

    It is confirmed by stamp and signature that all jobs listed in the inspection schedule of the Service and Repair Instructions have been properly performed. The list of the inspection jobs to be performed can be found in the Service Manual which is available through Invacare®. Delivery Inspection...
