5 - Horn Output Timing: Control the minimum horn pulse time in milli seconds,
some vehicle will require a longer pulse to activate the factory horn.
16mS
6 - Real Panic: Controls the panic out when triggered from the transmitter.
ON - Randomized horn honks when panic is triggered.
OFF - Standard pattern horn honks when panic is triggered.
7 - AUX 1 - Violet/Black Output: Controls the VIOLET/BLACK AUX 1 output
activation type and timing.
Push and Hold - Output is continuously active until transmitter button is
released.
Latched - Output stays active until button is pressed again.
Latched until IGN ON - Output stays active until the ignition is turned on.
Dome Light Output - Output is used for illuminated entry and is not controlled
by the AUX 1 function of the transmitter.

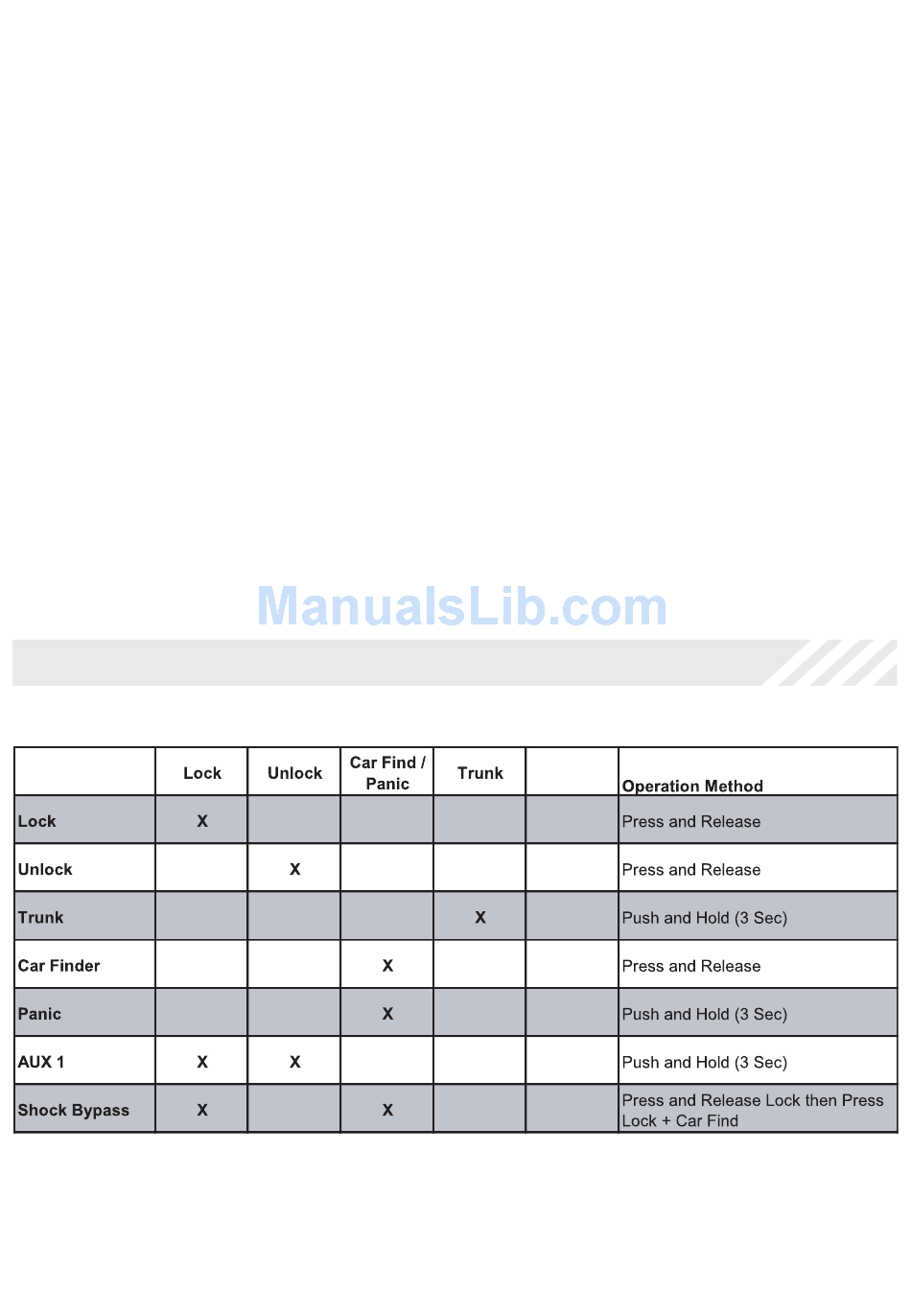

Transmitter Button Functions
16
10mS
30mS
40mS
50mS
ca1151 rev B. 2011 Audiovox Electronics Corporation. All rights reserved.
