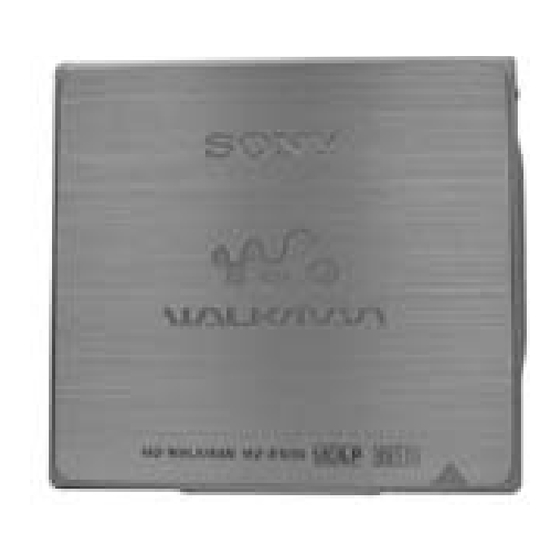

Portable minidisc player
Hide thumbs Also See for MZ-E900:

Advertisement

SERVICE MANUAL
Ver 1.1 2001.01
US and foreign patents licensed from Dolby
Laboratories Licensing Corporation
System
Audio playing system
MiniDisc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: l = 790 nm
Emission duration: continuous
Laser output: less than 44.6 µW*
* This output is the value measured at a distance of 200 mm from
the objective lens surface on the optical pick-up block with 7 mm
aperture.
Revolutions
Approx. 300 rpm to 2,700 rpm
Error correction
ACIRC (Advanced Cross Interleave Reed Solomon Code)
Sampling frequency
44.1 kHz
Coding
ATRAC (Adaptive TRansform Acoustic Coding)
ATRAC3: LP2
ATRAC3: LP4
Modulation system
EFM (Eight to Fourteen Modulation)
Number of channels
2 stereo channels
1 monaural channel
Frequency response
20 to 20,000 Hz ± 3 dB
Wow and Flutter
Below measurable limits
Outputs
Headphones/earphones: stereo mini-jack, maximum output level 5
mW +5 mW, load impedance 16 ohms
Power requirements
Nickel metal hydride rechargeable battery
One NH-14WM(A) (supplied): 1.2V, 1,350 mAh (min)
One LR6 (size AA) battery (not supplied)
External power jack: Power rating 1.5V DC
Sony Corporation
9-927-992-12
2001A0200-1
Audio Entertainment Group
© 2001.1
General Engineering Dept.
MZ-E900
Model Name Using Similar Mechanism
MD Mechanism Type
Optical Pick-up Mechanism Type

SPECIFICATIONS

Battery operation time
Batteries
Ni-MH rechargeable
battery
NH-14WM (A)
LR6 (SG) Sony
alkaline dry battery
LR6 (SG) Sony
alkaline dry battery
and a Ni-MH rechargeable
rechargeable battery
1)
With a fully charged battery
2)
Measured in accordance with the EIAJ (Electronic Industries
Association of Japan) standard (using a Sony MDW-series Mini-disc).
3)
When using a Sony LR6 (SG) "STAMINA" alkaline dry battery
(produced in Japan).
Note
The battery life may be shorter depending on operating conditions, the
surrounding temperature, and the battery type.
Dimensions
Approx. 77.7 x 12.7 x 71.0 mm (w/h/d) (3
(not including projecting parts and controls)
Mass
Approx. 58g (2.0 oz) (the player only)
Supplied accessories
Headphones/earphones with a remote control (1)
Battery charger (1) (EXCEPT Korean MODEL)
Rechargeable battery (1)
Rechargeable battery carrying case (1) (Tourist MODEL)
Dry battery case (1)
Carrying pouch (1) (EXCEPT US MODEL)
AC plug adaptor (1) (E33, Tourist model)
Design and specifications are subject to change without notice.
PORTABLE MINIDISC PLAYER
US Model
Canadian Model
AEP Model
UK Model
E Model
Tourist Model
NEW
MT-MZE900-173
LCX-4E
1) 2)
Stereo(normal)
LP2 Stereo LP4 Stereo
29
33
1)
42
49
3)
76
87
3)
1)
Unit:Approx. hours
1
/
x
1
/
x 2
8
2
37
58
100
7
/
in.)
8

Advertisement

Table of Contents
loading

Summary of Contents for Sony MZ-E900

  • Page 1: Specifications

    Measured in accordance with the EIAJ (Electronic Industries Error correction Association of Japan) standard (using a Sony MDW-series Mini-disc). ACIRC (Advanced Cross Interleave Reed Solomon Code) When using a Sony LR6 (SG) “STAMINA” alkaline dry battery Sampling frequency (produced in Japan). 44.1 kHz...
  • Page 2: Table Of Contents

    COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK !ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
  • Page 3: General

    MZ-E900 SECTION 2 Ver 1.1 2001.01 GENERAL This section is extracted from instruction manual.
  • Page 4: Disassembly

    MZ-E900 SECTION 3 DISASSEMBLY The equipment can be removed using the following procedure. Main board, Audio board Bracket (R) ASSY Bracket (L) ASSY, “Lid ASSY, Upper”, Mechanism deck SW board Holder ASSY Optical pick-up ASSY Note : Follow the disassembly procedure in the numerical order given.
  • Page 5: Audio Board

    MZ-E900 Ver 1.1 2001.01 3-3. AUDIO BOARD Audio board 1 Switch flexible board Panel, bottom CN801 3-4. BRACKET (R) ASSY 2 Screws (MI 1.4) 1 Screws (MI 1.4) Bracket (R) ASSY Panel, bottom...
  • Page 6: Main Board, Bracket (L) Assy, Sw Board

    MZ-E900 3-5. MAIN BOARD, BRACKET (L) ASSY, SW BOARD On installation of bottom panel assy, adjust the position of both Note : two switches (S807, S808) and two knobs (AVLS, HOLD). Bracket (L) ASSY 4 Screw (MI 1.4) SW board...
  • Page 7: Test Mode

    MZ-E900 SECTION 4 TEST MODE 4-1. GENERAL Remote control LCD • When entered in the TEST MODE, this set provides the Overall Adjustment mode which allows CD and MO discs to be auto- matically adjusted. In the Overall Adjustment mode, the system...
  • Page 8 MZ-E900 4-4. MANUAL MODE 4. During each test mode, the display is changed from one to another each time DISPLAY key is pressed. 4-4-1. Outline of the function The Manual mode is designed to perform adjustments and operational checks on the set’s operation according to each •...
  • Page 9 The second error from the last one. History code Total recording time ( – – – – is displayed Error display code for MZ-E900) 3. Hereinafter, each time > N key is pressed, the reference information display changes as follows: 0XX 1...
  • Page 10 MZ-E900 4-8. KEY CHECK MODE 4-7. Sound Skip Check Result Display Mode This set can display and check the error count occurring during 4-8-1. Outline of the function play. This mode is used to check to make sure that each of the keys •...
  • Page 11: Electrical Adjustments

    MZ-E900 SECTION 5 ELECTRICAL ADJUSTMENTS 5-1. GENERAL 5-4. MANUAL POWER ADJUSTMENTS In this set, CD and MO discs can be automatically adjusted by set- 5-4-1. Adjustment sequence ting the Overall Adjustment mode within the TEST MODE, The adjustments should be always performed in the following se-...
  • Page 12 MZ-E900 5-4-3. Vc PWM Duty (H) adjustment method 5-4-5.Electrical offset adjustment method Note: Doing adjustment by the state that a disc does not enter. 1. Set the Manual mode and set the item No. to 763. 1. Confirm the power voltage is 1.5V.
  • Page 13 MZ-E900 5-5-3. Overall CD and MO adjustment items 3. If NG in the overall CD adjustments, return to Reset NV and perform from the electrical offset adjustment again. 1. Overall offset adjustment Item No. Contents LCD display GRV setting • Sarvo OFF • Head UP...
  • Page 14 MZ-E900 Item No. Contents Tracking servo ON ABCD gain adjustment KF gain adjustment RF gain adjustment FCS gain adjustment TRK gain adjustment READ GRV adjustment 1 R GRV setting SLED move to outside Focus servo OFF TON offset adjustment TE gain adjustment...
  • Page 15: Diagrams

    MZ-E900 SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAMS MAIN BOARD AUDIO BOARD (1/2) RF AMP,FOCUS/TRACKING ERROR AMP IC501 CN501 HEADPHONE AMP IC301 VREF VREF RF OUT AOUT L J301 PEAK PEAK PEAK RF AMP, BOTM /BOTM BOTM AOUT R IN B...
  • Page 16: Printed Wiring Boards - Main Section (1/2)

    MZ-E900 Ver 1.1 2001.01 6-2. PRINTED WIRING BOARDS – MAIN SECTION (1/2) – : Uses unleaded solder. Refer to page 22 for Notes. MAIN BOARD (SIDE A) DRY BATTERY Semiconductor Location SIZE "AA" R607 R601 R602 R804 TAP601 (IEC DESIGNATION LR6) R911 Ref.
  • Page 17: Printed Wiring Boards - Main Section (2/2)

    MZ-E900 Ver 1.1 2001.01 6-3. PRINTED WIRING BOARDS – MAIN SECTION (2/2) – Refer to page 22 for Notes. : Uses unleaded solder. MAIN BOARD (SIDE B) TP904 TP606 TP558 TP552 TP563 TP562 TP911 TP557 TP566 TP556 TP912 TP609 TP564...
  • Page 18: Schematic Diagram - Main Section (1/2)

    MZ-E900 Ver 1.1 2001.01 6-4. SCHEMATIC DIAGRAM – MAIN SECTION (1/2) – Refer to page 22 for Notes. Refer to page 22 – 24 for IC Block Diagrams. Refer to page 22 for Waveforms. IC B/D...
  • Page 19: Schematic Diagram - Main Section (2/2)

    MZ-E900 Ver 1.1 2001.01 6-5. SCHEMATIC DIAGRAM – MAIN SECTION (2/2) – Refer to page 22 for Notes. Refer to page 22 – 24 for IC Block Diagrams. Refer to page 22 for Waveforms. IC B/D IC B/D...
  • Page 20: Printed Wiring Boards - Audio Section

    MZ-E900 Ver 1.1 2001.01 : Uses unleaded solder. 6-6. PRINTED WIRING BOARDS – AUDIO SECTION – AUDIO BOARD (SIDE A) AUDIO BOARD (SIDE B) C304 R303 R302 C303 TP825 CN803 TP826 C301 C803 C804 IC301 TP305 C201 CN802 TAP801 C101...
  • Page 21: Schematic Diagram - Audio Section

    MZ-E900 6-7. SCHEMATIC DIAGRAM – AUDIO SECTION – IC B/D Note: • All capacitors are in µF unless otherwise noted. pF: µµF • Voltages are dc with respect to ground under no-signal condi- tions. 50 WV or less are not indicated except for electrolytics no mark : PLAY and tantalums.
  • Page 22 MZ-E900 Note on Printed Wiring Boards: MAIN SECTION WAVEFORMS IC BLOCK DIAGRAMS • X : parts extracted from the component side. IC301 TA2131FL-EL • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution:...
  • Page 23 MZ-E900 IC551 SC111257FCR2 VC VG VC VG VC VG PRE DRIVER PRE DRIVER PGNDW H-BRIDGE H-BRIDGE VMVW CONTROL CONTROL PGNDUV GND2 CPW1 GND1 CPV1 PWM24 CPU1 H-BRIDGE H-BRIDGE CONTROL CONTROL VC VG CPWO PRE DRIVER PRE DRIVER 3 PHASE BIAS...
  • Page 24 MZ-E900 IC901 XPC18A32FCR2 42 41 SERIAL PASS POWER STEP-UP STEP-UP REGULATOR VA SWITCH 1 PRE DRIVEER PRE DRIVEER SERIAL PASS REGULATOR VD SERIAL PASS INM1 REGULATOR VIF DTC1 XRST (INT) XRST DTC2 CRST RSTREF BANDGAP INM2 VREF REFERENCE PWM1 PWM2...
  • Page 25: Exploded Views

    MZ-E900 SECTION 7 Ver 1.1 2001.01 EXPLODED VIEWS NOTE : • -XX, -X mean standardized parts, so they • The mechanical parts with no reference The components identified by mark 0 may have some difference from the original number in the exploded views are not or dotted line with mark 0 are critical one.
  • Page 26: Mechanism Deck Section

    MZ-E900 7-2. MECHANISM DECK SECTION (MT-MZE900-173) M902 M901 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark Ref. No. Part No.
  • Page 27: Electrical Parts List

    MZ-E900 Ver 1.1 2001.01 SECTION 8 ELECTRICAL PARTS LIST AUDIO MAIN NOTE : • Due to standardization, replacements in the • SEMICONDUCTORS In each case, u : µ , for example : The components identified by mark 0 parts list may be different from the parts uA..
  • Page 28 MZ-E900 Ver 1.1 2001.01 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C601 1-107-820-11 CERAMIC CHIP 0.1uF < IC > C603 1-107-820-11 CERAMIC CHIP 0.1uF C604 1-107-820-11 CERAMIC CHIP 0.1uF IC501 8-759-689-67 IC SN761057DBT C605...
  • Page 29 1-795-002-21 VIBRATOR, CERAMIC (45.1584MHz) ************************************************************** A-3322-889-A SW BOARD, COMPLETE ******************* < CONNECTOR > * CN804 1-794-771-21 CONNECTOR, FFC/FPC (ZIF) 7P < DIODE > D801 8-719-061-82 LED TLSU1002(TPX1,SONY) (OPR) < RESISTOR > R811 1-218-963-11 RES-CHIP 6.8K 1/16W R812 1-218-965-11 RES-CHIP 1/16W...
  • Page 30 MZ-E900 Ver 1.1 2001.01 Ref. No. Part No. Description Remark ACCESSORIES & PACKING MATERIALS ******************************** • Headphones/earphones • Dry Battery Case with a remote control 1-251-895-21 BATTERY CASE 1-476-395-11 REMOTE CONTROL UNIT 0 503 1-528-580-21 BATTERY CHARGER (BC-7HT) (E33,JEW) 0 503...
  • Page 31 MZ-E900 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2001.01...
