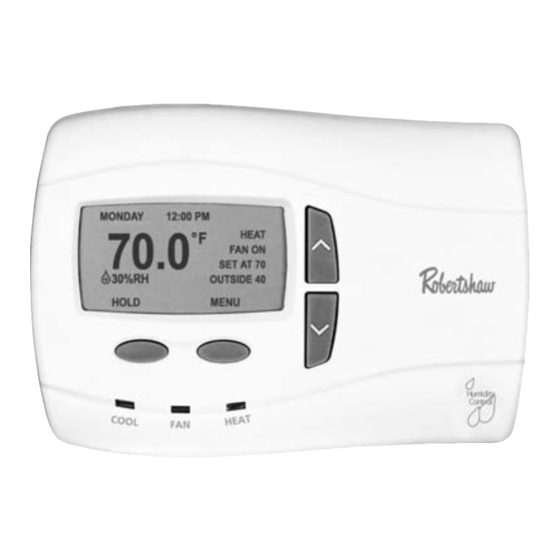

DELUXE
PROGRAMMABLE
THERMOSTATS
9851
9865
9870
Models
i and
i,
Quick Start Installation Manual
111-340
3
Mark mounting hole locations on wall.
Mark mounting hole
locations on wall using
unit base as template.
Installation DOs and DON'Ts
DO
•
Shut off all power to system before installing.
i
•
Read entire manual before installing.
•
Make sure that all wiring conforms to
national and local codes.
DO NOT
•
Install on voltages greater than 30 VAC.
•
Short jumper across terminals on the gas
valve or at the system control.
•
Connect ground to any terminal in
this unit.
•
Install on outside walls or in direct sunlight.
4
3
Drill
/
" holes at marked locations on
16
wall. Insert plastic anchors into holes.
Drill 3/16" holes
a
b
Press anchors into holes until flush.
1
Select location for installation.
1"
a
Cut
1- 1/2"
out
opening
1/4"
Remove 1/4" of insulation
from end of each wire
5
Align unit base over plastic anchors
embedded in wall and secure with the
screws provided.
2
Open the case with a screwdriver. Place
in slot and gently pry forward at all four
locations.
b
2
1
4
3
6
Connect wiring between unit and
furnace. For Model 9851i (1H/1C
furnace applications):
Thermostat
TERMINAL DESIGNATIONS
C - Common 24 VAC
R - System transformer
Y1 - 1st stage cooling
C
R
W1- 1st stage heating
Y1
W2- not used
E/W1
Y2 - not used
D
L - not used
W2
Y2
O - Cool active reversing valve
L
B - Heat active reversing valve
G - Fan relay
H O B G
98
5
1
i
D - Dehumidification relay
H - Humidification relay
C
R
Y1
W1
C
L
G
Humidifier
B
O
H
D
* Please refer to furnace
installation manual for
Wiring
Terminals*
proper terminations
Note: To avoid electrical problems, use the system transformer for both
the thermostat and humidifier.
Furnace
