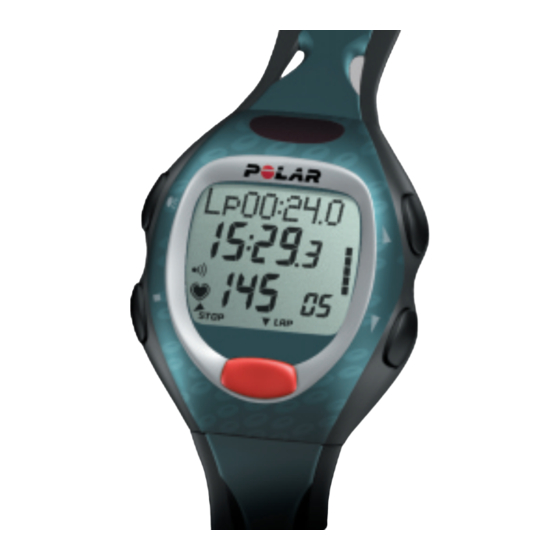

Polar Electro S610 User Manual

Polar electro s610 heart rate monitor user's manual
Hide thumbs Also See for S610:
Table of Contents

Advertisement

Quick Links

Download this manual
• OwnIndex™ to reliably predict your VO
• OwnCal™ the most accurate calorie
consumption calculation
• OwnCode™ locks out possible interference
from other heart rate monitors
• IntervalTrainer™ for effective training
management
• Infra red data communication with your
computer and Uplink™ feature
H E A R T R AT E M O N I T O R
2max
S610
H E A R T R AT E M O N I T O R
U S A
™
U S E R ' S M A N U A L
Quick Guide
Signal/Light
Stop
• exit the
displayed mode
• return to the
Time of day display
OK
• start measuring the heart rate
• lock in your selection
How to start measuring your heart rate (BasicUse)
1. Place the transmitter around your chest and wet the electrodes. Place the
receiver on your wrist.
2. Press and hold the OK button to start the measurement. The stopwatch and
the exercise recording start. Your heart rate will appear in about 15 seconds.
How to stop measuring your heart rate
1. Press the stop button. The stopwatch and other calculations stop. Heart rate
measurement continues but exercise data is not recorded into a file anymore.
2. Press the stop button again. The receiver returns to Time of day display.
Up
• move onward
• increase the
selected value
Down
• move backward
• reduce the
selected value

Advertisement

Table of Contents
loading

Related Manuals for Polar Electro S610

Summary of Contents for Polar Electro S610

  • Page 1 2. Press and hold the OK button to start the measurement. The stopwatch and the exercise recording start. Your heart rate will appear in about 15 seconds. U S A S610 ™ How to stop measuring your heart rate U S E R ’ S M A N U A L 1.
  • Page 2 This is where you can find the information you need to use and maintain your equipment. The function road map on the front cover is a quick guide to the versatile features of the Polar S610. Please tear it off and save it for your reference.

  • Page 3: Table Of Contents

    CONTENTS A. Getting going ....... 5 Setting recovery calculation ..26 Heart rate monitor parts ......5 Naming exercise sets ......27 Buttons and their functions ....6 Setting recording rate ......28 Easy start ........... 8 Turning functions on/off ....... 29 How to prepare the wrist receiver ..
  • Page 4 C. Exercise ........ 35 Stopping the exercise ......48 Heart rate Measure mode ..... 35 Tips during exercise ....... 48 Exercise recording mode ....... 37 Heart touch function......48 Illuminating the display ....38 Swapping recording rate ....49 Turning heart rate Swapping the exercise type ....
  • Page 5 Warm-up phase ........55 Update OwnIndex and HR -p ..... 68 Interval phase ........55 Fitness classes ......... 69 Cool-down phase ....... 56 G. Care and maintenance ..71 Lap information ........57 Recorded heart rate samples ....57 H. Precautions ......73 Records file ..........

  • Page 6: Getting Going

    The Polar T61™ transmitter detects your heart rate and transmits it to the wrist receiver. The Polar S610 wrist receiver displays your heart rate and other data during exercise. Enter your personal settings into the receiver and analyze the exercise files after you’re done.

  • Page 7: Buttons And Their Functions

    Buttons and their functions Signal/Light Turns the beep on or off. SIGNAL LIGHT Turns the backlight on. RESET Reset Resets the heart rate monitor. Stop Return - Stops measuring the heart rate. STOP Exits the displayed mode and returns to the previous mode level.
  • Page 8 Moves to the following mode. Increases the selected value. Down Returns to the previous mode. Decreases the selected value. Useful tips • Briefly pressing a button (approximately 1 second) will do different things than pressing and holding the button for a longer period of time (approximately 2 to 5 seconds).

  • Page 9: Easy Start

    Time of day (see section Setting the watch) and personal user settings (see section User information settings). 3. Polar S610 has various functions that you can use according to your personal training needs. For more information, see section Modes and their functions. You...

  • Page 10: How To Put The Transmitter On

    How to put the transmitter on 1. Attach the transmitter to the elastic strap. 2. Adjust the strap length to fit snugly and comfortably. Secure the strap around your chest, just below the chest muscles, and buckle it. 3. Lift the transmitter off your chest and moisten the grooved electrode areas on the back.

  • Page 11: How To Stop

    4. Press the OK button to start measuring your heart rate. A heart symbol will start flashing and your heart rate (beats per minute) will appear in a maximum of 15 seconds. 5. Press OK again. The stopwatch starts running and you can start exercising.

  • Page 12: Modes And Their Functions

    Modes and their functions Your Polar S610 has six main modes: Time of day, Exercise, File, Options, Fitness test and Connection. 1. TIME OF DAY You can use your Polar heart rate monitor as an ordinary watch that shows the date and the day of the week, as well as contains an alarm function.
  • Page 13 A. During BasicUse, you can save 99 split and lap times with current, maximum and average heart rates for each lap. You can configure the display to show information on the following: • your current heart rate/ average heart rate/ a reading of your maximum heart rate in percentages •...
  • Page 14 3. FILE Your receiver stores exercise information in 99 exercise files: • the start date and time of the exercise • total exercise time • the average and maximum heart rate readings for the exercise session • the recovery value (only BasicSet) •...
  • Page 15 4. OPTIONS In the Options mode, you can enter the following settings: Exercise settings: you can select BasicUse with no settings or 5 freely programmable BasicSets or Interval Training Sets. For these sets, you can set, amongst to the other things, the following functions: •...
  • Page 16 5. FITNESS TEST In this mode you can: • perform the Polar Fitness Test • recall your latest test results; OwnIndex and HR -p values • update your user information to reflect your most recent OwnIndex and -p values 6. CONNECTION In this mode you can: •...

  • Page 17: How To Enter Settings

    B. HOW TO ENTER SETTINGS This section describes how to manually enter settings by pressing the receiver buttons. However, Polar S610 offers you another and faster way as well: prepare your settings with Polar Precision Performance SW and upload them to your receiver from your computer.
  • Page 18 Time Of Day File Options Fit. Test Connect Exercise Set Memory Set Function Set User Set Monitor Set Watch Set 1. In the Time of day display, scroll up or down until OPTIONS is displayed. 2. Press OK to enter the Options mode. EXERCISE SET is displayed. 3.

  • Page 19: User Information Settings

    User information settings Options User Set Weight Height Birthday Activity 2max In the User Set loop you can move forward only by pressing OK. Measuring units depend on your choice in Options/ Monitor Set/ Unit 1 or Unit 2. Units 1 Units 2 Weight Height...
  • Page 20 Date of birth (Birthday) 7. Scroll up or down to adjust your month of birth. Units 1: setting order Press OK. is day - month - year. 8. Day appears. Scroll up or down to select your day of birth. Press OK. 9.
  • Page 21 You participate regularly in heavy physical exercise at least 5 times a week. E.g. you exercise to improve performance for competitive purposes. Maximum heart rate value (HR 12. Your age-predicted maximum heart rate value is displayed as a default setting when you set this value for the first time. If you know your exact clinically tested maximum heart rate value, set the value by scrolling up or down.

  • Page 22: Exercise Settings

    Exercise settings When you start setting your exercise preferences your first choice is to select whether you want to set your personal exercise set or to exercise with BasicUse option. If you select to start setting the exercise sets, your second choice is whether you want to select BasicSet or an Interval Training Set.

  • Page 23: Setting Exercise Sets

    Setting exercise sets Preset exercise sets ready for five exercise sets; when you start exercising, just select one of the sets. Chose here whether you want to start setting an Interval Training Set or BasicSet. Interval Training Set BasicSet If you choose interval on, you can If you choose interval off, you can set 3 different exercise phases for set the following functions to your...
  • Page 24 1. In the Time of day display Options scroll up or down until OPTIONS is displayed. Exercise Set 2. Press OK to enter the Options mode. EXERCISE SET is displayed. 3. Press OK to start the exercise settings. BasicUse E0 or exercise set E1-E5 is dispalyed.

  • Page 25: Setting Timers

    Setting timers If you start from Time of day display, repeat steps 1-5. 6. Scroll up or down until desired timer is displayed. Press OK to start setting the timer. 7. Scroll up or down to turn the timer on or off. Press OK. Timer off: Press stop or OK button and skip steps 8-9.

  • Page 26: Setting Interval Type

    Setting interval type You can select 3 optional types of intervals: A. Timer-based interval Ends your interval when you have used the selected time. B. Heart rate-based interval Ends your interval as you reach the selected heart rate. When selecting heart rate-based interval, recovery calculation must be set on.

  • Page 27: Setting Amount Of Intervals

    Setting the amount of intervals If you start from Time of day display, repeat steps 1-5. You can set up to 30 intervals. 6. Scroll up or down until Repeat is displayed. 7. Press OK to start setting the number of intervals. 8.

  • Page 28: Naming Exercise Sets

    A. RecoTime is displayed. 10. Scroll up or down to adjust minutes. Press OK. 11. Scroll up or down to adjust seconds. Press OK. Recovery TIMER appears. B. RecoHr is displayed. 10. Scroll up or down to adjust the value. Press OK. Recovery Hr appears.

  • Page 29: Setting Recording Rate

    Press OK. The recording time of Polar S610 depends on the selected recording rate (5 s, 15 s, or 60 s). When the memory is full, you can continue exercising but the exercise is no longer recorded.

  • Page 30: Turning Functions On/Off

    Turning functions on/off 1. In the Time of day display scroll Options up or down until OPTIONS is Function Set displayed. 2. Press OK to enter the Options OwnCal On/OFF Fit. Test On/OFF -p On/OFF mode. EXERCISE SET is displayed. 3.

  • Page 31: Predicted Maximum Heart Rate

    Predicted maximum heart rate (HR -p) on/off If you start from Time of day display, repeat steps 1-4. 5. Scroll up or down until HRmax-p is displayed. 6. Press OK to start setting the HR -p. On/OFF starts to flash. 7.

  • Page 32: Selecting Measuring Units

    phase start, interval phase end and recovery calculation end sounds. Does not consist of heart rate zone alarms, watch alarm or fitness test alarm. Selecting measuring units If you start from Time of day display, repeat steps 1-4. 5. Scroll up or down until Units is displayed. 6.

  • Page 33: Watch Settings

    Watch settings 1. In the Time of day display Options scroll up or down until Watch Set OPTIONS is displayed. 2. Press OK to enter the Alarm Time 1/2 Date Reminder Options mode. EXERCISE SET is displayed. 3. Scroll up or down until WATCH SET is displayed. 4.

  • Page 34: Setting Date

    8. 12h/ 24h starts to flash. Scroll up or down to select 12h or 24h time mode. Press OK. 24h: skip step 9. 9. AM/PM starts to flash. Scroll up or down to select AM or PM. Press OK. 10. The hours start to flash. Scroll up or down to adjust the hours. Press OK. 11.

  • Page 35: Setting Tips

    You can upload 7 reminders, each including time and name, to your wrist receiver from Polar Precision Performance software. Turn reminders on manually. The reminder sounds an alarm only when time of day is displayed. When the reminder alarm comes on, it will sound for 15 seconds or you can turn it off by pressing any of the five buttons.

  • Page 36: Exercise

    C. EXERCISE You can use two modes in your Time of day exercise: Measure or Exercise mode. Heart rate Measure mode In the Measure mode you can see your heart rate but your exercise is not Exercise recording mode recorded. In the Exercise mode your exercise is recorded and stopwatch and other calculations are started.
  • Page 37 3. Start from Time of day display by pressing the OK to start measuring your heart rate. A heart symbol will start flashing and your heart rate in beats per minute will appear in max. 15 seconds. The frame around the heart symbol indicates that the heart rate reception is coded.

  • Page 38: Exercise Recording Mode

    Exercise recording mode If you are continuing from Measure mode, press OK. Or, if you are starting from Time of day display, press and hold OK. Exercise information will be stored in an exercise file only when the stopwatch is running. The ongoing recording is indicated with a graphic bar that runs continuously on the display.

  • Page 39: Illuminating The Display

    Illuminating the display Press the signal/light button. After you use backlight once in the Measure mode, Polar S610 automatically illuminates the display if you: start or stop the exercise session, store lap information and at the end of an interval and a recovery calculation.

  • Page 40: Storing Lap And Split Time

    Polar S610 automatically stores a lap time when you stop recording an exercise. Polar S610 can store 99 laps if you have not used the interval function. After storing 99 laps FULL appears for a few seconds every time you take a lap.

  • Page 41: Swapping The Displayed Exercise Information

    Swapping the displayed exercise information There are three display options, which you can swap between by pressing the down button. If the Help function is on, the name of the displayed function appears for a few seconds. Stopwatch Time of day Stopwatch Time of day Stopwatch...

  • Page 42: Resetting The Stopwatch To Zero

    few seconds. When you swap the middle row information, the upper and lower heart rate row changes also. Continue selecting the upper and lower rows. Select the upper row information 2. Press the up button to select from the following: (Time) Time of day, (Sw) stopwatch, (Lp) lap time, or (Cal) calorie expenditure (if OwnCal is set on).

  • Page 43: Starting An Exercise Set

    OK button. When the stopwatch starts running indicates that Interval Trainer is on. As the interval training exercise ends the Polar S610 automatically starts a BasicUse exercise, which is recorded to the same file as your interval training exercise.

  • Page 44: Warm-Up Phase

    Structure of an interval training exercise: Heart Interval Phase rate Repeats 03 Warm-up phase Cool-down phase Countdown timer 1 Countdown timer 3 Heart rate limits 1 Heart rate limits 3 Time Warm-up phase 1. First Heart rate limits 1 (if set on). 2.

  • Page 45: Interval Phase

    Interval phase The Polar S610 records up to 30 repeated interval phases. Your interval phase is divided into interval and recovery calculation (if set on) sections, which alternate continuously through your interval phase. Interval session 1. First Preset heart rate limits 2 (if set on).
  • Page 46 3. At the end of Interval Interval duration. Average heart rate of the interval. When your interval ends the wrist receiver automatically continues with following preset function: recovery calculation or cool-down phase. Recovery calculation Continue: A timer-based recovery calculation or B heart rate-based recovery calculation.

  • Page 47: Cool-Down Phase

    Cool-down phase 1. First Preset heart rate limits 3 (if set on). 2. Then Countdown timer 3. Heart rate information. Countdown timer starts running if you have set the timer 3 on. If you have set the timer off press OK to end a phase. 3.

  • Page 48: Stopping An Interval Training Exercise

    Stopping an interval training exercise 1. Press the stop button to pause the exercise. 2. Press and hold the stop button to return to the Time of day display. Skip step 3. Press the stop button. BasicUse appears. You can continue measuring your heart rate in this mode (Measure mode) or continue exercising with BasicUse and recording your exercise information.

  • Page 49: Starting The Recovery Calculation

    Starting recovery calculation To start the recovery calculation, press and hold the OK button. Depending on your setting RecoHr or RecoTime appears in the upper row of the display. See “Exercising with Interval Trainer”/ “Recovery calculation” for the displayed information during the recovery calculation. Restart the recovery calculation You may restart the stopwatch by pressing the OK button after the recovery calculation to continue the exercise session.

  • Page 50: Swapping Recording Rate

    During the heart touch, the backlight is on for a couple of seconds, if you have already used the backlight during the exercise. Swapping the recording rate of the exercise (5 s, 15 s or 60 s) In the Measure mode press and hold the down button. Release. Repeat until desired recording rate is displayed.

  • Page 51: How To Recall Training Information

    D. HOW TO RECALL TRAINING INFORMATION The Polar S610 starts saving exercise information to a file as you start the stopwatch in the Exercise mode. You can recall the information in the File mode. In the File mode there are up to 99 exercise files and a record file, which keeps track of the cumulative values.
  • Page 52 Time of Day File Options Fit. Test Connect Records Your first file is F1, then F2 and so on, until you have recorded maximum 99 exercise files. The bigger the file number the more recent it is. Some information alternates on the display automatically. You can make the alternation faster by pressing the OK button e.g.
  • Page 53 • Move forward and backward within file loops with up or down buttons. • Press OK to enter a file. • Press the stop button to move backward to the previous file level. • Press and hold the stop button to return to the Time of day display, wherever you are in the File recalling cycle.

  • Page 54: Exercise Time

    Exercise time (Exe. Time) The exercise time is the amount of time that you have exercised with the stopwatch running. Average and maximum heart rates of your exercise alternate on the display. To continue recalling the file, scroll up or down button.

  • Page 55: Exercise Time Within

    Exercise time within, above and below the heart rate zones Indicates the exercise time, which you have spent within (InZone), above and below each heart rate limits during the entire exercise. Alternating values InZone 1/ Above 1/ Below 1 Alternating values InZone 2/ Above 2/ Below 2 Alternating values InZone 3/ Above 3/ Below 3 Calorie expenditure (KCal) You will see how many kilocalories you have expended during the exercise.

  • Page 56: Interval Training Information

    Interval Training information (EXE. SET) Start with the display showing EXE. SET. 1. Press OK to start recalling the interval training information. 2. Scroll up or down to see the information on warm-up, interval and cool- down phases. 3. To exit this loop press stop button. Warm-up phase Warm-up duration.

  • Page 57: Cool-Down Phase

    Interval information Interval number Split time of the interval Interval duration. The heart rate at the end of the interval, average and maximum heart rates of the selected interval. Recovery information Recovery time Recovery duration. Drop in your heart rate. Recovery heart rate Time it took reach the preset heart rate reading.

  • Page 58: Lap Information

    Lap information (LAPS) Start with the display showing LAPS. 1. Press OK to start recalling the lap information. 2. Scroll up or down to see the following information: Best Lap Shortest lap time. The number of the best lap. The best lap information is displayed if you have stored at least 3 laps.

  • Page 59: Records File

    Records file (cumulative values) This file is updated as your exercise is recorded to file. 1. In the Time of day display scroll up or down until FILE is displayed. 2. Press OK to enter the File mode. 3. Scroll up or down until Records is displayed. 4.

  • Page 60: Deleting A File

    Deleting a file 1. In the Time of day display scroll up or down until FILE is displayed. 2. Press OK to enter the File mode. 3. Scroll up or down until desired exercise file is displayed. Press and hold the signal/light button.

  • Page 61: Connection To Computer

    E. CONNECTION TO COMPUTER There is two-way communication between Polar S610 and a computer. Polar Precision Performance software offers an easy way to analyse training data. A training log makes it possible to plan future training. Wrist receiver settings are easy to upload from the software instead of entering them manually.

  • Page 62: Uploading Settings From Computer

    95 operating system on your computer. Uploading Settings from Computer Your Polar S610 offers you the option of preparing your settings with Polar Precision Performance software (version 3.0 or later). You are also able to set following functions with the software: •...
  • Page 63 1. Start the software. 2. If the receiver is in the Time of day display scroll up or down until CONNECT is displayed. 3. Place the receiver less than 4" / 10 cm from the loudspeaker. 4. Activate the upload function of the software. 5.

  • Page 64: Polar Fitness Test

    F. POLAR FITNESS TEST Polar Fitness Test is an easy, safe and quick way to estimate individual maximal aerobic power and to get predicted maximum heart rate value. Polar Fitness Test is targeted to healthy adults. OwnIndex OwnIndex is a value which is comparable to maximal oxygen uptake ), a commonly used descriptor of aerobic fitness.
  • Page 65 If you want to improve your cardiovascular fitness, it takes a minimum of 6 weeks on an average to see a noticeable change in OwnIndex. Less fit individuals see progress even more rapidly and for more fit individuals more time is needed. The better the cardiovascular fitness of an individual, the smaller the improvements in OwnIndex.

  • Page 66: Predicted Maximum Heart Rate

    Predicted maximum heart rate, HR The HR -p definition is carried out simultaneously with the Polar Fitness Test. The HR -p score predicts your individual maximum heart rate value more accurately than the age-based formula (220-age). The age-based method provides a rough estimation and is thus not very accurate, especially for people who have been fit for many years or for older people.

  • Page 67: Fitness Test Settings

    Fitness test settings To be able to carry out the Polar Fitness Test you need to do the following settings in the Options mode: • Set your personal user information and long-term physical activity level. • Set the Polar Fitness Test on. •...
  • Page 68 Time of Day File Options Fit. Test Connect 1. In the Time of day display scroll up or down until FIT. TEST is displayed. If you cannot find Fitness Test mode check that you have turned the function on in the Options mode. 2.

  • Page 69: Update Ownindex And Hr

    Interrupt the test • You can stop the test any time during the test by pressing the stop button. Failed TEST is displayed for a few seconds. The latest OwnIndex and HR -p are not replaced. If the wrist receiver does not succeed in receiving your heart rate at the beginning or during the test, the test will fail.

  • Page 70: Fitness Classes

    Fitness classes The Polar Fitness Test result, your OwnIndex, is most meaningful when comparing your individual values and changes in them. OwnIndex can also be interpreted according to your gender and age. Locate your OwnIndex on the table to find out your current cardiovascular fitness classification, compared with those who are of the same age and gender.
  • Page 71 For various fitness classes we recommend the following: 5-7 Maintain current exercise habits for good health and fitness. To ensure good health, maintain current exercise habits. For fitness improvement an increase in 1-3 Increase exercise exercise is recommended. for health benefits and fitness improvement.

  • Page 72: Care And Maintenance

    G. CARE AND MAINTENANCE Your Polar heart rate monitor is a high-tech instrument of superior design and workmanship and should be treated with care. The suggestions below will help you fulfill the warranty obligations and enjoy this product for many years to come. Taking care of your Polar heart rate monitor •...
  • Page 73 Charter for detailed instructions. Polar S610 wrist receiver The estimated average battery life of the Polar S610 wrist receiver is 2 years in normal use (2h/ day, 7 days a week). Note also that excessive use of the backlight and the alarm signals will use the battery more rapidly.

  • Page 74: Precautions

    H. PRECAUTIONS Using the Polar S610 in a water environment Your Polar S610 is water resistant to 160 feet/ 50 meters. Heart rate measurement in a water environment is technically demanding for the following reasons: • Pool water with a high chlorine content and seawater may be very conductive and the electrodes of Polar transmitter may get short circuited and ECG signals cannot be detected by the transmitter unit.
  • Page 75 Polar heart rate monitor and interference Electromagnetic interference Disturbances may occur near high voltage power lines, traffic lights, overhead lines of electric railways, electric bus lines or trams, televisions, car motors, bike computers, some motor driven exercise equipment, cellular phones or when you walk through electric security gates. Crosstalk The Polar wrist receiver in non-coded mode of operation picks up transmitter signals within 3 feet/ 1 meter.
  • Page 76 4. If the Polar heart rate monitor still does not work with the exercise equipment, this piece of equipment may be electrically too noisy for wireless heart rate measurement. Minimizing possible risks in exercising with a heart rate monitor Exercise may include some risk, especially for those who have been sedentary.
  • Page 77 If you are allergic to any substance that comes into contact with the skin, check the Polar heart rate monitor materials from the “Technical specifications” chapter. It is recommended that you wear the transmitter against your bare skin to ensure flawless operation. However, if you wish to wear the transmitter over a shirt, moisten the shirt well under the electrodes.

  • Page 78: Frequently Asked Questions

    I. FREQUENTLY ASKED QUESTIONS What should I do if..I don’t know where I am in the Options or File cycle? Press and hold the stop button until time of day is displayed..I cannot find the previous exercise’s file? You may have used the Measure mode during your exercise, which means that your exercise was not stored.
  • Page 79 ...there is no heart rate reading (- -)? 1. Check that the electrodes of the transmitter are moistened and that you are wearing it as instructed. 2. Check that you have kept the transmitter clean. 3. Check that you are not near other people that have heart rate monitors, high voltage power lines, televisions, mobile phones or other sources of electromagnetic disturbance.
  • Page 80 ...other person with heart rate monitor is causing interference? Your training partner may have exactly the same code as you. In this case proceed as follows: Keep a distance from your training partner and continue your training session normally. 1. Take the transmitter off your chest for 30 seconds. Keep a distance from your training partner.
  • Page 81 1. Press the RESET button with a pen tip. Display becomes full of digits. If you don’t press any button after reset within one minute the wrist receiver goes to the Time of day display. 2. Press any of the four buttons once. The time of day is displayed..the battery of the wrist receiver must be replaced? We recommend having all service done by an authorized Polar Service Center.

  • Page 82: Technical Specifications

    J. TECHNICAL SPECIFICATION Polar heart rate monitor is designed to indicate the level of physiological strain and intensity in sports and exercise. No other use is intended or implied. Heart rate is displayed as number of heartbeats per minute (bpm). Polar transmitter Battery type: Built-in Lithium Cell...
  • Page 83 Watch accuracy better than ± 0,5 seconds/ day at 77 °F/ 25 °C temperature. Polar S610 is a Class 1 Laser Product. Accuracy of heart rate measurement: ± 1% or ± 1 bpm, whichever larger, definition applies to steady state conditions.
  • Page 84 OwnCal Fitness test Interval function OFF/ interval timer Interval heart rate Amount of intervals Timer 1, 2, 3 OFF/ 2 min Limits 1, 2, 3 80/ 160 Recovery function OFF/ recovery timer Recovery heart rate Recovery timer 1 min Heart touch function Shows heart rate limits Recording rate Limit Values...

  • Page 85: Limited Polar Warranty

    This CE marking shows compliance of this product with Directive 93/42/EEC. Copyright © 2000 Polar Electro Oy, FIN-90440 KEMPELE, Finland. All rights reserved. No part of this manual may be used or reproduced in any form or by any means without prior written permission of Polar Electro Oy.

  • Page 86: Disclaimer

    • Polar Electro Inc. makes no representations or warranties with respect to this manual or with respect to the products described herein. Polar Electro Inc. shall not be liable for any damages, direct or incidental, consequential or special, arising out of, or related to the use of this material or the products described herein.

  • Page 87: Polar Glossary

    M. POLAR GLOSSARY Activity level: Your long-term monitors. However, it does not physical activity level you need to necessarily reduce all environmental assess in order to do the Polar interference. Fitness Test. Configuring the display: During BasicSet mode: Exercise set, which the exercise you can modify three interval is set off.
  • Page 88 Measure mode: Measuring your Exercise mode: The stopwatch is on heart rate without recording the and your exercise is recorded. You exercise. can select between the BasicUse, Interval Training Set and BasicSet. Maximal oxygen uptake: (maximal aerobic power, VO Exercise ID: (E0-E5) Indicates which 2max Is the maximal rate at which oxygen exercise settings you have used for...

  • Page 89: Display Symbols

    Display symbols Indicates an ongoing heart rate measurement and flashes to the beat of your heart. A heart without frames indicates a non-coded heart rate transmission. Frame around the heart indicates a coded transmission of heart rate. Indicates there has not been heart rate reception for less than 5 minutes. - - Indicates there has not been heart rate reception for at least 5 minutes.

  • Page 90: Display Texts

    Display texts ALARM: Indicates the alarm in -p: Predicted maximum heart watch settings. rate value. AM or PM: Are used in 12h time Int: Options mode: indicates mode. E.g. in 24h time mode 13:00 Interval Training Set. means 1:00 PM. Exercise mode: Indicates interval AVG: Together with a reading exercise session including warm-up,...
  • Page 91 your current heart rate is of your maximum heart rate (HR ). The maximum heart rate. most accurate OwnCal is received by entering your clinically measured (in Mem full: Appears on the display maximal treadmill or bicycle stress when the memory is full. You can test) VO and HR into the wrist...
  • Page 92 Timer1, 2, 3: Interval Training mode: Countdown timers for the Interval Training set. WarmUp: Warm-up phase in the beginning of an Interval Training exercise. M 91...

  • Page 93: Index

    Index 12h/ 24h time mode ....... 32 Options lock function ......61 Activity/button sound On/OFF ....30 OwnCal On/OFF ........29 Alarm settings ........32 OwnCal calorie expenditure ....90 BasicSet exercise ......22, 47 -p On/OFF ........30 Buttons ............6 OwnIndex ..........
  • Page 94 Polar Electro Inc. Road Map Dear Customer 370 Crossways Park Drive Woodbury NY 11797-2050 U.S.A. Scroll Up / Down STOP - exit the displayed mode Congratulations on purchasing a Polar Heart Rate Time Of Day File Options Fit.Test Connect Polar Service Center:...
