FAN SAFETY
PLEASE READ AND SAVE
THESE IMPORTANT
RETRO TABLE
fan
SAFEGUARDS
IMPORTANT INSTRUCTIONS
BAOF25M
When using electrical appliances, basic safety precautions
should always be taken including the following:
1. Read all instructions before using this appliance.
2. Use fan only for purposes described in the instruction
manual.
3. To protect against electrical shock do not immerse
unit, plug or cord in water or spray with liquids and
plug the appliance directly into a electrical outlet.
4. Close supervision is necessary when any appliance is
used by or near children.
5. Unplug from outlet when not in use, when moving fan
from one location to another, before putting on or
taking off parts and before cleaning.
6. Avoid contact with moving parts.
7. Do not operate in the presence of explosive and/or
flammable fumes.
8. To avoid fire hazard, NEVER place the cord under
rugs or any parts near an open flame, cooking or
other heating appliance.
9. Do not operate any appliance with a damaged cord or
plug after the appliance malfunctions, or has been
dropped/damaged in any manner. Take it to an
Authorized Service Center for examination and/or
repair.
10.The use of attachments not recommended or sold by
the appliance manufacturer may cause hazards.
11.Do not use outdoors.
12.Do not let the cord hang over the edge of a table,
counter or come in contact with hot surfaces or leave
exposed to high traffic areas.
13.To disconnect, grip plug and pull from wall outlet.
Never yank on cord.
14.Always use on a dry, level surface.
15.Do not operate fan until fully assembled with all parts
properly in place.
16.This product is intended for household use ONLY and
Read instructions before operating.
not for commercial or industrial applications.
Retain for future reference.
17.WARNING: To reduce the risk of electrical shock and
Instruction Leaflet
injury to persons, do not use in window.
18.WARNING: To reduce the risk of fire or electric
shock, DO NOT use this fan with any solid-state
speed control device.
PLEASE SAVE THESE mounting nut. Turn this nut clockwise and tighten
firmly.
INSTRUCTIONS
4. Remove the protective sleeve from the motor shaft.
5. Slide the fan blade (J), with the fixing screw facing
ASSEMBLY INSTRUCTIONS (SEE FIG. 1)
towards the rear grill, firmly onto the motor shaft,
1. Fit the upper body (A) to the base (B). Align the 4
aligning the screw with the flat (K) on the motor shaft.
screw holes in the base to the four holes in the upper
6. Position the locking screw (L) over the flat on the
body. Fix securely with the 4 sets of screw, spring
motor shaft. Tighten the screw into the side hole of
washer and flat washer (C).
the fan blade, against the motor
2. Unscrew the rear grill mounting nut (D) from the motor
7. Loosely fit the grill ring (M) to the front grill (N). Position
housing (E). Position the rear grill (F) over the motor
the fixing screw (O) at the bottom of the grill with
shaft (G), making certain 2 notches (H) at the sides of
reference to the Bionaire logo™. The grill ring has two
the rear grill fit over the corresponding prongs (I) on
grooves. Locate the front grill to one of these grooves
the motor housing. Please make sure the rear grill fits
leaving the other groove free to attach to the rear grill.
securely against the motor housing.
Only tighten the fixing screw enough to hold the grill
3. Secure the rear grill in its place using the rear grill
ring in place.
8. Center the front grill by aligning the Bionaire logo™ on
the logo plate so that it is horizontal and parallel with
the floor. Then, holding the front grill against the rear

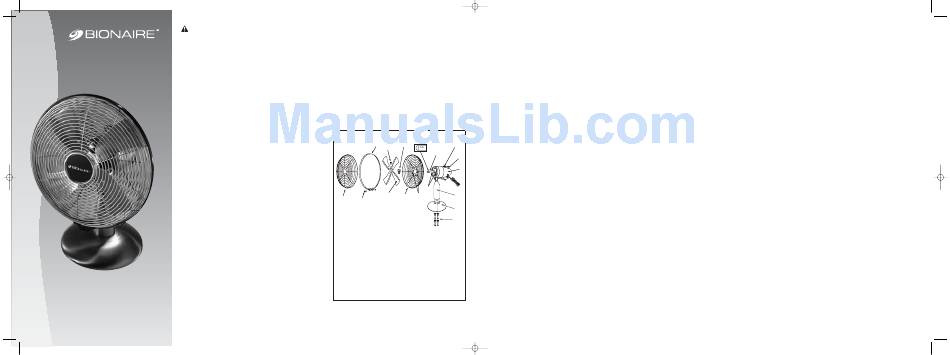

Figure 1
K
grill, push the black grill ring into place at the top and
D
M bottom of the fan. (Push directly on the black grill ring,
P
L
not on the grills themselves). Finish securing the grill
G
ring in the same manner until both grills are joined
Q
underneath the black ring.
9. Tighten the screw.
E
OPERATING INSTRUCTIONS
1. Set the fan base on a dry level surface.
I
2. Make sure the Speed Control is in the OFF (0)
H A
J position. Speed Control (P) is located on the top of
F
N
O
the fan motor housing.
3. Plug the cord into a suitable outlet.
B
4. The SPEED is adjusted by turning the Speed Control
C
to the desired setting:
0 - Off
I - Low
A. Upper Body I. Prong
II - Med
B. Base J. Fan Blade
III - High
C. Screw/ Spring Washer K. Flat
/ Flat Washer (4)
L. Locking Screw
ADJUSTMENT INSTRUCTIONS
D. Mounting Nut
M. Grill Ring
Tilt adjustment
E. Motor Housing
N. Front Grill
Follow these instructions to tilt the fan head for upward
F. Rear Grill
O. Fixing Screw
angle air movement.
G. Motor Shaft
P. Speed Control
• To change the tilt angle of the fan head, simply move
H. Notches
Q. Oscillation Control
the fan head to the desired angle.
Oscillation adjustment
The OSCILLATION control (Q) is located on the top of the
fan motor housing. To start oscillation, push the control
knob down. To stop oscillation, pull the control knob up.
CLEANING/MAINTENANCE INSTRUCTIONS
Follow these instructions to correctly and safely care for
your fan.
• Always unplug the fan before cleaning or
disassembling.
• Be sure to clean your fan with a soft cloth moistened
with a mild soap solution.
• Do not allow water to drip on or enter into the fan
housing.
• Do not use gasoline, thinner, or benzene as a cleaner.
• Lightly run a vacuum cleaner nozzle over the fan grill
to remove any dust or dirt that may have
accumulated.
Fan Blade Cleaning Instructions
Make sure the fan is unplugged before disassembling and
cleaning the fan blade. Carefully remove the front grill from
the clips. Wipe the blade with a soft cloth moistened with a
mild soap solution. DO NOT allow any liquid to drip into or
enter the motor housing. Snap the front grill onto the fan.
Make sure all parts are secured prior to operating the fan.
FAN STORAGE
Your fan should be stored in the off-season in its original
box. It is important to keep it in a safe, dry location.
• Store your fan in the original box or an appropriately
sized box.
• Protect the fan head from dust.
How To Obtain Warranty Service: Please see the
country specific warranty insert or contact your local
authorized distributor for Bionaire appliances.
PLEASE DO NOT RETURN THIS PRODUCT TO THE
PLACE OF PURCHASE
© 2006 Sunbeam Products, Inc., doing business as
Jarden Consumer Solutions. All rights reserved.
Distributed by Sunbeam Products, Inc., doing business as
Jarden Consumer Solutions, Boca Raton, Florida 33431.
One year limited warranty - please see inside for details.
