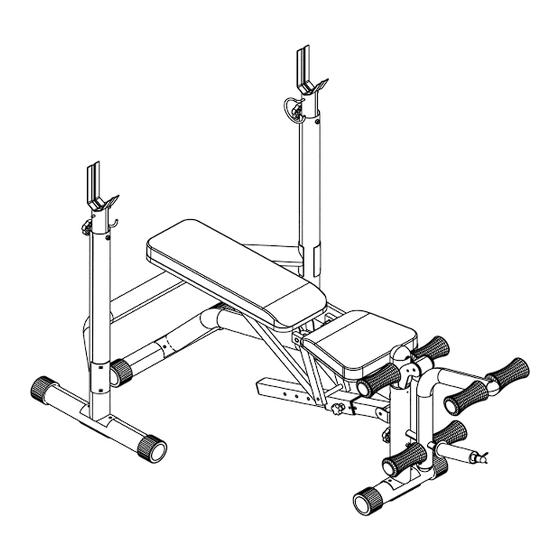

Exploded Diagram Parts List Warranty Ordering Parts Model WM-MXS Retain This Manual for Reference May 31, 2001 OWNER'S MANUAL WM-MXS OLYMPIC BENCH IMPEX INC. 14777 Don Julian Rd., City of Industry, CA 91746 Tel: (800) 999-8899 Fax (626) 961-9966 www.impex-fitness.com info@impex-fitness.com...
PARTS LIST... WARRANTY... ORDERING PARTS... BEFORE YOU BEGIN Thank you for selecting the WM-MXS BENCH by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. provide you complete customer satisfaction. questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory.
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
ASSEMBLY INSTRUCTION Tools required to assembly the machine: Two Adjustable Wrenches and Two Allen Wrenches STEP 1 (SEE Diagram 1) A.) Connect the Right Upright Beam (#3) to the Rear Stabilizer (#14). Secure them with one Bracket (#17), two M10x 3 ¾” Carriage Bolts (#47), two M10 Aircraft Nuts (#50) and two 7/8”...
Page 6
STEP 2 (SEE DIAGRAM 2) A.) Connect the Main Seat Support (#1) to the Rear Stabilizer (#14). Secure them with one Bracket (#17), two M10 x 3 ¾” Carriage Bolts (#47), M10 Aircraft Nuts (#50). B.) Connect the Main Seat Support (#1) to the Front Stabilizer (#56). Secure them with one Bracket (#17), two M10 x 3 ¾”...
Page 7
STEP 3 (SEE DIAGRAM 3) A.) Attach two Bushings (#54) to the pivot on the Main Seat Support (#1). Attach the Seat Incline Support Bracket (#8) to the Bushings and align the holes. Secure it with a M10 x 4 ½” Allen Bolt (#40), two Nut (#50).
Page 8
STEP 4 (SEE DIAGRAM 4) A.) Attach four Bushings (#54) to the Seat Support Frame (#6). B.) Attach four Bushings (#54) to the Backrest Supports (#7). Attach one Backrest Support (#7) to the Seat Support Frame (#6). Align the holes. Please note the Backrest Support (#7) should be on the inside of the Seat Support Frame (#6).
Page 9
STEP 5 (SEE DIAGRAM 5) A.) Attach two Bushings (#54) to the pivot on the Main Seat Support (#1). B.) Attach the two Backrest Supports (#7) to the Pivot and align the holes. Secure them with one M10 x 6 ¼” Allen Bolts (#39), two M10 Aircraft Nut (#50).
Page 10
STEP 6 (SEE DIAGRAM 6) A.) Attach the Seat (#22) to the Seat Support Frame (#6). Secure it with four 3/4” Washers (#49) and M8 x 2” Allen Bolts (#44). B.) Attach the Backrest Board (#23) to the Backrest Support (#7). Secure it with four 3/4”...
Page 11
STEP 7 (SEE DIAGRAM 7) A.) Insert Leg Developer Holder (#9) into the top opening on the Main Seat Support (#1). Insert a Lock Knob (#36) into selected hole to obtain desired height. B.) Insert an Axle (#16) into the pivot on the Leg Developer (#4). Attach Leg Developer (#4) onto the bracket on the Leg Developer Holder (#9).
PARTS LIST KEY NO. DESCRIPTION Main Seat Support Left Upright Beam Right Upright Beam Leg Developer Olympic Sleeve Seat Support Frame Backrest Support Seat Incline Support Bracket Leg Developer Holder Sliding Block Incline Adjustment Bar Crutch Cross Brace Rear Stabilizer Foam Roll Tube Axle Bracket...
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
