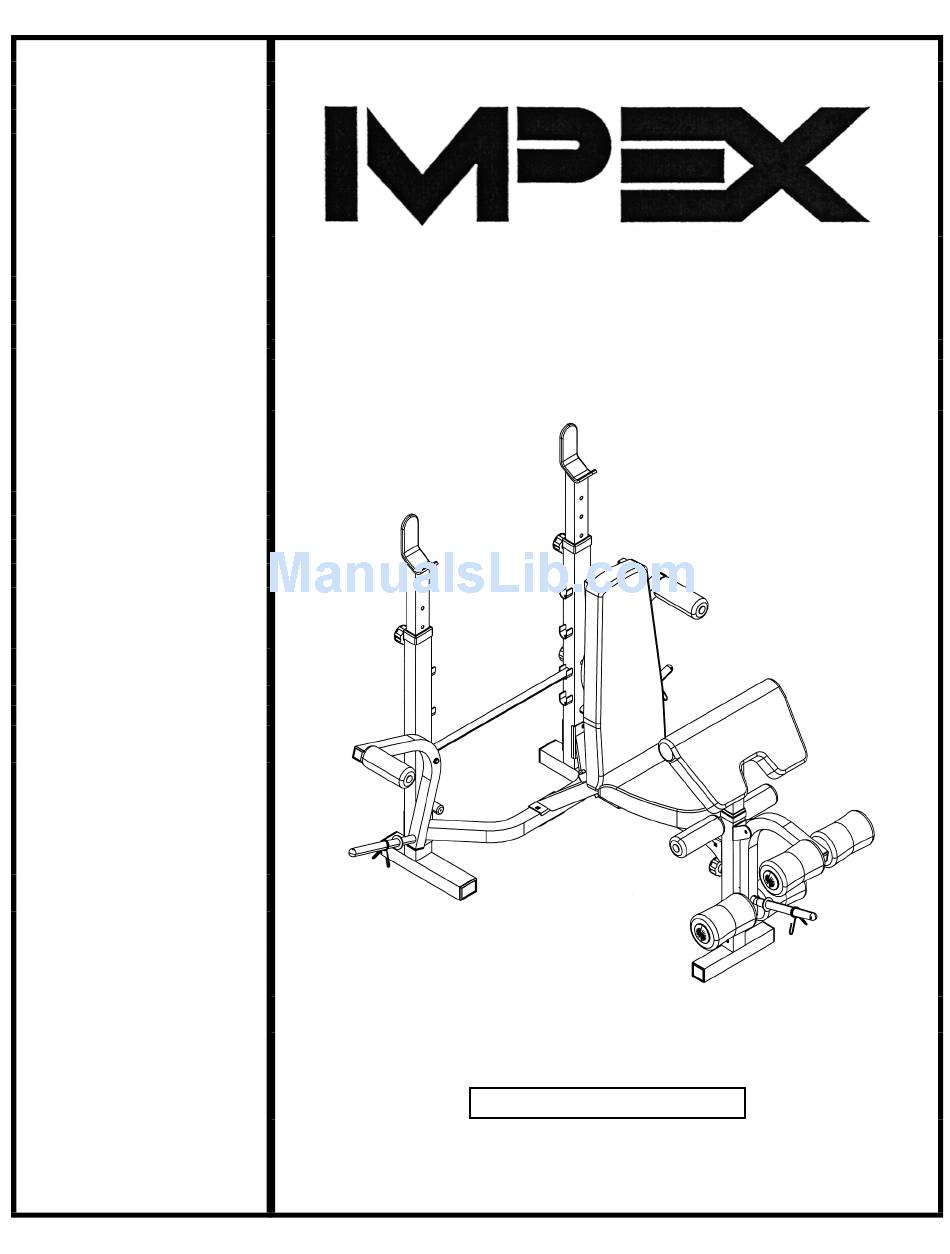

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
IRON GRIP STRENGTH
Safety Notice
Standard Bench
Hardware Identifier
TSA-5682
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
TSA-5682
Retain This
Manual for
Reference
06-15-05
OWNER'S
MANUAL
IMPEX INC.
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
Advertisement
Table of Contents
Related Manuals for Impex IRON GRIP STRENGTH TSA-5682
Summary of Contents for Impex IRON GRIP STRENGTH TSA-5682
- Page 1 NOTE: Please read all instructions carefully before using this product Table of Contents IRON GRIP STRENGTH Safety Notice Standard Bench Hardware Identifier TSA-5682 Assembly Instruction Parts List Warranty Ordering Parts Model TSA-5682 Retain This Manual for Reference 06-15-05 OWNER'S MANUAL IMPEX INC.
-
Page 2: Table Of Contents
BEFORE YOU BEGIN Thank you for selecting the IRON GRIP STRENGTH Standard Bench TSA- 5682 by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory. -
Page 3: Important Safety Notice
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. -
Page 4: Warning Label Placement
WARNING LABEL PLACEMENT The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown. -
Page 5: Hardware Identifier
HARDWARE PACK... - Page 6 HARDWARE PACK...
-
Page 7: Assembly Instruction
ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the Left & Right Upright Beams (#1 & 2) by a Cross Brace (#3) in the mid-span. Align the holes and secure each end of the Cross Brace with one 4 ¾”... - Page 8 A.) Attach Main Seat Support (#4) to the Cross Brace (#3). Secure it with a 4 3/8” x 1 ¾” Bracket (#19), two M10 x 2 ¾” Carriage Bolts (#37), two M10 Aircraft Nuts (#47). B.) Attach the Leg Developer Holder (#5) to the Front Stabilizer (#6). Secure it with three M10 x 5/8”...
- Page 9 STEP 3 (See Diagram 3) A.) Attach the Backrest Incline Support (#21) in between the two Backrest Supports (#13). Attach the lower side-holes on the Backrest Supports to the pivot on the Main Seat Support (#4). B.) Place the Backrest Board (#16) onto the Backrest Supports. Secure it with four M8 x 1 5/8” Allen Bolts (#43) and Ø...
- Page 10 STEP 4 (See Diagram 4) A.) Attach the Leg Developer (#11) to the Leg Developer Holder. Secure it with one M10 x 2 7/8” Allen Bolt (#40), two Ø ¾” Washers (#26), and one M10 Aircraft Nut (#47). B.) Insert one Foam Tube (#14) halfway through the hole on the Leg Developer Holder. Push two Ø...
- Page 11 STEP 5 (See Diagram 5) A.) Insert a M12 x 5 ½” Hex Bolt (#39) through the Right Butterfly (#10). Secure the Bolt with a M12 Regular Nut (#53). Insert the Bolt through the hole on the Right Upright Beam and secure it with a M12 Knob (#45). B.) Insert a Butterfly Handle (#15) through the hole on the Right Butterfly from the rear.
-
Page 13: Parts List
PARTS LIST KEY NO. DESCRIPTION Left Upright Beam Right Upright Beam Cross Brace Main Seat Support Leg Developer Holder Front Stabilizer Crutch Backrest Adjustment Bar Left Butterfly Right Butterfly Leg Developer Arm Curl Stand Backrest Support Foam Tube Butterfly Handle Backrest Board Seat Arm Curl Pad... -
Page 14: Impex Inc
IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
