Impex Gym Dandy TT-320 Owner's Manual

Teeter totter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Meijer.com
NOTE:
®
Please read all instructions
Gym Dandy
carefully before using this
product
TEETER TOTTER
Table of Contents
TT-320
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Operation Tips
Warranty
Ordering Parts
Model
TT-320
Retain This
Manual for
Reference
10-12-07
®
IMPEX
INC.
OWNER'S
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
MANUAL
www.impex-fitness.com
info@impex-fitness.com

Advertisement

Table of Contents
loading

Related Manuals for Impex Gym Dandy TT-320

Summary of Contents for Impex Gym Dandy TT-320

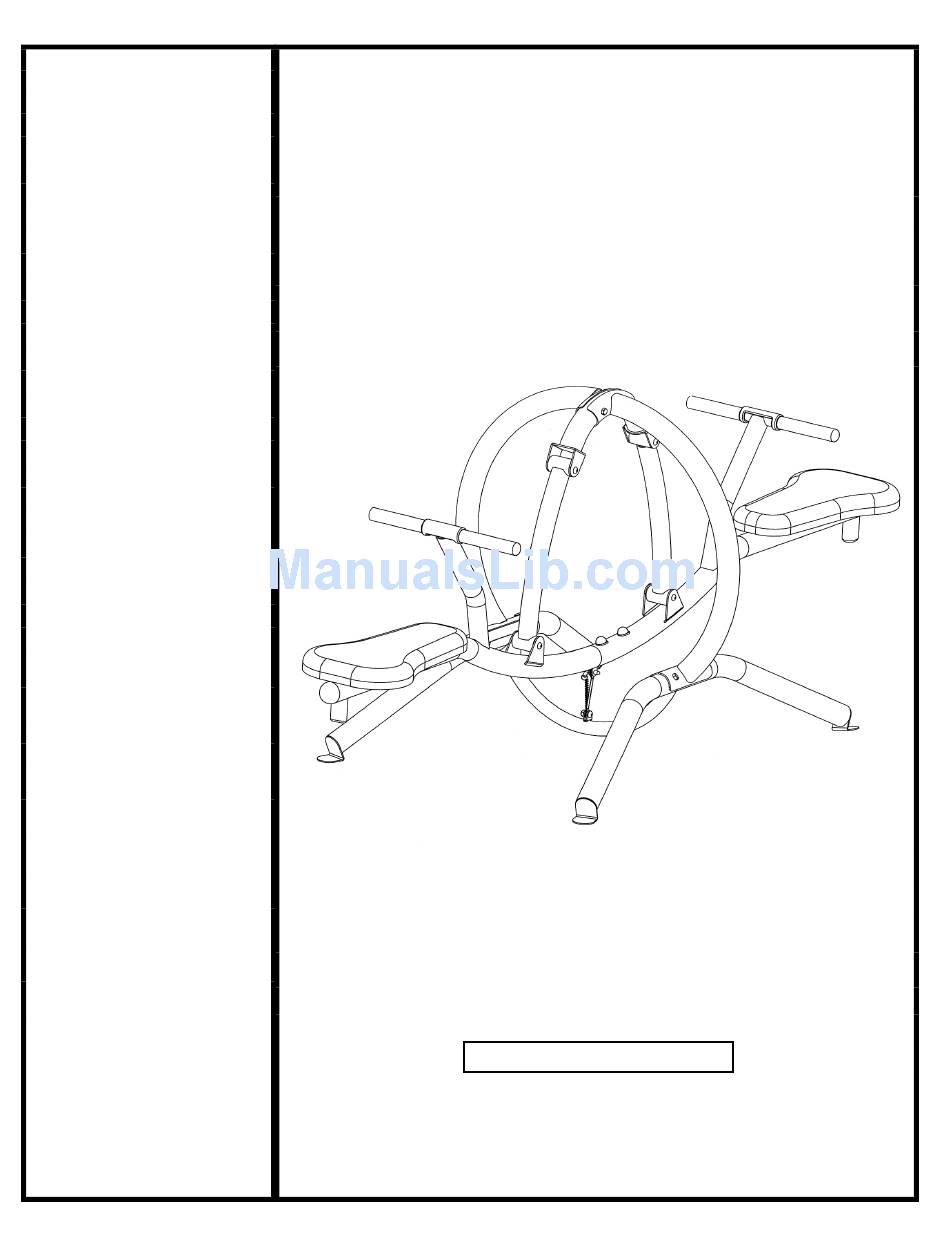

  • Page 1 Hardware Pack Assembly Instruction Parts List Operation Tips Warranty Ordering Parts Model TT-320 Retain This Manual for Reference 10-12-07 ® IMPEX INC. OWNER'S 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 MANUAL www.impex-fitness.com info@impex-fitness.com...

  • Page 2: Table Of Contents

    Specification for Home Playground Equipment. BEFORE YOU BEGIN ® Thank you for selecting the Gym Dandy Teeter Totter TT-320 by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.
  • Page 3 Meijer.com...

  • Page 4: Important Safety Notice

    Meijer.com IMPORTANT SAFETY NOTICE This play ground equipment is built for optimum safety. However, certain precautions apply whenever you operate a piece of play ground equipment. Be sure to read the entire manual before you assemble or operate your equipment. In particular, note the following safety precautions to reduce the likelihood of serious or fatal injury.
  • Page 5 Meijer.com CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 playground equipment- related injuries resulting from falls to the ground surface are treated annually in U.S. hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.

  • Page 6: Hardware Pack

    Meijer.com HARDWARE PACK...

  • Page 7: Assembly Instructions

    Meijer.com ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrench. NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. Caution: Children must NOT use the equipment until it’s properly installed. STEP 1 (See Diagram 1) A.) Place the two Base Stabilizers (#2) on a flat surface.
  • Page 8 Meijer.com STEP 2 (See Diagram 2) A.) Attach the Pivot on a Swing Arm (#6) to the open bracket on the Swing Base (#7). Align the holes and insert an Axle (#12) through the holes. Secure each end of the Axle with one Bushing (#13), Ø...

  • Page 9: Left Seat Support

    Meijer.com Step 3 (See Diagram 3) A.) Connect the Left Seat Support (#5) and the Right Seat Support (#4). Secure them together with two M10 x 3” Hex Bolts (#21), four Ø ¾” Bent Washers (#26), and two M10 Aircraft Nuts (#28). B.) Cover the two Nuts with two Nut Covers (#16).
  • Page 10 Meijer.com Step 4 (See Diagram 4) A.) Note: Help of another person is strongly recommended for this step. B.) Attach the two open brackets on the Right and Left Seat Supports (#4 & #5) to the pivot on the two Swing Arms (#6). C.) Insert an Axle (#12) through the holes.

  • Page 11: Seat Pad

    Meijer.com STEP 5 (See Diagram 5) A.) Place a Seat Pad (#8) onto the Left Seat Support (#5). Secure the front hole on the Left Seat Support with one M10 x 3 3/8” Allen Bolt (#25), Ø ¾” Lock Washer (#29), and Ø ¾” Bent Washer (#26).

  • Page 12: Exploded Diagram

    Meijer.com...

  • Page 13: Parts List

    Meijer.com Parts list KEY NO. DESCRIPTION Q’ty Main Frame Base Stabilizer Cross Brace Right Seat Support Left Seat Support Swing Arm Swing Base Seat Pad Handlebar Handle Cover Handlebar Grip Axle Bushing Rubber Bumper Seat Support End Cap Nut Cover Ball Bearing L-shaped Lock Pin Cable Strap...

  • Page 14: Operation Tips

    Meijer.com Operation Tips Observing the following statements and warnings reduces the likelihood of serious or fatal injury. 1. Only two people are allowed to use the teeter totter at the same time with a combined weight of no more than 400 lbs. 2.

  • Page 15: Impex Inc

    IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
