Table of Contents Safety Precautions ..........A-1 Installing the Washing Machine .
Page 3
* Please record the serial number from the back of your washer and the date of purchase in the space provided below. We recommend that you keep your purchase receipt with this manual for easy warranty service. Model Number Serial Number Date Purchased Dealer Save These Instructions SAMSUNG Washing Machine Owner’s Instructions A-1...
2 weeks or more. rubber or similarly textured rubber-like materials. 19. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener. Save These Instructions A-2 SAMSUNG Washing Machine Owner’s Instructions...
Preferred method of grounding Plug the three-prong power cord into a properly grounded outlet of standard 120 VAC, 60 Hz. Your washer should be the only appliance on this circuit. Save These Instructions SAMSUNG Washing Machine Owner’s Instructions A-3...

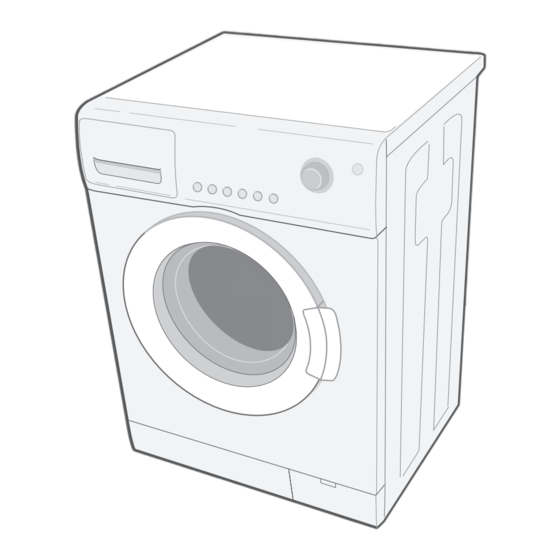

Unpack your washing machine and inspect it for transit damage. Also make sure that you have received all of the items shown below. If the washing machine was damaged during transport or you do not have all of the items, contact your Samsung dealer immediately. Overview of the washing machine...
To connect the water supply hose: 1. Take the L-shaped arm fitting for the cold water supply hose and connect to the cold water supply intake on the back of the machine. Tighten by hand. SAMSUNG Washing Machine Owner’s Instructions B-2...
60 cm above the ground. ln a drain pipe Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60 cm and no longer than 90 cm. B-3 SAMSUNG Washing Machine Owner’s Instructions...
Press the pad repeatedly to scroll through the spin speed settings. Extra High - Use for underwear and sturdy cottons. High – Use for underwear, t-shirts and sturdy cottons. Medium – Use for jeans, wrinkle free or “wash-and-wear” items and synthetics. SAMSUNG Washing Machine Owner’s Instructions C-1...
Page 10
Press once to turn the washing machine on, press again to turn the washing machine off. If the washing machine power is left on for longer than 10 minutes without any buttons being touched, the power automatically turns off. C-2 SAMSUNG Washing Machine Owner’s Instructions...
2. Pour a little detergent into compartment ( ) in the detergent drawer. 3. Turn on the water supply to the washing machine. 4. Press the Start/Pause button. • This will remove any water from the manufacturer’s test run remaining in the machine. SAMSUNG Washing Machine Owner’s Instructions C-3...
Washing a Load of Laundry Washing clothes using Fuzzy Logic Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Logic” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed.
3. Press the Start/Pause button. The Delay Start indicator will light, and the clock will begin counting down until it reaches your finish time. 4. To cancel Delay Start, press the ( ) (On/Off) button, then turn the washing machine on again. SAMSUNG Washing Machine Owner’s Instructions C-5...
If you do not know how hard your water is, ask your water authority. Notice: Keep detergents and additives in a safe, dry place out of the reach of children. C-6 SAMSUNG Washing Machine Owner’s Instructions...
4. Pour warm water into the washing machine drum and let it sit for 10 minutes. 5. Reconnect the water supply hose to the water faucet and check if the water supply and drain operations are normal. SAMSUNG Washing Machine Owner’s Instructions D-1...
3. Unscrew the filter cap and take it out. 4. Wash any dirt or other material from the filter. Make sure the drain pump propeller behind the filter is not blocked. Replace the filter cap. 5. Replace the filter-cover. D-2 SAMSUNG Washing Machine Owner’s Instructions...
Also clean the inside and outside of the threaded connector. 4. Push the filter back into place. 5. Screw the hose back onto the washing machine. 6. Turn on the faucet and make sure the connections are watertight. SAMSUNG Washing Machine Owner’s Instructions D-3...
1. Try to remedy the problem (See “Troubleshooting” on this page). 2. Restart the programme to see if the fault is repeated. 3. If the malfunction persists, call after-sales service and describe the problem. E-1 SAMSUNG Washing Machine Owner’s Instructions...
456. 3. Consumption in individual homes may differ from the values given in the table due to variations in the pressure and temperature of the water supply, the load and the type of laundry. SAMSUNG Washing Machine Owner’s Instructions F-1...
Page 20
Mixed Load A mix of lightly soiled cottons and synthetic fabrics. Calm Wash Extremely low noise level during the entire cycle and finish rinse hold. Cottons, bed linen, table linen, underwear, towels, shirts. F-2 SAMSUNG Washing Machine Owner’s Instructions...
Can be bleached in cold water Dry on clothes hanger Do not bleach Tumble dry, normal heat Can be ironed at 200 ˚C max Tumble dry, reduced heat Can be ironed at 150 ˚C max Do not tumble dry SAMSUNG Washing Machine Owner’s Instructions G-1...
2400 W SPIN MODEL WF-J1254 WF-J1054 WF-J854 230V 360 W 320 W 180 W PUMPING 34 W PACKAGE Wt MODEL WF-J1254/J1054/J854 PAPER 2.5 kg PLASTIC 1.0 kg SPIN REVOLUTION MODEL WF-J1254 WF-J1054 WF-J854 1200 1000 G-2 SAMSUNG Washing Machine Owner’s Instructions...
Appendix Warranty information Limited Warranty for Original Purchaser This Samsung product is warranted by Samsung Electronics Canada, Inc. (hereafter referred to as SECA) against manufacturing defects in material or workmanship for the following periods: Labor: 1 year (in-home) Parts: 1 year SECA further warrants that if this product fails to operate properly within the specified warranty period...
Page 24
Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. CANADA Samsung Electronics Canada Inc., 1-800-SAMSUNG(7267864) www.samsung.com/ca...
