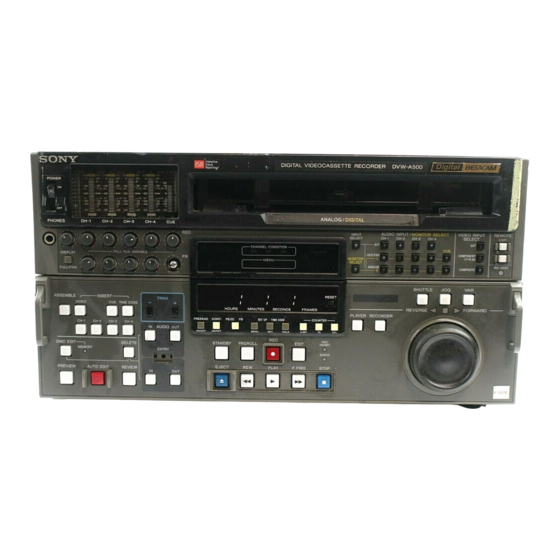

DIGITAL VIDEOCASSETTE RECORDER
DVW-A500/500
DVW-A500P/500P
ANALOG COMPOSITE DECODER BOARD
BKDW-505
BKDW-506
AUDIO PROGRAM PLAY BOARD
BKDW-507
PARALLEL (50P) INTERFACE KIT
BKDW-509
CONTROL PANEL EXTENSION KIT
BKDW-510
CONTROL PANEL CASE
BKDW-511
CONTROL PANEL
BKDW-514
TM
OPERATION MANUAL
[English]
1st Edition (Revised 6)
Serial No. 10001 and Higher (DVW-A500)
Serial No. 10001 and Higher (DVW-A500P)
Serial No. 10001 and Higher (DVW-500)
Serial No. 10001 and Higher (DVW-500P)
Advertisement
Related Manuals for Sony DVW-A500
Summary of Contents for Sony DVW-A500

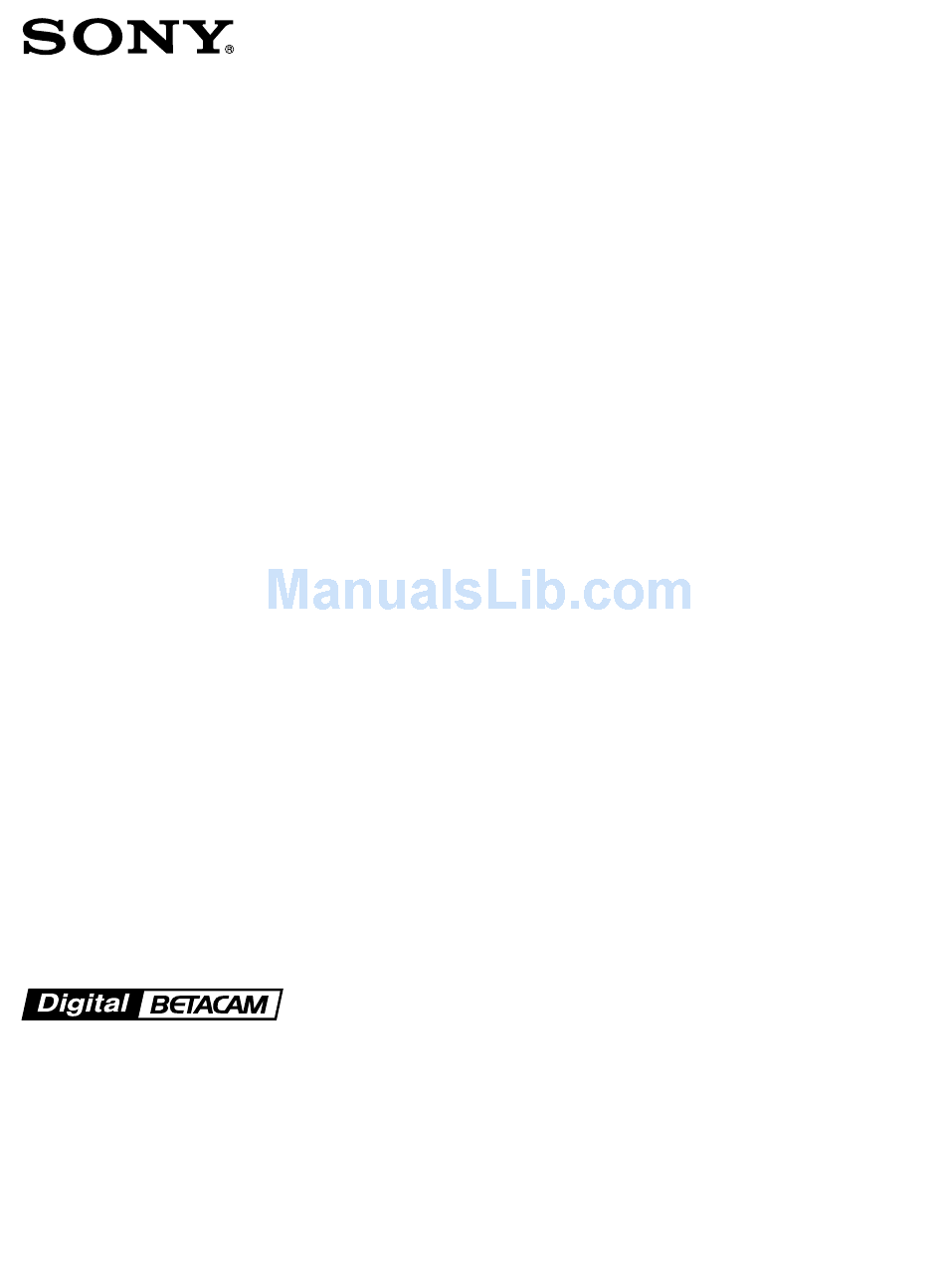

- Page 1 CONTROL PANEL EXTENSION KIT BKDW-510 CONTROL PANEL CASE BKDW-511 CONTROL PANEL BKDW-514 OPERATION MANUAL [English] 1st Edition (Revised 6) Serial No. 10001 and Higher (DVW-A500) Serial No. 10001 and Higher (DVW-A500P) Serial No. 10001 and Higher (DVW-500) Serial No. 10001 and Higher (DVW-500P)
- Page 2 For the customers in the USA WARNING WARNING To prevent fire or shock hazard, do not This equipment has been tested and found to comply expose the unit to rain or moisture. with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Connector Panel
TIME CODE OUT connector (XLR-3-32) (D-sub 9-pin) Outputs one of the following time codes according Connect to another DVW-A500/500 series VTR or to the VTR operation mode. D-1, D-2, or Betacam SP VTR via a 9-pin remote In playback mode: Playback time code. -
Page 4: Operation
+5°C to +40°C (+41°F to +104°F) Storage temperature –20°C to +60°C (–4°F to +140°F) Humidity 25 to 80% (relative humidity) Mass DVW-A500/A500P: 35 kg (77 lb) DVW-500/500P: 33 kg (73 lb) 427 × 237 × 520 mm (w/h/d) Dimensions × 9 × 20... - Page 5 Specifications Remote connectors CONTROL PANEL D-sub 15-pin, female REMOTE 1-IN D-sub 9-pin, female REMOTE 1-OUT D-sub 9-pin, female RS232C D-sub 25-pin, female VIDEO CONTROL D-sub 15-pin, male (for optional BVR-50/50P) REMOTE PARALLEL I/O (50P) D-sub 50-pin, female (with optional BKDW-509) Accessories supplied AC power cord (1) PSW 4 ×...
- Page 6 Sony Corporation Communication System Solutions Network Company DVW-A500/500 Printed in Japan DVW-A500P/500P (UC/EK) 2000.09.13 © 1993 3-757-076-07(1)
