Impex Iron Grip Sport IGS-05 Owner's Manual

Impex owner manual bicep/tricep bench igs-05

Advertisement

Quick Links

NOTE:
Please read all instructions
carefully before using this
product
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts

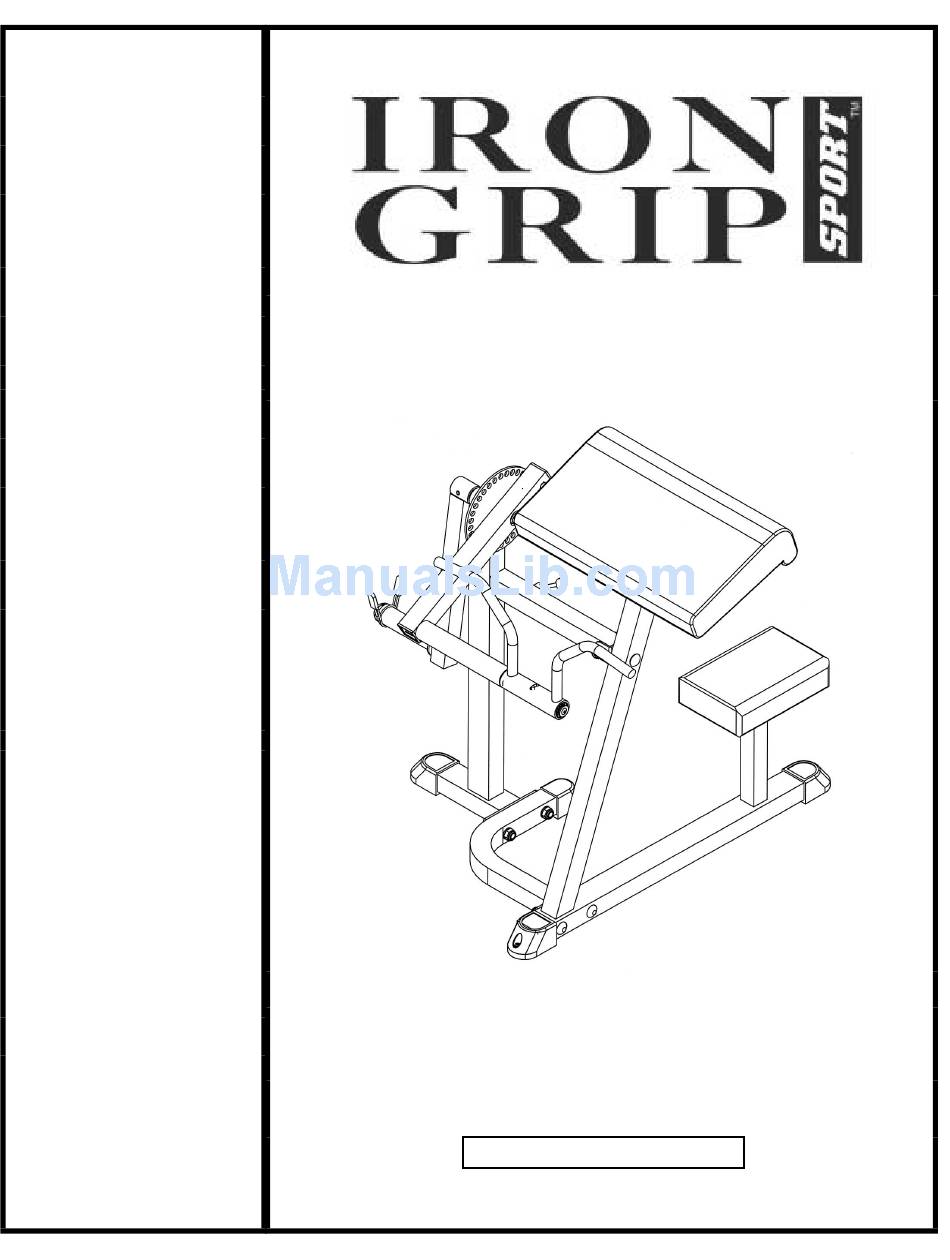

Model
IGS-05
Retain This
Manual for
Reference
02-27-02
OWNER'S
MANUAL
BICEP/TRICEP BENCH
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
IGS-05

Advertisement

loading

Summary of Contents for Impex Iron Grip Sport IGS-05

  • Page 1 Assembly Instruction Parts List Warranty Ordering Parts Model IGS-05 Retain This Manual for Reference 02-27-02 OWNER'S MANUAL IGS-05 BICEP/TRICEP BENCH IMPEX FITNESS PRODUCTS 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com info@impex-fitness.com...
  • Page 2: Table Of Contents

    PARTS LIST……………………………………………………………………….. WARRANTY...… 10 ORDERING PARTS... 10 BEFORE YOU BEGIN Thank you for selecting the IRON GRIP SPORT IGS-05 Bicep/Tricep Bench by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.
  • Page 3: Important Safety Notices

    PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Adjustable Wrench, Allen Wrench and Hammer NOTE: It is strongly recommended this machine to be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Attach the Stabilizer Frame (#3) to the Main Frame (#2). Secure it with two M10 x 3 ½”...
  • Page 6 STEP 2 (See Diagram 2) A.) Attach a U-Shaped Bracket (#35) to the Main Frame (#2). Secure it with a M10 x 2 ¾” Allen Bolt (#36), two B.) Attach the bottom of the Support Frame (#1) to the Stabilizer Frame (#3). Secure it with two M10 x 2 ¾”...
  • Page 7 STEP 3 (See Diagram 3) A.) Slide one 1 ½” Plastic Spacer (#45) onto the pivot axle on the Adjustment Plate (#23). Insert the axle through the barrel on the Support Frame (#2). Slide another Spacer (#45) onto the axle. B.) Attach the Weight Holder (#6) onto the axle.
  • Page 8 A.) Attach the Seat Pad (#9) to the Seat Adjustment Frame (#7). Secure it with two M8 x 1 3/8” Allen Bolts (#39) and B.) Insert the Seat Adjustment Frame into the opening on the Main Frame. Insert the Lock Knob (#37) to secure the Seat.
  • Page 10: Parts List

    PARTS LIST KEY NO. DESCRIPTION Support Frame Main Frame Stabilizer Frame Handle Swing Frame Weight Holder Seat Adjustment Frame Rubber Bumper Seat Pad Arm Pad Spring Selector Bushing Bearing M10 x ¾” Allen Bolt Spring Clip Sleeve Spring Clip Olympic Sleeve End Cap Olympic Sleeve M8 Screw Roll Pin...
  • Page 11: Warranty

    No other warranty beyond that specifically set forth above is authorized by IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
