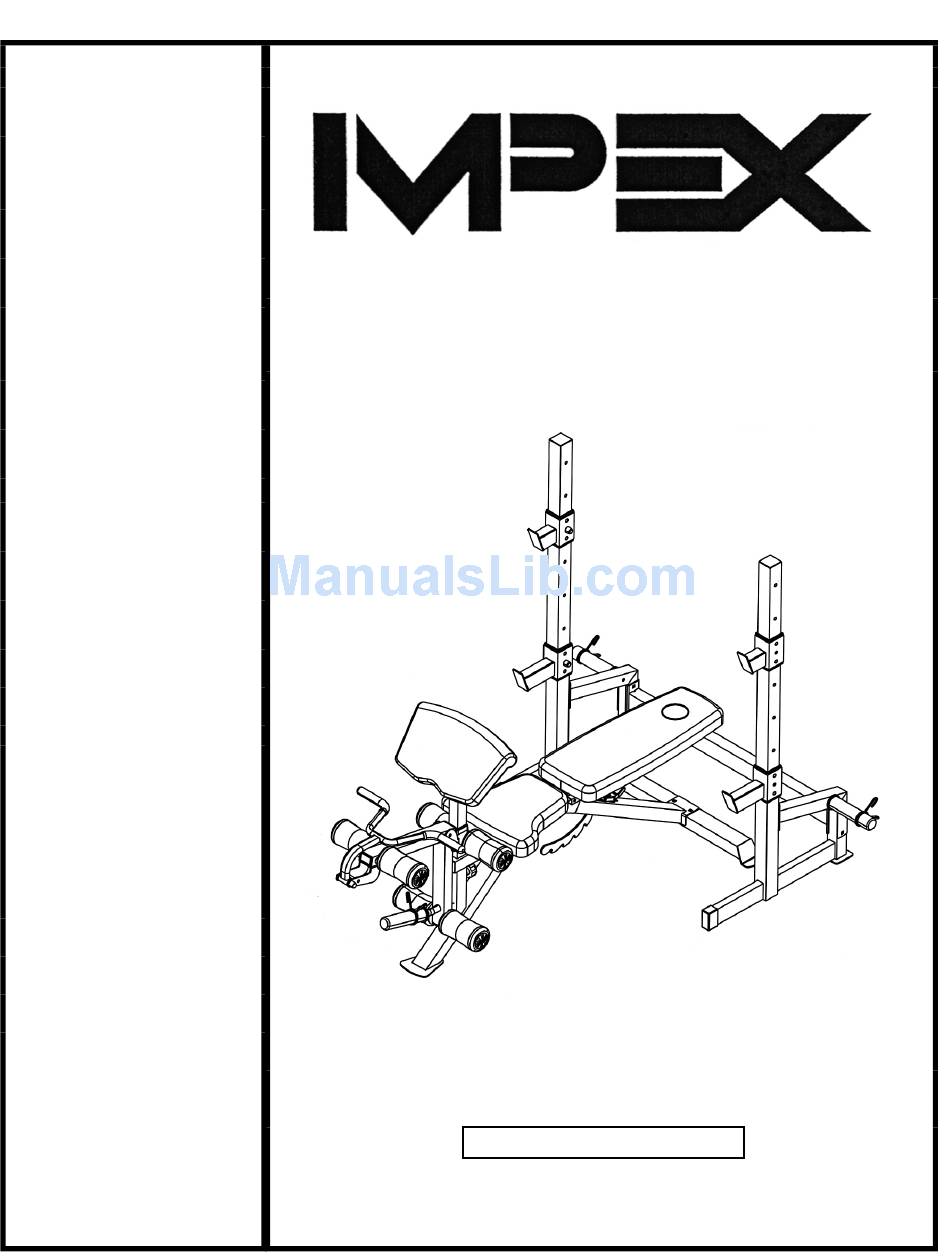

Please read all instructions carefully before using this product Table of Contents Safety Notice Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model IGS-8862 Retain This Manual for Reference 07-28-08 OWNER'S MANUAL IRON GRIP STRENGTH OLYMPIC BENCH IGS-8862 IMPEX 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746...
BEFORE YOU BEGIN Thank you for selecting the IRON GRIP STRENGTH IGS-8862 Olympic Bench by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. If you have...
OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS.
Page 4
WARNING LABEL REPLACEMENT The Warning Labels shown here have been placed on the Cross Brace and the Rear Stabilizer. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown...
ASSEMBLY INSTRUCTION Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Do not tighten the Nuts and Bolts until instructed to do so. B.) Attach the Left Diagonal Support (#3) to an Upright Beam (#1).
Page 7
STEP 2 (See Diagram 2) A.) Do not tighten Nuts and Bolts until instructed to do so. B.) Attach the rear of the Main Seat Support (#9) to the Rear Stabilizer (#11). Secure it with two M10 x 2 ¾” Carriage Bolts (#46) from bottom, one 4 3/8” x 1 ¾” Bracket (#28), two Ø...
Page 8
STEP 3 (See Diagram 3) A.) Do not tighten Nuts and Bolts until instructed to do so. B.) Align the bracket on the Backrest Adjustment Support (#20) in between the two Backrest Supports (#25). Secure it with four M8 x 1 5/8” Allen Bolts (#52), eight Ø 5/8” Washers (#55), and four M8 Aircraft Nuts (#57).
Page 9
STEP 4 (See Diagram 4) A.) Attach the Leg Developer (#13) to the leg developer holder on the Main Seat Support (#9). Secure it with one M10 x 3 ½” Allen Bolt (#48), two M10 Aircraft Nut (#56). B.) Insert two Foam Tubes (#14) halfway through the holes on the Leg Developer. Push four Foam Rolls (#39) onto the Tubes from both ends.
Page 10
STEP 5 (See Diagram 5) A.) Attach the Arm Curl Pad (#19) to the Arm Curl Bracket (#16). Secure it with two M8 x 5/8” Allen Bolts (#53) and Ø 5/8” Washers (#55). B.) Insert the Arm Curl Stand into the top opening on the Leg Developer holder. Use the Lock Knob (#42) to lock the Arm Curl Stand in position.
PARTS LIST KEY NO. DESCRIPTION Upright Beam Cross Brace Left Diagonal Support Right Diagonal Support Safety Catch Bar Catch Weight Post 2 ¾” x 1 1/8” End Cap Main Seat Support Front Post Rear Stabilizer Seat Bracket Leg Developer Foam Tube Arm Curl Handle Arm Curl Stand Backrest Board...
IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the customer. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service center or for products used for commercial or rental purposes.
