Impex IGS-8858 Owner's Manual
  1. Manuals
  2. Brands
  3. Impex Manuals
  4. Fitness Equipment
  5. IGS-8858
  6. Owner's manual
Impex IGS-8858 Owner's Manual

Impex IGS-8858 Owner's Manual

Iron grip strength weight bench
Hide thumbs

Advertisement

Quick Links

Download this manual
NOTE:
Please read all
instructions carefully
before using this product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Exploded Diagram
Parts List
Warranty
Ordering Parts
Model
IGS 8858
Retain This
Manual for
Reference
07/25/06
OWNER'S
MANUAL
IRON GRIP STRENGTH
WEIGHT BENCH
14777 Don Julian Rd., City of Industry, CA 91746
Tel: (800) 999-8899 Fax (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
IGS-8858
®
IMPEX
INC.

Advertisement

loading

Related Manuals for Impex IGS-8858

Summary of Contents for Impex IGS-8858

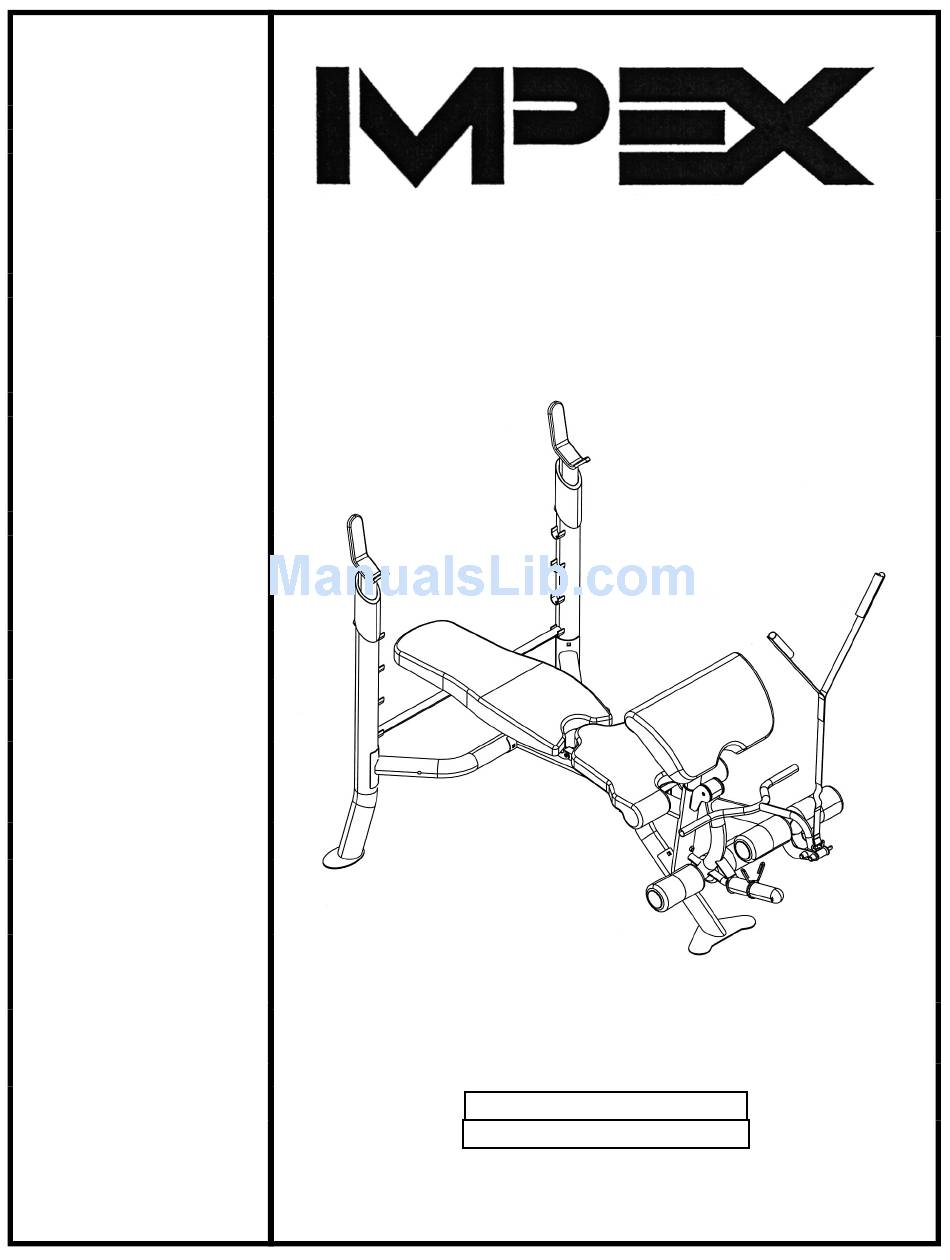

  • Page 1 Warranty Ordering Parts Model IGS 8858 Retain This Manual for Reference 07/25/06 OWNER'S MANUAL IRON GRIP STRENGTH WEIGHT BENCH IGS-8858 IMPEX 14777 Don Julian Rd., City of Industry, CA 91746 Tel: (800) 999-8899 Fax (626) 961-9966 www.impex-fitness.com info@impex-fitness.com ® INC.

  • Page 2: Table Of Contents

    EXPLODED DIAGRAM... PARTS LIST... WARRANTY... ORDERING PARTS... BEFORE YOU BEGIN Thank you for selecting the IRON GRIP STRENGTH IGS-8858 BENCH by ® IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, we guarantee you complete satisfaction through direct assistance from our factory.

  • Page 3: Important Safety Notice

    OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT. SAVE THESE INSTRUCTIONS.
  • Page 4 WARNING LABEL REPLACEMENT The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in location shown...

  • Page 5: Hardware Pack

    HARDWARE PACK...
  • Page 6 HARDWARE PACK...

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches. NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the Left & Right Upright Beam (# 1 & #2) by a Cross Brace (#4) in the mid span. Secure them with M10 x 3 ¾”...
  • Page 8 STEP 2 (See Diagram 2) A.) Attach the front of Main Seat Support (#3) to the Front Post (#9). Secure it with two M10 x 3 1/8” Carriage Bolts (#41), one 6 ¼” Bent Bracket (#18), two Ø ¾” Washers (#49), and two M10 Aircraft Nuts (#52).
  • Page 9 STEP 3 (See Diagram 3) A.) Attach the Backrest Incline Support (#13) to the side-holes on the two Backrest Supports (#12). Align the holes. Secure it with one M12 x 7 ¼” Allen Bolt (#43), two Ø ¾” Washers (#49), and one M12 Aircraft Nut (#52). B.) Attach the holes on the end of the Backrest Supports (#12) to the pivot on the Main Seat Support (#3).
  • Page 10 STEP 4 (See Diagram 4) A.) Attach the Backrest Board (#20) to the Backrest Supports (#12). Secure it with four M8 x 1 5/8” Allen Bolts (#45) and four Ø 5/8” Washers (#50). B.) Place the Seat (#21) onto the Seat Support (#11). Secure it with four M8 x 1 5/8” Allen Bolts (#45) and four Ø...
  • Page 11 STEP 5 (See Diagram 5) A.) Attach the Leg Developer (#8) to the Main Seat Support. Secure it with an Axle (#26), two M10 x 5/8” Allen Bolts (#44), and two Ø ¾” Washers (#49). B.) Insert two Foam Tubes (#19) halfway through the holes on the Leg Developer. Push four Foam Rolls (#29) onto the Tubes from both ends.

  • Page 13: Parts List

    PARTS LIST KEY NO. DESCRIPTION Left Upright Beam Right Upright Beam Main Seat Support Cross Brace Backrest Adjustment Bar Crutch Arm Curl Stand Leg Developer Front Post Arm Curl Handle Seat Support Backrest Support Backrest Incline Support Abdominal Strap Connector Strap Buckle 5 ½”...

  • Page 14: Warranty

    IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
