Model No. NTL09707.8
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if parts are
missing, DO NOT CONTACT THE
STORE; please contact
Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
1-866-362-4490
CALL TOLL-FREE:
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL

Advertisement

Table of Contents
loading

Summary of Contents for NordicTrack COMMERCIAL 1500

  • Page 1 USER'S MANUAL Model No. NTL09707.8 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are missing, DO NOT CONTACT THE STORE; please contact Customer Care.
  • Page 2: Table Of Contents

    Apply the decal in the location shown. Note: The decals may not be shown at actual size. NordicTrack is a registered trademark of ICON IP, Inc.
  • Page 3: Important Precautions

    11. To purchase a surge suppressor, see informed of all warnings and precautions. your local NordicTrack dealer or call the tele- phone number on the front cover of this man- 3. Use the treadmill only as described.
  • Page 4 20. Never leave the treadmill unattended while it 24. Inspect and properly tighten all parts of the is running. Always remove the key, unplug treadmill regularly. DANGER: the power cord, and switch the reset/off cir- cuit breaker to the off position when the Always unplug the power treadmill is not in use.
  • Page 5: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the revolutionary NordicTrack ing this manual, please see the front cover of this man- ® COMMERCIAL 1500 treadmill. The COMMERCIAL ual. To help us assist you, note the product model 1500 treadmill offers an impressive selection of fea- number and serial number before contacting us.
  • Page 6: Assembly

    ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton.
  • Page 7 2. Identify the Left Upright (73) and the Right Upright (74). Have a second person hold the Right Upright (74) near the Right Base Cover (77). See the inset drawing. Make sure the the long tie ex- tends from the rectangular hole in the Right Upright.
  • Page 8 4. Have a second person hold the console assem- bly near the Uprights (73, 74). Connect the Wire Harness (75) to the Console Console Wire Harness (71). See the inset drawing. The Assembly connectors should slide together easily and snap into place. If they do not, turn one con- nector and try again.
  • Page 9 6. Partially tighten three 3/8" x 1 1/2" Bolts (64) with three 3/8" Star Washers (90) into the Right Upright (74). Next, partially tighten three 3/8" x 1 1/2" Bolts (not shown) with three 3/8" Star Washers (not shown) into the Left Upright (73). Then, firmly tighten all six Bolts.
  • Page 10 If you purchase the optional chest pulse sensor (see page 21), follow the steps below to install the re- ceiver included with the chest pulse sensor. 1. Make sure that the power cord is unplugged. Remove the indicated #8 x 3/4" Screws (4) from the Pulse Receiver Cover (70) on the back of the console assembly.
  • Page 11: Operation And Adjustment

    Grounded Outlet Box the right). To purchase a surge suppressor, see Adapter your local NordicTrack dealer or call the telephone Surge Suppressor number on the front cover of this manual and order part number 146148, or see your local electronics store.
  • Page 12 CONSOLE DIAGRAM Clip FEATURES OF THE CONSOLE to accept iFit interactive workout cards containing workouts designed to help you achieve specific fitness The treadmill console offers an impressive array of goals. For example, lose unwanted pounds with the 8- features designed to make your workouts more effec- week Weight Loss workout, or train for a long-distance tive and enjoyable.
  • Page 13: To Turn On The Power

    HOW TO TURN ON THE POWER HOW TO PERSONALIZE CONSOLE SETTINGS IMPORTANT: If the treadmill has been exposed to The console features a settings mode that allows you cold temperatures, allow it to warm to room tem- to view the total time and total distance the walking perature before turning on the power.
  • Page 14 3. Select the manual mode. To adjust the volume, first highlight the volume level by pressing the Display button repeatedly. Next, press the Performance button to decrease the volume level or Each time the Custom button to increase the volume level. the key is inserted, To adjust the contrast of the display, first highlight con-...
  • Page 15 5. Change the incline of the treadmill as desired. • The speed of the walking belt. To change the incline of the treadmill, press the • The incline level of the treadmill. Incline increase and decrease buttons or one of the incline buttons numbered 0 to 12.
  • Page 16 7. Measure your heart rate if desired. 8. Turn on the fan if desired. Note: If you use the handgrip pulse sensor and The fan has high and low speed settings. Press the the optional chest pulse sensor at the same Fan button repeatedly to select a fan speed or to time, the console will not display your heart turn off the fan.
  • Page 17 HOW TO USE A PRESET WORKOUT At the end of the first one-minute segment of the workout, a series of tones will sound. If a different 1. Insert the key into the console. speed and/or incline setting is programmed for the second segment, the speed setting and/or incline See step 1 on page 14.
  • Page 18: To Create A Custom Workout

    HOW TO CREATE A CUSTOM WORKOUT To program a speed setting and an incline setting for the first one-minute segment of the workout, 1. Insert the key into the console. simply adjust the speed and incline of the treadmill as desired by pressing the speed and incline but- See step 1 on page 14.
  • Page 19 HOW TO USE A CUSTOM WORKOUT speed and/or incline setting is programmed for the second segment, the speed and/or incline setting 1. Insert the key into the console. will appear in the display for a moment to alert you and the treadmill will automatically adjust to the See step 1 on page 14.
  • Page 20: How To Use Ifit Card

    HOW TO USE AN IFIT CARD 4. Start the walking belt. 1. Insert the key into the console. Press the Start button to start the workout. A mo- ment after you press the button, the treadmill will See step 1 on page 14. automatically adjust to the first speed and incline settings of the workout.
  • Page 21 HOW TO USE THE SOUND SYSTEM THE OPTIONAL CHEST PULSE SENSOR To play music or audio books through the consoleʼs An optional chest pulse sensor offers hands-free oper- sound system, you must connect your MP3 player, CD ation as it tracks your heart rate during your workouts. To purchase the optional chest pulse sensor, see player, or other personal audio player to the console.
  • Page 22: How To Fold And Move The Treadmill

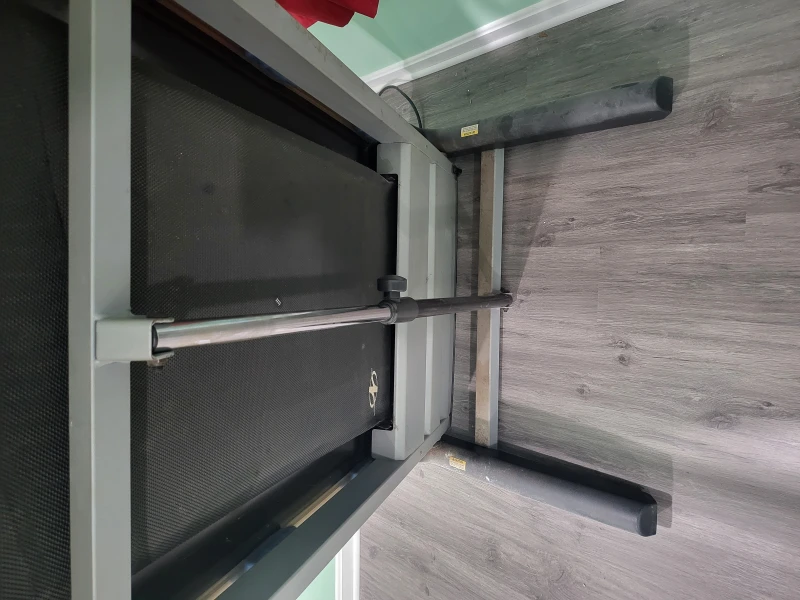

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If you do not do this, you may damage the treadmill when you fold it. Remove the key and unplug the power cord.
  • Page 23: To Lower

    HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left and hold it. It may be neces- Frame sary to push the frame forward as you pull the knob to the left.
  • Page 24: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a.
  • Page 25 Lower the treadmill (see HOW TO LOWER THE TREADMILL FOR USE on page 23). Remove the four #8 x 3/4" Screws (4), and remove the Motor Hood (44). Next, locate the Reed Switch (20) and the Magnet (12) on the left side of the Pulley (11). Turn the Pulley View until the Magnet is aligned with the Reed Switch.
  • Page 26 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller bolt clockwise 1/2 of a turn;...
  • Page 27: Exercise Guidelines

    EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning any time. During the first few minutes of exercise, your exercise program, consult your physician. body uses carbohydrate calories for energy. Only after This is especially important for persons over the first few minutes of exercise does your body begin age 35 or persons with pre-existing health...
  • Page 28 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
  • Page 29: Part List

    PART LIST—Model No. NTL09707.8 R0309A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description Foot Rail Cover Right Rear Foot Foot Rail Rear Wheel #8 x 3/4" Cushion Screw 3/8"...
  • Page 30 Key No. Qty. Description Key No. Qty. Description Latch Warning Decal Incline Stop Bracket #8 x 3/4" Tek Screw Stop Bracket Spacer #8 x 1" Screw 1/2" Console Ground Screw Speaker Cover – 4" White Wire, M/F Idler Roller Washer –...
  • Page 31: Exploded Drawing

    EXPLODED DRAWING A—Model No. NTL09707.8 R0309A...
  • Page 32 EXPLODED DRAWING B—Model No. NTL09707.8 R0309A...
  • Page 33 EXPLODED DRAWING C—Model No. NTL09707.8 R0309A...
  • Page 34 EXPLODED DRAWING D—Model No. NTL09707.8 R0309A...
  • Page 35 EXPLODED DRAWING E—Model No. NTL09707.8 R0309A...
  • Page 36: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
