Thank you for purchasing this Panasonic product.
■ The Operating Instructions correspond to the firmware's main version 1.06 and higher.
■ Before operating this product, please read the instructions carefully and save this manual
for future use.
■ Before using your projector, be sure to read "Read this first!" ( x pages 2 to 9).
Operating Instructions
DLP
Projector
TM

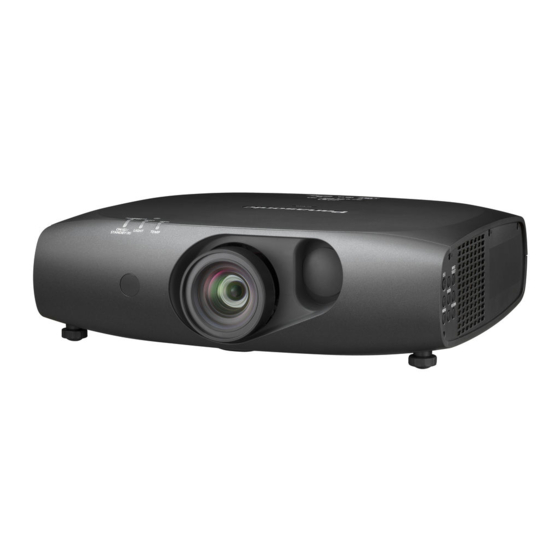

Model No.
Functional Manual
Commercial Use
PT-RZ475U
ENGLISH
TQBJ0554-1
Advertisement
Table of Contents
Related Manuals for Panasonic PT-RZ475U
Summary of Contents for Panasonic PT-RZ475U
-
Page 1: Operating Instructions
Commercial Use PT-RZ475U Model No. Thank you for purchasing this Panasonic product. ■ The Operating Instructions correspond to the firmware’s main version 1.06 and higher. ■ Before operating this product, please read the instructions carefully and save this manual for future use. -
Page 2: Read This First
Read this first! Read this first! WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DONOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. Power Supply: This Projector is designed to operate on 100 V - 240 V, 50 Hz/60 Hz AC, house current only. CAUTION: The AC power cord which is supplied with the projector as an accessory can only be used for power supplies up to 125 V. - Page 3 FCC NOTICE (USA) Verification Model Number: PT-RZ475U Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 Telephone number: (877)803-8492 E-mail: projectorsupport@us.panasonic.com This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock. f If foreign objects or water get inside the projector, cut off the power supply.
- Page 5 If liquid enters inside of the projector, consult your dealer. f Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
- Page 6 Read this first! WARNING: r ACCESSORIES Do not use or handle the batteries improperly, and refer to the following. Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire. f Use AA/R6/LR6 batteries. f Do not use unspecified batteries. f Do not use chargeable batteries.
- Page 7 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
- Page 8 Read this first! CAUTION: r VIEWING 3D VIDEO Those with a medical history of oversensitivity to light, heart problems, or poor physical health should not view 3D images. This may lead to a worsening of medical conditions. If you feel tiredness or discomfort, or other abnormality while viewing with 3D Eyewear, discontinue viewing.
- Page 9 Read this first! Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento.
- Page 10 SOLID SHINE is a trademark of Panasonic Corporation. f RealD 3D is a trademark of RealD Inc. f Windows , Windows Vista , and Internet Explorer are registered trademarks or trademarks of Microsoft Corporation in the ® ®...
-
Page 11: Features Of The Projector
Features of the Projector Quick Steps For details, refer to the corresponding pages. 1. Set up the projector. Long-life reliability achieved (x page 27) The reliability is enhanced through the power-driving and unique cooling control 2. Connect with external devices. system that maximizes the life of the light source, and complete hermeticity (x page 30) -
Page 12: Table Of Contents
Contents Contents Be sure to read “Read this first!” from page 2. Read this first! Projecting Selecting the input signal Adjusting the image Chapter 1 Preparation Viewing 3D images Adjusting the projection position Precautions for use Adjustment range by the lens position shift Cautions when transporting (optical shift) Cautions when installing... - Page 13 Contents [3D SETTINGS] menu [SECURITY] menu [3D MODE] [SECURITY PASSWORD] [3D SYNC OUTPUT DELAY] [SECURITY PASSWORD CHANGE] [LEFT/RIGHT SWAP] [TEXT DISPLAY] [3D INPUT FORMAT] [TEXT CHANGE] [SAFETY PRECAUTIONS MESSAGE] [MENU LOCK] [3D SAFETY PRECAUTIONS] [MENU LOCK PASSWORD] [DISPLAY OPTION] menu [CONTROL DEVICE SETUP] [COLOR MATCHING] [NETWORK] menu...
-
Page 14: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. 14 - ENGLISH... -
Page 15: Precautions For Use
Chapter 1 Preparation — Precautions for use Precautions for use Cautions when transporting f When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. They may damage the internal components and result in malfunctions. f Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet. Cautions when installing rDo not set up the projector outdoors. - Page 16 Chapter 1 Preparation — Precautions for use rDo not use the projector with the connecting terminal side up. Using the projector at an angle that exceeds the available angle of 210° may result in malfunctions. If setting up the projector at an angle that exceeds 210° is required, consult your dealer. Connecting terminal side Available angle in horizontal direction 15°...
-
Page 17: Security
Chapter 1 Preparation — Precautions for use rCautions when setting up the projector f To install and use the projector via a method that does not use the adjustable feet in a floor standing installation, fix the projector using the four screw holes for ceiling mounting (as shown in the figure). (Screw diameter: M4, tapping depth inside the set: 10 mm (13/32"), torque: 1.25 ±... -
Page 18: Digital Link
DIGITAL LINK compatible projector, refer to Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers. -
Page 19: Accessories
Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless remote control unit <1> CD-ROM <1> (N2QAYB000812) (TXFQB02VLF8) AA/R6 or AA/LR6 battery <2> Power cord <1>... -
Page 20: Start-Up Display
Chapter 1 Preparation — Start-up display Start-up display The initial setting screen is displayed when the projector is switched on for the first time after purchase as well as when [ALL USER DATA] in the [PROJECTOR SETUP] menu → [INITIALIZE] is executed. Set them in accordance with circumstances. In other occasions, you can change the settings by menu operations. -
Page 21: Initial Setting (Projector Setup)
Chapter 1 Preparation — Start-up display Initial setting (projector setup) Set [PROJECTION METHOD] and [COOLING CONDITION] depending on the installation mode. Refer to “Installation mode” (x page 27) for details. Then, set the screen format (aspect ratio) and display position of the image. After completing the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu and the [DISPLAY OPTION] menu →... -
Page 22: About Your Projector
Chapter 1 Preparation — About your projector About your projector Remote control Front Attach a strap according to usage condition. Remote control indicator <ID SET> button Flashes if any button in the remote control is pressed. Sets the ID number of the remote control to use for a system using multiple projectors. -
Page 23: Projector Body
Chapter 1 Preparation — About your projector Note f The remote control can be used within a distance of about 15 m (49'2") if pointed directly at the remote control signal receiver. The remote control can control at angles of up to ± 15° vertically and ± 30° horizontally, but the effective control range may be reduced. f If there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate properly. -
Page 24: Control Panel
Chapter 1 Preparation — About your projector r Control panel Power <v/b> button <INPUT SELECT> button Sets the projector to the state where the projector is switched Switches the input signal to project. (x page 43) off (standby mode) when the <MAIN POWER> switch on the asqw buttons/<RETURN>... -
Page 25: Using The Remote Control
Chapter 1 Preparation — Using the remote control Using the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order. -
Page 26: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. 26 - ENGLISH... -
Page 27: Setting Up
Chapter 2 Getting Started — Setting up Setting up Installation mode There are six installation modes for the projector. Set the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 78) and [COOLING CONDITION] (x page 79) according to the installation mode. Also set [COOLING CONDITION] correctly. Using the projector with incorrect settings may shorten the life of light source. -
Page 28: Screen Size And Throw Distance
Chapter 2 Getting Started — Setting up Screen size and throw distance Refer to the following figures and table describing projection distances to install the projector. Image size and image position can be adjusted in accordance with the screen size and screen position. Projection screen Screen Screen... -
Page 29: Adjusting Adjustable Feet
Chapter 2 Getting Started — Setting up Adjusting adjustable feet Install the projector on a flat surface so that the front of the projector is parallel to the screen surface and the projection screen is rectangular. If the screen is tilted downward, the projection screen can be adjusted to be rectangular by adjusting the adjustable feet. The adjustable feet can also be used to adjust the projector to be level when it is tilted in a horizontal direction. -
Page 30: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work. -
Page 31: Connecting Example: Av Equipment
Chapter 2 Getting Started — Connecting <HDMI IN> terminal pin assignments and signal names Outside view Pin No. Signal name Pin No. Signal name T.M.D.S data 2+ (11) T.M.D.S clock shield T.M.D.S data 2 shield (12) T.M.D.S clock- Even-numbered pins of (2) to (18) T.M.D.S data 2- (13) (18) -
Page 32: Connecting Example: Computers
Chapter 2 Getting Started — Connecting Connecting example: Computers Computer Computer Computer Control computer Control computer Computer Attention f When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially available shielded cables. f When inputting digital signals to the <DVI-I IN>... -
Page 33: Connecting Example: Ir Transmitter
Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers. -
Page 34: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. 34 - ENGLISH... -
Page 35: Switching On/Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily. Confirm that the <MAIN POWER> switch is on the <OFF> side before connecting the power cord. For details of power cord handling, refer to “Read this first!”... -
Page 36: Switching On The Projector
Chapter 3 Basic Operations — Switching on/off the projector Indicator status Projector status The main power is switched off. The power is switched off (in standby mode). [STANDBY MODE] is set to [NORMAL]. Flashing Projection will start when the power <v/b> button is pressed. f The projector may not operate when the temperature indicator <TEMP>... -
Page 37: Making Adjustments And Selections
Chapter 3 Basic Operations — Switching on/off the projector Making adjustments and selections It is recommended that images are projected continuously for at least 30 minutes before the focus is adjusted. 1)6) Press the <FUNC3> button on the remote control to roughly adjust the focus of the image. (x page 39) Change the settings of the [PROJECTOR SETUP] menu →... -
Page 38: Switching Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching off the projector Press the power <v/b> button. f The [POWER OFF(STANDBY)] confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. (Or press the power <v/b> button again.) f Projection of the image stops. -
Page 39: Projecting
Chapter 3 Basic Operations — Projecting Projecting Check the external device connections (x page 30) and the power cord connection (x page 35), and turn on the projector (x page 36) to start projecting. Select the video for projection, and adjust appearance of the projected image. Selecting the input signal Select an input signal. -
Page 40: Viewing 3D Images
Chapter 3 Basic Operations — Projecting Viewing 3D images To project/view 3D images, you need active shutter system 3D eyewear, 3D content, and devices that can play 3D content. The projector only supports frame packing system, side by side system, top and bottom system, and frame sequential system as 3D video signal input. -
Page 41: Adjusting The Projection Position
Chapter 3 Basic Operations — Projecting Adjusting the projection position When the projection position of images is shifted, adjust the lens shift through the following procedure. Tool used: f Ball point allen key wrench (M4) or allen wrench (M4) Used when adjusting screw (1) to screw (3). Torque (recommended): 1.2 N·m to 1.6 N·m f Flat-blade screwdriver Used when adjusting the opening for the lens shift adjustment. -
Page 42: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the AV mute function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the audio and video temporarily. -
Page 43: Switching The Input
Chapter 3 Basic Operations — Operating with the remote control Switching the input The input for projection can be switched. button Press the input selection (<COMPUTER>, <DVI-I>, <VIDEO>, <DIGITAL LINK>, <HDMI>) buttons. f This operation can be also performed using the <INPUT SELECT> button on the control panel. <COMPUTER>... -
Page 44: Using The Function Button
Chapter 3 Basic Operations — Operating with the remote control Using the Function button Frequently used operations can be assigned to the <FUNC1> button and the <FUNC2> button on the remote control to be used as simple shortcut buttons. The <FUNC3> button is assigned to the display control of the focus adjustment screen. button Press the <FUNC1>... -
Page 45: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. ENGLISH - 45... -
Page 46: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed. -
Page 47: Main Menu
Chapter 4 Settings — Menu navigation Note f Pressing the <RETURN> button or the <MENU> button while the menu screen is displayed returns to the upper hierarchical menu screen. f Some items may not be adjusted or used for certain signal formats to be input to the projector. The menu items that cannot be adjusted or used are shown in gray characters, and they cannot be selected. -
Page 48: Sub-Menu
Chapter 4 Settings — Menu navigation Main menu item Page [TEST PATTERN] [SECURITY] [NETWORK] [DIGITAL LINK] [FOCUS] [SIGNAL LIST] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. [PICTURE] Sub-menu item Factory default Page... -
Page 49: Display Language
Chapter 4 Settings — Menu navigation Note f Sub-menu items and factory default settings differ depending on the input terminal that is selected. [DISPLAY LANGUAGE] Details (x page 65) [3D SETTINGS] Sub-menu item Factory default Page [3D MODE] [DLP Link] [3D SYNC OUTPUT DELAY] [0us] [LEFT/RIGHT SWAP] [NORMAL]... -
Page 50: Test Pattern
Chapter 4 Settings — Menu navigation Sub-menu item Factory default Page [LOAD ALL USER DATA] ― [INITIALIZE] ― [SERVICE PASSWORD] ― [TEST PATTERN] Details (x page 95) [SECURITY] Sub-menu item Factory default Page [SECURITY PASSWORD] [OFF] [SECURITY PASSWORD CHANGE] ― [TEXT DISPLAY] [OFF] [TEXT CHANGE] ―... -
Page 51: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. f After selecting the item, press asqw to adjust. -
Page 52: [Brightness]
Chapter 4 Settings — [PICTURE] menu [BRIGHTNESS] You can adjust the dark (black) part of the projected image. Press as to select [BRIGHTNESS]. Press qw or the <ENTER> button. f The [BRIGHTNESS] individual adjustment screen is displayed. Press qw to adjust the level. Operation Adjustment Range of adjustment... - Page 53 Chapter 4 Settings — [PICTURE] menu Note f When “[PICTURE MODE]” (x page 51) is set to [DYNAMIC], [COLOR TEMPERATURE] is fixed to [USER]. (However, [WHITE BALANCE HIGH] cannot be adjusted.) f When [COLOR MATCHING] (x page 69) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER]. Adjusting desired white balance Press as to select [COLOR TEMPERATURE].
-
Page 54: [Daylight View]
Chapter 4 Settings — [PICTURE] menu Note f When a name is changed, display of the [USER] menu is also changed. [DAYLIGHT VIEW] You can correct the image to the optimal vividness even if it is projected under a bright light. Press as to select [DAYLIGHT VIEW]. -
Page 55: [System Selector]
Chapter 4 Settings — [PICTURE] menu [SYSTEM SELECTOR] The projector will automatically detect the input signal, but you can set the system method manually when an unstable signal is input. Set the system method matching the input signal. Press as to select [SYSTEM SELECTOR]. Press the <ENTER>... -
Page 56: [Position] Menu
Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. f After selecting the item, press asqw to adjust. -
Page 57: [Aspect]
Chapter 4 Settings — [POSITION] menu [ASPECT] Switch the aspect ratio of the image. The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first. (x page 70) Press as to select [ASPECT]. Press qw or the <ENTER> button. f The [ASPECT] individual adjustment screen is displayed. -
Page 58: [Clock Phase]
Chapter 4 Settings — [POSITION] menu Note f When [ASPECT] is set to [NATIVE], [ZOOM] cannot be adjusted. When [ASPECT] is set to [NORMAL] Press as to select [ZOOM]. Press the <ENTER> button. f The [ZOOM] screen is displayed. Press as to select [MODE]. Press qw to switch the item. -
Page 59: [Keystone]
Chapter 4 Settings — [POSITION] menu [KEYSTONE] Correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted. Press as to select [KEYSTONE]. Press qw or the <ENTER> button. f The [KEYSTONE] individual adjustment screen is displayed. Press qw to adjust. -
Page 60: [Advanced Menu] Menu
Chapter 4 Settings — [ADVANCED MENU] menu [ADVANCED MENU] menu On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. f After selecting the item, press asqw to adjust. -
Page 61: [Input Resolution]
Chapter 4 Settings — [ADVANCED MENU] menu Blanking correction Item Operation Adjustment Range of adjustment The blanking zone Press the w button. moves to the right. Left side of the [LEFT] screen The blanking zone Press the q button. moves to the left. Left and right: 0 (lower limit) The blanking zone... - Page 62 Chapter 4 Settings — [ADVANCED MENU] menu When [ON] is selected, press the <ENTER> button. f The [EDGE BLENDING] screen is displayed. Press as to specify the location to be corrected. f When joining at top: Set [UPPER] to [ON] f When joining at bottom: Set [LOWER] to [ON] f When joining at left: Set [LEFT] to [ON] f When joining at right: Set [RIGHT] to [ON] Press qw to switch between [ON] and [OFF].
-
Page 63: [Frame Response]
Chapter 4 Settings — [ADVANCED MENU] menu 19) Press as to select an item, and press qw to adjust the setting. [BLACK BORDER WIDTH] (Right) Projection range Edge blending [WIDTH] (Right) [MARKER] (Red) Edge blending [START] (Right) ([MARKER] (Green)) [NON-OVERLAPPED BLACK LEVEL] [NON-OVERLAPPED BLACK LEVEL] [BLACK BORDER LEVEL] Note... -
Page 64: [Raster Position]
Chapter 4 Settings — [ADVANCED MENU] menu [RASTER POSITION] This will allow the position of the image to move within the display area arbitrarily when the input image is not using the whole display area. Press as to select [RASTER POSITION]. Press the <ENTER>... -
Page 65: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub- menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. f Press as to select a language, and press the <ENTER>... -
Page 66: [3D Settings] Menu
Chapter 4 Settings — [3D SETTINGS] menu [3D SETTINGS] menu On the menu screen, select [3D SETTINGS] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. f After selecting the item, press asqw to set. -
Page 67: [Left/Right Swap]
Chapter 4 Settings — [3D SETTINGS] menu [LEFT/RIGHT SWAP] Display images by inverting the timing of horizontal image switching. Change the settings when there is something wrong with the 3D image being viewed. When using 3D eyewear that supports DLP Link Press as to select [DLP Link]. -
Page 68: [Safety Precautions Message]
Chapter 4 Settings — [3D SETTINGS] menu [SAFETY PRECAUTIONS MESSAGE] Set to show or hide the safety precautions message related to 3D viewing when the projector is switched on. Press as to select [SAFETY PRECAUTIONS MESSAGE]. Press qw to switch the item. f The items will switch each time you press the button. -
Page 69: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. f After selecting the item, press asqw to set. -
Page 70: [Screen Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Adjusting the color matching using a colorimeter Use a colorimeter that can measure chromaticity coordinates and luminance to change the colors [RED], [GREEN], [BLUE], [CYAN], [MAGENTA], [YELLOW], or [WHITE] to desired colors. Press as to select [COLOR MATCHING]. Press qw to select [MEASURED]. -
Page 71: [Auto Signal]
Chapter 4 Settings — [DISPLAY OPTION] menu [AUTO SIGNAL] Set automatic execution of auto setup. The screen display position or signal level can be adjusted automatically without pressing the <AUTO SETUP> button on the remote control on each occasion if you input unregistered signals frequently at meetings, etc. Press as to select [AUTO SIGNAL]. -
Page 72: [Dvi-I In]
Chapter 4 Settings — [DISPLAY OPTION] menu [DVI-I IN] Switch the setting when the external equipment is connected to the <DVI-I IN> terminal of the projector and the image is not projected correctly. When digital signals are input Press as to select [DVI-I IN]. Press the <ENTER>... -
Page 73: [Hdmi In]
Chapter 4 Settings — [DISPLAY OPTION] menu [HDMI IN] Switch the setting when the external equipment is connected to the <HDMI IN> terminal of the projector and the image is not projected correctly. Press as to select [HDMI IN]. Press the <ENTER> button. f The [HDMI IN] screen is displayed. - Page 74 Chapter 4 Settings — [DISPLAY OPTION] menu Sets to the upper right of the screen. Sets to the center right of the screen. Sets to the bottom right of the screen. Sets to the upper left of the screen. Sets to the center left of the screen. Sets to the bottom left of the screen.
-
Page 75: [Closed Caption Setting] (Ntsc Input Only)
Chapter 4 Settings — [DISPLAY OPTION] menu Setting [WARNING MESSAGE] Set the display/hide of the warning message. Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER> button. f The [ON-SCREEN DISPLAY] screen is displayed. Press as to select [WARNING MESSAGE]. Press qw to switch the item. f The items will switch each time you press the button. -
Page 76: [Back Color]
Displays the entire projection area in blue. [BLACK] Displays the entire projection area in black. [DEFAULT LOGO] Displays the Panasonic logo. [USER LOGO] Displays the image registered by the user. Note f To create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM. -
Page 77: [Freeze]
Chapter 4 Settings — [DISPLAY OPTION] menu Switching to the sub memory list Press as to select [SUB MEMORY LIST], and press the <ENTER> button. f A list of sub memories registered to the signal currently input is displayed. f [SUB MEMORY LIST] can be displayed by pressing qw on the normal screen (when the menu is not displayed). Press asqw to select the signal to switch in [SUB MEMORY LIST]. -
Page 78: [Projector Setup] Menu
Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. f After selecting the item, press asqw to set. -
Page 79: [Cooling Condition]
Chapter 4 Settings — [PROJECTOR SETUP] menu [COOLING CONDITION] Change the fan control depending on the direction of projection. Set [COOLING CONDITION] correctly in accordance with the direction of projection referencing the following figure. Using the light source with incorrect settings may shorten its life. [VERTICAL UP SETTING] 30°... -
Page 80: [Off]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [ECO MANAGEMENT] screen is displayed. Press as to select [AUTO POWER SAVE]. Press qw to switch the item. f The items will switch each time you press the button. [ON] Enables power-saving mode. -
Page 81: [Brightness Control]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f When set to [ECO], network functions are not available during standby. Also, some RS-232C commands are not available. When set to [NORMAL], network functions are available during standby. f If set to [ECO], there may be a delay in displaying when the power is turned on compared to when set to [NORMAL]. [BRIGHTNESS CONTROL] The projector has a built-in brightness sensor which measures the brightness of the light source and has a function which corrects the brightness of the screen according to the change in the brightness of the light source. - Page 82 Chapter 4 Settings — [PROJECTOR SETUP] menu Synchronizes nine or more projectors through a computer using the dedicated software “Multi [PC] Projector Monitoring & Control Software” *1 “Multi Projector Monitoring & Control Software” is included in the supplied CD-ROM. f When [AUTO] is selected, proceed to Step 7). Press as to select [LINK].
- Page 83 Chapter 4 Settings — [PROJECTOR SETUP] menu Displaying [BRIGHTNESS CONTROL STATUS] Display the brightness control status. Press as to select [BRIGHTNESS CONTROL]. Press the <ENTER> button. f The [BRIGHTNESS CONTROL] screen is displayed. Press as to select [BRIGHTNESS CONTROL STATUS]. Press the <ENTER> button. f The [BRIGHTNESS CONTROL STATUS] screen is displayed.
-
Page 84: Enter> Button
Chapter 4 Settings — [PROJECTOR SETUP] menu r Error details Error message Measures to take f Limit the number of projectors in one group to eight. [Exceed maximum number of f When synchronizing nine or more projectors, use the dedicated software “Multi Projector projectors.] Monitoring &... -
Page 85: [Schedule]
Chapter 4 Settings — [PROJECTOR SETUP] menu [SCHEDULE] Set the command execution schedule for each day of the week. Enabling/disabling the schedule function Press as to select [SCHEDULE]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Disables the schedule function. -
Page 86: [Initial Startup]
Sets the volume. *1 When the Panasonic twisted-pair-cable transmitter (such as the optional Digital Interface Box (Model No.: ET-YFB100G)) is connected to the projector, its input name is reflected from [INPUT1] to [INPUT10] automatically. If an item where the input name is not reflected is selected, it is disabled. -
Page 87: [Startup Input Select]
Note f When the Panasonic twisted-pair-cable transmitter (such as the optional Digital Interface Box (Model No.: ET-YFB100G)) is connected to the projector, its input name is reflected from [INPUT1] to [INPUT10] automatically. If an item where the input name is not reflected is selected, it is disabled. -
Page 88: Rs-232C]
Chapter 4 Settings — [PROJECTOR SETUP] menu [RS-232C] Set the sending and receiving port of the serial command. Communicating using the <SERIAL IN> terminal Press as to select [RS-232C]. Press the <ENTER> button. f The [RS-232C] screen is displayed. Press as to select [INPUT SELECT]. Press qw to switch [SERIAL]. - Page 89 Chapter 4 Settings — [PROJECTOR SETUP] menu When using existing projector control commands Set each item when controlling the projector from a computer using control commands of a previously purchased Panasonic projector. Existing Panasonic projector control software and other software can still be used.
-
Page 90: [Function Button]
Chapter 4 Settings — [PROJECTOR SETUP] menu [FUNCTION BUTTON] Display the functions that are currently assigned to the <FUNC1> and <FUNC2> buttons on the remote control. Also, cancel the assigned settings. Canceling the assigned settings of the <FUNC1> and <FUNC2> buttons Press as to select [FUNCTION BUTTON]. - Page 91 Chapter 4 Settings — [PROJECTOR SETUP] menu Setting the audio output during standby Press as to select [AUDIO SETTING]. Press the <ENTER> button. f The [AUDIO SETTING] screen is displayed. Press as to select [IN STANDBY MODE]. Press qw to switch the item. f The items will switch each time you press the button.
-
Page 92: [Status]
Chapter 4 Settings — [PROJECTOR SETUP] menu [STATUS] Display the status of the projector. Press as to select [STATUS]. Press the <ENTER> button. f The [STATUS] screen is displayed. Press qw to switch the pages. f The page will change each time you press the button. [INPUT] Displays the input terminal currently selected. -
Page 93: [Save All User Data]
Chapter 4 Settings — [PROJECTOR SETUP] menu Setting the date and time automatically Press as to select [DATE AND TIME]. Press the <ENTER> button. f The [DATE AND TIME] screen is displayed. Press as to select [ADJUST CLOCK]. Press the <ENTER> button. f The [ADJUST CLOCK] screen is displayed. -
Page 94: [Initialize]
Chapter 4 Settings — [PROJECTOR SETUP] menu [INITIALIZE] Return various setting values to their factory default settings. Press as to select [INITIALIZE]. Press the <ENTER> button. f The [SECURITY PASSWORD] screen is displayed. Enter a security password and press the <ENTER> button. f The [INITIALIZE] screen is displayed. -
Page 95: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. f Press qw to switch. [TEST PATTERN] Display the test pattern built-in to the projector. -
Page 96: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>... -
Page 97: [Text Display]
Chapter 4 Settings — [SECURITY] menu [TEXT DISPLAY] Overlap the security message (text) over the projected image. Press as to select [TEXT DISPLAY]. Press qw to switch the item. f The items will switch each time you press the button. [OFF] Hides the security message. -
Page 98: [Control Device Setup]
Chapter 4 Settings — [SECURITY] menu [CONTROL DEVICE SETUP] Enable/disable the button operations on the control panel and the remote control. Press as to select [CONTROL DEVICE SETUP]. Press the <ENTER> button. f The [CONTROL DEVICE SETUP] screen is displayed. Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. [CONTROL PANEL] Sets the limitation on the control from the control panel. -
Page 99: [Network] Menu
Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. f After selecting the item, press asqw to set. -
Page 100: [Digital Link Status]
Chapter 4 Settings — [NETWORK] menu Note f The projector does not support 10BaseT Full/Half. When the projector is connected to a twisted-pair-cable transmitter Press as to select [DIGITAL LINK SETUP]. Press the <ENTER> button. f The [DIGITAL LINK SETUP] screen is displayed. Press as to select [DUPLEX(DIGITAL LINK)]. -
Page 101: [Network Control]
Chapter 4 Settings — [NETWORK] menu When the confirmation screen is displayed, press qw to select [OK], and press the <ENTER> button. Note f When using a DHCP server, confirm that the DHCP server is running. f Consult your network administrator regarding the IP address, subnet mask, and default gateway. [NETWORK CONTROL] Set up the control method of the network. -
Page 102: Connecting To A Twisted-Pair-Cable Transmitter
Chapter 4 Settings — [NETWORK] menu Note f “Crestron RoomView” is a system of Crestron Electronics, Inc. that collectively manages and controls devices on multiple systems connected to a network using a computer. f For details of “Crestron RoomView”, refer to the website of Crestron Electronics, Inc. (English only) URL http://www.crestron.com To download “RoomView Express”, go to the website of Crestron Electronics, Inc. -
Page 103: Accessing From The Web Browser
Panasonic website (http://panasonic.net/avc/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers. - Page 104 Chapter 4 Settings — [NETWORK] menu f Do not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple computers. f Change the password first. (x page 114) f The administrator rights allows to use all functions. The user rights only allows use of [Projector status] (x page 104), confirmation of the error information page (x page 105), [Network status] (x page 106), [Basic control] (x page 107), [Advanced control] (x page 107), [Change password] (x page 114).
-
Page 105: Error Information Page
Chapter 4 Settings — [NETWORK] menu Error information page When [Error (Detail)] appears in the self-diagnosis display of the [Projector status] screen, click it to display the error details. f The projector may go into the standby status to protect the projector depending on the contents of the error. Self-diagnosis result display Displays the item check results. - Page 106 Chapter 4 Settings — [NETWORK] menu [Network status] page Click [Status] → [Network status]. The current network setting status is displayed. [Access error] page Click [Status] → [Access error]. The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or passwords.
- Page 107 Chapter 4 Settings — [NETWORK] menu [Basic control] page Click [Projector control] → [Basic control]. [INPUT] [AV MUTE] Switches the input signal. Switches between AV mute on/off. [VOLUME] [POWER] Adjusts the volume. Switches on/off the power. [PICTURE MODE] [CLOSED CAPTION] Switches the video mode. Switches the closed caption setting.
- Page 108 Chapter 4 Settings — [NETWORK] menu [Network config] page Click [Detailed set up] → [Network config]. f Click [Network config] to display the [CAUTION!] screen. f The current settings are displayed by pressing the [Next] button. f The following setting change screen is displayed by clicking the [Change] button. [Projector name] [DNS1] Enter the name of the projector.
-
Page 109: Adjust Clock] Page
Chapter 4 Settings — [NETWORK] menu [Ping test] page Check whether the network is connected to the E-mail server, POP server, DNS server, etc. Click [Detailed set up] → [Ping test]. [Input IP address] Example of display when the connection has succeeded Enter the IP address of the server to be tested. - Page 110 Chapter 4 Settings — [NETWORK] menu [E-mail set up] page When there is a problem, an E-mail can be sent to preset E-mail addresses (up to two addresses). Click [Detailed set up] → [E-mail set up]. [MINIMUM TIME] [ENABLE] Select [Enable] to use the E-mail function. Change the minimum interval for the temperature warning E-mail.
- Page 111 Chapter 4 Settings — [NETWORK] menu [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Password] [Auth] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
- Page 112 Chapter 4 Settings — [NETWORK] menu Contents of E-mail sent Example of E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : RZ475 Serial No...
- Page 113 Chapter 4 Settings — [NETWORK] menu Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : RZ475 Serial No : SW1234567 ----- check system -----...
- Page 114 Chapter 4 Settings — [NETWORK] menu [Change password] page Click [Change password]. [Administrator] [Next] Used to change the setting of the [Administrator]. Used to change the setting of the password. [User] Used to change the setting of the [User]. [Administrator] account [Account] [New][Password] Displays the account to change.
- Page 115 Chapter 4 Settings — [NETWORK] menu [User] account [Account] [New][Password] Displays the account to change. Enter the desired new password. (Up to 16 characters in single byte) [New][User name] Enter the desired new user name. (Up to 16 characters in single [New][Password(Retype)] byte) Enter the desired new password again.
- Page 116 Chapter 4 Settings — [NETWORK] menu [CRESTRON RoomView] page The projector can be monitored/controlled with RoomView. To start the RoomView control page from the web control screen, you need to access with the administrator rights. (For user rights, the [CRESTRON RoomView] button is not displayed on the web control screen.) The control page of RoomView is displayed by clicking [CRESTRON RoomView].
- Page 117 Chapter 4 Settings — [NETWORK] menu [Info] page Click [Info] on the control page. [Projector Name] [Source] Displays the projector name. Displays the selected image input. [Mac Address] [Lamp Mode] Displays the MAC address. Displays the light source mode. [Lamp Hours] [Error Status] Displays the runtime of the projector (converted value).
-
Page 118: [Digital Link] Menu
Chapter 4 Settings — [DIGITAL LINK] menu [DIGITAL LINK] menu On the menu screen, select [DIGITAL LINK] from the main menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. Switch the input to DIGITAL LINK. Note f When the optional Digital Interface Box (Model No.: ET-YFB100G) is connected to the <DIGITAL LINK/LAN>... -
Page 119: [Focus] Menu
Chapter 4 Settings — [FOCUS] menu [FOCUS] menu On the menu screen, select [FOCUS] from the main menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. The focus adjustment screen is displayed. Press asqw to adjust the focus. Note f The focus adjustment screen can be displayed by pressing the <FUNC3>... -
Page 120: [Signal List] Menu
Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 46) for the operation of the menu screen. r Registered signal details A1 (1-2) Memory number: Sub memory number... -
Page 121: Chapter 5 Maintenance
Maintenance Chapter 5 This chapter describes inspection when there are problems, and maintenance methods. ENGLISH - 121... -
Page 122: Light Source/Temperature Indicator
Chapter 5 Maintenance — Light source/temperature indicator Light source/temperature indicator When an indicator lights up If a problem should occur inside the projector, the light source indicator <LIGHT>/temperature indicator <TEMP> will inform you by lighting or flashing. Check the status of the indicators and manage the indicated problems as follows. Attention f When switching off the projector to deal with problems, make sure to follow the procedure in “Switching off the projector”... -
Page 123: Maintenance
Chapter 5 Maintenance — Maintenance Maintenance Before maintaining the projector f Make sure to turn off the power before maintaining the projector. (x pages 35, 38) f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 38). Maintenance Outer case Wipe off dirt and dust with a soft, dry cloth. -
Page 124: Troubleshooting
Chapter 5 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―... - Page 125 Chapter 5 Maintenance — Troubleshooting Problems Points to be checked Page f Are the [3D INPUT FORMAT] and [3D MODE] settings of [3D SETTINGS] correct? f Check the 3D eyewear settings. ― 3D function is not working. f Is a 3D signal which is supported by the projector being input? f Is the [LIGHT POWER] setting in [ECO MANAGEMENT] set to [ECO2]? Left and right images are f Are the devices synchronized? Check the 3D eyewear settings.
-
Page 126: Chapter 6 Appendix
Appendix Chapter 6 This chapter describes specifications and after-sales service for the projector. 126 - ENGLISH... -
Page 127: Technical Information
When [DVI-I IN] is set to [DIGITAL] Returns the name set in [PROJECTOR NAME] of [NETWORK NAME? Projector name query xxxxx SETUP]. Manufacturer name INF1? Panasonic Returns manufacturer name. query INF2? Model name query RZ475 Returns model name. Other information... -
Page 128: Control Commands Via Lan
“xxxxxx:yyyyy:zzzzzzzz” xxxxxx Administrator rights user name for the web control (default user name is “admin1”) yyyyy Password of above administrator rights user (default password is “panasonic”) zzzzzzzz 8-byte random number obtained in Step 2) Command transmission method Transmit using the following command formats. -
Page 129: Error Response
Chapter 6 Appendix — Technical information When web control administrator rights password is not set (Non-protect mode) Connecting Obtain the IP address and port number (Initial set value = 1024) of the projector and request for a connection to the projector. f You can obtain both the IP address and the port number from the menu screen of the projector. -
Page 130: Serial In> Terminal
Chapter 6 Appendix — Technical information <SERIAL IN> terminal The <SERIAL IN> terminal of the connecting terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer. Connection To connect directly Projector connecting terminals Computer D-Sub 9p (female) D-Sub 9p (male) -
Page 131: Basic Format
Chapter 6 Appendix — Technical information Basic format Transmission from the computer starts with STX, then the ID, command, parameter, and ETX are sent in this order. Add parameters according to the details of control. ID designate ZZ, 01 - 06 (2 bytes) End (1 byte) Parameter (undefined length) -
Page 132: Menu Lock Password
Chapter 6 Appendix — Technical information Cable specification When connected to a computer Projector (<SERIAL IN> terminal) Computer (DTE specifications) Control command The following table lists the commands that can be used to control the projector using a computer. r Projector control command Parameter/response Command Details... -
Page 133: List Of Compatible Signals
Chapter 6 Appendix — Technical information List of compatible signals The following table specifies the video signals compatible with the projector. f Symbols that indicate input methods in the table are as follows. g C/D: COMPUTER/DVI-I (analog EDID) g D: DVI-I digital g H/D: HDMI/DIGITAL LINK f Symbols that indicate formats are as follows. - Page 134 *3 VESA CVT-RB (Reduced Blanking)-compliant Note f The number of display dots is 1 920 x 1 080 for PT-RZ475U series. A signal with a different resolution is converted to the number of display dots. f The “i” at the end of the resolution indicates an interlaced signal.
- Page 135 Chapter 6 Appendix — Technical information List of 3D compatible signals The following table specifies the 3D compatible video signals that the projector can project. f Symbols that indicate input methods and 3D methods in the table are as follows. g FP: Frame packing system g SBS: Side by side system g TB: Top and bottom system g FS: Frame sequential system...
-
Page 136: Specifications
Chapter 6 Appendix — Specifications Specifications The specifications of the projector are as follows. Power supply AC 100 V - 240 V, 50 Hz/60 Hz 430 W (5.0 A - 1.8 A) Power consumption 0.5 W when [STANDBY MODE] is set to [ECO] 8 W when [STANDBY MODE] is set to [NORMAL] (when fan is stopped) Panel size 16.5 mm (0.65") (aspect ratio 16:9) - Page 137 For video signal Horizontal: 15.75 kHz/15.63 kHz, Vertical: 50 Hz/60 Hz Horizontal: 15 kHz to 100 kHz, Vertical: 24 Hz to 120 Hz PIAS (Panasonic Intelligent Auto Scanning) system For RGB signal f Dot clock frequency: 162 MHz or less...
- Page 138 Chapter 6 Appendix — Specifications r Terminal 1 set, high-density D-Sub 15 p (female) RGB signal 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω) TTL high impedance, automatic positive/negative SYNC/HD polarity compatible <COMPUTER IN> terminal TTL high impedance, automatic positive/negative polarity compatible (SYNC/HD and VD do not support 3 value SYNC.) signal...
-
Page 139: Dimensions
Chapter 6 Appendix — Dimensions Dimensions Unit: mm 455 (17-29/32") * Actual dimensions may differ depending on the product. ENGLISH - 139... -
Page 140: Precautions For Ceiling Mount Bracket
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of a ceiling mount bracket not manufactured by Panasonic or the inappropriate choice of location for installation, even if the warranty period of the projector has not expired. -
Page 141: Index
Index Index 0 – 9 <FREEZE> button Remote control 22, 42 [3D INPUT FORMAT] [SAFETY PRECAUTIONS MESSAGE] Freeze function [3D MODE] [SAVE ALL USER DATA] <FUNC1> - <FUNC3> buttons [3D SAFETY PRECAUTIONS] [SCHEDULE] Remote control 22, 44 [3D SETTINGS] 49, 66 [SCREEN SETTING] Function button [3D SYNC OUTPUT DELAY]... - Page 142 Panasonic Corporation Web Site : http://panasonic.net/avc/projector/ © Panasonic Corporation 2013 Panasonic System Communications Company of North America 5th Floor, Two Riverfront Plaza, Newark, NJ 07102-5490 TEL: (877) 803 - 8492 Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3...
