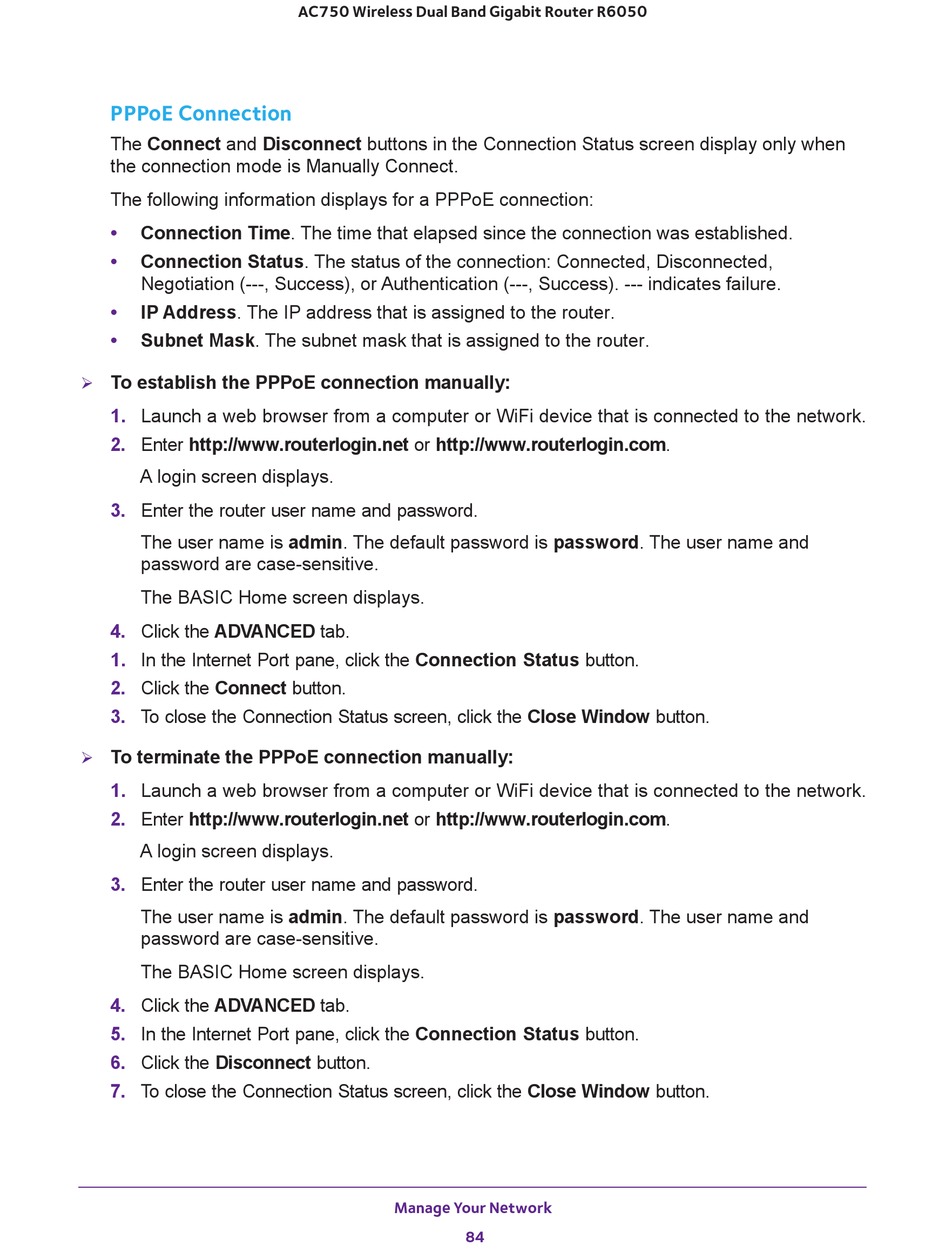

NETGEAR R6050 User Manual page 84

PPPoE Connection
The Connect and Disconnect buttons in the Connection Status screen display only when
the connection mode is Manually Connect.
The following information displays for a PPPoE connection:
• Connection Time. The time that elapsed since the connection was established.
• Connection Status. The status of the connection: Connected, Disconnected,
Negotiation (---, Success), or Authentication (---, Success). --- indicates failure.
• IP Address. The IP address that is assigned to the router.
• Subnet Mask. The subnet mask that is assigned to the router.
To establish the PPPoE connection manually:

1. Launch a web browser from a computer or WiFi device that is connected to the network.
2. Enter http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
The user name is admin. The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Click the ADVANCED tab.
1. In the Internet Port pane, click the Connection Status button.
2. Click the Connect button.
3. To close the Connection Status screen, click the Close Window button.
To terminate the PPPoE connection manually:

1. Launch a web browser from a computer or WiFi device that is connected to the network.
2. Enter http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
The user name is admin. The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Click the ADVANCED tab.
5. In the Internet Port pane, click the Connection Status button.
6. Click the Disconnect button.
7. To close the Connection Status screen, click the Close Window button.
AC750 Wireless Dual Band Gigabit Router R6050
Manage Your Network
84
