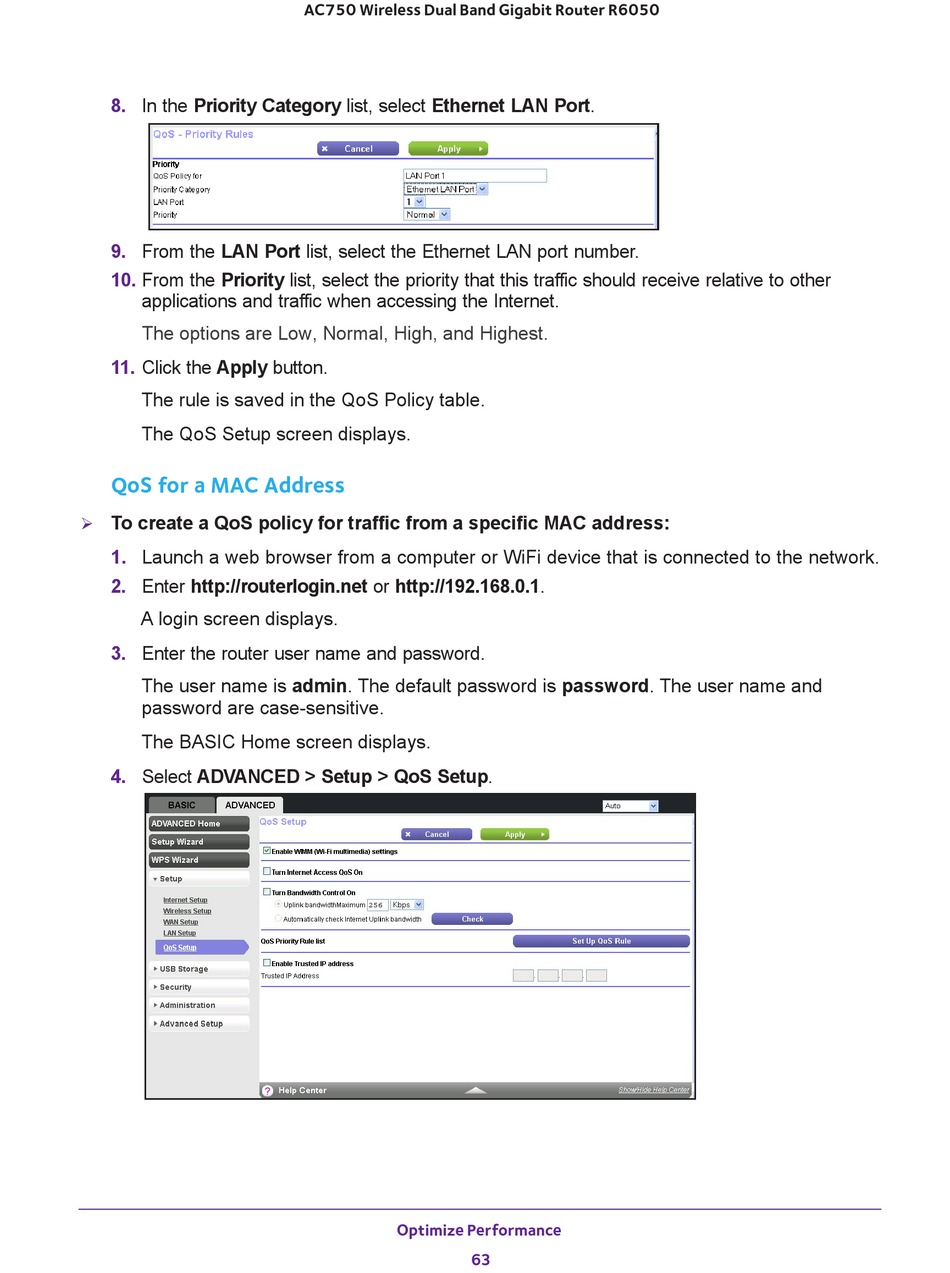

NETGEAR R6050 User Manual page 63

8. In the Priority Category list, select Ethernet LAN Port.
9. From the LAN Port list, select the Ethernet LAN port number.
10. From the Priority list, select the priority that this traffic should receive relative to other
applications and traffic when accessing the Internet.
The options are Low, Normal, High, and Highest.
11. Click the Apply button.
The rule is saved in the QoS Policy table.
The QoS Setup screen displays.
QoS for a MAC Address
To create a QoS policy for traffic from a specific MAC address:

1. Launch a web browser from a computer or WiFi device that is connected to the network.
2. Enter http://routerlogin.net or http://192.168.0.1.
A login screen displays.
3. Enter the router user name and password.
The user name is admin. The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADVANCED > Setup > QoS Setup.
AC750 Wireless Dual Band Gigabit Router R6050
Optimize Performance
63
