ASSEMBLING EN3-TO-EN3 LOUDSPEAKER CABLES

To connect the MM-4XP loudspeaker directly to the MPS-488
male cable. The following procedure documents how to assemble this cable. If you are starting with an EN3-to-pigtail cable
(included with the MM-4XP), you can disregard step 5 in the procedure.
NOTE: Cable mount connectors cannot connect to other cable mount connectors. Cable mount connectors
can only connect to panel mount connectors (like those on the MM-4XP and MPS-488
To extend cables with EN3 connectors on both ends you can use an EN3 5-pin female-to-male cable coupler.

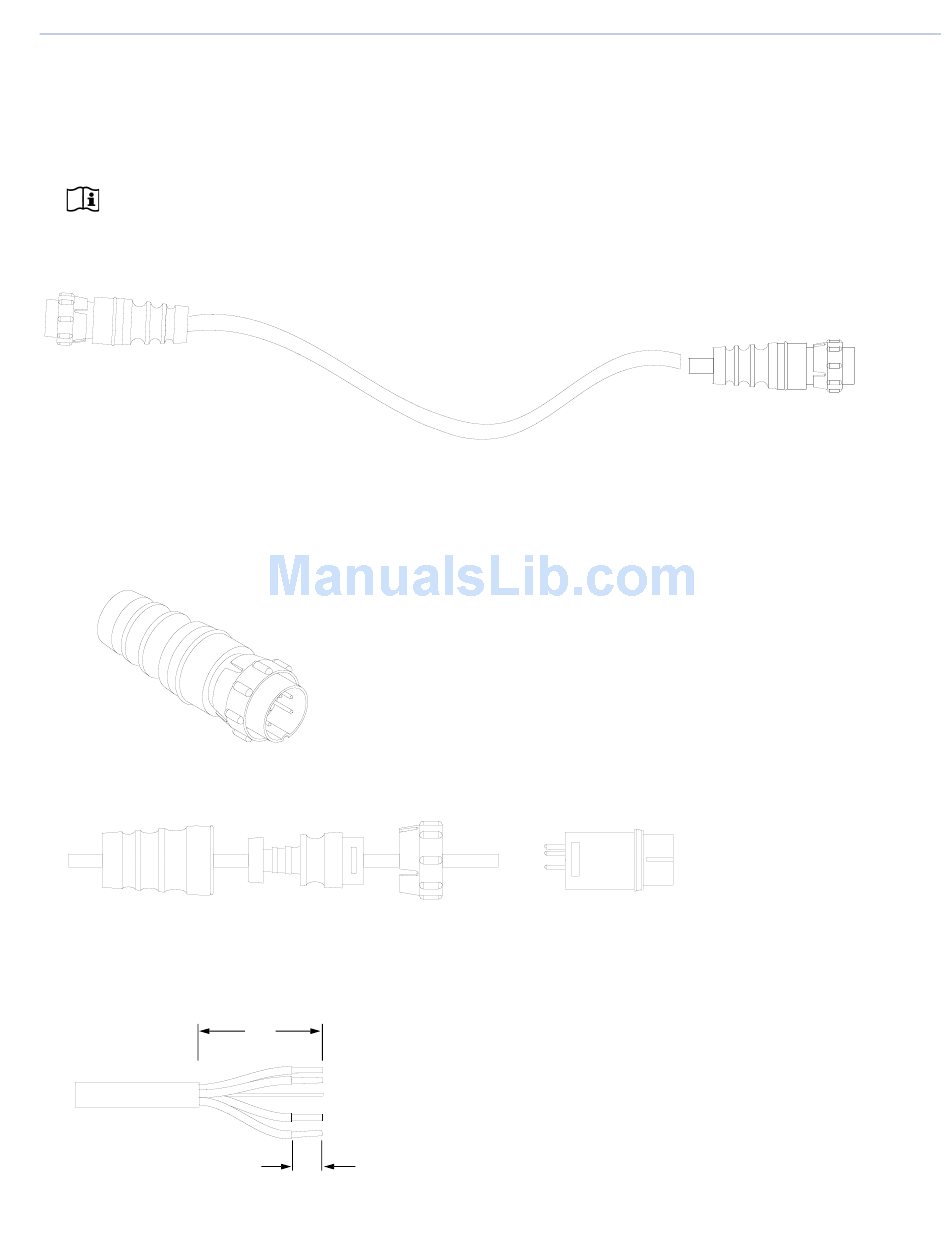

Assembled EN3-to-EN3 Cable
To assemble an EN3-to-EN3 loudspeaker cable:
1. Disassemble the EN3 5-pin male connector and feed one end of the cable through the boot, cable clamp housing, and
coupling ring.
Boot
Disassembled EN3 5-Pin Male Cable Mount Connector
2. If the cable has not been stripped, strip the outer shielding 1" and then strip the black, red, blue, and white wires .275".
Coupling ring
Cable clamp
housing
1"
0.275"
power supply, you need an EN3 5-pin female to EN3 5-pin
E
Cord connector
MM-4XP OPERATING INSTRUCTIONS
) or inline connectors.
