Summary of Contents for Windsor XP 12

  • Page 1 AUTOMATIC VACUUMING SYSTEM'" For commercial use only 98979...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions must always be followed, including the following. READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE WARNING : To reduce the risk of fire, electric shock, or injury: 1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. 2.

  • Page 3: Grounding Instructions

    This warranty is in lieu of all other warranties, expressed or implied, and releases WINDSOR from all other obligations and liabilities. It is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser of this product. WINDSOR is not responsible for costs for repairs performed by persons other than those specifically authorized by WINDSOR.

  • Page 4: Important Safeguards

    This vacuum cleaner is designed to be safe when used to perform cleaning functions. Should damage occur to electrical or mechanical parts, cleaner should be repaired by WINDSOR or competent service station before using in order to avoid further damage to machine or physical injury to user.

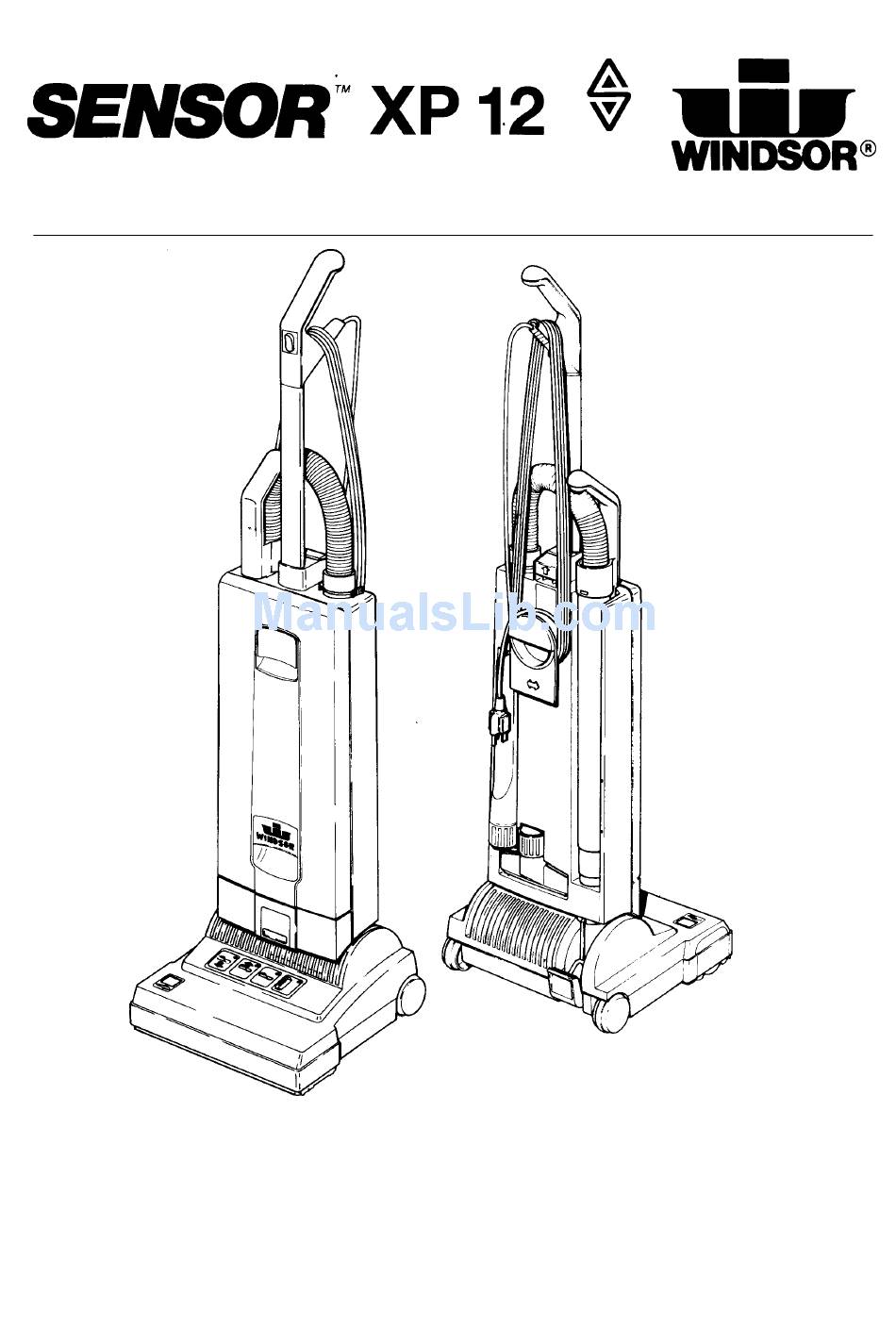

  • Page 5 Handle grip Handle assembly Retaining ring Cover release Dust bag housing Cover Housing release Cable Telescopic handle grip Hose Carrying handle Cable hook Attachment tube Crevice nozzle Upholstery nozzle Foot pedal Figura 1 Picture 1 Preparation Place the brush/suction head on a flat surface with the neck (20) and the support lever (21) upright.
  • Page 6 Alternatively, press the release catch (27) on picture 2. To vacuum under beds etc., the WINDSOR "SENSOR" can be fitted with an additional straight tube and the floor nozzle. The machine will then perform as a cylinder vacuum.

  • Page 7: Maintenance

    (If necessary quickly lift your hand on and off the end of the hose). The guarantee is invalidated if take out parts not approved by WINDSOR. eg. bags, filters, brush roller, etc. are fitted!
  • Page 8 SENSOR ™ XP12 120 V GREY Ref. Part Description Number 5625 UL Handle with cable, cpl. 5296 EW Handle grip, 3-wire (incl. Pos. 7 + 10) 5359 hg Grommet 23011 Cable 0532 EW Switch 5160 bl Switch cap, blue 5161 hg Switch cap holder 5162 Cable clamp...
  • Page 9 SENSOR ™ XP12 120 V GREY Ref. Part Description Number 5485 WI Power head cover XP 12 5008 bl Exhaust filter catch 5143 Exhaust filter 5007 B1 Exhaust filter cover 5727 UL Swivel neck assembly 5258 UL Male contact holder (incl.

  • Page 10: Technical Details

    A Attachments 1 Upholstery Nozzle 2 Crevice Nozzle B Optional Attachments 1 Extension Hose Straight Tube Dusting Brush 4 Upholstery Nozzle, special 5 Wall- and Floor Brush C Service Parts 1 Paper Bag Micro-Hygiene-Filter Exhaust Filter 4 Brush Roller WARNING! Electric shock could occur if used outdoors or on wet surfaces! Wiring Diagram...
