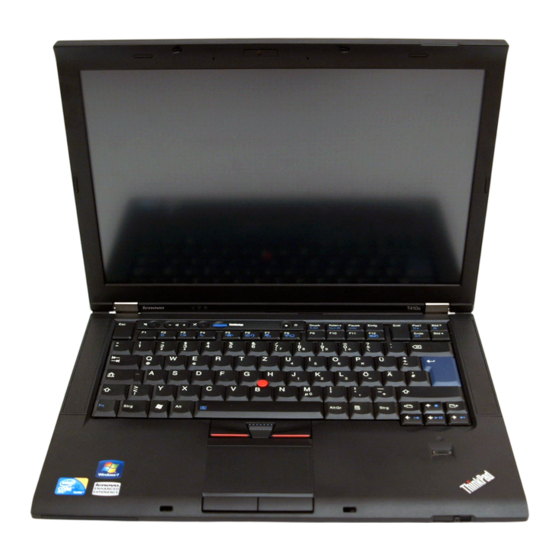

Hardware Maintenance Manual
ThinkPad T400s, T410s, and T410si

Advertisement

Table of Contents
loading

Related Manuals for IBM THINKPAD T400S

Summary of Contents for IBM THINKPAD T400S

  • Page 1 Hardware Maintenance Manual ThinkPad T400s, T410s, and T410si...

  • Page 3: Table Of Contents

    FRU ....73 Before servicing ThinkPad T400s, T410s, and T410si ....
  • Page 4 1130 5-in-1 Media Card Reader adapter ..1140 Bluetooth–wireless radio switch FPC . . . 1150 LCD unit ....1160 System board, fan assembly, and 34-mm ExpressCard slot frame .

  • Page 5: About This Manual

    About this manual This manual contains service and reference information for the following ThinkPad ThinkPad T400s ThinkPad T410s and T410si Use this manual along with the advanced diagnostic tests to troubleshoot problems. Important: This manual is intended only for trained service technicians who are familiar with ThinkPad products.
  • Page 6 Hardware Maintenance Manual...

  • Page 7: Chapter 1. Safety Information

    Chapter 1. Safety information This chapter presents following safety information that you need to be familiar with before you service a ThinkPad Notebook. • “General safety” on page 1 • “Electrical safety” on page 2 • “Safety inspection guide” on page 3 •...

  • Page 8: Electrical Safety

    Electrical safety Observe the following rules when working on electrical equipment. Important: Use only approved tools and test equipment. Some hand tools have handles covered with a soft material that does not insulate you when working with live electrical currents.Many customers have, near their equipment, rubber floor mats that contain small conductive fibers to decrease electrostatic discharges.

  • Page 9: Safety Inspection Guide

    – Send another person to get medical aid. Safety inspection guide The purpose of this inspection guide is to assist you in identifying potentially unsafe conditions. As each machine was designed and built, required safety items were installed to protect users and service technicians from injury.

  • Page 10: Grounding Requirements

    When handling ESD-sensitive parts: • Keep the parts in protective packages until they are inserted into the product. • Avoid contact with other people. • Wear a grounded wrist strap against your skin to eliminate static on your body. • Prevent the part from touching your clothing. Most clothing is insulative and retains a charge even when you are wearing a wrist strap.
  • Page 11 Some standby batteries contain a small amount of nickel and cadmium. Do not disassemble a standby battery, recharge it, throw it into fire or water, or short-circuit it. Dispose of the battery as required by local ordinances or regulations. Use only the battery in the appropriate parts listing. Use of an incorrect battery can result in ignition or explosion of the battery.
  • Page 12 DANGER Unless hot swap is allowed for the FRU being replaced, do as follows before removing it: power off the computer, unplug all power cords from electrical outlets, remove the battery pack, and disconnect any interconnecting cables. Hardware Maintenance Manual...
  • Page 13 Chapter 1 Safety information...
  • Page 14 PERIGO Antes de ligar o computador após a substituição da FRU, certifique-se de que todos os parafusos, molas e outras peças pequenas estejam no lugar e não estejam soltos dentro do computador. Verifique isso sacudindo o computador e procurando ouvir sons de peças soltas. Peças metálicas ou lascas de metal podem causar curto-circuito.
  • Page 15 PERIGO A bateria de lítio pode causar incêndio, explosão ou graves queimaduras. Não a recarregue, remova seu conector polarizado, desmonte-a, aqueça-a acima de 100°C (212°F), incinere-a, ou exponha o conteúdo de sua célula à água. Descarte a bateria conforme requerido pelas leis ou regulamentos locais. Use somente a bateria nas partes listadas apropriadas.
  • Page 16 Avant de remettre l'ordinateur sous tension après remplacement d'une unité en clientèle, vérifiez que tous les ressorts, vis et autres pièces sont bien en place et bien fixées. Pour ce faire, secouez l'unité et assurez-vous qu'aucun bruit suspect ne se produit. Des pièces métalliques ou des copeaux de métal pourraient causer un court-circuit.
  • Page 17 VORSICHT Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet, kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nur durch die Verkaufsstelle oder den IBM Kundendienst ausgetauscht werden. Sie darf nicht zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Die Batterie kann schwere Verbrennungen oder Verätzungen verursachen. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten.
  • Page 18 Akkus enthalten geringe Mengen von Nickel. Sie dürfen nicht zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Bei der Entsorgung die örtlichen Bestimmungen für Sondermüll beachten. Beim Ersetzen der Batterie nur Batterien des Typs verwenden, der in der Ersatzteilliste aufgeführt ist.
  • Page 19 Wenn ein Austausch der FRU bei laufendem Betrieb nicht erlaubt ist, gehen Sie beim Austausch der FRU wie folgt vor: Schalten Sie den Computer aus, ziehen Sie alle Netzkabel von den Netzsteckdosen ab, entfernen Sie den Akku und ziehen Sie alle miteinander verbundenen Kabel ab. Chapter 1 Safety information...
  • Page 20 Hardware Maintenance Manual...
  • Page 21 Chapter 1 Safety information...
  • Page 22 Hardware Maintenance Manual...
  • Page 23 Chapter 1 Safety information...
  • Page 24 Antes de encender el sistema despues de sustituir una FRU, compruebe que todos los tornillos, muelles y demás piezas pequeñas se encuentran en su sitio y no se encuentran sueltas dentro del sistema. Compruébelo agitando el sistema y escuchando los posibles ruidos que provocarían. Las piezas metálicas pueden causar cortocircuitos eléctricos.
  • Page 25 La batería de repuesto es una batería de litio y puede provocar incendios, explosiones o quemaduras graves. No la recargue, ni quite el conector polarizado, ni la desmonte, ni caliente por encima de los 100°C (212°F), ni la incinere ni exponga el contenido de sus celdas al agua. Deséchela tal como dispone la normativa local. Si la LCD se rompe y el fluido de su interior entra en contacto con sus ojos o sus manos, lave inmediatamente las áreas afectadas con agua durante 15 minutos como mínimo.
  • Page 26 Hardware Maintenance Manual...

  • Page 27: Laser Compliance Statement (Multilingual Translations)

    Laser compliance statement (multilingual translations) The laser compliance statements in this section are provided in the following languages: • English • Arabic • Brazilian Portuguese • French • German • Hebrew • Japanese • Korean • Spanish • Traditional Chinese Some models of ThinkPad Notebook are equipped from the factory with an optical storage device such as a CD-ROM drive or a DVD-ROM drive.
  • Page 28 A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may contain an embedded Class 3A or Class 3B laser diode. Note the following: DANGER Emits visible and invisible laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.
  • Page 29 separadamente como opcionais. Se uma dessas unidades estiver instalada, ela é certificada nos Estados Unidos em conformidade com os requisitos do Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR), Subcapítulo J, para produtos a laser da Classe 1. Em outros países, a unidade é...
  • Page 30 DANGER Emet un rayonnement laser visible et invisible lorsque l'unité est ouverte. Evitez toute exposition directe au rayon laser. Evitez de regarder fixement le faisceau ou de l'observer à l'aide d'instruments optiques. Einige ThinkPad-Modelle sind werkseitig mit einem CD-ROM- oder DVD-ROM-Laufwerk ausgestattet. CD- und DVD-Laufwerke können auch gesondert als Zusatzeinrichtung erworben werden.
  • Page 31 Chapter 1 Safety information...
  • Page 32 Hardware Maintenance Manual...
  • Page 33 Algunos modelos de sistemas ThinkPad están equipados de fábrica con un dispositivo de almacenamiento óptico, como una unidad de CD-ROM o de DVD-ROM. Estas unidades también se venden por separado como opciones. Si está instalada alguna de dichas unidades, se certifica que en los Estados Unidos cumple los requisitos del Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J para productos láser de Clase 1.
  • Page 34 PRECAUCIÓN:La utilización de controles, ajustes o la realización de procedimientos diferentes a los especificados puede dar como resultado una exposición peligrosa a radiaciones. Si abre la unidad de CD-ROM, DVD-ROM o cualquier otro dispositivo de almacenamiento óptico, podría quedar expuesto a una radiación láser peligrosa. No hay piezas que requieran servicio dentro de estas unidades.
  • Page 35 Chapter 1 Safety information...
  • Page 36 Hardware Maintenance Manual...

  • Page 37: Chapter 2. Important Service Information

    Chapter 2. Important service information This chapter presents following important service information that applies to all machine types supported by this manual: • “Strategy for replacing FRUs” on page 31 – “Strategy for replacing a hard disk drive” on page 32 –...

  • Page 38: Strategy For Replacing A Hard Disk Drive

    MT and 3-digit model, where model = “CTO” (Example: 1829-CTO). Custom Model Variant (CMV) This is a unique configuration that has been negotiated between IBM or Lenovo and the customer. A unique 4-digit MT and 3-digit model is provided to the customer to place orders (Example: 1829-W15). A CMV is a special bid offering.

  • Page 39: Fru Identification For Cto, Cmv, And Gav Products

    • Business Partners using Eclaim will access PEW when performing Entitlement Lookup. Business Partners will enter Loc ID, MT and Serial, and the key commodities will be returned in the Eclaim record under SYSTEM DETAILS. • Authorized IBM Business Partners can access Eclaim at the following Web site: https://wca.eclaim.com Using eSupport For Key Commodities (Examples - hard disk drive, system board, microprocessor, LCD, and memory) •...
  • Page 40 Using the HMM For Key Commodities (Examples - hard disk drive, system board, microprocessor, LCD, and memory) Use the HMM as a back-up to PEW and eSupport to view the complete list of FRUs at the MT Model level. Hardware Maintenance Manual...

  • Page 41: Chapter 3. General Checkout

    Chapter 3. General checkout This chapter presents following information: • “What to do first” on page 35 • “Checkout guide” on page 36 – “Diagnostics using PC-Doctor for DOS” on page 36 – “Lenovo ThinkVantage Toolbox (Lenovo System Toolbox)” on page 39 –...

  • Page 42: Checkout Guide

    • Forgotten computer password (making the computer unusable) • Sticky keys caused by spilling a liquid onto the keyboard • Use of an incorrect ac adapter on laptop products The following symptoms might indicate damage caused by nonwarranted activities: • Missing parts might be a symptom of unauthorized service or modification.

  • Page 43: Testing The Computer

    For some possible configurations of the computer, PC-Doctor might not run correctly. To avoid this problem, you need to initialize the computer setup by use of the BIOS Setup Utility before you run PC-Doctor . To enter BIOS Setup Utility, do as follows: 1.
  • Page 44 The options on the test menu are as follows: Diagnostics • Run Normal Test • Run Quick Test • CPU/Coprocessor • System board • Video Adapter • Fixed Disks • Diskette Drives • Other Devices • ThinkPad Devices • Communication •...

  • Page 45: Lenovo Thinkvantage Toolbox (Lenovo System Toolbox)

    Detecting system information with PC-Doctor PC-Doctor can detect the following system information: Hardware Info • System Configuration • Memory Contents • Physical Disk Drives • Logical Disk Drives • VGA Information • IDE Drive Info • PCI Information • PNPISA Info •...

  • Page 46: Pc-Doctor For Rescue And Recovery

    For additional information about this program, see the Help for the program. PC-Doctor for Rescue and Recovery In some models of ThinkPad Notebook, the Rescue and Recovery PC-Doctor program to test the hardware features of the computer. To run the test, click “Run Diagnostics” on the Rescue and Recovery main screen. FRU tests The following table shows the test for each FRU.

  • Page 47: Power System Checkout

    Table 1. FRU tests (continued) Applicable test TrackPoint or pointing If the TrackPoint does not work, check the configuration as specified in the BIOS Setup device Utility. If the Trackpoint is disabled, select Automatic to enable it. After you use the TrackPoint, the pointer may drift on the screen for a short time. This drift can occur when a slight, steady pressure is applied to the TrackPoint pointer.

  • Page 48: Checking Operational Charging

    Note: Output voltage of pin no.2 of the AC adapter may different from the one you are servicing. 3. If the voltage is not correct, replace the AC adapter. 4. If the voltage is acceptable, do the following: • Replace the system board. •...

  • Page 49: Checking The Backup Battery

    3. If the voltage is less than +11.0 V dc, the battery pack has been discharged. Note: Recharging will take at least 3 hours, even if the indicator does not turn on. If the voltage is still less than +11.0 V dc after recharging, replace the battery. 4.
  • Page 50 Hardware Maintenance Manual...

  • Page 51: Chapter 4. Related Service Information

    Chapter 4. Related service information This chapter presents following information: • “Restoring the factory contents by using Product Recovery discs” on page 45 • “Restoring the factory contents by using Recovery Disc Set” on page 45 • “Passwords” on page 47 •...
  • Page 52 The recovery disc set consists of the user instructions and the following set of DVDs to restore the computer to the original factory configuration. Operating System Recovery Disc (one disc) Applications and Drivers Recovery Disc (one or more discs) Supplemental Recovery Disc Notes: •...

  • Page 53: Passwords

    Note: After restoring a drive to the factory default settings, you might need to reinstall some device drivers. Passwords As many as three passwords may be needed for any ThinkPad Notebook: the power-on password (POP), the hard-disk password (HDP), and the supervisor password (SVP). If any of these passwords has been set, a prompt for it appears on the screen whenever the computer is turned on.

  • Page 54: How To Remove The Hard-Disk Password

    4. Turn on the computer and wait until the POST ends. After the POST ends, the password prompt does not appear. The POP has been removed. 5. Reinstall the backup battery and the battery pack. (B) If an SVP has been set and is known by the service technician: 1.

  • Page 55: Screen Blank Mode

    Screen blank mode If the time set on the “Turn off monitor” timer in the operating system expires, the LCD backlight turns off. To put the computer into screen blank mode, do as follows: 1. Press Fn+F3. A panel for selecting a power plan (in Windows XP, power scheme) appears. 2.

  • Page 56: Symptom-To-Fru Index

    • The system status, RAM, VRAM, and setup data are stored on the hard disk. • The system is powered off. Note: If the computer enters the hibernation mode while it is docked to the docking station, do not undock it before resuming normal operation.

  • Page 57: Numeric Error Codes

    Note: For a device not supported by diagnostic codes in the ThinkPad Notebooks, see the manual for that device. Numeric error codes Table 2. Numeric error codes Symptom or error 0175 Bad CRC1, stop POST task—The EEPROM checksum is not correct. 0176 System Security—The system has been tampered with.
  • Page 58 Table 2. Numeric error codes (continued) Symptom or error 0196 Security hardware removed 0197 Invalid remote change requested. 0199 System Security— Security password retry count exceeded. 01C8 Two or more modem devices are found. Remove all but one of them. Press <Esc> to continue. 01C9 Two or more Ethernet devices are found.
  • Page 59 Table 2. Numeric error codes (continued) Symptom or error 0250 System battery error—System battery is dead. 0251 System CMOS checksum bad— Default configuration used. 0252 Password checksum bad—The password is cleared. 0260 System timer error. 0270 Real-time clock error. 0271 Date and time error—Neither the date nor the time is set in the computer.
  • Page 60 Table 2. Numeric error codes (continued) Symptom or error 02F7 Fail-safe timer NMI failed 1801 Attached docking station is not supported 1802 Unauthorized network card is plugged in—Turn off and remove the miniPCI network card. 1803 Unauthorized daughter card is plugged in—Turn off and remove the daughter card.

  • Page 61: Error Messages

    FRU or action, in sequence Inform the following information to the customer: If in the primary bay the customer is using a non-IBM or non-Lenovo hard disk drive (HDD), or an old generation IBM HDD which is not supported by this system, with the risk in mind, the customer can still use it by pressing ESC.

  • Page 62: Beep Symptoms

    Table 3. Error messages (continued) Symptom or error Invalid system configuration data. I/O device IRQ conflict. Hibernation error. Fan error. Thermal sensing error. Cannot boot from any device. Beep symptoms Table 4. Beep symptoms Symptom or error One beep and a blank, unreadable, or flashing LCD. Hardware Maintenance Manual FRU or action, in sequence 1.

  • Page 63: No-Beep Symptoms

    Table 4. Beep symptoms (continued) Symptom or error One long and two short beeps, and a blank or unreadable LCD. Two short beeps with error codes. Two short beeps and a blank screen. Two or more beeps, or a continuous beep. Operating system starts successfully.

  • Page 64: Intermittent Problems

    • One pixel consists of R, G, B sub-pixels. Table 6. LCD-related symptoms Symptom or error No beep, power-on indicator on, and a blank LCD during POST. • LCD backlight not working. • LCD too dark. • LCD brightness cannot be adjusted. •...
  • Page 65 5. Determine whether the problem has been solved. 6. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU. 7. If the problem remains, replace the following FRUs one at a time (do not replace a nondefective FRU): a.
  • Page 66 Hardware Maintenance Manual...

  • Page 67: Chapter 5. Status Indicators

    Chapter 5. Status indicators This chapter presents the system status indicators that show the status of the computer. © Copyright Lenovo...
  • Page 68 Table 7. Status indicators Indicator Meaning Speaker mute Orange: Microphone mute Orange: Wireless LAN, Green: Wireless WAN, or WiMAX status Blinking green: Turn off: Bluetooth wireless Green: or Wireless USB status Blinking green: Turn off: Device access Green: Note: Do not move the system while the green device access light is on. Sudden physical shock could cause drive errors.
  • Page 69 Table 7. Status indicators (continued) Indicator Meaning Serial Ultrabay Slim Green: device status Blinking green: Turn off: Fingerprint reader Green: status Blinking green: Blinking orange: Caps lock Green: Sleep (standby for Green: Windows XP) status Blinking green: A Serial Ultrabay Slim device is installed and in use.
  • Page 70 Table 7. Status indicators (continued) Indicator Meaning Battery status Green: Orange: Fast blinking orange: Slow blinking orange: Slow blinking green: Quick blinking orange: The battery status indicator is off: Hardware Maintenance Manual The battery has more than 20% charge. The battery has between 5% and 20% charge.

  • Page 71: Chapter 6. Fn Key Combinations

    Chapter 6. Fn key combinations The following table shows the function of each combination of Fn with a function key. Table 8. Fn key combinations Key combination Description Fn+F1 Reserved. Fn+F2 Lock the computer. Fn+F3 Select a power plan (in Windows XP, power scheme) that has been created by Power Manager, or adjust the power level by using the slider control.
  • Page 72 Table 8. Fn key combinations (continued) Key combination Description For Windows 7: Switch a display output location • Computer display only (LCD) • Computer display and external monitor (same image) • Computer display and external monitor (extended desktop) • External monitor only Note: To switch between the computer display and an external monitor, the Win+P key combination is also available.
  • Page 73 Table 8. Fn key combinations (continued) Key combination Description Fn+Pause Has the same function as the Break key. Fn+cursor keys These key combinations work with Windows Media Player. Fn+down arrow key works for the Play or Pause button, Fn+up arrow key for the Stop button, Fn+right arrow key for the Next Track button, and Fn+left arrow key for the Previous Track button.
  • Page 74 Hardware Maintenance Manual...

  • Page 75: Chapter 7. Fru Replacement Notices

    Chapter 7. FRU replacement notices External CRU statement to customers: Some problems with your product can be resolved with a replacement part you can install yourself, called a “Customer Replaceable Unit” or “CRU.” Some CRUs are designated as Self-service CRUs and others are designated as Optional-service CRUs.

  • Page 76: Retaining Serial Numbers

    • Torque driver If you have a torque driver, refer to the “Torque” column for each step. • Make sure that you use the correct screw. If you have a torque screwdriver, tighten all screws firmly to the torque shown in the table. Never use a screw that you removed. Use a new one. Make sure that all of the screws are tightened firmly.

  • Page 77: Retaining The Uuid

    If the MTM and Product ID numbers differ from each other on the rear label, use what is shown for the Product ID field. See example below: MTM on rear label: Product ID on rear label: In the example, the Serial Number to be input is '1STTTTMMMSSSSSSS'. Retaining the UUID The Universally Unique Identifier (UUID) is a 128-bit number uniquely assigned to your computer at production and stored in the EEPROM of your system board.
  • Page 78 If the system board is being replaced, try to read the ECA information from the old system board and transfer the information to the new system. If the system board is inoperable, this will not be possible. Hardware Maintenance Manual...

  • Page 79: Chapter 8. Removing And Replacing A Fru

    Chapter 8. Removing and replacing a FRU External CRU statement to customers: Some problems with your product can be resolved with a replacement part you can install yourself, called a “Customer Replaceable Unit” or “CRU.” Some CRUs are designated as Self-service CRUs and others are designated as Optional-service CRUs.

  • Page 80: Before Servicing Thinkpad T400S, T410S, And T410Si

    Before servicing ThinkPad T400s, T410s, and T410si Removing the SIM card: Some models of the ThinkPad T400s, T410s, and T410si you are servicing might have the SIM card that the customer has installed. If the computer you are servicing has the SIM card, remove it before you start the servicing.

  • Page 81: 1010 Battery Pack

    1010 Battery pack Important notice for replacing a battery pack: Lenovo ThinkVantage Toolbox (in Windows 7) and Lenovo System Toolbox (in Windows Vista and Windows XP) have an automatic battery diagnostic that determines if the battery pack is defective. A battery pack FRU should not be replaced unless this diagnostic shows that the battery is defective.

  • Page 82: 1030 Solid State Drive (Ssd) Or Hard Disk Drive (Hdd)

    • “1010 Battery pack” on page 75 Table 10. Removal steps of Serial Ultrabay Slim device or travel bezel Holding the bay lock latch in the unlocked position Media Bay device or the travel bezel in the direction shown by arrow 1030 Solid state drive (SSD) or hard disk drive (HDD) For access, remove these FRUs in order: •...
  • Page 83 • Do not drop the drive or apply any physical shock to it. The drive is sensitive to physical shock. Improper handling can cause damage and permanent loss of data. • Before removing the drive, have the user make a backup copy of all the information on it if possible. •...

  • Page 84: 1040 Dimm

    Table 11. Removal steps of SSD or HDD (continued) When installing: Make sure that the SSD connector or HDD connector is attached firmly. 1040 DIMM For access, remove these FRUs in order: • “1010 Battery pack” on page 75 Table 12. Removal steps of DIMM Note: Loosen the screws , but do not remove them.
  • Page 85 Table 12. Removal steps of DIMM (continued) Note: For ThinkPad T400s, if only one DIMM is used on the computer you are servicing, the card must be installed in SLOT-0 ( ), but not in SLOT-1 ( For ThinkPad T400s:...

  • Page 86: 1050 Pci Express Mini Card For Wireless Lan

    Table 12. Removal steps of DIMM (continued) For ThinkPad T410s and T410si: When installing: Insert the notched end of the DIMM into the socket. Press the DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly fixed in the slot and does not move easily. 1050 PCI Express Mini Card for wireless LAN For access, remove these FRUs in order: •...
  • Page 87 Table 13. Removal steps of PCI Express Mini Card for wireless LAN (continued) In step , unplug the jacks by using the removal tool antenna RF connector (P/N: 08K7159) or pick the connectors with your fingers and gently unplug them in direction of the arrow. Note: Some models might have only two antenna cables in step Chapter 8 Removing and replacing a FRU...
  • Page 88 Table 13. Removal steps of PCI Express Mini Card for wireless LAN (continued) Step Screw (quantity) For ThinkPad T400s M2 × 3 mm, small-head, nylon-coated (2) For ThinkPad T410s and T410si M2 × 3 mm, small-head, nylon-coated (2) Hardware Maintenance Manual...

  • Page 89: 1060 Pci Express Mini Card For Wireless Wan

    Table 13. Removal steps of PCI Express Mini Card for wireless LAN (continued) When installing: • In models with wireless LAN card that has two antenna connectors, plug the gray cable into the jack labeled MAIN or M, and the black cable into the jack labeled AUX or A on the card. If the computer you are servicing has three cables, put the white cable in the cable protection tube.
  • Page 90 , unplug the jacks by using the removal tool antenna RF connector (P/N: 08K7159) or pick the connectors with your fingers and gently unplug them in direction of the arrow. Step Screw (quantity) For ThinkPad T400s M2 × 3 mm, small-head, nylon-coated (2) For ThinkPad T410s and T410si Hardware Maintenance Manual...

  • Page 91: 1070 Keyboard

    Table 14. Removal steps of PCI Express Mini Card for wireless WAN (continued) M2 × 3 mm, small-head, nylon-coated (2) When installing: Plug the orange cable into the jack labeled MAIN, and the blue cable into the jack labeled AUX on the card.
  • Page 92 Table 15. Removal steps of keyboard (continued) Step Screw (quantity) M2 × 6 mm, bind-head, nylon-coated (2) Push down the keyboard a little toward the arrow Hardware Maintenance Manual Color Black , and then lift up the keyboard in the direction of Torque 0.181 Nm (1.85 kgfcm)
  • Page 93 Table 15. Removal steps of keyboard (continued) Lift the keyboard a little in the direction shown by arrow , and then detach the connector When installing the keyboard, do as follows: Chapter 8 Removing and replacing a FRU...
  • Page 94 Table 16. Installation steps of keyboard 1. Attach the keyboard connector. 2. Attach the keyboard so that the keyboard edges Hardware Maintenance Manual are under the frame as shown in this figure.

  • Page 95: 1080 Backup Battery

    Table 16. Installation steps of keyboard (continued) 3. To make sure that the front side of the keyboard is housed firmly, gently press the keys with your thumbs and try to slide the keyboard toward you. 4. Secure the keyboard by tightening the screws from the bottom side of the computer. 1080 Backup battery For access, remove these FRUs in order: •...

  • Page 96: 1090 Wireless Usb Adapter Or Intel Turbo Memory

    Table 17. Removal steps of backup battery When installing: Attach the backup battery on the hole make sure that the battery connector is attached firmly. 1090 Wireless USB adapter or Intel Turbo Memory For access, remove these FRUs in order: •...

  • Page 97: 1100 Palm Rest Or Palm Rest With Fingerprint Reader

    Table 18. Removal steps of wireless USB adapter or Intel Turbo Memory Note: Step is only for models with the wireless USB adapter. For models with the Intel Turbo Memory Minicard, skip step In step , unplug the jack by using the removal tool antenna RF connector (P/N: 08K7159) or pick the connector with your fingers and gently unplug them in direction of the arrow.
  • Page 98 • “1070 Keyboard” on page 85 Note: In models with the fingerprint reader, the sensor is attached to the palm rest FRU. If the fingerprint reader has any defects, you can replace it by the procedures given in this section, which are the same for a palm rest with or without a fingerprint reader.

  • Page 99: 1110 Bluetooth Daughter Card (Bdc-2)

    Table 19. Removal steps of palm rest or palm rest with fingerprint reader (continued) 1110 Bluetooth daughter card (BDC-2) • “1010 Battery pack” on page 75 • “1030 Solid state drive (SSD) or hard disk drive (HDD)” on page 76 •...

  • Page 100: 1120 Keyboard Bezel And Speaker Assembly

    Table 20. Removal steps of BDC-2 (continued) M2 × 4 mm, bind-head, nylon-coated (1) When installing: Make sure that the connector is attached firmly. 1120 Keyboard bezel and speaker assembly For access, remove these FRUs in order: • “1010 Battery pack” on page 75 •...
  • Page 101 Step Screw (quantity) M2 × 6 mm, bind-head, nylon-coated (3) M2 × 4 mm, bind-head, nylon-coated (2) For ThinkPad T400s M2 × 3 mm, small-head, nylon-coated (1) For ThinkPad T410s and T410si M2 × 3 mm, small-head, nylon-coated (1) Torque...
  • Page 102 Table 21. Removal steps of keyboard bezel and speaker assembly (continued) Note: Before step , pull the cables out from the cable guide hole of the keyboard bezel as shown in the figure Hardware Maintenance Manual...
  • Page 103 Table 21. Removal steps of keyboard bezel and speaker assembly (continued) Turn the keyboard bezel over, and remove the speaker assembly. For ThinkPad T400s: Step Screw (quantity) M2 × 3 mm, small-head, nylon-coated (5) For ThinkPad T410s and T410si: Step Screw (quantity) M2 ×...

  • Page 104: 1130 5-In-1 Media Card Reader Adapter

    1130 5-in-1 Media Card Reader adapter For access, remove these FRUs in order: • “1010 Battery pack” on page 75 • “1020 Serial Ultrabay Slim device or travel bezel” on page 75 • “1030 Solid state drive (SSD) or hard disk drive (HDD)” on page 76 •...
  • Page 105 • “1070 Keyboard” on page 85 • “1100 Palm rest or palm rest with fingerprint reader” on page 91 • “1110 Bluetooth daughter card (BDC-2)” on page 93 • “1120 Keyboard bezel and speaker assembly” on page 94 Table 23. Removal steps of Bluetooth–wireless radio switch FPC Step Screw (quantity) M2 ×...

  • Page 106: 1150 Lcd Unit

    Table 23. Removal steps of Bluetooth–wireless radio switch FPC (continued) 1150 LCD unit For access, remove these FRUs in order: • “1010 Battery pack” on page 75 • “1020 Serial Ultrabay Slim device or travel bezel” on page 75 • “1030 Solid state drive (SSD) or hard disk drive (HDD)”...
  • Page 107 Table 24. Removal steps of LCD unit (continued) Step Screw cap Screw (quantity) M2.5 × 6.5 mm, flat-head, nylon-coated (2) When installing: • Make sure that you route the cables firmly and tape up in the proper positions as shown in this figure. •...
  • Page 108 Table 24. Removal steps of LCD unit (continued) When installing: Make sure that the connector is attached firmly. Hardware Maintenance Manual...

  • Page 109: 1160 System Board, Fan Assembly, And 34-Mm Expresscard Slot Frame

    Table 24. Removal steps of LCD unit (continued) 1160 System board, fan assembly, and 34-mm ExpressCard slot frame Important notices for handling the system board: When handling the system board, bear the following in mind. • The system board has an accelerometer, which can be broken by applying several thousands of G-forces. Note: Dropping a system board from a height of as little as 6 inches so that it falls flat on a hard bench can subject the accelerometer to as much as 6,000 G's of shock.
  • Page 110 Table 25. Removal steps of system board, fan assembly, and 34-mm ExpressCard slot frame Following components soldered on the top side of the system board are extremely sensitive. When you service the system board, avoid any kind of rough handling. For ThinkPad T400s: : ICH (I/O Controller Hub) : CPU : GMCH (Graphics Memory Controller Hub) : Accelerometer chip for the HDD Active Protection System™...
  • Page 111 Table 25. Removal steps of system board, fan assembly, and 34-mm ExpressCard slot frame (continued) For ThinkPad T410s and T410si: : PCH (Platform Controller Hub) : CPU : Accelerometer chip for the HDD Active Protection System : Graphic controller (only for switchable graphics models) Chapter 8 Removing and replacing a FRU...
  • Page 112 Table 25. Removal steps of system board, fan assembly, and 34-mm ExpressCard slot frame (continued) Note: Step is only for ThinkPad T410s and T410si. Step Screw (quantity) M2 × 3.5 mm, big-head, nylon-coated (3) M2 × 6 mm, bind-head, nylon-coated (1) M2 ×...
  • Page 113 Table 25. Removal steps of system board, fan assembly, and 34-mm ExpressCard slot frame (continued) In step , remove the system board and fan assembly together from the base cover assembly. Note: The steps from indicate the removal steps of fan assembly, and those from ones of 34-mm ExpressCard slot frame.
  • Page 114 Either too much or too less application of grease can cause a thermal problem due to imperfect contact with a component. You need to peel the thin film off from the rubber For ThinkPad T400s: For ThinkPad T410s and T410si:...
  • Page 115 Table 25. Removal steps of system board, fan assembly, and 34-mm ExpressCard slot frame (continued) When installing: Make sure that the fan connector is attached firmly. For ThinkPad T400s: Step Screw (quantity) M2 × 3 mm, small−head, nylon-coated (1) M2 × 5 mm, flat−head, nylon-coated (2)

  • Page 116: 1170 I/O Sub Card And Base Cover Assembly

    Table 25. Removal steps of system board, fan assembly, and 34-mm ExpressCard slot frame (continued) For ThinkPad T410s and T410si: Step Screw (quantity) M2 × 3 mm, small−head, nylon-coated (2) M2 × 5 mm, flat−head, nylon-coated (2) Turn the system board over, and then remove the 34-mm ExpressCard slot frame from the system board. 1170 I/O sub card and base cover assembly For access, remove these FRUs in order: •...
  • Page 117 • “1120 Keyboard bezel and speaker assembly” on page 94 • “1130 5-in-1 Media Card Reader adapter” on page 98 • “1140 Bluetooth–wireless radio switch FPC” on page 98 • “1150 LCD unit” on page 100 • “1160 System board, fan assembly, and 34-mm ExpressCard slot frame” on page 103 Table 26.

  • Page 118: 2010 Lcd Bezel Assembly

    Serial number label SIM ICCID label Brazil ANATEL Bluetooth label Brazil ANATEL wireless LAN label Asset tag label Mac address label Ericsson wireless WAN label Qualcomm Wireless WAN label Israel label SIRM label LMA label For some models, you also need to apply one or two FCC labels. Check the old base cover; if it has one or two FCC labels, find duplicates of them in the label kit and apply them to the new base cover.
  • Page 119 Table 27. Removal steps of LCD bezel assembly Step Screw cap Screw (quantity) M2 × 3 mm, shoulder-socket head, nylon-coated Color Torque Black 0.181 Nm (1.85 kgfcm) Chapter 8 Removing and replacing a FRU...

  • Page 120: 2020 Lcd Latch L And R

    2020 LCD latch L and R For access, remove the following FRU: • “1010 Battery pack” on page 75 • “2010 LCD bezel assembly” on page 112 Table 28. Removal steps of LCD latch L and R When installing: Attach the LCD latch marked L to the left-hand side and the LCD latch marked R to the right-hand side.
  • Page 121 Table 29. Removal steps of integrated camera or microphone sub card Step Screw (quantity) For ThinkPad T400s M2 × 3 mm, small-head, nylon-coated (1) For ThinkPad T410s and T410si M2 × 3 mm, small-head, nylon-coated (1) When installing: Make sure that the connector of the integrated camera or the microphone sub card is attached firmly.

  • Page 122: 2040 Led Sub Card

    2040 LED sub card For access, remove these FRUs in order: • “1010 Battery pack” on page 75 • “2010 LCD bezel assembly” on page 112 Table 30. Removal steps of LED sub card For ThinkPad T400s: Hardware Maintenance Manual...

  • Page 123: Step Screw (Quantity) M2 × 3 Mm, Small-Head, Nylon-Coated

    Table 30. Removal steps of LED sub card (continued) Step Screw (quantity) M2 × 3 mm, small-head, nylon-coated (1) When installing: Make sure that the connector is attached firmly. Color Torque Silver 0.181 Nm (1.85 kgfcm) Chapter 8 Removing and replacing a FRU...

  • Page 124: 2050 Lcd Panel

    Table 30. Removal steps of LED sub card (continued) For ThinkPad T410s and T410si: Step Screw (quantity) M2 × 3 mm, small-head, nylon-coated (1) When installing: Make sure that the connector is attached firmly. 2050 LCD panel For access, remove these FRUs, in order: •...
  • Page 125 The LCD panel and the peripheral parts used in this product are very sensitive. Improper handling of the LCD panel can cause damage to the parts, and may cause a system malfunction such as a missing dot, missing line, or pixel problems. •...

  • Page 126: 2060 Lcd Cable

    Table 31. Removal steps of LCD panel (continued) When installing: • Place the LCD panel on a soft and clean sheet spread on a flat table, and plug the cable by pushing the left and right edges of the connector little by little with your fingers. •...

  • Page 127: 2070 Hinge Kit

    Table 32. Removal steps of LCD cable When you install the LCD cable, route the cable as shown in this figure. 2070 Hinge kit For access, remove these FRUs in order: • “1010 Battery pack” on page 75 • “1020 Serial Ultrabay Slim device or travel bezel” on page 75 •...
  • Page 128 Table 33. Removal steps of hinge kit Step Screw (quantity) For ThinkPad T400s For Multitouch panel models: M2 × 4 mm, bind-head, nylon-coated (2) For other than Multitouch panel models: M2 × 3 mm, small-head, nylon-coated (2) For ThinkPad T410s and T410si For Multitouch panel models: M2 ×...

  • Page 129: 2080 Led Cable

    Table 33. Removal steps of hinge kit (continued) When you install the hinge kit, route the cables as shown in the figure below. 2080 LED cable For access, remove these FRUs in order: • “1010 Battery pack” on page 75 •...

  • Page 130: 2090 Antenna Kit And Lcd Rear Cover Assembly

    Table 34. Removal steps of LED cable When you install the LED cable, route the cable as shown in the figure below. 2090 Antenna kit and LCD rear cover assembly For access, remove these FRUs in order: • “1010 Battery pack” on page 75 •...
  • Page 131 • “1100 Palm rest or palm rest with fingerprint reader” on page 91 • “1120 Keyboard bezel and speaker assembly” on page 94 • “1150 LCD unit” on page 100 • “2010 LCD bezel assembly” on page 112 • “2050 LCD panel” on page 118 •...
  • Page 132 Table 35. Removal steps of antenna kit and LCD rear cover assembly (continued) When you install the antenna kit, route the cables as shown in the figures below. As you route the cables, make sure that they are not subjected to any tension. Tension could cause the cables to be damaged by the cable guides, or a wire to be broken.

  • Page 133: Chapter 9. Locations

    Chapter 9. Locations This chapter presents the location of ThinkPad T400s, T410s, and T410si features and hardware. Front view Integrated camera (for some models) ThinkLight Built-in microphone Status indicators Note: For the description of each indicator, see Chapter 5 “Status indicators” on page 61...

  • Page 134: Rear View

    Rear view Status indicatorsNote: For the description of each indicator, see Chapter 5 “Status indicators” on page 61. 34-mm ExpressCard slot or 5-in-1 Media Card Reader slot Combo audio jack Universal serial bus (USB) connectors DisplayPort USB/eSATA combo connector RJ-45 (Ethernet) connector External monitor connector AC power connector Hardware Maintenance Manual...

  • Page 135: Bottom View

    Bottom view Expansion slot (DIMM, PCI Express Mini Card for wireless LAN and wireless WAN) Docking connector Solid state drive (SSD) or hard disk drive (HDD) Battery pack Battery pack latch LCD cover latch Ultrabay Slim Media Bay lock latch Ultrabay Slim Media Bay eject latch Chapter 9 Locations...
  • Page 136 Hardware Maintenance Manual...

  • Page 137: Chapter 10. Parts List

    Chapter 10. Parts list This chapter contains following lists of the service parts. • “Overall” on page 132 • “LCD FRUs” on page 160 • “Keyboard” on page 174 • “Miscellaneous parts” on page 175 • “AC adapters” on page 178 •...

  • Page 138: Overall

    Overall Table 36. Parts list—Overall No. FRU (Overall) See “Miscellaneous parts” on page 175. LCD unit (see “LCD FRUs” on page 160.) Keyboard bezel assembly Speaker assembly Hardware Maintenance Manual FRU no. 45M2656 N 93P4881...
  • Page 139 Table 36. Parts list—Overall (continued) No. FRU (Overall) Speaker assembly Intel WiFi Link 5100 • 2801-CTO, A3x, A4x, A7x, A8x, A9x, AEx, AHx, AJx, AKx, ANx, APx, AQx • 2808-CTO, C2x, C3x, C4x, C5x, CQx, CUx, CZx, DHx, DJx, DKx, DLx, DXx, DYx, DZx, E2x, EHx, EJx, EKx, ELx, EMx, EQx, ERx, EXx, EYx, EZx, F2x, F3x, F4x •...
  • Page 140 Table 36. Parts list—Overall (continued) No. FRU (Overall) ThinkPad 11b/g/n Wireless LAN Mini PCI Express Adapter II • 2801-CTO, ALx, AMx • 2808-CTO • 2809-CTO • 2815-CTO • 2823-CTO • 2824-CTO • 2825-CTO • 2901-CTO, A3x, A5x, A6x, A7x, A8x, A9x, AAx, ALx, ARx, ATx •...
  • Page 141 Table 36. Parts list—Overall (continued) No. FRU (Overall) ® ® Intel Centrino Wireless-N 1000 • 2901-CTO, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, AMx, ANx, APx, AUx • 2904-CTO, CUx, CVx, CWx, CZx, D3x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DMx, DNx, EWx, Ex,x, EYx, EZx, F2x, F3x, F4x, F5x, F6x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FNx, G3x, G4x, G6x, G7x, GBx, GCx, GUx, GWx, H2x, H3x, H4x, H5x, H7x, HUx, HVx...
  • Page 142 Table 36. Parts list—Overall (continued) No. FRU (Overall) ® Qualcomm UNDP1 - Wireless WAN card • 2801-CTO • 2808-CTO, DLx • 2809-CTO • 2815-CTO, 2Yx • 2823-CTO • 2824-CTO • 2825-CTO Integrated Mobile Broadband (Gobi 2000 3G with GPS) • 2901-CTO •...
  • Page 143 Table 36. Parts list—Overall (continued) No. FRU (Overall) Bluetooth daughter card (BDC-2.1) • 2801-CTO, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx • 2808-CTO, C2x, C3x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx, Cex, CFx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, Cux, CVx, CWx, CXx, Cyx, CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, DXx, DYx, DZx, E2x, E3x, E4x,...
  • Page 144 Table 36. Parts list—Overall (continued) No. FRU (Overall) DVD-RAM/RW drive • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx • 2808-CTO, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx, CEx, CFx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, CUx, CVx, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, DXx, DYx, DZx,...
  • Page 145 Table 36. Parts list—Overall (continued) No. FRU (Overall) DVD-RAM/RW drive • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx • 2808-CTO, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx, CEx, CFx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, CUx, CVx, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, DXx, DYx, DZx,...
  • Page 146 Table 36. Parts list—Overall (continued) No. FRU (Overall) DVD-RAM/RW drive • 2901-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx • 2904-CTO, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CBx, CCx, CDx, CEx, CFx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, CUx, CVx, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, DXx, DYx, DZx, E2x,...
  • Page 147 Table 36. Parts list—Overall (continued) No. FRU (Overall) Blu-ray Disc drive • 2901-CTO • 2904-CTO • 2907-CTO • 2912-CTO • 2924-CTO • 2926-CTO • 2928-CTO Travel cover • 2901-CTO • 2904-CTO • 2907-CTO • 2912-CTO • 2924-CTO • 2926-CTO • 2928-CTO Bay battery •...
  • Page 148 Table 36. Parts list—Overall (continued) No. FRU (Overall) MicroSATA solid state drive, 80 GB • 2801-CTO, CZx, DFx, DGx, DKx • 2808-CTO, CZx, DFx, DGx • 2809-CTO • 2815-CTO, 25x, 2Lx, 2Wx, 3Mx, 3Ux, 3Xx, 45x, 4Kx, 4Lx • 2823-CTO, 25x, 94x •...
  • Page 149 Table 36. Parts list—Overall (continued) No. FRU (Overall) MicroSATA solid state drive, 128 GB • 2801-CTO, ACx, ADx • 2808-CTO, C5x, C9x, CBx, CEx, CJx, CKx, CLx, CMx, CPx, CSx, CWx, CXx, CYx, D3x, D4x, D7x, D9x, DAx, DBx, DCx, DLx, DMx, DTx, DUx, E3x, E7x, EBx, ECx, EDx, EEx, EGx, EHx, ENx, EPx, EUx, F3x, F4x, F5x, FAx, FFx, FGx, FHx, FJx, FLx, FNx •...
  • Page 150 Table 36. Parts list—Overall (continued) No. FRU (Overall) MicroSATA solid state drive, 160 GB • 2801-CTO, ALx • 2808-CTO, EJx • 2809-CTO • 2815-CTO, 3Jx, 3Lx, 4Fx, 4Gx, 4Jx, 5Ex • 2823-CTO • 2824-CTO • 2825-CTO • 2901-CTO • 2904-CTO, A3x, DBx, DCx, DDx, DKx, DMx, DQx, DTx, DUx •...
  • Page 151 Table 36. Parts list—Overall (continued) No. FRU (Overall) MicroSATA hard disk drive (Generation 2), 120 GB, 5,400 rpm • 2801-CTO, A3x, A4x, A5x, A6x, AEx, AQx • 2808-CTO, C2x, C3x, C4x, CQx, CUx, DHx, EXx, EYx, EZx, F2x • 2809-CTO, 73x, 74x, 75x, 76x, 77x, 78x, 79x •...
  • Page 152 Table 36. Parts list—Overall (continued) No. FRU (Overall) Base cover assembly for 2815 Base cover assembly for 2823 Base cover assembly for 2824 Base cover assembly for 2825 Base cover assembly for T410s and T410si 5-in-1 Media Card Reader adapter •...
  • Page 153 Table 36. Parts list—Overall (continued) No. FRU (Overall) Fan assembly for T410s and T410si, integrated • 2901-CTO, A3x, A4x, A5x, A8x, ABx, ACx, AEx, AFx, AGx, AHx, AJx, AKx • 2904-CTO, C2x, C3x, CFx, CGx, CHx, CJx, CPx, CRx, CUx, CVx, CWx, CXx, CYx, CZx, D2x, D3x, D6x, D7x, D8x, DGx, DMx, DNx, DPx, DWx, DXx, E4x, E5x, E6x, E7x, E8x, E9x, EAx, EBx, ECx, EDx, EEx, EFx, EGx, EHx, EJx, EKx, ELx, EMx, EYx, EZx, F2x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FBx, FCx, FDx, FEx, FFx, FGx, FHx, FJx, FKx, FLx, FMx,...
  • Page 154 Table 36. Parts list—Overall (continued) No. FRU (Overall) 34-mm ExpressCard slot frame • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, ALx, AMx • 2808-CTO, C4x, C5x, C6x, C7x, C8x, C9x, CRx, CSx, CVx, CWx, CZx, D2x, D5x, D6x, D7x, D8x, DAx, DCx, DEx, DGx, DHx, DJx, DKx, DLx, DVx, DWx, DXx, DYx, E3x, E4x, EHx, EJx, EKx, EQx, ERx, ESx, ETx, EUx, EVx, EWx, EXx, EYx, EZx, F2x •...
  • Page 155 Table 36. Parts list—Overall (continued) No. FRU (Overall) System board assembly, with SP9400 processor, AMT, TPM • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, AAx, ABx, AEx, AQx • 2808-CTO, C2x, C4x, C6x, C7x, C8x, CAx, CCx, CDx, CFx, CGx, CHx, CNx, CQx, CRx, CUx, CVx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DNx, DPx, DQx, DWx, DXx, DYx, DZx, E2x, E4x, E5x, E6x, E8x, E9x, EAx, EFx, EKx, ELx, EMx, EQx, ERx, F6x, F7x, FBx, FCx, FDx, FEx, FKx...
  • Page 156 Table 36. Parts list—Overall (continued) No. FRU (Overall) System board assembly, with SU3500 processor, AMT, non-TPM • 2801-CTO, ANx, APx • 2808-CTO, EZx, F2x • 2809-CTO • 2815-CTO • 2823-CTO • 2824-CTO • 2825-CTO System board assembly, with Intel • 2801-CTO •...
  • Page 157 Table 36. Parts list—Overall (continued) No. FRU (Overall) System board assembly, with Intel Core i3-370M processor, integrated, non-TPM • 2901-CTO • 2904-CTO • 2907-CTO • 2912-CTO • 2924-CTO • 2926-CTO • 2928-CTO System board assembly, with Intel Core i3-390M processor, integrated, TPM •...
  • Page 158 Table 36. Parts list—Overall (continued) No. FRU (Overall) System board assembly, with Intel Core i5-520M processor, switchable graphics 512MB, non-TPM • 2901-CTO • 2904-CTO, D4x, EWx, Exx • 2907-CTO • 2912-CTO, 3Cx • 2924-CTO • 2926-CTO • 2928-CTO System board assembly, with Intel Core i5-520M processor, optimus graphics 512MB, TPM •...
  • Page 159 Table 36. Parts list—Overall (continued) No. FRU (Overall) System board assembly, with Intel Core i5-540M processor, optimus graphics 512MB, non-TPM • 2901-CTO • 2904-CTO • 2907-CTO • 2912-CTO • 2924-CTO • 2926-CTO • 2928-CTO System board assembly, with Intel Core i5-560M processor, integrated graphics 512MB, TPM •...
  • Page 160 Table 36. Parts list—Overall (continued) No. FRU (Overall) System board assembly, with Intel Core i5-560M processor, optimus graphics 512MB, non-TPM • 2901-CTO • 2904-CTO • 2907-CTO • 2912-CTO • 2924-CTO • 2926-CTO • 2928-CTO System board assembly, with Intel Core i5-580M processor, integrated graphics 512MB, TPM •...
  • Page 161 Table 36. Parts list—Overall (continued) No. FRU (Overall) System board assembly, with Intel Core i5-580M processor, optimus graphics 512MB, non-TPM • 2901-CTO • 2904-CTO • 2907-CTO • 2912-CTO • 2924-CTO • 2926-CTO • 2928-CTO System board assembly, with Intel Core i7-640M processor, integrated graphics 512MB, TPM •...
  • Page 162 Table 36. Parts list—Overall (continued) No. FRU (Overall) 1-GB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card • 2801-CTO, A3x, A4x, AEx • 2808-CTO, CCx, CKx, CNx, CPx, DSx, DZx, E2x, E5x, ECx, EFx, EGx, ELx, EMx, F9x, FBx, FGx, FKx, FLx • 2809-CTO, 73x, 74x, 75x, 76x, 77x, 78x, 79x •...
  • Page 163 Table 36. Parts list—Overall (continued) No. FRU (Overall) 2-GB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card • 2801-CTO, A2x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx • 2808-CTO, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx, CEx, CFx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, CUx, CVx, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, DXx, DYx, DZx,...
  • Page 164 Table 36. Parts list—Overall (continued) No. FRU (Overall) 4-GB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card • 2801-CTO • 2808-CTO • 2809-CTO • 2815-CTO, 24x, 3Ux, 3Xx, 4Ex, 4Gx, 5Yx • 2823-CTO, 24x • 2824-CTO • 2825-CTO • 2901-CTO • 2904-CTO • 2907-CTO •...
  • Page 165 Table 36. Parts list—Overall (continued) No. FRU (Overall) Backup battery Palm rest assembly with fingerprint reader • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, ALx, AMx, AQx • 2808-CTO, C2x, C3x, C4x, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx, CEx, CFx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, CUx, CVx, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D6x, D7x, D8x, D9x, DAx, DBx, DCx, DDx, DEx, DFx, DGx, DHx, DJx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, DVx, DWx, DXx, DYx, DZx,...

  • Page 166: Lcd Frus

    — AC adapter (see “AC adapters” on page 178.) LCD FRUs In ThinkPad T400s, T410s, and T410si, there are following types of LCDs. • 14.1-inch WXGA+ TFT LED-backlight LCD (Table 37 “Parts list—14.1-inch WXGA+ LED-backlight LCD” on page 161) • 14.1-inch WXGA+ TFT LED-backlight Multi touch panel (Table 38 “Parts list—14.1-inch WXGA+ LED-backlight Multi touch panel ”...
  • Page 167 Table 37. Parts list—14.1-inch WXGA+ LED-backlight LCD No. FRU (14.1-inch WXGA+ LED-backlight LCD) LCD bezel assembly LCD module, 14.1-inch WXGA+ FRU no. 45M2653 N 27R2479 Chapter 10 Parts list...
  • Page 168 Table 37. Parts list—14.1-inch WXGA+ LED-backlight LCD (continued) No. FRU (14.1-inch WXGA+ LED-backlight LCD) LCD module, 14.1-inch WXGA+ Antenna kit Antenna kit Microphone sub card • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, AEx, AFx, AGx, AKx, ALx, AMx, ANx •...
  • Page 169 Table 37. Parts list—14.1-inch WXGA+ LED-backlight LCD (continued) No. FRU (14.1-inch WXGA+ LED-backlight LCD) Integrated camera • 2801-CTO, ACx, ADx, AHx, AJx, APx, AQx • 2808-CTO, C5x, C6x, C7x, C8x, C9x, CAx, CBx, CCx, CDx, CEx, CFx, CGx, CHx, CJx, CKx, CLx, CMx, CNx, CPx, CQx, CRx, CSx, CUx, CVx, CWx, CXx, CYx, CZx, D2x, D3x, D4x, D5x, D7x, D9x, DAx, DDx, DEx, DKx, DLx, DMx, DNx, DPx, DQx, DRx, DSx, DTx, DUx, E5x, E6x, E7x, E8x, E9x, EAx, EBx, ECx, EDx, EEx, EFx, EGx, EKx, EMx, EPx, EUx,...
  • Page 170 Table 37. Parts list—14.1-inch WXGA+ LED-backlight LCD (continued) No. FRU (14.1-inch WXGA+ LED-backlight LCD) Hinge kit • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx •...
  • Page 171 Table 37. Parts list—14.1-inch WXGA+ LED-backlight LCD (continued) No. FRU (14.1-inch WXGA+ LED-backlight LCD) Hinge kit • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx •...
  • Page 172 Table 37. Parts list—14.1-inch WXGA+ LED-backlight LCD (continued) No. FRU (14.1-inch WXGA+ LED-backlight LCD) LCD rear cover assembly • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx •...
  • Page 173 Table 37. Parts list—14.1-inch WXGA+ LED-backlight LCD (continued) No. FRU (14.1-inch WXGA+ LED-backlight LCD) LED sub card • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx •...
  • Page 174 Table 37. Parts list—14.1-inch WXGA+ LED-backlight LCD (continued) No. FRU (14.1-inch WXGA+ LED-backlight LCD) LED sub card • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx •...
  • Page 175 Table 37. Parts list—14.1-inch WXGA+ LED-backlight LCD (continued) No. FRU (14.1-inch WXGA+ LED-backlight LCD) LED cable assembly • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx •...
  • Page 176 Table 37. Parts list—14.1-inch WXGA+ LED-backlight LCD (continued) No. FRU (14.1-inch WXGA+ LED-backlight LCD) Clear plate for LCD bezel for T400s • 2801-CTO, A2x, A3x, A4x, A5x, A6x, A7x, A8x, A9x, AAx, ABx, ACx, ADx, AEx, AFx, AGx, AHx, AJx, AKx, ALx, AMx, ANx, APx, AQx •...
  • Page 177 Table 38. Parts list—14.1-inch WXGA+ LED-backlight Multi touch panel (continued) No. FRU (14.1-inch WXGA+ LED-backlight Multi touch panel ) Multi touch panel • 2801-CTO • 2808-CTO, DBx, DCx, E2x, E3x, E4x, EHx, EJx, ELx, ENx, EVx, EWx, FNx • 2809-CTO •...
  • Page 178 Table 38. Parts list—14.1-inch WXGA+ LED-backlight Multi touch panel (continued) No. FRU (14.1-inch WXGA+ LED-backlight Multi touch panel ) Integrated camera • 2801-CTO • 2808-CTO, DBx, DCx, E3x, E4x, EHx, EJx, ENx, FNx • 2809-CTO • 2815-CTO, 48x, 49x, 4Bx, 4Cx, 4Dx, 4Ex, 4Fx, 4Gx, 4Kx, 4Lx, 4Mx, 4Nx, 4Wx, 4x,x, 4Zx, 5Ax, 5Nx, 5Px, 5Qx, 5Xx, 5Yx •...
  • Page 179 Table 38. Parts list—14.1-inch WXGA+ LED-backlight Multi touch panel (continued) No. FRU (14.1-inch WXGA+ LED-backlight Multi touch panel ) LCD rear cover assembly (touch panel) • 2801-CTO • 2808-CTO, DBx, DCx, E2x, E3x, E4x, EHx, EJx, ELx, ENx, EVx, EWx, FNx •...

  • Page 180: Keyboard

    Table 38. Parts list—14.1-inch WXGA+ LED-backlight Multi touch panel (continued) No. FRU (14.1-inch WXGA+ LED-backlight Multi touch panel ) LCD cable for T410s and T410si Clear plate for LCD bezel (touch panel) for T400s • 2801-CTO • 2808-CTO, DBx, DCx, E2x, E3x, E4x, EHx, EJx, ELx, ENx, EVx, EWx, FNx •...

  • Page 181: Miscellaneous Parts

    Table 39. Parts list—Keyboard (continued) Language Kazakhstan Korean Latin American Spanish Norwegian Polish Portuguese Russian Slovak Slovenian Spanish Swiss Thai Traditional Chinese Turkish U.K. English U.S. English U.S. English (International, with a Euro symbol) Miscellaneous parts Table 40. Parts list—Miscellaneous parts Screw kit for T400s: •...
  • Page 182 Table 40. Parts list—Miscellaneous parts (continued) Seal kit: • Tape (10 mm × 20 mm) • Tape (10 mm × 38 mm) • Tape (25 mm × 25 mm) • Tape (25 mm × 80 mm) • Screw cap, thin •...
  • Page 183 Table 40. Parts list—Miscellaneous parts (continued) System miscellaneous parts: • (a) DIMM slot cover assembly • (b) Hard disk drive cover assembly • Express dummy card • Connector cap Note: Italicized letters in parentheses are references to the exploded view in “Overall” on page 132. System board miscellaneous parts for T400s: •...

  • Page 184: Ac Adapters

    AC adapters Table 41. Parts list—2-pin AC adapters 2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxU, xxY) 2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxU, xxY) 2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxU, xxY) 2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxU, xxY) 2-pin (65 W, 20 V) adapter (models CTO, xxE, xxF, xxJ, xxL, xxP, xxS, xxU, xxY)

  • Page 185: Recovery Discs

    Table 44. Parts list—2-pin power cords (continued) Country or region Canada, U.S. • models -CTO, xxF, xxL, xxS, xxU Japan • models -CTO, xxE, xxJ Table 45. Parts list—3-pin power cords Country or region Australia, New Zealand • models -CTO, xxM Bangladesh, Sri Lanka, South Africa •...
  • Page 186 • 2809-CTO, 76x, 79x, 7Ex • 2815-CTO, 22x, 35x, 38x, 4Hx, 5Fx, 5Gx, 5Hx, 5Jx, 5Kx, 5Lx, 5Mx, 5Rx, 5Sx • 2823-CTO, 22x, 9Lx • 2824-CTO • 2825-CTO Table 46. Parts list—Windows XP Professional (32 bit) recovery DVDs Language Arabic Brazilian Portuguese Czech Danish...

  • Page 187: Windows Vista Starter Edition (32 Bit) Dvds

    • 2924-CTO • 2926-CTO • 2928-CTO Table 47. Parts list—Windows XP Professional (32 bit) recovery DVDs Language Arabic Brazilian Portuguese Danish Dutch English English (modem-disabled) Finnish French German Hebrew Italian Japanese Norwegian Polish Russian Russian (English-enabled) Simplified Chinese Spanish Swedish Traditional Chinese (Hong Kong S.A.R.) Windows Vista Starter Edition (32 bit) DVDs Windows Vista Starter Edition (32 bit) is preinstalled as the operating system in the following models:...

  • Page 188: Windows Vista Home Basic (32 Bit) Dvds

    Table 48. Parts list—Windows Vista Starter Edition (32 bit) recovery DVDs Language English (for India) Windows Vista Home Basic (32 bit) DVDs Windows Vista Home Basic (32 bit) is preinstalled as the operating system in the following models: • 2801-CTO •...

  • Page 189: Windows Vista Home Premium (32 Bit) Dvds

    Table 49. Parts list—Windows Vista Home Basic (32 bit) recovery DVDs (continued) Language Spanish Traditional Chinese Traditional Chinese (Hong Kong S.A.R.) Turkish Windows Vista Home Premium (32 bit) DVDs Windows Vista Home Premium (32 bit) is preinstalled as the operating system in the following models: •...

  • Page 190: Windows Vista Business (32 Bit) Dvds

    Windows Vista Business (32 bit) DVDs Windows Vista Business (32 bit) is preinstalled as the operating system in the following models: • 2801-CTO, A2x, A4x, A6x, A8x, ABx, ADx • 2808-CTO, C2x, C3x, C5x, C6x, C7x, C9x, CAx, CBx, CCx, CDx, CEx, CFx, CKx, CLx, CQx, CRx, CSx, CUx, CVx, CWx, CXx, CYx, E5x, E6x, E7x, E8x, ECx, EDx, EHx, EJx, FBx, FCx, FGx, FHx •...

  • Page 191: Windows Vista Business (64 Bit) Dvds

    Table 51. Parts list—Windows Vista Business (32 bit) recovery DVDs (continued) Language Simplified Chinese Slovak Slovenian Spanish Traditional Chinese Traditional Chinese (Hong Kong S.A.R.) Turkish • 2901-CTO • 2904-CTO • 2907-CTO • 2912-CTO • 2924-CTO • 2926-CTO • 2928-CTO Table 52. Parts list—Windows Vista Business (32 bit) recovery DVDs Language English English (for India)

  • Page 192: Windows Vista Ultimate (32 Bit) Dvds

    Table 53. Parts list—Windows Vista Business (64 bit) recovery DVDs Language English English (modem-disabled) English (for India) German Japanese Simplified Chinese Windows Vista Ultimate (32 bit) DVDs Windows Vista Ultimate (32 bit) is preinstalled as the operating system in the following models: •...

  • Page 193: Windows 7 Home Basic (32 Bit) Dvds

    Table 54. Parts list—Windows Vista Ultimate (32 bit) recovery DVDs (continued) Language Russian Serbian-Latin Simplified Chinese Slovak Slovenian Spanish Traditional Chinese Traditional Chinese (Hong Kong S.A.R.) Turkish Windows 7 Home Basic (32 bit) DVDs Windows 7 Home Basic (32 bit) is preinstalled as the operating system in the following models: •...

  • Page 194: Windows 7 Home Premium (32 Bit) Dvds

    • 2928-CTO Table 56. Parts list—Windows 7 Home Basic (32 bit) recovery DVDs Language Brazilian Portuguese English English (for India) Russian Russian (English-enabled) Serbian-Latin Simplified Chinese Spanish Turkish Windows 7 Home Premium (32 bit) DVDs Windows 7 Home Premium (32 bit) is preinstalled as the operating system in the following models: •...
  • Page 195 Table 57. Parts list—Windows 7 Home Premium (32 bit) recovery DVDs (continued) Language Russian Russian (English-enabled) Simplified Chinese Spanish Traditional Chinese Traditional Chinese (Hong Kong S.A.R.) Turkish • 2901-CTO, A7x, AAx • 2904-CTO, CPx, CQx, CRx, CSx, F5x, G3x • 2907-CTO, 75x, 78x •...

  • Page 196: Windows 7 Home Premium (64 Bit) Dvds

    Table 58. Parts list—Windows 7 Home Premium (32 bit) recovery DVDs (continued) Language Traditional Chinese (Hong Kong S.A.R.) Turkish Windows 7 Home Premium (64 bit) DVDs Windows 7 Home Premium (64 bit) is preinstalled as the operating system in the following models: •...

  • Page 197: Windows 7 Professional (32 Bit) Dvds

    Table 60. Parts list—Windows 7 Home Premium (64 bit) recovery DVDs Language Czech English English (for India) French German Greek Hungarian Japanese Polish Portugese Romanian Serbian-Latin Simplified Chinese Slovak Slovenian Spanish Traditional Chinese (Hong Kong S.A.R.) Turkish Windows 7 Professional (32 bit) DVDs Windows 7 Professional (32 bit) is preinstalled as the operating system in the following models: •...
  • Page 198 Table 61. Parts list—Windows 7 Professional (32 bit) recovery DVDs Language Brazilian Portuguese Czech Danish English English (for India) English (modem-disabled) English, Finnish, and Swedish (in Sweden) English, French, German, and Dutch (in Belgium and Luxemburg) English, French, German, and Italian (in Switzerland) French German Greek...
  • Page 199 • 2912-CTO, 20x, 21x, 22x, 23x, 24x, 25x, 2Cx, 2Dx, 2Ex, 2Fx, 2Gx, 2Hx, 2Jx, 2Kx, 2Lx, 2Mx, 2Nx, 2Px, 2Qx, 2Rx, 2Sx, 2Tx, 2Ux, 2Vx, 2Wx, 30x, 37x, 38x, 39x, 3Cx, 3Ex, 3Fx, 3Hx, 3Jx, 3Kx, 3Px, 40x, 52x, 53x, 62x, A0x •...

  • Page 200: Windows 7 Professional (64 Bit) Dvds

    Windows 7 Professional (64 bit) DVDs Windows 7 Professional (64 bit) is preinstalled as the operating system in the following models: • 2801-CTO • 2808-CTO, DLx, E3x • 2809-CTO • 2815-CTO, 4Ex, 4Gx, 4Wx, 5Yx • 2823-CTO • 2824-CTO • 2825-CTO Table 63.

  • Page 201: Common Service Tools

    Table 64. Parts list—Windows 7 Professional (64 bit) recovery DVDs Language Czech Danish English English (for India) English, Finnish, and Swedish (in Sweden) English, French, German, and Dutch (in Belgium and Luxemburg) English, French, German, and Italian (in Switzerland) French German Greek Hebrew...
  • Page 202 Table 65. Parts list—Common service tools (continued) Tool Removal tool antenna RF connector USB 2.0 CD-RW/DVD-ROM combo drive II cable USB floppy diskette drive for maintenance diskette USB floppy diskette drive tool kit Test card for integrated Smart Card LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or later Note: Download the file from the following Web site: http://www.lenovo.com/spm Hardware Maintenance Manual 08K7159...

  • Page 203: Notices

    Notices Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used.

  • Page 204: Trademarks

    TrackPoint Ultrabay UltraNav IBM (used under license) is trademark of the International Business Machines Corporation in the United States, other countries, or both: Windows is a trademark of the Microsoft group of companies. The following terms are trademarks of Intel Corporation or its subsidiaries in the United States, other...
  • Page 206 Part Number: 45M2271_04 Printed in (1P) P/N: 45M2271_04 *45M2271_04*...

This manual is also suitable for:

Thinkpad t410sThinkpad t410siThinkpad t400s 2815Thinkpad t410s 2901Thinkpad t410s 2904Thinkpad t410s 2912 ... Show all

Table of Contents
