IBM Mobile Systems
ThinkPad Computer
Hardware Maintenance Manual
February 2005
This manual supports:

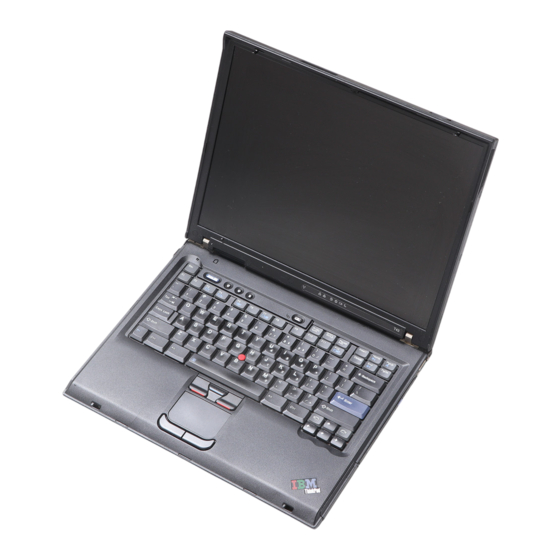

ThinkPad T43
(MT 1871/1872/1875/1876)
ThinkPad Dock II (MT 2877)

Advertisement

Table of Contents
loading

Related Manuals for IBM MT 2877

Summary of Contents for IBM MT 2877

  • Page 1 IBM Mobile Systems ThinkPad Computer Hardware Maintenance Manual February 2005 This manual supports: ThinkPad T43 (MT 1871/1872/1875/1876) ThinkPad Dock II (MT 2877)
  • Page 2 IBM products, programming, or services in your country. Requests for technical information about IBM products should be made to your IBM authorized dealer or your IBM marketing representative. © Copyright International Business Machines Corporation 2005. All rights reserved.

  • Page 3: Table Of Contents

    Numeric error codes . . 58 Error messages . 63 Beep symptoms . . 64 No-beep symptoms . . 64 LCD-related symptoms . . 65 Intermittent problems . . 66 Undetermined problems . . 66 © Copyright IBM Corp. 2005...
  • Page 4 FRU replacement notices . 67 Screw notices . . 67 Retaining serial numbers . . 68 Removing and replacing a FRU . . 71 1010 Battery pack (14.1-in. LCD models) . . 72 1020 Battery pack (15.0-in. LCD models) . .
  • Page 5 Rear view . . 182 Bottom view . . 183 Parts list . . 184 Overall . 185 14.1-in. LCD FRUs . . 193 15.0-in. LCD FRUs . . 195 Keyboard . . 198 Recovery CDs . 202 Miscellaneous parts . .
  • Page 6 MT 1871/1872/1875/1876...

  • Page 7: About This Manual

    About this manual This manual contains service and reference information for IBM ThinkPad T43 series (MT 1871, 1872, 1875, and 1876), and ThinkPad Dock II (MT 2877) products. Use this manual along with the advanced diagnostic tests to troubleshoot problems.
  • Page 8 MT 1871/1872/1875/1876...

  • Page 9: Introduction

    Important service information Important BIOS and device driver fixes are customer-installable. The BIOS and device drivers are posted on the IBM support site http://www.ibm.com/pc/support Advise customers to contact the IBM Support Center at 800-426-7378 (800-IBM-Serv) if they need assistance in obtaining or installing any diskette fixes.

  • Page 10: Strategy For Replacing A Hard Disk Drive

    CMV, and GAV Product definition Dynamic Configure To Order (CTO) This provides the ability for a customer to configure an IBM solution from an eSite, and have this configuration sent to fulfillment, where it is built and shipped directly to the customer.

  • Page 11: Fru Identification For Cto, Cmv, And Gav Products

    Loc ID, MT and Serial, and the key commodities will be returned in the Eclaim record under SYSTEM DETAILS. v Authorized IBM Business Partners can access Eclaim at the following Web site: https://wca.eclaim.com Using eSupport For Key Commodities (Examples - hard disk drive,...
  • Page 12 (this is the same record found in PEW). v eSupport can be accessed at the following Web site: http://www.ibm.com/pc/support v To view the key commodities, click on PARTS INFORMATION, then PARTS LOOKUP. Type in the model type and serial number.

  • Page 13: Important Information About Replacing Rohs Compliant Frus

    IBM plans to transition to RoHS compliance well before the implementation date and expects its suppliers to be ready to support IBM's requirements and schedule. Products sold in 2005, will contain some RoHS compliant FRUs.

  • Page 14: Diskette Compatibility Matrix

    Note: A direct substitution is a part with a different FRU part number that is automatically shipped by the distribution center at the time of the order. Related web URLs are: v IBM Information for Suppliers website: http://www-03.ibm.com/procurement/proweb.nsf/ ContentDocsByTitle/United+States~Information+for +suppliers v RoHS Directive: http://europa.eu.int/eur-lex/pri/en/oj/dat/2003/...
  • Page 15 Safety notices Safety notice 1 Before the computer is powered on after FRU replacement, make sure all screws, springs, and other small parts are in place and are not left loose inside the computer. Verify this by shaking the computer and listening for rattling sounds.
  • Page 16 Die Bereitschaftsbatterie, die sich unter dem Diskettenlaufwerk befindet, kann geringe Mengen Nickel und Cadmium enthalten. Sie darf nur durch die Verkaufsstelle oder den IBM Kundendienst ausgetauscht werden. Sie darf nicht zerlegt, wiederaufgeladen, kurzgeschlossen, oder Feuer oder Wasser ausgesetzt werden. Die Batterie kann schwere Verbrennungen oder Verätzungen...
  • Page 17 Safety notices (continuation of safety notice 2) Alcune batterie di riserva contengono una piccola quantità di nichel e cadmio. Non smontarle, ricaricarle, gettarle nel fuoco o nell’acqua né cortocircuitarle. Smaltirle secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni locali).
  • Page 18 Safety notices Safety notice 3 DANGER The battery pack contains small amounts of nickel. Do not disassemble it, throw it into fire or water, or short-circuit it. Dispose of the battery pack as required by local ordinances or regulations. Use only the battery in the appropriate parts listing when replacing the battery pack.
  • Page 19 Safety notices (continuation of safety notice 3) La batteria contiene piccole quantità di nichel. Non smontarla, gettarla nel fuoco o nell’acqua né cortocircuitarla. Smaltirla secondo la normativa in vigore (DPR 915/82, successive disposizioni e disposizioni locali). Quando si sostituisce la batteria, utilizzare soltanto i tipi inseriti nell’appropriato Catalogo parti.
  • Page 20 Safety notices Safety notice 4 DANGER The lithium battery can cause a fire, an explosion, or a severe burn. Do not recharge it, remove its polarized connector, disassemble it, heat it above 100°C (212°F), incinerate it, or expose its cell contents to water.
  • Page 21 Safety notices (continuation of safety notice 4) La batteria di supporto e una batteria al litio e puo incendiarsi, esplodere o procurare gravi ustioni. Evitare di ricaricarla, smontarne il connettore polarizzato, smontarla, riscaldarla ad una temperatura superiore ai 100 gradi centigradi, incendiarla o gettarla in acqua.
  • Page 22 Safety notices Safety notice 5 If the LCD breaks and the fluid from inside the LCD gets into your eyes or on your hands, immediately wash the affected areas with water for at least 15 minutes. Seek medical care if any symptoms from the fluid are present after washing.
  • Page 23 Safety notices Safety notice 6 DANGER To avoid shock, do not remove the plastic cover that protects the lower part of the inverter card. Afin d’éviter tout risque de choc électrique, ne retirez pas le cache en plastique protégeant la partie inférieure de la carte d’alimentation.
  • Page 24 Safety notices Safety notice 7 DANGER Though the main batteries have low voltage, a shorted or grounded battery can produce enough current to burn personnel or combustible materials. Bien que le voltage des batteries principales soit peu élevé, le court-circuit ou la mise à la masse d’une batterie peut produire suffisamment de courant pour brûler des matériaux combustibles ou causer des brûlures corporelles graves.
  • Page 25 Safety notices Safety notice 8 DANGER Before removing any FRU, power off the computer, unplug all power cords from electrical outlets, remove the battery pack, and then disconnect any interconnecting cables. Avant de retirer une unité remplaçable en clientèle, mettez le système hors tension, débranchez tous les cordons d’alimentation des socles de prise de courant, retirez la batterie et déconnectez tous les cordons d’interface.

  • Page 26: Safety Information

    Safety information Safety information The following section presents safety information with which you need to be familiar before you service an IBM mobile computer. General safety Follow these rules to ensure general safety: v Observe good housekeeping in the area of the machines during and after maintenance.

  • Page 27: Electrical Safety

    Safety information v After service, reinstall all safety shields, guards, labels, and ground wires. Replace any safety device that is worn or defective. v Reinstall all covers correctly before returning the machine to the customer. v Fan louvers on the machine help to prevent overheating of internal components.
  • Page 28 Safety information – Ensure that another person, familiar with the power-off controls, is near you. Attention: Another person must be there to switch off the power, if necessary. – Use only one hand when working with powered-on electrical equipment; keep the other hand in your pocket or behind your back.

  • Page 29: Safety Inspection Guide

    This guide addresses only those items. You should use good judgment to identify potential safety hazards due to attachment of non-IBM features or options not covered by this inspection guide. If any unsafe conditions are present, you must determine how serious the apparent hazard could be and whether you can continue without first correcting the problem.

  • Page 30: Handling Devices That Are Sensitive To Electrostatic Discharge

    Safety information 8. Check that the power-supply cover fasteners (screws or rivets) have not been removed or tampered with. Handling devices that are sensitive to electrostatic discharge Any computer part containing transistors or integrated circuits (ICs) should be considered sensitive to electrostatic discharge (ESD.) ESD damage can occur when there is a difference in charge between objects.

  • Page 31: Grounding Requirements

    Safety information – Use the round ground prong of the ac plug on ac-operated computers. Grounding requirements Electrical grounding of the computer is required for operator safety and correct system function. Proper grounding of the electrical outlet can be verified by a certified electrician.

  • Page 32: Laser Compliance Statement

    Laser compliance statement Laser compliance statement Some IBM Personal Computer models are equipped from the factory with an optical storage device such as a CD-ROM drive or a DVD-ROM drive. Such devices are also sold separately as options. If one of these drives is installed, it is certified in the U.S.
  • Page 33 Laser compliance statement If a CD-ROM drive, a DVD-ROM drive, or another laser device is installed, note the following: CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein might result in hazardous radiation exposure. O uso de controles, ajustes ou desempenho de procedimentos diferentes daqueles aqui especificados pode resultar em perigosa exposição...
  • Page 34 Laser compliance statement A CD-ROM drive, a DVD-ROM drive, or any other storage device installed may contain an embedded Class 3A or Class 3B laser diode. Note the following: DANGER Emits visible and invisible laser radiation when open. Do not stare into the beam, do not view directly with optical instruments, and avoid direct exposure to the beam.

  • Page 35: General Descriptions

    What to do first When you do return a FRU, you must include the following information in the parts exchange form or parts return form that you attach to it: __ 1. Name and phone number of servicer © Copyright IBM Corp. 2005...
  • Page 36 Read this first __ 2. Date of service __ 3. Date on which the machine failed __ 4. Date of purchase __ 5. Failure symptoms, error codes appearing on the display, and beep symptoms __ 6. Procedure index and page number in which the failing FRU was detected __ 7.

  • Page 37: Related Service Information

    Service web site When the latest maintenance diskette and the system program service diskette become available, they will be posted on http://www.ibm.com/pc/partner/spm Restoring the pre-installed system When the hard disk drive is replaced because of a failure, no Product Recovery program is on the new hard disk. In this case, you must use the recovery CD for the computer.

  • Page 38: Passwords

    HDP has been set. If it has, it can be used for access to the hard disk drive. If no master HDP is available, IBM does not provide any services to reset either the user or the master HDP, or to recover data from the hard disk drive.
  • Page 39 Related service information information stored in the IBM BIOS Setup Utility. The user must enter the SVP in order to get access to the IBM BIOS Setup Utility and change the system configuration. Attention: If the SVP has been forgotten and cannot be made available to the servicer, there is no service procedure to reset the password.
  • Page 40 If User only mode is selected and the user HDP has been forgotten and cannot be made available to the servicer, IBM does not provide any services to reset the user HDPs or to recover data from the hard disk drive.

  • Page 41: Power Management

    Screen blank mode has three variants, as follows: 1. If you press Fn+F3, or if the time set on the “LCD off timer” in IBM BIOS Setup Utility expires, v The LCD backlight turns off. v The hard disk drive motor stops.
  • Page 42 Related service information Note for the APM operating system: Even if you do not set the low-battery alarm, the charge indicator notifies you when the battery is low, and then the computer enters the power-saving mode automatically. This default low-battery behavior is independent of the operating system;...
  • Page 43 Related service information To cause the computer to enter hibernation mode, do any of the following: v Press the Fn+F12 keys. v If you are using the APM operating system and have set the mode to Power switch mode [Hibernation], turn off the power switch.

  • Page 44: Checkout Guide

    For some possible configurations of the computer, PC-Doctor might not run correctly. To avoid this problem, you need to initialize the computer setup by use of the IBM BIOS Setup Utility before you run PC-Doctor. On the IBM BIOS Setup Utility screen, press F9, Enter, F10, and then Enter.
  • Page 45 Checkout guide 4. A batch file automatically starts up to prompt you through the process of creating diskettes. You are notified of how many diskettes you will need. a. You are prompted to insert each diskette in sequence. b. Typically, all you need to do is to press the Enter key for the floppy drive;...
  • Page 46 ThinkPad computer. If you have an external monitor attached to your computer, detach it before running PC-Doctor DOS. v When Legacy Floppy Drives is enabled in the IBM BIOS Setup Utility, the Diskette Drives test is activated even if no legacy diskette drive is attached to the ThinkPad computer.

  • Page 47: Detecting System Information With Pc-Doctor

    Checkout guide Note: After running PC-Doctor, check the time and date on the system and reset them if they are incorrect. Detecting system information with PC-Doctor PC-Doctor can detect the following system information: Hardware Info v System Configuration v Memory Contents v Physical Disk Drives v Logical Disk Drives v VGA Information...

  • Page 48: Power System Checkout

    Checkout guide Power system checkout To verify a symptom, do the following: 1. Turn off the computer. 2. Remove the battery pack. 3. Connect the ac adapter. 4. Check that power is supplied when you turn on the computer. 5. Turn off the computer. 6.
  • Page 49 Checkout guide Checking operational charging To check whether the battery charges properly during operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer. Perform operational charging. If the battery status indicator or icon does not turn on, remove the battery pack and let it return to room temperature.
  • Page 50 Checkout guide Note: Recharging will take at least 3 hours, even if the indicator does not turn on. If the voltage is still less than +11.0 V dc after recharging, replace the battery. 4. If the voltage is more than +11.0 V dc, measure the resistance between battery terminals 4 and 5.

  • Page 51: Thinkpad T43 Series

    1200 LCD assembly (15.0-in. LCD models) . . 120 1210 CPU . 125 1220 Ultrabay Slim guide rail assembly (14.1-in. LCD models) . . 126 1230 Ultrabay Slim guide rail assembly (15.0-in. LCD models) . . 128 © Copyright IBM Corp. 2005...
  • Page 52 1240 VGA and Ultrabay Slim device eject button cable . . 131 1250 System board and base cover (14.1-in. LCD models) . 133 1260 System board, interposer card, and base cover (15.0-in. LCD models) . 140 2010 LCD front bezel (14.1-in. LCD models) 2020 LCD front bezel (15.0-in.

  • Page 53: Product Overview

    Product overview Product overview This section presents the following product-unique information: v “Specifications” v “Status indicators” on page 50 v “FRU tests” on page 53 v “Fn key combinations” on page 55 Specifications The following table lists the specifications of the ThinkPad T43 series: Feature Description...
  • Page 54 Product overview Feature Description Optional memory v 256-MB DDR2-533 SDRAM SO-DIMM (PC2-4200) card × 1 v 512-MB DDR2-533 SDRAM SO-DIMM (PC2-4200) card × 1 v 1-GB DDR2-533 SDRAM SO-DIMM (PC2-4200) card × 1 (maximum of 2048 MB) CMOS RAM v 242 bytes Hard disk drive v 30.0 GB, 4200 rpm, 9.5 mm high, IDE interface...
  • Page 55 ExpressCard (34 module, 54 module) for /ExpressCard slots upper slot v PC Card (Type-II) for lower slot Communication v IBM Integrated 56K Modem (MDC-2) daughter card v IBM Integrated Bluetooth IV with 56K (CDC) Modem (BMDC-3) Touch pad v UltraNav ThinkLight Battery v Li-ion battery (6 cells) 4.8 Ah...

  • Page 56: Status Indicators

    Product overview Status indicators The system status indicators show the status of the computer, as follows: MT 1871/1872/1875/1876...
  • Page 57 Product overview Indicator Meaning Ultrabay Green: Slim status An Ultrabay Slim device is installed and in use. Blinking green: An Ultrabay Slim device is in the process of being detached. Turn off: An Ultrabay Slim device is ready to be attached or detached.
  • Page 58 Product overview Indicator Meaning Drive in Green: Data is being read from or written to the hard disk drive, the diskette drive, or the drive in the Ultrabay Slim device. When this indicator is on, do not put the computer into standby mode or turn off the computer.

  • Page 59: Fru Tests

    Protection Test. Note: Do not apply any physical shock to the computer while the test is running. Power Diagnostics --> Other Devices --> IBM AC Adapter, IBM Battery 1 (IBM Battery 2) LCD unit 1. Diagnostics --> Video Adapter 2. Interactive Tests --> Video Modem 1.
  • Page 60 1. Turn on the computer and check the air turbulence at the louver near the PC Card slot. 2. Run Diagnostics --> Other Devices --> IBM Fan. TrackPoint or If the TrackPoint does not work, check the pointing device configuration as specified in the ThinkPad Configuration program.

  • Page 61: Fn Key Combinations

    (the IEEE 802.11 standard) and the Bluetooth wireless features. To use this function, the following drivers must be installed. v IBM ThinkPad Power Management driver v OnScreen Display utility v Wireless device drivers Fn+F6 Reserved.
  • Page 62 Product overview Description combination Fn+F7 Switch a display output location v External monitor (CRT display) v Computer display and external monitor (LCD + CRT display) v Computer display (LCD) Note: For any operating system other than Windows 2000 or Windows XP, no additional procedure is needed;...
  • Page 63 Note: To use Fn+F12 for hibernation in Windows 2000 or Windows XP, you must have the IBM PM device driver installed on the computer. Fn+PgUp Turn the ThinkLight on or off.

  • Page 64: Symptom-To-Fru Index

    If the symptom is not described there, go to “Intermittent problems” on page 66. Note For an IBM device not supported by diagnostic codes in the ThinkPad notebook computers, see the manual for that device. Numeric error codes...
  • Page 65 Symptom-to-FRU index Symptom or error FRU or action, in sequence 0182 1. Run IBM BIOS Setup Bad CRC2. Enter BIOS Setup Utility. Press F9, and and load Setup defaults.—The Enter to load the default checksum of the CRS2 setting setting. Then save the in the EEPROM is not correct.
  • Page 66 FRU or action, in sequence 0200 1. Reseat the hard disk Hard disk error—The hard disk drive. is not working. 2. Load Setup Defaults in IBM BIOS Setup Utility. 3. Hard disk drive. 4. System board. 021x Run interactive tests of the Keyboard error.
  • Page 67 Symptom-to-FRU index Symptom or error FRU or action, in sequence 02F4 1. Load Setup Defaults in EISA CMOS not writable. IBM BIOS Setup Utility. 2. Replace the backup battery. 3. System board. 02F5 1. DIMM. DMA test failed. 2. System board.
  • Page 68 1. If the Access IBM Hard disk partition layout error. Predesktop Area has been previously disabled, then go to the IBM BIOS Setup Utility by pressing F1 to open the IBM BIOS Setup Utility. Select Security --> IBM Predesktop Area -->...

  • Page 69: Error Messages

    3. System board. Operating system not found. 1. Check that the operating system has no failure and is installed correctly. 2. Enter IBM BIOS Setup Utility and see whether the hard disk drive and the diskette drive are properly identified.

  • Page 70: Beep Symptoms

    Only the cursor appears. Reinstall the operating system. Four cycles of four short beeps System board (IBM security and a blank screen. chip) Five short beeps and a blank System board screen. No-beep symptoms...

  • Page 71: Lcd-Related Symptoms

    Symptom-to-FRU index LCD-related symptoms Important The TFT LCD for the notebook computer contains many thin-film transistors (TFTs). The presence of a small number of dots that are missing, discolored, or always lighted is characteristic of TFT LCD technology, but excessive pixel problems can cause viewing concerns.

  • Page 72: Intermittent Problems

    2. Visually check each FRU for damage. Replace any damaged FRU. 3. Remove or disconnect all of the following devices: a. Non-IBM devices b. Devices attached to the port replicator c. Printer, mouse, and other external devices d. Battery pack e.

  • Page 73: Fru Replacement Notices

    Read this section carefully before replacing any FRU. Screw notices Loose screws can cause a reliability problem. In the IBM ThinkPad computer, this problem is addressed with special nylon-coated screws that have the following characteristics: v They maintain tight connections.

  • Page 74: Retaining Serial Numbers

    FRU replacement notices v Make sure that you use the correct screw. If you have a torque screwdriver, tighten all screws firmly to the torque shown in the table. Never use a screw that you removed. Use a new one. Make sure that all of the screws are tightened firmly.

  • Page 75: Retaining The Uuid

    FRU replacement notices Retaining the UUID The Universally Unique Identifier (UUID) is a 128-bit number uniquely assigned to your computer at production and stored in the EEPROM of your system board. The algorithm that generates the number is designed to provide unique IDs until the year A.D.
  • Page 76 FRU replacement notices 3. To write ECA information, select 1. Write ECA/rework number from EEPROM, and follow the instruction. 4. To write box build date, select 4. Write box build date from EEPROM, and follow the instruction on the screen. If the system board is being replaced, try to read the ECA information from the old system board and transfer the information to the new system.

  • Page 77: Removing And Replacing A Fru

    Removing and replacing a FRU Removing and replacing a FRU This section presents directions and drawings for use in removing and replacing a FRU. Be sure to observe the following general rules: 1. Do not try to service any computer unless you have been trained and certified.

  • Page 78: 1010 Battery Pack (14.1-In. Lcd Models)

    Removing and replacing a FRU 1010 Battery pack (14.1-in. LCD models) DANGER Use only the battery specified in the parts list for your computer. Any other battery could ignite or explode. (continued) MT 1871/1872/1875/1876...
  • Page 79 Removing and replacing a FRU Holding the battery release lever in the unlocked position 2 , remove the battery pack 3 . When installing: Install the battery pack along the slide rails on the left and right sides of the battery-pack slot.

  • Page 80: 1020 Battery Pack (15.0-In. Lcd Models)

    Removing and replacing a FRU 1020 Battery pack (15.0-in. LCD models) DANGER Use only the battery specified in the parts list for your computer. Any other battery could ignite or explode. Holding the battery release lever in the unlocked position 1 , remove the battery pack 2 .

  • Page 81: 1030 Ultrabay Slim Device

    Removing and replacing a FRU 1030 Ultrabay Slim device Note Ultrabay Slim does not accept any of the following devices: v Ultrabay Plus devices v Ultrabay 2000 devices For devices compatible with the Ultrabay Slim bay, see “Optional FRUs” on page 208. Note: When you release the switch in step 1 , the lever pops out.

  • Page 82: 1040 Hard Disk Drive

    Removing and replacing a FRU 1040 Hard disk drive Attention v Do not drop the hard disk drive or apply any physical shock to it. The hard disk drive is sensitive to physical shock. Improper handling can cause damage and permanent loss of data. v Before removing the drive, have the user make a backup copy of all the information on it if possible.
  • Page 83 Removing and replacing a FRU When installing: Make sure that the hard-disk connector is attached firmly. ThinkPad T43 Series...

  • Page 84: 1050 Dimm (Optional)

    Removing and replacing a FRU 1050 DIMM (optional) For access, remove this FRU: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1020 Battery pack (15.0-in. LCD models)” on page 74 Note: Loosen the screw 1 , but do not remove it. (continued) MT 1871/1872/1875/1876...
  • Page 85 Removing and replacing a FRU When installing: Insert the notched end of the DIMM into the socket. Press the DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly fixed in the slot and does not move easily. ThinkPad T43 Series...

  • Page 86: 1060 Keyboard

    Removing and replacing a FRU 1060 Keyboard For access, remove this FRU: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1020 Battery pack (15.0-in. LCD models)” on page 74 Note: Screw 1a is only for the models with 14.1-in. LCD. Other models do not have this screw.
  • Page 87 Removing and replacing a FRU Press the part indicated by the arrow 2 in the direction of the arrow. This releases the latches of the keyboard from the frame, so that the front side of the keyboard pops out. (continued) ThinkPad T43 Series...
  • Page 88 Removing and replacing a FRU Pull the keyboard a little in the direction of the arrow 3 , and then detach the connector 4 . MT 1871/1872/1875/1876...
  • Page 89 Removing and replacing a FRU When installing: 1. Attach the connector 1 . 2. Make sure that the keyboard edges, marked a in the figure, are under the frame. (continued) ThinkPad T43 Series...
  • Page 90 Removing and replacing a FRU 3. To make sure that the front side of the keyboard is housed firmly, gently press the keys with your fingers and try to slide the keyboard towards you. 4. Make sure that all the projections on the front side of the keyboard b are firmly attached under the frame.

  • Page 91: 1070 Dimm (Standard)

    Removing and replacing a FRU 1070 DIMM (standard) For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1060 Keyboard” on page 80 When installing: Insert the notched end of the DIMM into the socket.

  • Page 92: 1080 Modem Daughter Card (Mdc-2)

    Removing and replacing a FRU 1080 Modem daughter card (MDC-2) For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1060 Keyboard” on page 80 Step Screw (quantity) Color...
  • Page 93 Removing and replacing a FRU Turn the card over 3 , and detach the modem connector When installing: Make sure that connector 4 and the connector on the underside of the card are firmly attached. ThinkPad T43 Series...

  • Page 94: 1090 Bluetooth/Modem Daughter Card (Bmdc-3)

    Removing and replacing a FRU 1090 Bluetooth/Modem daughter card (BMDC-3) For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1060 Keyboard” on page 80 Step Screw (quantity) Color...
  • Page 95 Removing and replacing a FRU Turn the card over 3 , and detach the modem connector 4 . Then, unplug the jack by using the removal tool antenna RF connector (P/N: 08K7159) or pick the connector with your fingers and gently unplug it in direction of the arrow 5 .

  • Page 96: 1100 Palm Rest Or Palm Rest With Fingerprint Reader (14.1-In. Lcd Models)

    Removing and replacing a FRU 1100 Palm rest or Palm rest with fingerprint reader (14.1-in. LCD models) For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1040 Hard disk drive” on page 76 v “1060 Keyboard”...
  • Page 97 Removing and replacing a FRU Step Icon Screw Screw (quantity) Color Torque M2 × 4 mm, Black 0.245 Nm small-head, (2.5 kgfcm) nylon-coated (4) M2 × 5 mm, Silver 0.245 Nm bind-head, (2.5 kgfcm) nylon-coated (1) — M2 × 14 mm, Black 0.204 Nm bind-head,...
  • Page 98 Removing and replacing a FRU For a model with a touch pad, detach the touch pad connector by pulling the tab with your fingers in the direction of arrow 4 . Then remove the palm rest in the direction of arrow 5 . For other models, skip step 4 . When installing: On a model with a touch pad, make sure that connector 4 is firmly attached.

  • Page 99: 1110 Keyboard Bezel Or Keyboard Bezel With Fingerprint Reader (15.0-In. Lcd Models)

    Removing and replacing a FRU 1110 Keyboard bezel or Keyboard bezel with fingerprint reader (15.0-in. LCD models) For access, remove these FRUs in order: v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1040 Hard disk drive” on page 76 v “1060 Keyboard”...
  • Page 100 Removing and replacing a FRU Step Icon Screw (quantity) Color Torque M2 × 14 mm, bind-head, Black 0.245 Nm nylon-coated (6) (2.5 kgfcm) MT 1871/1872/1875/1876...
  • Page 101 Removing and replacing a FRU When installing: 1. Place the keyboard bezel so that the three latches are fixed in place 1 . While inserting the three latches, align the top-left corner of the keyboard bezel as in figure a . (continued) ThinkPad T43 Series...
  • Page 102 Removing and replacing a FRU 2. Press the left edges 2 and the front edges 3 of the keyboard bezel until the latches are snapped. 3. Attach the touch pad connector 4 . (continued) MT 1871/1872/1875/1876...
  • Page 103 Removing and replacing a FRU 4. Secure the keyboard bezel from the underside of the computer with the screws b and c . 5. Attach the keyboard. (continued) ThinkPad T43 Series...
  • Page 104 Removing and replacing a FRU 6. Secure the keyboard bezel from the underside of the computer with the screw d . This screw cannot be fastened properly without attaching keyboard. MT 1871/1872/1875/1876...

  • Page 105: 1120 Mini Pci Adapter

    Removing and replacing a FRU 1120 Mini PCI adapter For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1040 Hard disk drive” on page 76 v “1060 Keyboard”...
  • Page 106 Removing and replacing a FRU When installing: 1. Plug the gray cable to jack M, and the black cable to jack A. 2. Insert the notched end of the card into the socket, and then press the card firmly. Pivot the card until it snaps into place.

  • Page 107: 1130 Fan Assembly

    Removing and replacing a FRU 1130 Fan assembly For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1040 Hard disk drive” on page 76 v “1060 Keyboard”...
  • Page 108 Removing and replacing a FRU Important In step 2 , insert the tip of the tool horizontally between the fan assembly and the CPU, as indicated by arrow a . Then slightly push the tool into the gap until the fan assembly comes off. Do not move the tool upward or downward to remove the fan assembly between the gap.
  • Page 109 Removing and replacing a FRU Important In step 2a and 2b , be careful not to damage the copper plate of the fan assembly. Step 2a is for the fan assembly, long and for the fan assembly, long M10. Step 2b is for the fan assembly, short. Distortion of the fan assembly may cause a thermal problem.
  • Page 110 Removing and replacing a FRU When installing: v Before you attach the fan assembly to the computer, apply thermal grease on the part marked a as in the following figures. v Make sure that the connector 4 is firmly attached. MT 1871/1872/1875/1876...

  • Page 111: 1140 Backup Battery

    Removing and replacing a FRU 1140 Backup battery DANGER Use only the battery specified in the parts list for your computer. Any other battery could ignite or explode. For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1020 Battery pack (15.0-in.
  • Page 112 Removing and replacing a FRU When installing: Make sure that the battery connector 2 is firmly attached. MT 1871/1872/1875/1876...

  • Page 113: 1150 Speaker Assembly

    Removing and replacing a FRU 1150 Speaker assembly For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1040 Hard disk drive” on page 76 v “1060 Keyboard”...
  • Page 114 Removing and replacing a FRU In step 3 , release the speaker cables from the cable guide. When installing: Make sure that the connector 4 is firmly attached. Then route the cable as in 3 . MT 1871/1872/1875/1876...

  • Page 115: 1160 Keyboard Bezel (14.1-In. Lcd Models)

    Removing and replacing a FRU 1160 Keyboard bezel (14.1-in. LCD models) For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1100 Palm rest or Palm rest with fingerprint reader (14.1-in.
  • Page 116 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 4 mm, bind-head, Black 0.245 Nm nylon-coated (1) (2.5 kgfcm) In step 3 , make sure that all the latches marked a are detached, and then remove the bezel. When installing: Make sure that all the latches marked a are firmly attached.

  • Page 117: 1170 Pc Card/Expresscard Slots (14.1-In. Lcd Models)

    Removing and replacing a FRU 1170 PC Card/ExpressCard slots (14.1-in. LCD models) For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1100 Palm rest or Palm rest with fingerprint reader (14.1-in.
  • Page 118 Removing and replacing a FRU When installing: Make sure that the connector on the underside of the PC Card/ExpressCard slots 2 is firmly attached, and then secure the slots with the screws. MT 1871/1872/1875/1876...

  • Page 119: 1180 Pc Card/Expresscard Slots (15.0-In. Lcd Models)

    Removing and replacing a FRU 1180 PC Card/ExpressCard slots (15.0-in. LCD models) For access, remove these FRUs in order: v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1110 Keyboard bezel or Keyboard bezel with fingerprint reader (15.0-in.
  • Page 120 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 4 mm, bind-head, Black 0.245 Nm nylon-coated (1) (2.5 kgfcm) When installing: Make sure that the connector on the underside of the PC Card/ExpressCard slots 2 is firmly attached, and then secure the slots with the screws.

  • Page 121: 1190 Lcd Assembly (14.1-In. Lcd Models)

    Removing and replacing a FRU 1190 LCD assembly (14.1-in. LCD models) For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1090 Bluetooth/Modem daughter card (BMDC-3)”...
  • Page 122 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 14 mm, bind-head, Black 0.245 Nm nylon-coated (1) (2.5 kgfcm) After removing the screw, remove bracket 3 . Then detach the LCD connector 4 . When installing: Make sure that the bracket 3 and the connector 4 are firmly attached, and then secure them with the screw.
  • Page 123 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 10 mm, flat-head, Black 0.245 Nm nylon-coated (1) (2.5 kgfcm) (continued) ThinkPad T43 Series...
  • Page 124 Removing and replacing a FRU Release the antenna cables from the cable guide 6 . When installing: Make sure that the antenna cables are correctly routed and securely in place. (continued) MT 1871/1872/1875/1876...
  • Page 125 Removing and replacing a FRU When installing: Make sure that the security keyhole which is on the left-rear corner of the base cover and the keyhole of the bracket inside are aligning firmly. ThinkPad T43 Series...

  • Page 126: 1200 Lcd Assembly (15.0-In. Lcd Models)

    Removing and replacing a FRU 1200 LCD assembly (15.0-in. LCD models) For access, remove these FRUs in order: v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1090 Bluetooth/Modem daughter card (BMDC-3)”...
  • Page 127 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 12 mm, flat-head, Black 0.245 Nm nylon-coated (1) (2.5 kgfcm) When installing: Make sure that the connector 3 is firmly attached, and then secure it with the screw. (continued) ThinkPad T43 Series...
  • Page 128 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 10 mm, flat-head, Black 0.245 Nm nylon-coated (3) (2.5 kgfcm) (continued) MT 1871/1872/1875/1876...
  • Page 129 Removing and replacing a FRU Release the antenna cables from the cable guide 5 . When installing: Make sure that the antenna cables are correctly routed and securely in place. (continued) ThinkPad T43 Series...
  • Page 130 Removing and replacing a FRU When installing: Make sure that the security keyhole which is on the left-rear corner of the base cover and the keyhole of the bracket inside are aligning firmly. MT 1871/1872/1875/1876...

  • Page 131: 1210 Cpu

    Removing and replacing a FRU 1210 CPU For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1100 Palm rest or Palm rest with fingerprint reader (14.1-in.

  • Page 132: 1220 Ultrabay Slim Guide Rail Assembly (14.1-In. Lcd Models)

    Removing and replacing a FRU 1220 Ultrabay Slim guide rail assembly (14.1-in. LCD models) For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1100 Palm rest or Palm rest with fingerprint reader (14.1-in.
  • Page 133 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 10 mm, flat-head, Black 0.245 Nm nylon-coated (3) (2.5 kgfcm) M2 × 3 mm, small-head, Silver 0.245 Nm nylon-coated (3) (2.5 kgfcm) In step 5 , remove the Ultrabay Slim guide rail assembly and the hard disk drive guide rail together.

  • Page 134: 1230 Ultrabay Slim Guide Rail Assembly (15.0-In. Lcd Models)

    Removing and replacing a FRU 1230 Ultrabay Slim guide rail assembly (15.0-in. LCD models) For access, remove these FRUs in order: v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1110 Keyboard bezel or Keyboard bezel with fingerprint reader (15.0-in.
  • Page 135 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 10 mm, flat-head, Black 0.245 Nm nylon-coated (5) (2.5 kgfcm) M2 × 3 mm, small-head, Black 0.245 Nm nylon-coated (2) (2.5 kgfcm) In step 5 , remove the Ultrabay Slim guide rail assembly and the hard disk drive guide rail together.
  • Page 136 Removing and replacing a FRU Separate the Ultrabay Slim guide rail assembly a and the hard disk drive guide rail b . MT 1871/1872/1875/1876...

  • Page 137: 1240 Vga And Ultrabay Slim Device Eject Button Cable

    Removing and replacing a FRU 1240 VGA and Ultrabay Slim device eject button cable For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1040 Hard disk drive”...
  • Page 138 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 4 mm, bind-head, Black 0.245 Nm nylon-coated (1) (2.5 kgfcm) When installing: Make sure that the connector 1 is firmly attached. MT 1871/1872/1875/1876...

  • Page 139: 1250 System Board And Base Cover (14.1-In. Lcd Models)

    Removing and replacing a FRU 1250 System board and base cover (14.1-in. LCD models) For access, remove these FRUs, in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1030 Ultrabay Slim device” on page 75 v “1040 Hard disk drive” on page 76 v “1050 DIMM (optional)”...
  • Page 140 Important notice for handling the system board: The security chip a is soldered on the underside of the system board as in this figure. The accelerometer chip for the IBM HDD Active Protection System b is also soldered on the topside of the system board.
  • Page 141 If a system board is dropped, you must test it, using PC-Doctor DOS, to make sure that the IBM HDD Active Protection still functions (see below). Note: If the test shows that IBM HDD Active...
  • Page 142 Removing and replacing a FRU Before removing the system board, remove the support structure ( a ) and the cable guide ( b ). When installing: Make sure that the connectors 2 are firmly attached to the system board. Step Screw (quantity) Color Torque...
  • Page 143 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 3 mm, small-head, Silver 0.245 Nm nylon-coated (1) (2.5 kgfcm) M2 × 10 mm, flat-head, Black 0.245 Nm nylon-coated (1) (2.5 kgfcm) In step 8 , remove the I/O plate bracket ( c ) and the system board ( d ) together.
  • Page 144 Removing and replacing a FRU Step Screw (quantity) Color Torque Hex stud (2) Silver 0.392 Nm (4 kgfcm) M2.5 × 3 mm, bind-head, Gold 0.392 Nm nylon-coated (1) (4 kgfcm) When installing: Attach the system board so that the two small projections on the base cover fit into the holes provided, and then secure the system board with the screw.
  • Page 145 Removing and replacing a FRU Note for sticking a label kit on the base cover New base cover FRU is shipped with several kinds of label kit. When you replace the base cover, you need to stick a homologation label a which has the same part no.

  • Page 146: Cover (15.0-In. Lcd Models)

    Removing and replacing a FRU 1260 System board, interposer card, and base cover (15.0-in. LCD models) For access, remove these FRUs, in order: v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1030 Ultrabay Slim device” on page 75 v “1040 Hard disk drive”...
  • Page 147 Important notice for handling the system board: The security chip a is soldered on the underside of the system board as in this figure. The accelerometer chip for the IBM HDD Active Protection System b is also soldered on the topside of the system board.
  • Page 148 If a system board is dropped, you must test it, using PC-Doctor DOS, to make sure that the IBM HDD Active Protection still functions (see below). Note: If the test shows that IBM HDD Active...
  • Page 149 Removing and replacing a FRU Remove the support structure a and the EMI bracket Step Screw (quantity) Color Torque M2 × 10 mm, flat-head, Black 0.245 Nm nylon-coated (1) (2.5 kgfcm) (continued) ThinkPad T43 Series...
  • Page 150 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 10 mm, flat-head, Black 0.245 Nm nylon-coated (1) (2.5 kgfcm) M2.5 × 4.8 mm, bind-head, Black 0.392 Nm nylon-coated (1) (4 kgfcm) Remove two connectors 6 and then remove the cable guide c in the direction of arrow 7 .
  • Page 151 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 4 mm, bind-head, Black 0.245 Nm nylon-coated (3) (2.5 kgfcm) In step 9 , remove the I/O plate bracket ( d ) and the system board ( e ) together. When installing: Attach the system board so that the two small projections on the base cover fit into the holes provided, and then secure...
  • Page 152 Removing and replacing a FRU Step Screw (quantity) Color Torque Hex stud (2) Silver 0.392 Nm (4 kgfcm) M2.5 × 3 mm, flat-head, Gold 0.392 Nm nylon-coated (1) (4 kgfcm) Remove the system board g from the I/O plate bracket f in the direction of arrow 12 .
  • Page 153 Removing and replacing a FRU Note for sticking a label kit on the base cover New base cover FRU is shipped with several kinds of label kit. When you replace the base cover, you need to stick a homologation label a which has the same part no.

  • Page 154: 2010 Lcd Front Bezel (14.1-In. Lcd Models)

    Removing and replacing a FRU 2010 LCD front bezel (14.1-in. LCD models) For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1090 Bluetooth/Modem daughter card (BMDC-3)”...
  • Page 155 Removing and replacing a FRU ThinkPad T43 Series...

  • Page 156: 2020 Lcd Front Bezel (15.0-In. Lcd Models)

    Removing and replacing a FRU 2020 LCD front bezel (15.0-in. LCD models) For access, remove these FRUs in order: v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1090 Bluetooth/Modem daughter card (BMDC-3)”...
  • Page 157 Removing and replacing a FRU ThinkPad T43 Series...

  • Page 158: 2030 Inverter Card (14.1-In. Lcd Models)

    Removing and replacing a FRU 2030 Inverter card (14.1-in. LCD models) For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1090 Bluetooth/Modem daughter card (BMDC-3)”...
  • Page 159 Removing and replacing a FRU Cable routing: When replacing the inverter card, route the connector cable as in this figure: ThinkPad T43 Series...

  • Page 160: 2040 Inverter Card (15.0-In. Lcd Models)

    Removing and replacing a FRU 2040 Inverter card (15.0-in. LCD models) For access, remove these FRUs in order: v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1040 Hard disk drive” on page 76 v “1060 Keyboard” on page 80 v “1090 Bluetooth/Modem daughter card (BMDC-3)”...

  • Page 161: 2050 Wireless Antenna Assemblies, Lcd Panel, Lcd Cable Assembly, Hinges, And Lcd Cover (14.1-In. Lcd Models)

    Removing and replacing a FRU 2050 Wireless antenna assemblies, LCD panel, LCD cable assembly, hinges, and LCD cover (14.1-in. LCD models) For access, remove these FRUs in order: v “1010 Battery pack (14.1-in. LCD models)” on page 72 v “1040 Hard disk drive” on page 76 v “1060 Keyboard”...
  • Page 162 Removing and replacing a FRU Peel the tape securing the Bluetooth wireless antenna assembly 3 . Step Screw (quantity) Color Torque M2 × 2.7 mm, small-head, Yellow 0.245 Nm nylon-coated (2) (2.5 kgfcm) (continued) MT 1871/1872/1875/1876...
  • Page 163 Removing and replacing a FRU In step 6 , remove the latch bar as in this figure. Lift the latch bar in the direction of the arrow 7 , and then remove the left latch in the direction of the arrow 8 . (continued) ThinkPad T43 Series...
  • Page 164 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 3 mm, small-head, Silver 0.245 Nm nylon-coated (1) (2.5 kgfcm) (continued) MT 1871/1872/1875/1876...
  • Page 165 Removing and replacing a FRU Slide the spiral tube binding the antenna cables ( 10a ), and then release the cables from the cable guide ( 10b ). Lift the LCD panel in the direction of arrow 11 , and detach the wireless LAN antenna 12 and the ThinkLight 13 .
  • Page 166 Removing and replacing a FRU Remove the antenna assembly a and hinges b from the LCD assembly. Step Screw (quantity) Color Torque M2 × 3 mm, small-head, Silver 0.245 Nm nylon-coated (4) (2.5 kgfcm) Remove two screws c , and detach the wireless AUX antenna cable ( c ) from the right hinge.
  • Page 167 Removing and replacing a FRU Turn over the LCD panel and strip off the tape 15 securing the FPC ( c ). Then detach the connector 16 in the direction of the arrow. (continued) ThinkPad T43 Series...
  • Page 168 Removing and replacing a FRU Remove the right latch from the LCD cover. MT 1871/1872/1875/1876...
  • Page 169 Removing and replacing a FRU When installing: Follow these steps when you reassemble the LCD unit. 1. Attach the left latch to the LCD cover. (continued) ThinkPad T43 Series...
  • Page 170 Removing and replacing a FRU 2. Paste three gaskets only for the models with Bluetooth wireless features. For the other models, skip this step. 95.5 mm 68.5 mm 41.5 mm 3. Connect the LCD cable assembly to the LCD panel and secure it with the tape.
  • Page 171 Removing and replacing a FRU 6. Route the wireless LAN antenna cables as in the following drawings: (continued) ThinkPad T43 Series...
  • Page 172 Removing and replacing a FRU (continued) MT 1871/1872/1875/1876...
  • Page 173 Removing and replacing a FRU d. Coil the spiral tube round the antenna cables 6 . e. Slide the spiral tube in the direction shown by arrow 7 . (continued) ThinkPad T43 Series...
  • Page 174 Removing and replacing a FRU Move the spiral tube until it reaches at the cable guide of the LCD cover as in this figure. Make sure that the antenna cable is not pinched by cable clip ( a ). 7. Secure the LCD panel with the screws. 8.

  • Page 175: 2060 Wireless Antenna Assemblies, Lcd Panel, Lcd Cable Assembly, Hinges, And Lcd Cover (15.0-In. Lcd Models)

    Removing and replacing a FRU 2060 Wireless antenna assemblies, LCD panel, LCD cable assembly, hinges, and LCD cover (15.0-in. LCD models) For access, remove these FRUs in order: v “1020 Battery pack (15.0-in. LCD models)” on page 74 v “1040 Hard disk drive” on page 76 v “1060 Keyboard”...
  • Page 176 Removing and replacing a FRU Release the antenna cables 2 . At the parts indicated by arrows a , the antenna cables go through the hinges. When you route the antenna cables, attach the cables firmly. (continued) MT 1871/1872/1875/1876...
  • Page 177 Removing and replacing a FRU Step Screw (quantity) Color Torque M2 × 3 mm, bind-head, Silver 0.245 Nm nylon-coated (4) (2.5 kgfcm) (continued) ThinkPad T43 Series...
  • Page 178 Removing and replacing a FRU Turn over the LCD panel, and detach the connector 8 in the direction of the arrow. When installing: Make sure that the FPC connector is firmly attached to the LCD panel. (continued) MT 1871/1872/1875/1876...
  • Page 179 Removing and replacing a FRU Note: Step 9 is only for the models with the Bluetooth wireless features. For the other models, skip this step. Step Screw (quantity) Color Torque M2 × 4 mm, bind-head, Black 0.245 Nm nylon-coated (2) (2.5 kgfcm) Remove the hinges 10a , 10b and the wireless LAN antenna cables 11 , 12...
  • Page 180 Removing and replacing a FRU Cable routing: When you reassemble the LCD unit, do as follows: At the left-top corner of the LCD unit, route the antenna cable as in a . Do not route the cable over the bracket. To do so, the cable might be pinched between the LCD front bezel and the LCD cover, and the cable or the other parts might be damaged or might not be installed properly.
  • Page 181 Removing and replacing a FRU Then route the cables to along the cable guides of the LCD cover. When you route the cables around the LCD hinges, do as shown in c . ThinkPad T43 Series...

  • Page 182: 3010 Thinkpad Dock Ii Pci Cover

    Removing and replacing a FRU 3010 ThinkPad Dock II PCI cover (Bottom view) MT 1871/1872/1875/1876...

  • Page 183: 3020 Thinkpad Dock Ii Top Cover

    Removing and replacing a FRU 3020 ThinkPad Dock II top cover (Rear view) Step Screw (quantity) Torque M2.5 × 4.8 mm (3) 0.392 Nm (4 kgfcm) Step Screw (quantity) Torque M2.5 × 4.8 mm (4) 0.392 Nm (4 kgfcm) (continued) ThinkPad T43 Series...
  • Page 184 Removing and replacing a FRU (Bottom view) Step Screw (quantity) Torque M2.5 × 4.8 mm (6) 0.392 Nm (4 kgfcm) (continued) MT 1871/1872/1875/1876...
  • Page 185 Removing and replacing a FRU Make sure that the system lock key A is set to the Unlock position. Release the front latches in step 4 , and then remove the top cover 5 . Then detach the connector cable 6 as in the figure. ThinkPad T43 Series...

  • Page 186: Locations

    Ultrabay Slim status indicator Ultrabay Slim latch Ultrabay Slim device eject lever Ultrabay Slim TrackPoint pointing stick Fingerprint reader (for some models) TrackPoint buttons Touch pad buttons Touch pad UltraNav Access IBM button Volume control buttons Power switch ThinkLight MT 1871/1872/1875/1876...
  • Page 187 Locations ThinkPad T43 Series...

  • Page 188: Rear View

    Locations Rear view Power status indicators Bluetooth wireless status indicator (for some models) PC Card/ExpressCard eject buttons PC Card/ExpressCard slots Microphone jack Stereo headphone jack RJ-45 (Ethernet) connector RJ-11 (modem) connector TV-out connector Universal serial bus (USB) connectors Security keyhole Parallel connector AC power connector MT 1871/1872/1875/1876...

  • Page 189: Bottom View

    Locations Bottom view Hard disk drive Optional DIMM slot Battery pack Battery pack lock (only for 14.1-in LCD models) Docking connector Battery pack latch Infrared port Built-in stereo speakers LCD latch ThinkPad T43 Series...

  • Page 190: Parts List

    Parts list Parts list v Each FRU is available for all types or models, unless specific types or models are specified. v A CRU (customer replaceable unit) is identified by a single asterisk (*) or two asterisks (**) in the CRU ID column.

  • Page 191: Overall

    Parts list Overall ThinkPad T43 Series...
  • Page 192 Parts list No. FRU See “Miscellaneous parts” on page 204. LCD unit (see “14.1-in. LCD FRUs” on page 193 and “15.0-in. LCD FRUs” on page 195.) Keyboard bezel assembly (14.1-in.) 91P9540 v 1871-CTO, 11x, 12x, 14x, 18x, 19x, 48x, 4Ax, 4Cx, C1x v 1872-CTO, 12x, 4Ax, C1x v 1875-CTO, D1x, D2x, E1x Keyboard bezel assembly with touch pad...
  • Page 193 Parts list No. FRU DVD drive 8x OP v 1871-CTO, 11x, 18x, 48x v 1875-CTO, D1x, D3x HLDS 92P6579 TEAC 92P5991 DVD/CD-RW combo drive OP v 1871-CTO, 12x, 13x, 15x, 16x, 19x, 1Gx, 22x, 23x, 24x, 25x, 27x, 4Ax, 4Bx, 4Cx, 86x, C1x, F1x, F4x v 1872-CTO, 12x, 4Ax, C1x v 1875-CTO, D2x, D6x, D9x, DAx, DCx, DKx, DLx, DMx, F1x, F4x...
  • Page 194 1875-CTO, D1x, D2x, D3x, D6x, D9x, DAx, DCx, DKx, DLx, DMx, E1x, E5x, EAx, EBx, ECx, EDx v 1876-CTO, DBx, EEx, EFx IBM Integrated Bluetooth IV with 56K 39T0022 Modem (BMDC-3) v 1871-CTO, 14x, 25x, 4Bx, 4Cx, Fxx v 1875-CTO, Fxx...
  • Page 195 Parts list No. FRU 256-MB DDR2-533 SDRAM SO-DIMM 73P3841 (PC2-4200) card OP v 1871-CTO, 11x, 12x, 13x, 16x, 22x, v 1872-CTO, 12x 512-MB DDR2-533 SDRAM SO-DIMM 73P3843 (PC2-4200) card OP v 1871-CTO, 14x, 15x, 17x, 18x, 19x, 1Gx, 1Hx, 23x, 25x, 26x, 27x, 48x, 4Ax, 4Bx, 4Cx, 8xx, Cxx, Fxx v 1872-CTO, 4Ax, Cxx v 1875-CTO, DKx, DLx, DMx, Fxx...
  • Page 196 Parts list No. FRU Base cover assembly 1871 (14.1-in.) 26R8971 v 1871-CTO, 1xx, 4xx, C1x, F1x Base cover assembly 1871 (15.0-in.) 26R8975 v 1871-CTO, 2xx, 8xx, F4x Base cover assembly 1872 (14.1-in.) 26R8972 v 1872-CTO, 1xx, 4xx, C1x Base cover assembly 1872 (15.0-in.) 26R8976 v 1872-CTO Base cover assembly 1875 (14.1-in.)
  • Page 197 Parts list No. FRU ® Intel PRO Wireless 2915ABG Mini-PCI Adapter 93P4235 v 1871-CTO, 48U, 4BU, 4CU, 86U, C1U (*1) v 1872-CTO, C1U v 1875-CTO, D2U, D6U, D9U, DAU, v 1876-CTO, DBU 93P4237 v 1871-CTO, 25x, FxG (*1) v 1875-CTO, FxG 93P4241 v 1871-CTO, 25x, FxG (*1)
  • Page 198 Parts list No. FRU ® ® CPU assembly, Intel Pentium 39T0047 processor 750 (1.86 GHz) v 1871-CTO, 25x, 26x, 4xx, 8xx, C1x, v 1872-CTO, C1x v 1875-CTO, ECx, EDx, Fxx v 1876-CTO, EEx, EFx ® ® CPU assembly, Intel Pentium 39T0048 processor 760 (2.0 GHz) v Supported by CTO...

  • Page 199: 14.1-In. Lcd Frus

    Parts list 14.1-in. LCD FRUs ThinkPad T43 Series...

  • Page 200: 14.1-In. Xga Tft

    Parts list 14.1-in. XGA TFT No. FRU a-d See “Miscellaneous parts” on page 204. LCD cover kit (WW) 13R2569 v 1871-CTO, 1xx, 4xx, C1x, F1x v 1872-CTO, 1xx, 4xx, C1x v 1875-CTO, D1x, D2x, D6x, DKx, DLx, E1x, E5x, F1x Hinges, 14.1-in.

  • Page 201: 15.0-In. Lcd Frus

    Parts list 15.0-in. LCD FRUs ThinkPad T43 Series...

  • Page 202: 15.0-In. Xga Tft

    Parts list 15.0-in. XGA TFT No. FRU LCD cover kit, 15.0-in. (WW) 13R2917 v 1871-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 86x v 1875-CTO, F4x, D3x, D9x, DAx, DCx, DMx, EAx, EBx, ECx, EDx v 1876-CTO, DBx, EEx, EFx Hinges, 15.0-in. 13R2918 v 1871-CTO, 22x, 23x, 24x, 25x, 26x, 27x, 86x...

  • Page 203: 15.0-In. Sxga+ Ips Tft

    Parts list 15.0-in. SXGA+ IPS TFT Note: Only supported by CTO. No. FRU LCD cover kit, 15.0-in. (WW) 13R2917 Hinges, 15.0-in. 13R2918 LCD cable assembly, 15.0-in. SXGA+ 91P6892 Bluetooth wireless antenna, 15.0-in. 91P6860 Antenna, 15.0-in. 91P6859 Inverter card, 15.0-in. IPS 27K9976 LCD panel, 15.0 SXGA+ ID TECH...

  • Page 204: Keyboard

    Parts list Keyboard Keyboards for 15.0-in. LCD models Language P/N (NMB) P/N (ALPS) (Chicony) Arabic 39T0664 39T0725 39T0786 93P4801 93P4861 13N9914 Belgian 39T0659 39T0720 39T0781 93P4796 93P4856 13N9909 Chinese, 39T0661 39T0722 39T0783 Traditional 93P4798 93P4858 13N9911 Czech 39T0665 39T0726 39T0787 93P4802 93P4862 13N9915...
  • Page 205 Parts list Language P/N (NMB) P/N (ALPS) (Chicony) Japanese 39T0644 39T0705 39T0766 93P4781 93P4841 13N9894 Korean 39T0658 39T0719 39T0780 93P4795 93P4855 13N9908 Norwegian 39T0651 39T0712 39T0773 93P4788 93P4848 13N9901 Polish 39T0669 39T0730 39T0791 93P4806 93P4866 13N9919 Portuguese 39T0656 39T0717 39T0778 93P4793 93P4853 13N9906...
  • Page 206 Parts list Keyboards for 14.1-in. LCD models Language P/N (NMB) P/N (ALPS) (Chicony) Arabic 39T0540 13N9978 39T0602 08K5065 — 13N9852 Belgian 39T0535 13N9973 39T0597 08K5060 — 13N9847 Chinese, 39T0537 13N9975 39T0599 Traditional 08K5062 — 13N9849 Czech 39T0541 13N9979 39T0603 08K5066 —...
  • Page 207 Parts list Language P/N (NMB) P/N (ALPS) (Chicony) Korean 39T0534 13N9972 39T0596 08K5059 — 13N9846 Norwegian 39T0527 13N9965 39T0589 08K5052 — 13N9839 Polish 39T0545 13N9983 39T0607 08K5070 — 13N9857 Portuguese 39T0532 13N9970 39T0594 08K5057 — 13N9844 Russian 39T0538 13N9976 39T0600 08K5063 —...

  • Page 208: Recovery Cds

    Parts list Recovery CDs Windows XP Professional Windows XP Professional is preinstalled as the operating system in the following models: v 1871-1xx except 13x, 2xx, 4xx, 8xx, Cxx, Fxx v 1872-1xx, 4xx, Cxx v 1875-Dxx, Fxx Language Arabic 39K7811 Chinese, Simplified 39K7803 Chinese, Traditional 39K7804...

  • Page 209: Windows Xp Home Edition

    Parts list Windows XP Home Edition Windows XP Home Edition is preinstalled as the operating system in the following models: v 1871-13x Language Arabic 39K8011 Chinese, Simplified 39K8003 Chinese, Traditional 39K8004 Chinese, Traditional (Hong Kong S.A.R.) 39K8005 Czech 39K8010 Danish 39K7999 Dutch 39K8002...

  • Page 210: Miscellaneous Parts

    Parts list Miscellaneous parts Screw kit (including nylon-coated screws): 13R2916 v M2 × 2.7 mm (silver), small head (10) v M2 × 3 mm (silver), small head (20) v M2 × 3 mm (from outside), pan head (10) v M2 × 4 mm (black), bind head (30) v M2 ×...
  • Page 211 Parts list Base miscellaneous parts (15.0-in. LCD 26R8407 models): v Cover, PC Card slot v Spring, PC Card slot cover v Rubber foot (rear) v Rubber foot (front) v Battery lock knob L v Battery lock latch L v Battery lock knob R v Link, battery lock v Spring, battery lock v Slide lever...
  • Page 212 Parts list System miscellaneous parts (15.0-in. LCD 13R2915 models): v Cable, RJ11-docking connector on system board v DC in cable v (c) Hard disk drive guide rail v Sheet for DSP connector v (e) I/O plate bracket v (f) Support structure v Harness (left) v (b) Antenna cable guide v Bracket holder, LCD cable...

  • Page 213: Ac Adapters

    Parts list LCD miscellaneous parts (14.1-in. LCD 13R2449 models): v Tape, LCD FPC v Tape on Bluetooth wireless antenna v (a) LCD latch R v (b) LCD latch L assembly v (c) Cable bushing (lower) v (d) Cable bushing (upper) v LED lens v Cable clip v Spiral tube...

  • Page 214: Optional Frus

    Parts list Optional FRUs Hard disk drive, 80 GB, 9.5 mm, 4200 rpm, 08K9863 IBM STD Ultrabay Slim hard disk drive adapter 62P4553 Ultrabay Slim Li Polymer battery (2nd bay 08K8191 battery), Sanyo (WW) ThinkPad Dock II 67P9010 Top cover and screw kit for ThinkPad Dock II...

  • Page 215: Common Parts List

    1/4" Sq. to 1/4" hex torx adapter 93F2838 TR7-TR-10 tamper resistant torx bits 00P6967 Removal tool antenna RF connector 08K7159 PCI-Express/USB wrap card 27K9813 ThinkPad Hardware Maintenance Diskette Version — 1.71 or later Note: Download the file from the following Web site: http://www.ibm.com/pc/partner/spm ThinkPad T43 Series...

  • Page 216: Power Cords (System)

    Parts list Power cords (system) An IBM power cord for a specific country or region is usually available only in that country or region: For 2-pin power cords: Region Canada, U.S. 13H5264 * v models -CTO, xxF, xxL, xxS, xxU...

  • Page 217: Power Cords (Thinkpad Dock And Thinkpad Dock Ii)

    Parts list Power cords (ThinkPad Dock and ThinkPad Dock II) An IBM power cord for a specific country or region is usually available only in that country or region: For 3-pin power cords: Region Argentina 36L8868 Australia, New Zealand 75H8988...

  • Page 218: Notices

    Notices Notices References in this publication to IBM products, programs, or services do not imply that IBM intends to make these available in all countries in which IBM operates. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used.
  • Page 219 Notices ThinkPad T43 Series...
  • Page 220 Part Number: 27R0949 (1P) P/N: 27R0949...
