IBM ThinkPad R30 Hardware Maintenance Manual page 74

CAUTION:
The keyboard bezel has several latches. When
removing the keyboard bezel from the bottom cover,
gently release these latches, then raise the side of the
keyboard bezel facing the palm rest to remove it. Be
careful not to break the latches.

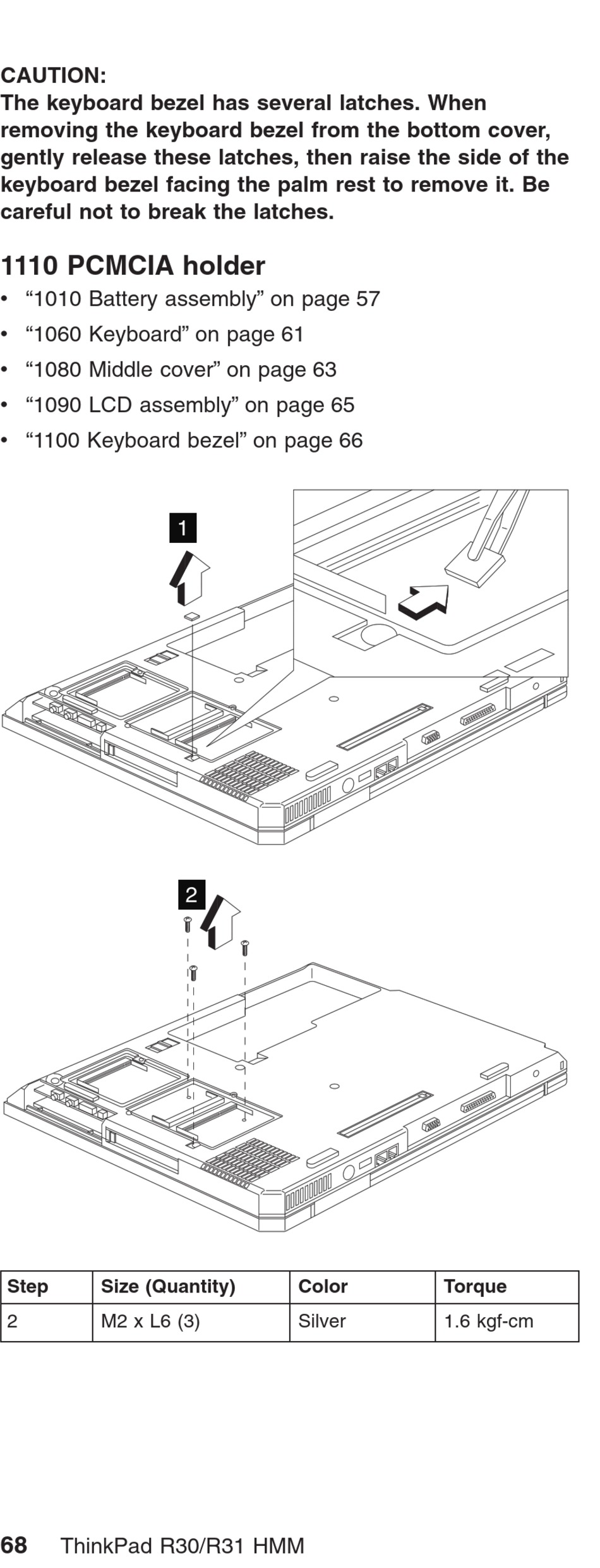

1110 PCMCIA holder
v "1010 Battery assembly" on page 57
v "1060 Keyboard" on page 61
v "1080 Middle cover" on page 63
v "1090 LCD assembly" on page 65
v "1100 Keyboard bezel" on page 66
Step Size (Quantity)
2 M2 x L6 (3)
68
ThinkPad R30/R31 HMM
1
2
Color
Silver
Torque
1.6 kgf-cm
