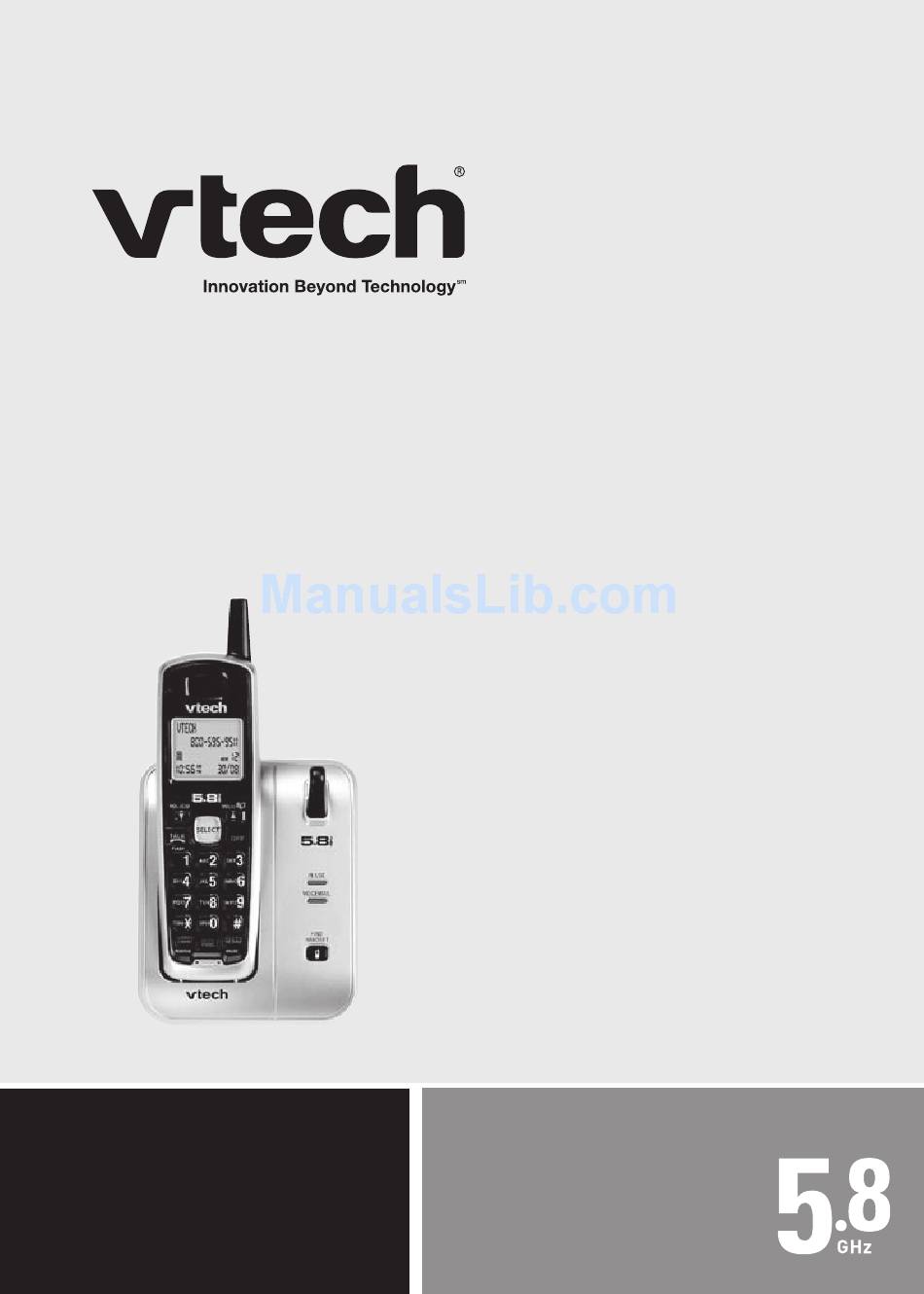

- Page 1 User’s manual w w w.v t e c h p h o n e s . c o m Models: CS5111/CS5113...
- Page 2 Before using this telephone, please read the Important safety instructions on page 22 of this manual. For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com. In Canada, please visit www.vtechcanada.com. ® The ENERGY STAR program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our ®...
-
Page 3: Table Of Contents
Table of contents Getting started . . . . . . . . . . . . . . . . 1 Delete a speed dial entry ..16 Parts checklist . -
Page 4: Getting Started
Getting started Parts checklist Your telephone contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. A BC D E F PQRS W X Y Z TONE OPER 1. Handset 2. Telephone line cord 3. -
Page 5: Telephone Base Installation
Getting started Telephone base installation If you subscribe to high-speed Internet service (Digital Subscriber Line - DSL) through your telephone lines, you must install a DSL filter between the telephone base and the telephone wall jack to prevent noise and caller ID problems caused by DSL interference. -
Page 6: Battery Installation And Charging
Getting started Battery installation and charging Install the battery as shown below. The battery may have enough charge for short calls and then completely charge and drain the battery two or three times every three months afterwards. For best performance, charge the battery for at least 16 hours before first use. - Page 7 Getting started Wall bracket installation (continued) Wall bracket installation: First, insert the lower portion tabs of the wall bracket into the lower grooves in the telephone base, then snap the upper portion tabs of the wall bracket into place. Mount the telephone base on the wall by positioning it so the mounting studs fit into the holes on the telephone base and wall bracket.
-
Page 8: Handset Layout
Getting started Handset layout CHARGE light /VOL+/ • On when the handset is • Press to display the directory charging in the telephone when the telephone is not in use. base. • Press and hold to adjust /VOL-/CID the ringer volume when the telephone is not in use. -
Page 9: Telephone Base Layout
Getting started Telephone base layout IN USE light • Flashes when there is an incoming call. • On when the handset is in use. VOICEMAIL light • Flashes when you have new voicemail from your telephone service provider. FIND HANDSET •... -
Page 10: Telephone Settings
Telephone settings Date and time If you subscribe to caller ID service, the date and time is set automatically with the next incoming call. If you do not have caller ID service, you can set the date and time manually. Press PROG when the handset is not in use. -
Page 11: Dial Mode
Telephone settings Ringer volume (continued) 4. Press SELECT to confirm your selection. You will hear a confirmation tone. -OR- until the screen displays RINGER VOL: and the Press and hold current setting when the handset is not in use. The current setting flashes and you will hear a sample of the ringer volume. -
Page 12: Language
Telephone settings Language Press PROG when the handset is not in use. until LANGUAGE is displayed. Press Press SELECT The current setting flashes. Press until the screen displays the desired language (ENGLISH, ESPANOL or FRANCAIS). Press SELECT to confirm your selection. You will hear a confirmation tone. Clear voicemail If you subscribe to voicemail services provided by your telephone service provider, NEW VOICEMAIL and... -
Page 13: Telephone Operation
Telephone operation Make calls • Press and then use the dial pad keys to dial a number. -OR- Enter the phone number first. You can press to backspace and press CHAN/REMOVE to erase digits. Press to dial. Answer calls Press any dial pad keys (except /VOL-/CID, /VOL+/ and OFF) to answer •... -
Page 14: Redial
Telephone operation Redial • The telephone stores the five most recently dialed telephone numbers in the redial list. When the list is full, the oldest entry is deleted to make room for the new entry. Press REDIAL/PAUSE, then press or REDIAL/PAUSE repeatedly to •... -
Page 15: Character Chart
Telephone operation Character chart Use the dial pad keys and the chart below to enter a name (up to 14 characters). An error tone sounds if you try to enter more than 14 characters. Each press of a particular key causes the characters to be displayed in the following order: Characters by number of key presses Dial key... -
Page 16: Delete A Directory Entry
Telephone operation Edit a directory entry (continued) When the screen displays the desired entry, press SPEED EDIT DEL SELECT and EDIT flashes. 8005959511 Press SELECT. The screen displays the name and number. The cursor appears at the beginning of the name. -
Page 17: Copy A Directory Entry Into Speed Dial
Telephone operation Copy a directory entry into speed dial /VOL+/ Press when the handset is not in use. The screen displays DIRECTORY. Press to scroll through the entries stored in the directory alphabetically. -OR- Press the dial pad key for the first letter of the entry to copy. If necessary, scroll to find the desired entry. -
Page 18: Edit A Speed Dial Entry
Telephone operation Store a speed dial entry (continued) Use the dial pad keys to enter the name (see the Character chart on page 12) and then press SELECT or PROG. • Press to move the cursor to the left or to the right. -
Page 19: Delete A Speed Dial Entry
Telephone operation Delete a speed dial entry Press and hold the speed dial location key (1-9) of SPEED EDIT DEL the desired entry when the handset is not in use. 8005959511 When the screen displays the desired entry, press SELECT. Then press until DEL (delete) flashes. -
Page 20: Call Log
Telephone operation Call log Caller’s name VTECH Caller’s telephone 800-595-9511 number New call log indicator and location in the 6:10 08/17 call log Time of call Date of call If you subscribe to caller ID service, information about each caller will be displayed after the first or second ring. -
Page 21: Make Call Log Entries Ready To Dial
Telephone operation Make call log entries ready to dial Although the call log entries received have 10 digits (the 800-595-9511 area code plus the seven-digit number), in some areas, 1-800-595-9511 you may dial only the seven digits, or a 1 plus the seven 595-9511 digits, or a 1 plus the area code plus the seven digits. -
Page 22: Delete From The Call Log
Telephone operation Save a call log entry to the directory (continued) 5. Enter or edit the name if necessary. See the Character chart on page 12. • Press to move the cursor to the left or to the right. • Press CHAN/REMOVE to erase a character. -
Page 23: Appendix
Appendix Handset display screen messages Displays: When: The battery needs to be recharged. LOW BATTERY There are no call log entries. CID EMPTY The cordless handset is searching for the CONNECTING... telephone base. There are no directory entries. DIRECTORY EMPTY The directory is full. -
Page 24: Battery
Appendix Battery After the battery is fully charged for 16 hours, you can expect the following performance: Operation Operating time While in use (talking) Five hours While not in use (standby*) Six days *Handset is off the telephone base but not in use. The battery needs charging when: •... -
Page 25: Important Safety Instructions
Appendix Important safety instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: Read, understand, and follow all warnings and instructions marked on the product and in this manual. Unplug this product from the wall outlet before cleaning. -
Page 26: Troubleshooting
Appendix Troubleshooting If you have difficulty with your telephone, please try the suggestions below. For Customer Service, visit our website at www.vtechphones.com, or call 1 (800) 595-9511; in Canada, call 1 (800) 267-7377. My telephone does not work at all . •... - Page 27 Appendix Troubleshooting The talk time and standby time of my handset is noticeably shorter than before . • Completely charge and drain the battery two or three times consecutively every three months instead of returning the handset to the telephone base or charger after each use.
- Page 28 Appendix Troubleshooting I cannot dial out . • First, try all the above suggestions. • Make sure there is a dial tone before dialing. It is normal if the handset takes a second or two to synchronize with the telephone base before producing a dial tone. Wait an extra second before dialing.
- Page 29 Appendix Troubleshooting I hear noise in the handset, and none of the keys or buttons work . • Make sure the telephone line cord is plugged in securely. • Remove and re-insert the battery. My caller ID features are not working properly . •...
- Page 30 Appendix Troubleshooting • Other electronic products can cause interference to your cordless telephone. Try installing your telephone as far away from these electronic devices as possible: wireless routers, radios, radio towers, pager towers, cellular telephones, intercoms, room monitors, televisions, personal computers, kitchen appliances and other cordless telephones.
- Page 31 Appendix Troubleshooting Common cure for electronic equipment • If the unit is not responding normally, try putting the handset in the telephone base. If it does not respond, try the following (in the order listed): • Disconnect the power to the telephone base. •...
-
Page 32: Operating Range
Appendix Operating range This cordless telephone operates with the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset and telephone base can communicate over only a certain distance, which can vary with the locations of the telephone base and handset, the weather, and the layout of your home or office. When the handset is out of range, the handset will display POWER FAILURE OR OUT OF RANGE. -
Page 33: Warranty
Appendix Warranty What does this limited warranty cover? The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or “you”) that the Product and all accessories provided in the sales package (“Product”) are free from defects in material and workmanship, pursuant to the following terms and conditions, when installed and used normally and in accordance with the Product operating instructions. - Page 34 Appendix Warranty Other limitations This warranty is the complete and exclusive agreement between you and VTech. It supersedes all other written or oral communications related to this Product. VTech provides no other warranties for this Product. The warranty exclusively describes all of VTech’s responsibilities regarding the Product. There are no other express warranties. No one is authorized to make modifications to this limited warranty and you should not rely on any such modification.
-
Page 35: Fcc, Acta And Ic Regulations
Appendix FCC, ACTA and IC regulations FCC, ACTA and IC regulations FCC Part 15 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. -
Page 36: The Rbrc ® Seal
Appendix FCC, ACTA and IC regulations Industry Canada Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference, including interference that may cause undesired operation. The term ‘’IC: ‘’ before the certification/registration number only signifies that the Industry Canada technical specifications were met. -
Page 37: Technical Specifications
Appendix Technical specifications Frequency control Crystal controlled PLL synthesizer Transmit frequency Handset: 5857.20-5865.90 MHz Telephone base: 912.75-917.10MHz Channels Nominal effective range Maximum power allowed by FCC and IC. Actual operating range may vary according to environmental conditions at the time of use. Size Handset: 7.32in X 2.01in X 1.57in (186.0mm X 51.0mm X 40.0mm) -
Page 38: Index
Appendix Index About caller ID 16 Handset display screen messages 20 About cordless telephones 29 Handset layout 5 Answer calls 10 Home area code 8 Appendix 20 Important safety instructions 22 Battery 21 Index 34 Battery installation and charging 3 Language 9 Call log 17 Call log display screen messages 19... - Page 39 Appendix Index Technical specifications 34 Telephone base installation 2 Telephone base layout 6 Telephone operation 10 Telephone settings 7 Temporary tone dialing 10 The RBRC seal 33 ® Troubleshooting 23 Volume 10 Wall bracket installation 3 Warranty 29...
- Page 40 VTECH TELECOMMUNICATIONS LTD. A member of THE VTECH GROUP OF COMPANIES. Distributed in the U.S.A. by VTech Communications, Inc. Beaverton, Oregon 97008 Distributed in Canada by VTech Technologies Canada, Ltd., Richmond, B.C. V6W 1L5 Copyright ©2008 for VTECH TELECOMMUNICATIONS LTD. Printed in China.
