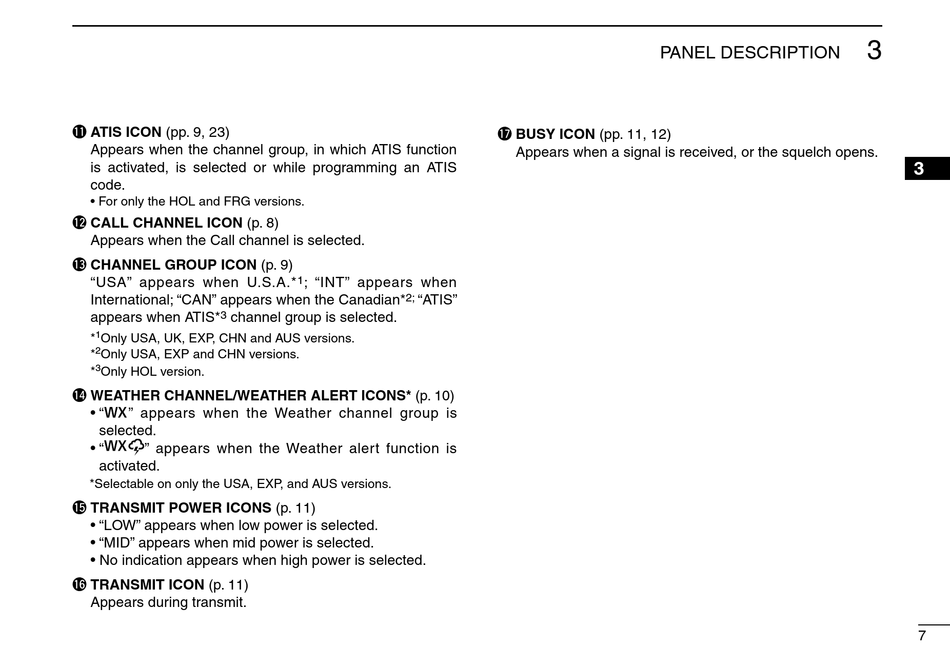

!1 ATIS ICON (pp. 9, 23)
Appears when the channel group, in which ATIS function
is activated, is selected or while programming an ATIS
code.
• For only the HOL and FRG versions.
!2 CALL CHANNEL ICON (p. 8)
Appears when the Call channel is selected.
!3 CHANNEL GROUP ICON (p. 9)
"USA" appears when U.S.A.*
International; "CAN" appears when the Canadian*
3
appears when ATIS* channel group is selected.
1
* Only USA, UK, EXP, CHN and AUS versions.
2
* Only USA, EXP and CHN versions.
3
* Only HOL version.
!4 WEATHER CHANNEL/WEATHER ALERT ICONS* (p. 10)
• " " appears when the Weather channel group is
selected.
• " " appears when the Weather alert function is
activated.
*Selectable on only the USA, EXP, and AUS versions.
!5 TRANSMIT POWER ICONS (p. 11)
• "LOW" appears when low power is selected.
• "MID" appears when mid power is selected.
• No indication appears when high power is selected.
!6 TRANSMIT ICON (p. 11)
Appears during transmit.
1
; "INT" appears when
2; "ATIS"

PANEL DESCRIPTION

!7 BUSY ICON (pp. 11, 12)
Appears when a signal is received, or the squelch opens.
