10. Ensure that the fan door still closes; realign the cable if it does not.
11. Reopen the fan door and replace the cover; close all doors.
12. Replace the node in the rack, reconnect all cables, and power on the node.
Replacing the SAN Volume Controller 2145-8F2 or SAN Volume Controller
2145-8F4 operator-information panel
You might have to replace the operator-information panel on a SAN Volume Controller 2145-8F2 or SAN
Volume Controller 2145-8F4 due to required maintenance.
Perform the following steps to replace the operator-information panel:
1. Plug in the two cables on the rear of the assembly

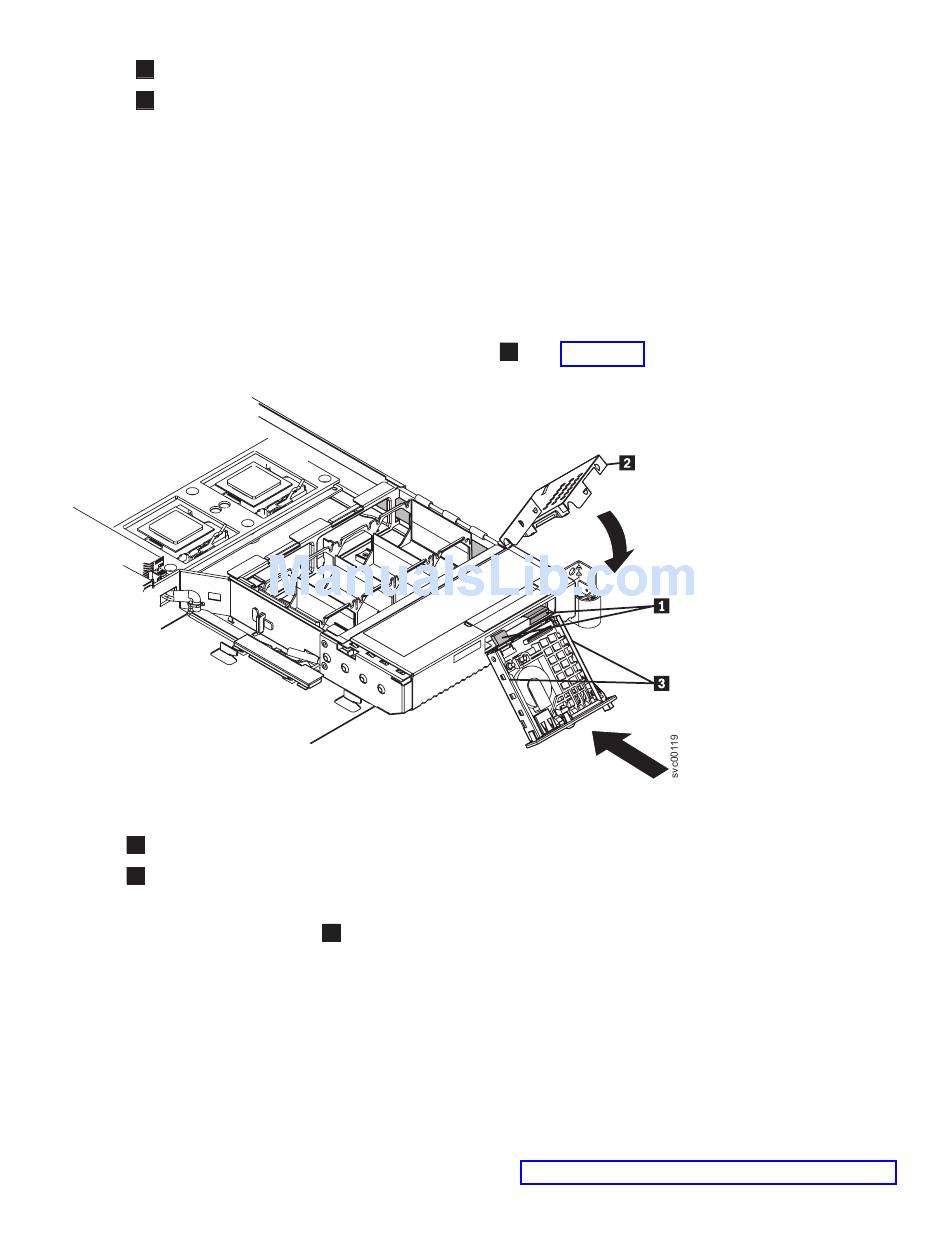

Figure 225. Replacing the operator-information panel
1
Cables
2
Operator-information panel assembly cover
2. Replace the assembly cover
3. Slide the assembly into the node until it is firmly anchored.
4. Replace the top cover and replace the node in the rack, if necessary.
5. Connect all power cords and external cables to the back of the server.
6. Turn on the node.
Removing the operator-information panel cable
Use these instructions when you are prompted to remove the operator-information panel cable.
Take precautions to avoid damage from static electricity. Wear an anti-static wrist strap and use a
static-protected mat or surface. For more information, see "Handling static-sensitive devices" on page xix.
1
2
onto the operator-information panel assembly.
. See Figure 225.
Chapter 2. Removing and replacing parts
203
