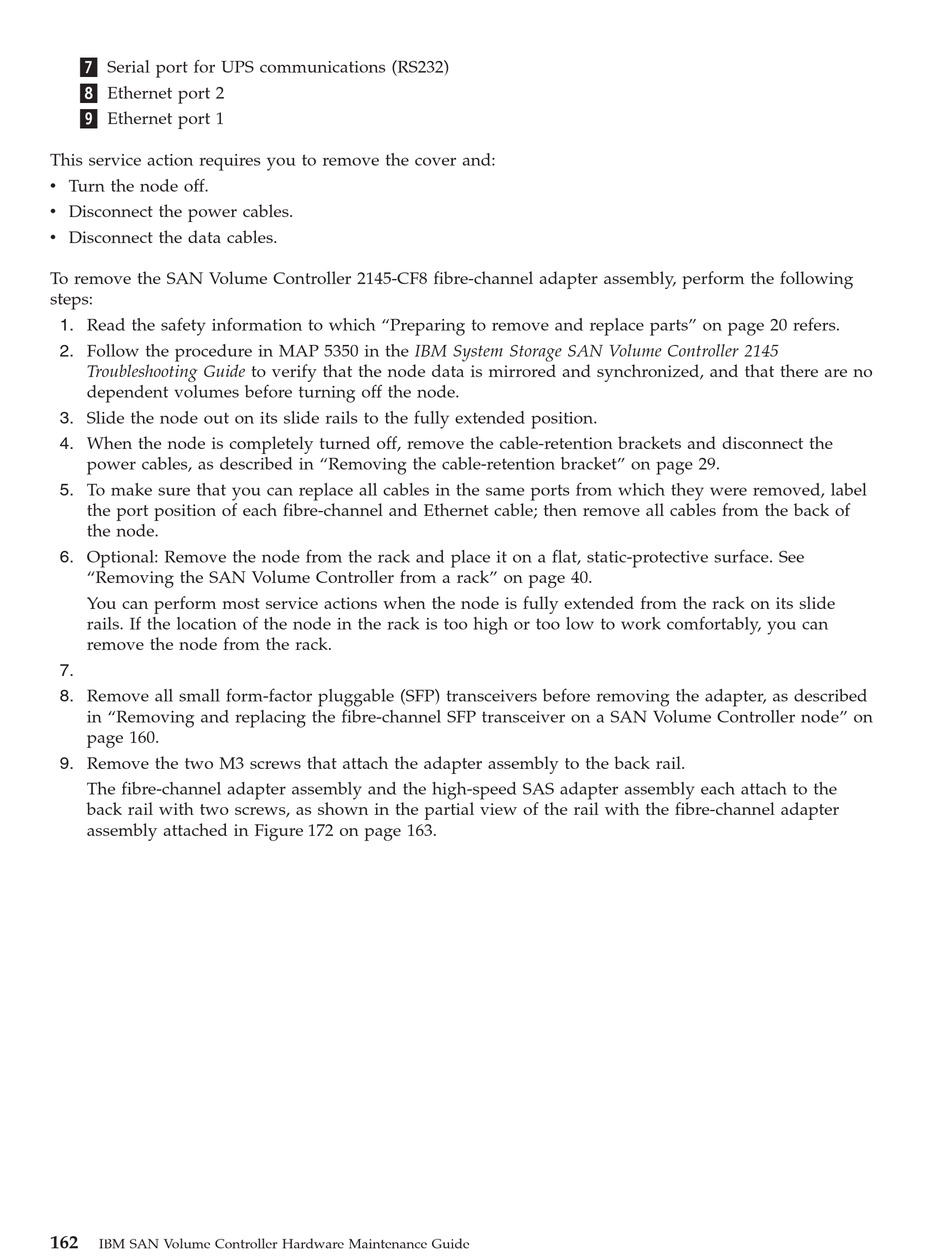

7 Serial port for UPS communications (RS232)
8 Ethernet port 2
9 Ethernet port 1
This service action requires you to remove the cover and:
v Turn the node off.
v Disconnect the power cables.
v Disconnect the data cables.
To remove the SAN Volume Controller 2145-CF8 fibre-channel adapter assembly, perform the following
steps:
1. Read the safety information to which "Preparing to remove and replace parts" on page 20 refers.
2. Follow the procedure in MAP 5350 in the IBM System Storage SAN Volume Controller 2145
Troubleshooting Guide to verify that the node data is mirrored and synchronized, and that there are no
dependent volumes before turning off the node.
3. Slide the node out on its slide rails to the fully extended position.
4. When the node is completely turned off, remove the cable-retention brackets and disconnect the
power cables, as described in "Removing the cable-retention bracket" on page 29.
5. To make sure that you can replace all cables in the same ports from which they were removed, label
the port position of each fibre-channel and Ethernet cable; then remove all cables from the back of
the node.
6. Optional: Remove the node from the rack and place it on a flat, static-protective surface. See
"Removing the SAN Volume Controller from a rack" on page 40.
You can perform most service actions when the node is fully extended from the rack on its slide
rails. If the location of the node in the rack is too high or too low to work comfortably, you can
remove the node from the rack.
7.
8. Remove all small form-factor pluggable (SFP) transceivers before removing the adapter, as described
in "Removing and replacing the fibre-channel SFP transceiver on a SAN Volume Controller node" on
page 160.
9. Remove the two M3 screws that attach the adapter assembly to the back rail.
The fibre-channel adapter assembly and the high-speed SAS adapter assembly each attach to the
back rail with two screws, as shown in the partial view of the rail with the fibre-channel adapter
assembly attached in Figure 172 on page 163.
