Carrier 40KMC Product Data

In-ceiling cassette duct-free split system sizes 018 to 036
Hide thumbs Also See for 40KMC:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Installation Manual

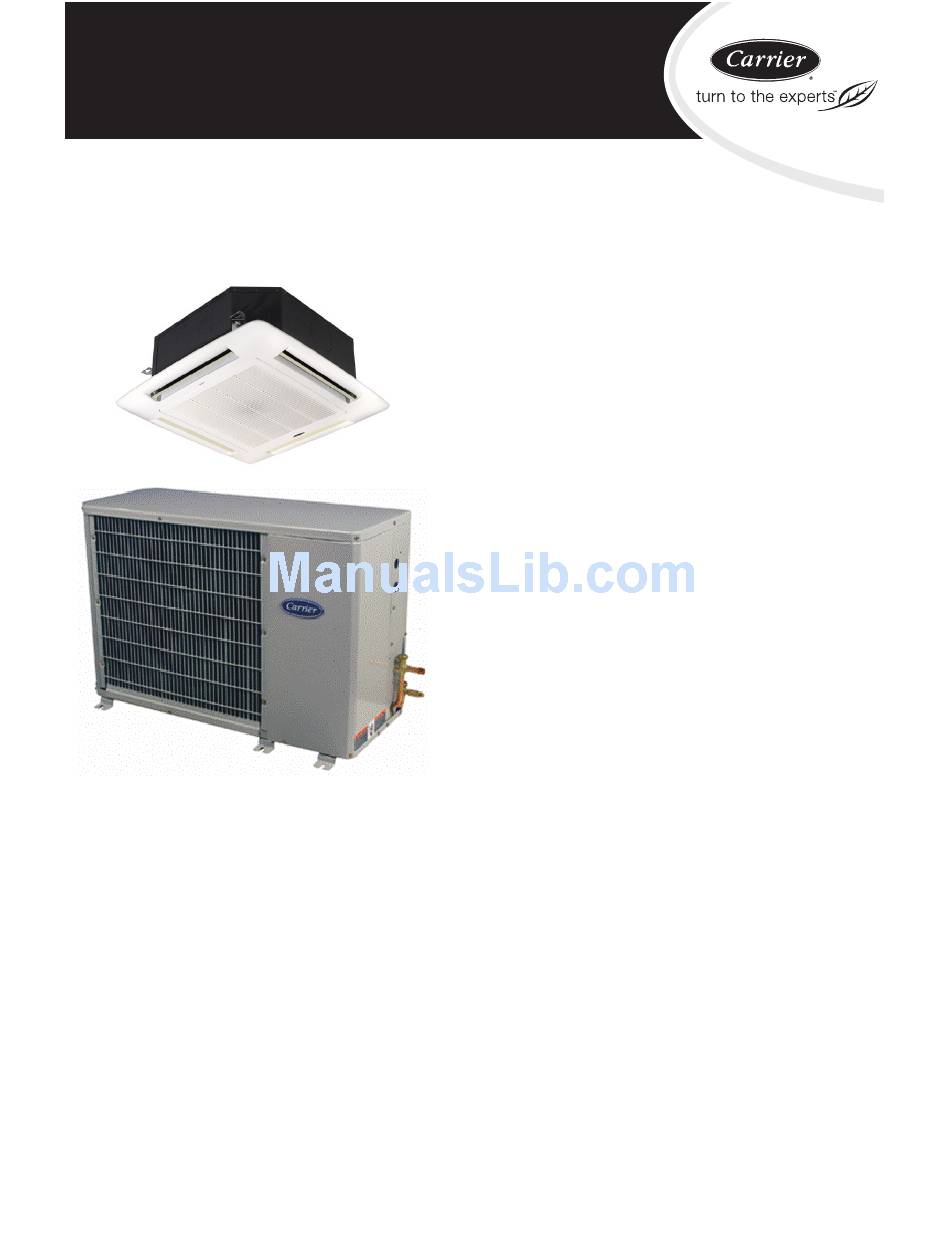

40KMC / 38HDF
40KMQ / 38QRF
In---Ceiling Cassette Duct---Free Split System
Sizes 018 to 036
The ideal compliment to your ducted system when it is impractical
or prohibitively expensive to use ductwork.

Product Data

INDUSTRY LEADING
FEATURES / BENEFITS
AN INEXPENSIVE AND CREATIVE
SOLUTION TO DESIGN PROBLEMS.
The 38HDF(QRF) / 40KMC (KMQ) series duct- -free split systems
are a matched combination of an outdoor condensing unit and an
indoor fan coil unit connected only by refrigerant tubing and wires.
The in- -ceiling cassette fan coils are ideal for retrofit or
modernization projects where a false ceiling is available. This
selection of fan coils permits inexpensive and creative solutions to
design problems such as:
S
S
These compact in- -ceiling cassette units require less than 12 inches
(304.8 mm) of false ceiling space and the only part that is seen is
an aesthetically pleasing grille that blends with most decor.
Add- -ons to current space where the existing system
cannot handle the load.
Special space requirements. like a conference room,
where the load varies.

Advertisement

Table of Contents
loading

Related Manuals for Carrier 40KMC

Summary of Contents for Carrier 40KMC

  • Page 1: Product Data

    AN INEXPENSIVE AND CREATIVE SOLUTION TO DESIGN PROBLEMS. The 38HDF(QRF) / 40KMC (KMQ) series duct- -free split systems are a matched combination of an outdoor condensing unit and an indoor fan coil unit connected only by refrigerant tubing and wires.
  • Page 2 LOW SOUND LEVELS BUILT- - IN RELIABILITY For applications like conference rooms or libraries where noise is a Duct- -free split system indoor and outdoor units are designed to concern, the in- -ceiling cassette is the answer. The indoor units are provide years of trouble- -free operation.

  • Page 3: Model Number Nomenclature

    MODEL NUMBER NOMENCLATURE INDOOR UNIT 3--- 01 Voltage Fan Coil Unit 3 --- 208/230 ---1 ---60 Nominal Capacity 018 --- 1 ---1/2 Tons 024 --- 2 Tons Unit Type 030 --- 2 ---1/2 Tons KMC --- Cooling Only 036 --- 3 Tons KMQ --- Heat Pump OUTDOOR UNIT 3--- 01...

  • Page 4: Standard Features And Accessories

    For applications where the use of a wireless remote control is not Ease Of Service And Maintenance desired, the 40KMC/KMQ units can be controlled by means of a Control Box Accessible From Bottom of Unit wired , wall- -mounted control with an LCD display.

  • Page 5: Outdoor Unit Accessories

    OUTDOOR UNIT ACCESSORIES Low Ambient Kit Stacking Kit The kit controls condenser fan cycling using a pressure switch. It is Stacking Kits allow stacking of equally sized units or permit specifically designed to cycle the outdoor fan- -motor in response to smaller units to be stacked on top of larger units.
  • Page 6 DIMENSIONS - - OUTDOOR FEMALE SWEAT CONN.* (FIELD PROVIDED AND INSTALLED) * Male flare connection for Heat Pumps OPERATING WT UNIT SIZE 15.88 75.3 15.88 79.8 38HDF 19.05 84.8 19.05 113.4 15.88 75.3 15.88 79.8 19.05 84.8 38QRF 19.05 105.2 UNIT MODELS CHASSIS SIZE...

  • Page 7: Indoor Unit Dimensions

    (100) FRESH AIR INLET Operating Weight Model Unit Size 41.4 40KMC 030 / 036 43.2 018 / 024 41.4 40KMQ 030 / 036 43.2 NOTE: Dimensions in ( ) are in mm. A08447 Fig. 8 – 40KMC,KMQ Indoor Unit Clearance...
  • Page 8 PHYSICAL DATA - - OUTDOOR UNIT 38HDF Outdoor Unit 38HDF System Voltage 208/230 ---1 ---60 208/230 ---1 ---60 208/230 ---1 ---60 208/230 ---1 ---60 208/230 ---3 ---60 460 ---3 ---60 Nominal Capacity (Btuh) 18000 24000 30000 36000 36000 36000 Operating Weight lb (kg) 166 (75.3) 176 (79.8) 187 (84.8)
  • Page 9 PHYSICAL DATA (CONT.) - - OUTDOOR UNIT 38QRF Outdoor Unit 38QRF System Voltage 208/230 ---1 ---60 208/230 ---1 ---60 208/230 ---1 ---60 208/230 ---1 ---60 208/230 ---3 ---60 460 ---3 ---60 Nominal Capacity (Btuh) 18000 24000 30000 36000 36000 36000 Operating Weight lb(kg) 166 (75.3) 176 (79.8)
  • Page 10 PHYSICAL DATA (CONT.) - - INDOOR UNIT 40KMC Indoor Unit 40KMC System Voltage 208/230 ---1 ---60 208/230 ---1 ---60 208/230 ---1 ---60 Operating Weight lb(kg) 49 (22.3) 91 (41.4) 95 (43.2) 95 (43.2) Refrigerant Type R---410A Metering Device Accurator At Outdoor Unit Moisture Removal Rate (Pints/hr)8 12.8...
  • Page 11 PHYSICAL DATA (CONT.) - - INDOOR UNIT 40KMQ Indoor Unit 40KMQ System Voltage 208/230 ---1 ---60 Electric Heat KW Operating Weight lb(kg) 91 (41.4) 91 (41.4) 95 (43.2) 95 (43.2) Refrigerant Type R---410A Metering Device Accurator At Outdoor Unit Moisture Removal Rate (Pints/hr) 10.2 Indoor Fan Rpm/Cfm (High)

  • Page 12: Performance Data

    PERFORMANCE DATA COOLING CAPACITIES COOLING ONLY 38HDF018 WITH 40KMC018 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) 330 / 0.04 400 / 0.04 450 / 0.04 Air Entering Air Entering Evaporator --- Ewb ° F (° C) Condenser (Edb) (13.9) (16.7)
  • Page 13 PERFORMANCE DATA (CONT.) COOLING CAPACITIES COOLING ONLY 38HDF024 WITH 40KMC024 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) 445 / 0.05 530 / 0.05 680 / 0.05 Air Entering Air Entering Evaporator --- Ewb ° F (° C) Condenser (Edb) (13.9)
  • Page 14 PERFORMANCE DATA (CONT.) COOLING CAPACITIES COOLING ONLY 38HDF030 WITH 40KMC03036 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) 635 / 0.05 720 / 0.05 875 / 0.05 Air Entering Air Entering Evaporator --- Ewb ° F (° C) Condenser (Edb) (13.9)
  • Page 15 PERFORMANCE DATA (CONT.) COOLING CAPACITIES COOLING ONLY 38HDF036 WITH 40KMC03036 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) 635 / 0.05 720 / 0.05 875 / 0.05 Air Entering Air Entering Evaporator --- Ewb ° F (° C) Condenser (Edb) (13.9)
  • Page 16 PERFORMANCE DATA (CONT.) COOLING CAPACITIES HEAT / COOL 38HDF018 WITH 40KMQ01824 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) 445 / 0.05 530 / 0.05 680 / 0.05 Air Entering Air Entering Evaporator --- Ewb ° F (° C) Condenser (Edb) (13.9)
  • Page 17 PERFORMANCE DATA (CONT.) COOLING CAPACITIES HEAT / COOL 38HDF024 WITH 40KMQ01824 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) 445 / 0.05 530 / 0.05 680 / 0.05 Air Entering Air Entering Evaporator --- Ewb ° F (° C) Condenser (Edb) (13.9)
  • Page 18 PERFORMANCE DATA (CONT.) COOLING CAPACITIES HEAT / COOL 38HDF030 WITH 40KMQ03036 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) 635 / 0.05 720 / 0.05 875 / 0.05 Air Entering Air Entering Evaporator --- Ewb ° F (° C) Condenser (Edb) (13.9)
  • Page 19 PERFORMANCE DATA (CONT.) COOLING CAPACITIES HEAT / COOL 38HDF036 WITH 40KMQ03036 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) 635 / 0.05 720 / 0.05 875 / 0.05 Air Entering Air Entering Evaporator --- Ewb ° F (° C) Condenser (Edb) (13.9)
  • Page 20 PERFORMANCE DATA (CONT.) COOLING CAPACITIES HEAT PUMP 38QRF018 WITH 40KMQ01824 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) Air Entering 445 / 0.05 530 / 0.05 680 / 0.05 Condenser Air Entering Evaporator --- Ewb ° F (° C) (Edb) 57 (13.9) 62 (16.7)
  • Page 21 PERFORMANCE DATA (CONT.) COOLING CAPACITIES HEAT PUMP 38QRF024 WITH 40KMQ01824 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) 445 / 0.05 530 / 0.05 680 / 0.05 Air Entering Air Entering Evaporator --- Ewb ° F (° C) Condenser (Edb) (13.9)
  • Page 22 PERFORMANCE DATA (CONT.) COOLING CAPACITIES HEAT PUMP 38QRF030 WITH 40KMQ03036 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) 635 / 0.05 720/0.05 875/0.05 Air Entering Air Entering Evaporator --- Ewb ° F (° C) Condenser (Edb) (13.9) (16.7) (19.4) (22.2) (13.9)
  • Page 23 PERFORMANCE DATA (CONT.) COOLING CAPACITIES HEAT PUMP 38QRF035 WITH 40KMQ03036 Air Entering Evaporator --- Cfm/BF Temp ° F (° C) 635 / 0.05 720/0.05 875/0.05 Air Entering Air Entering Evaporator --- Ewb (° F) Condenser (Edb) (13.9) (16.7) (19.4) (22.2) (13.9) (16.7) (19.4)

  • Page 28: Application Data

    APPLICATION DATA UNIT SELECTION Heating Operating Range Maximum Minimum The in- -ceiling cassette units are available as cooling only, cooling DB ° F (° C) WB ° F (° C) DB ° F (° C) WB ° F (° C) only with electric heat, or heat pumps with electric heat.

  • Page 29: Control System

    Pushing the EMERGENCY switch under the grille will put the Cooling an adjacent room - - The 40KMC and 40KMQ units are unit in Auto mode with a predetermined set point (73.4_F/ 23_C) . supplied with pre- -punched knockouts that can be used to cool and TEST mode - - is used when a technician needs to diagnose the heat an adjacent room.

  • Page 30: Sound Ratings

    The user has three operating choices with the If the 40KMC or 40KMQ is installed close to an outside wall, louvers some outside air can be introduced by running field supplied ductwork to the unit.

  • Page 31: Electrical Data

    208/230 ---3 ---60 13.2 88.0 1.45 0.25 0.19 18.0 460 ---3 ---60 44.0 0.80 0.25 0.19 40KMC FAN COIL ELECTRICAL DATA Voltage Range Power Louver FUSE/ 40KMC Condensate V--- PH --- Hz Motor MIN CKT Unit Size Pump FLA Min.
  • Page 32 3. Compressor and fan motors are protected by internal thermal overloads. 50057 Fig. 10 – 40KMC / 38HDF Cooling Only System Wiring Diagram...
  • Page 33 3. Compressor and fan motors are protected by internal thermal overloads. 50058 Fig. 11 – 40KMQ / 38HDF Heat/Cool System Wiring Diagram with Electric Heaters...
  • Page 34 3. Compressor and fan motors are protected by internal thermal overloads. 50059 Fig. 12 – 40KMQ / 38QRF Heat Pump System Wiring Diagram with Electric Heaters...

  • Page 35: Guide Specifications

    J. Operating Characteristics: Coil shall be copper tube with aluminum fins and galvanized steel The 40KMC/KMQ, when matched with the appropriate outdoor tube sheets. Fins shall be bonded to the tubes by mechanical section, shall have a minimum listed SEER (seasonal energy expansion and specially coated for enhanced wet- -ability.
  • Page 36 GUIDE SPECIFICATIONS Carrier Model Number: 38HDF/38QRF Size Range: 1- -1/2 to 3 Ton Nominal Cooling Capacity /1- -1/2 to HORIZ. DISCHARGE OUTDOOR UNITS 3 Ton Nominal Heating Capacity PART 1 - - GENERAL D. Compressor: 1. Compressor shall be fully hermetic scroll type.
  • Page 37 NOTES: ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________ ________________________________________________________________________...
  • Page 38 Copyright 2008 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 09/08 Catalog No.40KMC ---Q---1PD Replaces: New Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
