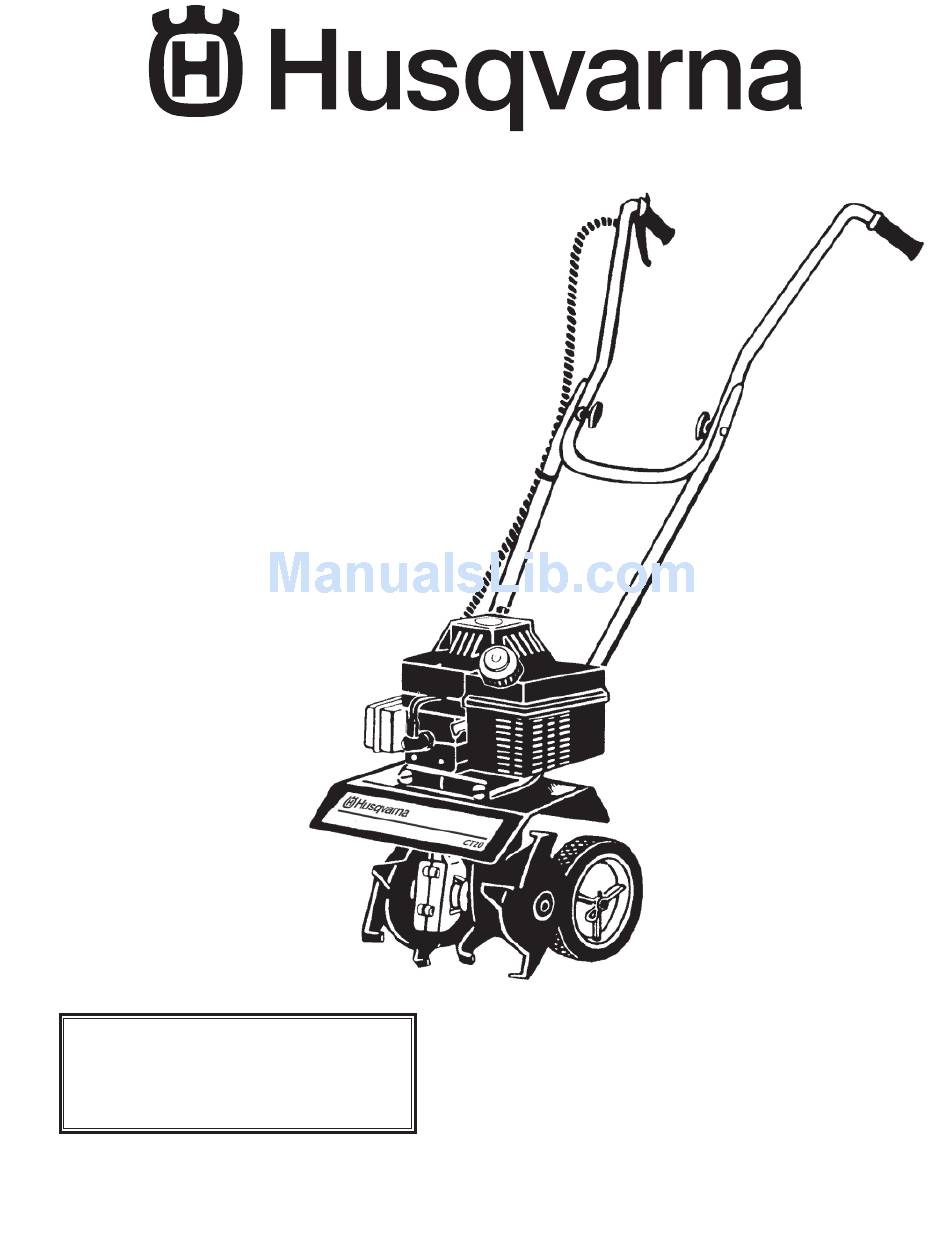

OWNER/OPERATOR
MANUAL
Model: CT20 / 966957301
SPECIFICATIONS
• Durable Tecumseh TC
• Positive On/Off Switch
• Heavy-Duty Handlebars with Anti-Vibe Grips
• Depth Control Bar
• Four Heavy-Duty Removable Tines
• 6'' or 10" Cultivating Width
• Tine Speed—162 RPM
• Worm Gear Drive
• Approx. Weight—25 Lbs.
• Transport Kit Standard Equipment
IMPORTANT!
"TO TILL & CULTIVATE IN ROCKY
SOIL CONDITIONS SEE PAGE 11
FOR ALTERNATE TINE ASSEMBLY"
505 29 00-57 04.21.08 CL
III
Engine
PRINTED IN U.S.A.
Advertisement
Table of Contents
Related Manuals for Husqvarna 966957301
Summary of Contents for Husqvarna 966957301
- Page 1 OWNER/OPERATOR MANUAL Model: CT20 / 966957301 SPECIFICATIONS • Durable Tecumseh TC • Positive On/Off Switch • Heavy-Duty Handlebars with Anti-Vibe Grips • Depth Control Bar • Four Heavy-Duty Removable Tines • 6’’ or 10” Cultivating Width • Tine Speed—162 RPM •...
-
Page 2: Safety Rules And Precautions
IMPORTANT MESSAGE TO THE CONSUMER AND/OR OPERATOR SAFETY SYMBOL SAFETY RULES AND PRECAUTIONS As with any item of power equipment it is necessary that you learn and observe ALL safety precautions. This includes the care for the machine as well as personal safety. This machine is only as dangerous as the person who is operating it. DO NOT BE CARELESS! In the beginning you will be cautious. - Page 3 12. KEEP CHILDREN AND PETS AWAY. 13. DO NOT overload the machine's capacity by attempting to till too deep at too fast a rate. 14. NEVER operate the Tiller/Cultivator at high transport speeds on slippery surfaces. Look behind and use care when backing.
-
Page 4: Table Of Contents
TABLE OF CONTENTS DESCRIPTION PAGE Safety Rules and Precautions...2-3 Assembly...5-6 Pre-Operation/Starting...6-8 Operating Techniques and Handy Tips...8 Adjustments/Maintenance... 9-11 Tine Patterns for Stony or Rocky Soil... 11 Carburetor Adjustments/Storage ...12 Illustrated Parts Lists ...13-21 Warranty...Back Cover IMPORTANT! THESE PRECAUTIONARY DECALS ARE STRATEGICALLY PLACED ON YOUR UNIT FOR YOU, THE USER... -
Page 5: Assembly
With the exception of handlebars, controls and transport kit, your new tiller has been completely assembled at the factory. It should be noted that right and left sides are determined by the operators position behind the unit. ITEM ORDER DESCRIPTION... -
Page 6: Pre-Operation/Starting
THROTTLE CABLE Unwind throttle cable from around engine. CAUTION: Be careful not to kink cable. ON/OFF SWITCH 1. Place 1 3/8” long slotted pan head screw into switch plate and down through hole in upper right hand handlebar. (See Fig. 2) 2. - Page 7 WARNING-24:1- Disregard instructions on oil containers. Do not mix directly in fuel tank. Do not use multi-viscosity oils. Use high speed air cooled 2-cycle oil Imperial Gal. Gal. To start engine, place the unit in a flat, clear area. Move the On/Off Switch to the 'I" position. ON/OFF SWITCH Fig.
-
Page 8: Operating Techniques And Handy Tips
WARNING: When pulling starter rope, the rope can unexpectedly jerk back toward engine causing serious injury. To avoid this risk, carefully follow these instructions: Move rocker switch to "I" position. 5. Grasp starter cord handle. Se Fig. 9 a. Pull rope out slowly until you feel drag. b. -
Page 9: Adjustments/Maintenance
To lubricate transmission, proceed as follows: 1. Lay tiller on left side so that the tine shaft is vertical. 2. Wearing heavy gloves, remove both right side tines. 3. Remove dust cap. -
Page 10: Tine Replacement
Note that all four tines of this unit are different and must be installed correctly or tiller will not function properly. Tines will wear and become quite sharp. Be very careful when replacing tines. -
Page 11: Tine Patterns For Stony Or Rocky Soil
4. For regular tine pattern, install inboard tines, being careful to install tine with stamped letter "C" on right side of tiller and tine stamped letter "B" on left side of tiller. (NOTE: Inboard tines have tines formed in opposite direction.) TINE PATTERNS FOR STONY OR ROCKY SOIL (See Fig. -
Page 12: Carburetor Adjustments/Storage
In order to do this, pull the hairpin out of the hole in the outboard end of the tine shaft. Slide the tines off the tine shaft and place a tine spacer, included with your tiller, over the tine shaft. Secure the spacer with the hairpin cotter in the outer hole. -
Page 13: Illustrated Parts Lists
THROTTLE CONTROL/THROTTLE CABLE ITEM ORDER DESCRIPTION 505 29 00-01 Grip, Handlebar 505 29 00-02 Screw, #10-24 x 1 3/8 505 29 00-03 Switch Assy, w/Mtg Plate 505 29 00-04 Isolator 505 29 00-05 Nut, Throttle/Switch Assy 505 29 00-06 Throttle Cable 505 29 00-07 Wire Assembly 505 29 00-08... - Page 14 ITEM ORDER DESCRIPTION 505 29 00-18 Seal 505 29 00-19 Screw, Phillips Pan Hd 1/4-20 x 1/2 505 29 00-20 Bushing, Bronze 505 29 00-21 Drum & Hub, Clutch 505 29 00-22 Bearing, Roller 505 29 00-23 Shaft, Connecting 505 29 00-24 Bushing, Bronze 505 29 00-25 Washer, Thrust...
- Page 15 ITEM ORDER DESCRIPTION – – – – – – – Engine* 505 29 00-61 Clutch Assy 505 29 00-62 Spring, Clutch 505 29 00-39 Drag Stake 505 29 00-58 Pin, Clevis 5/16 x 7/8 505 29 00-40 Hairpin 505 29 00-35 Bracket Assembly 505 29 00-41 Transmission Assembly, Complete...
- Page 16 1. Assemble the wheel assembly and install the wheel assembly on the tiller with the arrow up as shown. Torque: 14 ft-lb (20 N-m). INNER COLLAR (2) HEX BOLT, 3/8-16 X 8 inch NOTE: PLEASE FOLLOW THE DIRECTIONS SHOWN ABOVE TO ASSEMBLE YOUR WHEEL KIT.
- Page 17 NOTES...
- Page 18 NOTES...
- Page 19 NOTES...
-
Page 20: Warranty
It is the Owner’s and Retailer’s responsibility to make certain that the Warranty Registration Card is properly filled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10) days from the date of purchase in order to confirm the warranty and to facilitate post-sale service.
