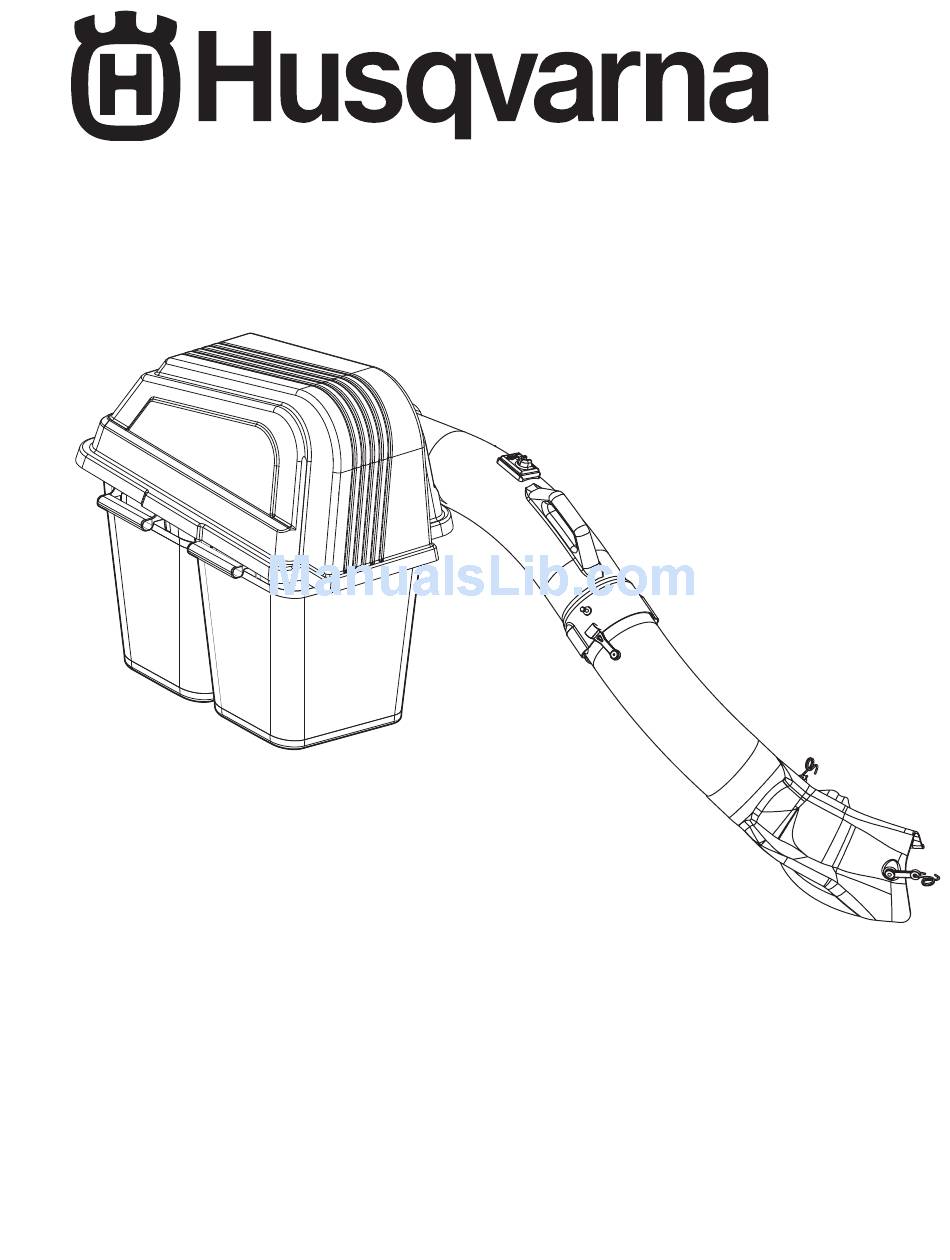

  • Page 1 Operator and Parts Manual Collection Kit 966476901...
  • Page 2 NOTE: When right hand (R.H.) and left hand (L.H.) are mentioned in this manual, it means when you are seated on the mower in the operator’s position. CAUTION BEFORE ASSEMBLING GRASS CATCHER TO MOWER • Set parking brake. • Place motion control levers in “NEUTRAL” position. •...

  • Page 3: Table Of Contents

    CONTENTS SAFETY RULES ............4 GENERAL OPERATION ........4 SLOPE OPERATION ...........4 CHILDREN ............5 SERVICE .............5 ASSEMBLY ..............7 OPERATION .............11 TIPS FOR IMPROVED BAGGING .....11 GENERAL RECOMMENDATIONS ....11 REPAIR PARTS ............12 STORAGE ..............16 KNOW YOUR BLOWER SYSTEM CONGRATULATIONS on the purchase of a new collection system.

  • Page 4: Safety Rules

    SAFETY RULES SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS DANGER ! THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. GENERAL OPERATION operate mower with grass catcher, •...

  • Page 5: Children

    SAFETY RULES SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS mow on wet grass. Reduced traction • Keep nuts and bolts, especially blade attachment • Do not could cause sliding. bolts, tight and keep equipment in good condition. • Do not try to stabilize the machine by putting your foot on the ground.
  • Page 6 ASSEMBLY UNPACKING INSTRUCTIONS CONTAINER CONTENTS • Remove all parts and packing materials from 2 - Soft bag containers 1 - Bag of Hardware carton. 1 - Upper Chute 1 - Lower Chute • Check carton contents against list. Be sure all 1 - Cover Assembly 1 - Mounting Hardware parts are there.

  • Page 7: Assembly

    ASSEMBLY INSTALL GUARD AND HANGER Remove rear guard from mower by removing the Secure collection guard assembly to the mower two bolts on either side of the frame. frame at the side where rear guard was removed. Use two -16 x ¾ round head bolts and nuts on each side.
  • Page 8 ASSEMBLY MOUNTING COVER ASSEMBLY CONTAINER INSTALLATION TO SUPPORT ASSEMBLY For ease of assembly, you may wish assistance from Install containers on support frame, overlapping another person for mounting the cover assembly to containers at center tube. mower. Note: One container should always overlap the other container at the center tube.
  • Page 9 ASSEMBLY LOWER CHUTE INSTALLATION NOTE: After the removal of a collection system, reattach the chute to the bracket with the clevis pin and torsion spring and secure with the hair Remove the hardware holding the deflector shield cotter pin. Make sure the spring is installed with to the deflector bracket.
  • Page 10 ASSEMBLY CHUTE / HOOD INSTALLATION UPPER / LOWER CHUTE ASSEMBLY Push upper chute through the gasketed opening Slide upper chute onto lower chute, lining up in the cover assembly. notches and channels. Rotate chute so the chute opening is downwards Stretch bungee latch up onto acorn nut on upper toward the container bags.

  • Page 11: Operation

    OPERATION TIPS FOR IMPROVED BAGGING • Avoid cutting wet grass or in the morning while the dew is still heavy. Grass clippings collected Follow the mower operation instructions in the mower under these conditions tend to be sticky and operator manual. adhere to the walls of the flow path causing When operating the grass catcher on a lawn where clogging.

  • Page 12: Repair Parts

    REPAIR PARTS...
  • Page 13 REPAIR PARTS ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 574 031003 ..1 ..GUARD, REAR 16.. 539 976934 ..2 ..HCS -18 x ¾ 573 975801 ..1 ..CHUTE, LOWER 17.. 539 108084 ..3 ..WASHER x ¾ x 16 GA 539 108141 ..1 ..
  • Page 14 REPAIR PARTS...
  • Page 15 REPAIR PARTS ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 539 111139 ..1 ..COVER ASSY 11.. 532 179746 ..1 ..BAGGER, FRAME 532 127533 ..1 ..SCREEN, COVER 12.. 532 128600 ..1 ..PIN, HINGE 532 155042 ..1 ..STRIP, REINFORCEMENT 13..

  • Page 16: Storage

    STORAGE STORAGE CAUTION When grass catcher is to be stored for a period of time, clean it thoroughly, remove all dirt, grass, leaves, Do not leave grass in bagger containers. Empty containers after etc. Store in a clean, dry place. each use and before storing.
