Lint Filter

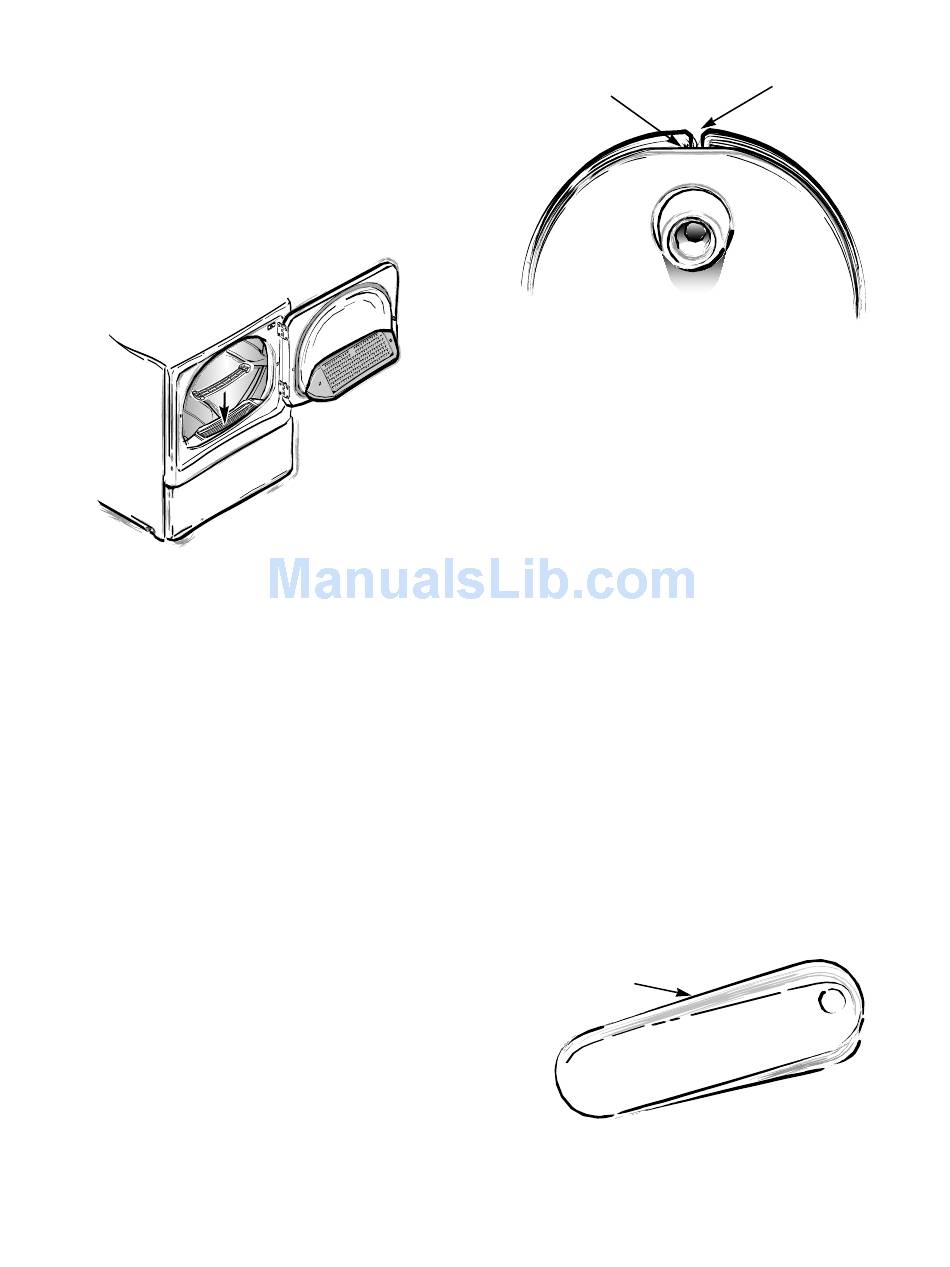

The lint filter is located at the front of the dryer in
the lower part of the door opening.
CLEAN THE LINT FILTER BEFORE DRYING EACH
LOAD. Remove lint filter cover, clean lint filter and
replace cover. Annually remove lint filter and screw
to vacuum the duct under it.
Control Knob and Door Handle
Inserts
Your unit has come equipped from the factory with
a red background on the control panel knobs. If you
wish to change the color, additional color inserts
are included in the accessories bag with your unit.
NOTE: A protective film has been applied to the
color inserts that have been shipped in the
accessories bag. To obtain the best appearance,
remove film before installing inserts.
To add a color insert to the control panel knobs:
1. Pull knob off control panel.
2. Remove and save screws from back side of
knob.
3. Pull off red rear piece from knob.
4. Place desired color insert on top of rear piece,
over the two pegs, making sure flat area of
insert lines up with notch on rear piece. Refer
to illustration.
DRY2025N
© Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT
Flat area of
insert
5. Place rear piece onto front part of knob.
6. Screw knob together with screws removed in
step 2.
7. Reattach knob to control panel.
To add a color insert to the door handle:
1. Remove door from unit by removing four
screws attaching hinge to front panel of dryer.
Save these screws.
2. Remove nine screws attaching door liner to
door panel. Save screws.
3. Pull bottom of door liner out and then pull
down, removing door liner from door panel.
4. Remove and save screws attaching door
handle to door panel.
5. Lift up on door handle to release two center
hooks from notches in door panel.
6. Remove rear piece from handle assembly.
7. Place desired color insert over the pegs of
handle rear piece. Refer to figure below.
Insert
-12-
513189
Notch on
rear piece of
knob
DRY2336N
DRY2336N
DRY2337N
DRY2337N
