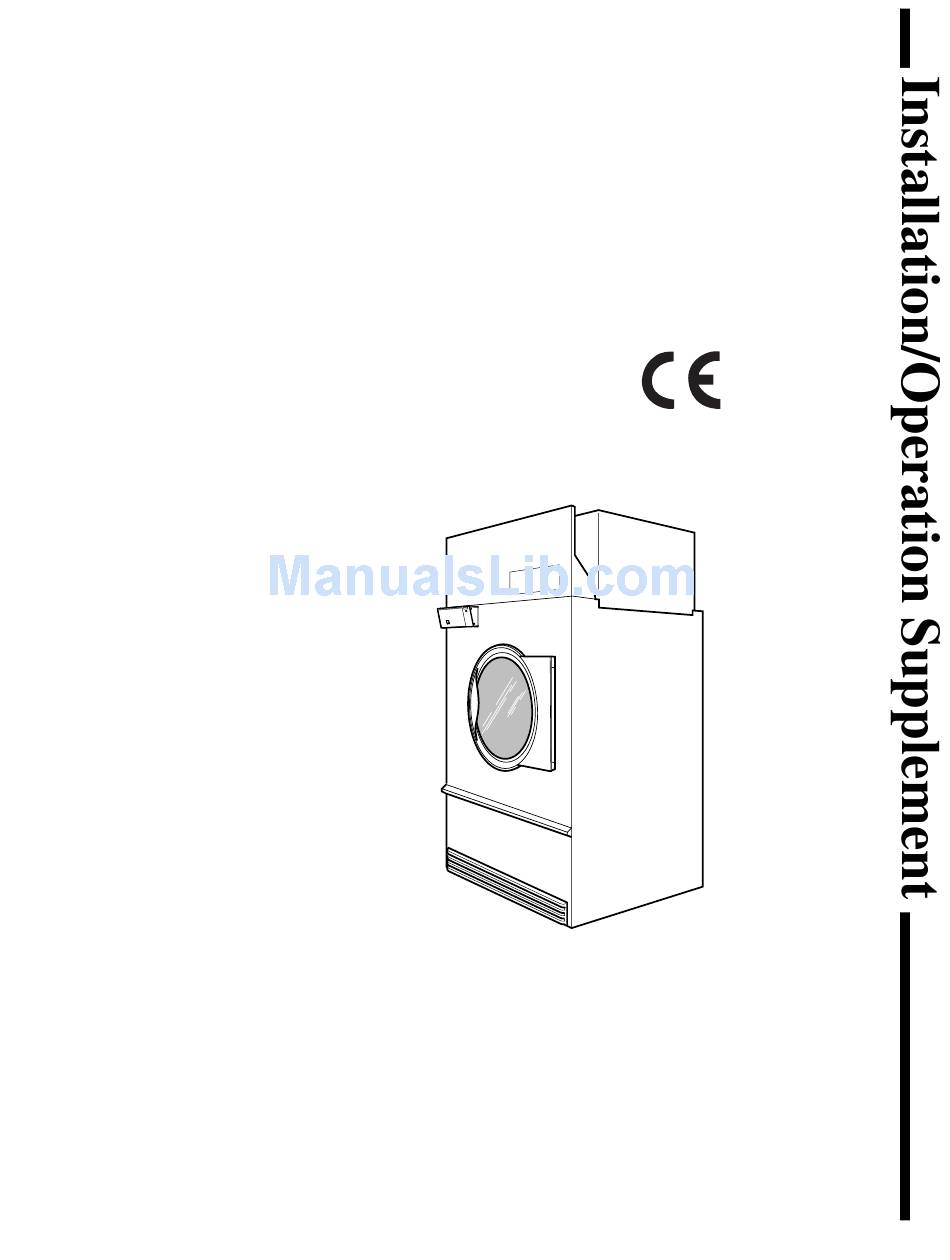

- Page 1 Drying Tumblers Refer to page 3 for Model Identification Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) 120 Pound Capacity 170 Pound Capacity TMB1268C TMB1268C Part No. M414881R7EN December 2007...
- Page 3 Installation must conform with local codes. WARNING FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death. • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 4: Table Of Contents
Installation/Operation Supplement Table of Contents © Published by permission of the copyright owner All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. ©... -
Page 5: Introduction
Model Identification Information in this manual is applicable to these models. GU120L GU120N HU120L HU120N KU120L 120 Pound KU120N LU120L LU120N PU120L GU170L GU170N HU170L HU170N 170 Pound KU170L KU170N LU170L LU170N Includes models with the following control suffixes: RM – reversing OPL Micro RQ –... -
Page 6: Serial Plate Location
Installation/Operation Supplement Serial Plate Location 170 POUND TUMBLER 120 POUND TUMBLER TMB1298N TMB1298N Serial Plate © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT M414881 (EN) -
Page 7: Safety Information
Safety Information Important Safety Instructions WARNING Hazardous Voltage. Can cause shock, burn or cause death. Allow machine power to remain off for two minutes prior to working in and around AC inverter drive. 1. Read all instructions before using the tumbler. 2. - Page 8 Installation/Operation Supplement 22. Install this tumbler according to the INSTALLATION INSTRUCTIONS. All connections for electrical power, grounding, and gas supply must comply with local codes and be made by licensed personnel when required. 23. Remove laundry immediately after tumbler stops. 24.
-
Page 9: Installation
Specifications and Dimensions Specifications Noise level measured during operation at operator position of 1 meter (3.3 feet) in front of machine and 1.6 meters (5.2 feet) from the floor. Cylinder Size: mm (in.) Cylinder Capacity dry weight: kg (lbs.) Cylinder Motor Horsepower Fan Motor Horsepower Air Outlet Diameter: mm (in.) -
Page 10: 120 Pound Tumbler Dimensions And Exhaust Outlet Locations
Installation/Operation Supplement 120 Pound Tumbler Dimensions and Exhaust Outlet Locations Models 797 mm 826 mm 120L/N (31.38 in.) (32.5 in.) 797 mm 826 mm 120S (31.38 in.) (32.5 in.) Refer to Position and Level the Tumbler to temporarily reduce the heights of these models. Models 1612 mm 120L/N... -
Page 11: 170 Pound Tumbler Dimensions And Exhaust Outlet Locations
170 Pound Tumbler Dimensions and Exhaust Outlet Locations Models 860 mm 826 mm 170L/N/S (33.86 in.) (32.5 in.) Refer to Position and Level the Tumbler to temporarily reduce the heights of these models. Models 1076 mm 170L/N/S (42.38 in.) © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT M414881 (EN) TOP VIEW OF EXHAUST... -
Page 12: Electric And Gas Connection Locations For Gas Models
Installation/Operation Supplement Electric and Gas Connection Locations for Gas Models 120L/N Electrical Connection Models 500 mm 120L/N (19.69 in.) 589 mm 170L/N (23.18 in.) NOTE: These figures are approximate dimensions only. © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT 1904 mm 325 mm (74.98 in.) -
Page 13: Electric And Steam Connection Locations For Steam Models
Electric and Steam Connection Locations for Steam Models 120S Models Diameter 3/4 in. NPT 120S 3/4 in. NPT 170S Diameter 3/4 in. NPT 120S 1 in. NPT 170S 120S 170S © Published by permission of the copyright owner – DO NOT COPY or TRANSMIT M414881 (EN) Steam Inlet 911 mm... -
Page 14: Position And Level The Tumbler
Installation/Operation Supplement Position and Level the Tumbler To reduce the risk of severe injury, clearance of tumbler cabinet from combustible construction must conform to the minimum clearances. NOTE: Shaded areas indicate adjacent structure. 13 mm (0.5 in.) recommended between machines for removal or installation. Allow 51-102 mm (2-4 in.) opening at top of machine to aid in removal or installation. -
Page 15: Fire Suppression System
Fire Suppression System G, H, K, S and U Models Only Water Requirements IMPORTANT: Water must be supplied to the fire suppression system, or the fire suppression system will not operate as intended. Connection point to the electric water solenoid valve is a 19 mm (3/4 inch) hose. -
Page 16: Auxiliary Alarm
Installation/Operation Supplement Auxiliary Alarm During tumbler installation, you have the option to connect a separate alarm system to this auxiliary output. Use of the auxiliary output is not required for the fire suppression system to operate, but may be used for additional protection. - Page 17 Installation/Operation Supplement Serial plates supplied from the factory are configured for the countries of GB/IE/PT/ES/IT/GR/LU/CH. These instructions pertain to the situations when the country of use or gas supply is different than that on the serial plate. NOTE: This manual is only a supplement. Refer to installation/operation manual for full instructions.
- Page 18 Installation/Operation Supplement Gases and Configurations Country Gas Type Group Code Natural Gas DK/NO/ SE/FI/CZ/ EE/LV/LT/ L.P. Gas SI/SK Natural Gas L.P. Gas DE** Natural Gas L.P. Gas Natural Gas BE/FR* L.P. Gas Natural Gas GB/IE/PT/ ES/IT/GR/ L.P. Gas LU/CH Natural Gas AT** L.P.
-
Page 19: Exhaust Requirements
Exhaust Requirements WARNING A drying tumbler produces combustible lint. To reduce the risk of fire, the tumbler must be exhausted to the outdoors. To reduce the risk of fire and accumulation of combustible gases, DO NOT exhaust tumbler air into a window well, gas vent, chimney or enclosed, unventilated area such as an attic, ceiling, crawl space under a building, or concealed space of a... -
Page 20: Electrical Requirements
Installation/Operation Supplement Electrical Requirements WARNING To reduce the risk of electric shock, fire, explosion, serious injury or death: • Disconnect electric power to the tumbler before servicing. • Close gas shut-off valve to gas tumbler before servicing. • Close steam valve to steam tumbler before servicing. -
Page 21: Steam Requirements
Steam Requirements Obtain specific steam service pipe sizes from the steam system supplier or a qualified steam fitter. Refer to Figure 3 and Figure 4 for proper steam ● pipe configurations. When tumbler is on the end of a line of ●... - Page 22 Installation/Operation Supplement 120 Pound Tumblers NOTE: Refer to Table 3 for sizing of steam lines. Piping must also be sized accordingly for length of runs and number of elbows. Supply 305 mm (12 in.) Riser Shut-Off Valve Condensate Return Line from Supply Line Return Check Valve Vacuum Breaker (optional)
- Page 23 170 Pound Tumblers SUPPLY NOTE: Refer to Table 4 for sizing of steam lines. Piping must also be sized accordingly for length of runs and number of elbows. Risers 305 mm (12 in.) Shut-Off Valve Check Valve Vacuum Breaker (optional) Condensate Return Line from Supply Line Steam Pressure Model...
-
Page 24: Operation
Installation/Operation Supplement To reduce the risk of fire: • DO NOT DRY articles containing foam rubber or similarly textured rubberlike materials. • DO NOT DRY plastics, anything containing wax or chemicals such as mops and cleaning cloths, or anything dry-cleaned at home with a dry-cleaning solvent. •... -
Page 25: Control Instructions
Control Instructions Manual Timer Control RT Control Suffix 1. Set the HEAT/DRYING timer for the number of minutes (from 0-60) desired. HEAT Figure 6 2. Set the COOL DOWN/COOLING timer for the number of minutes (from 0-15) desired. COOL DOWN Figure 7 3. -
Page 26: Dual Digital Timer Control
Installation/Operation Supplement Dual Digital Timer Control RQ Control Suffix 1. Select HIGH, MED, LOW or NO HEAT by turning the temperature knob. Figure 10 2. Set the HEAT TIME for the number of minutes (from 0-60) desired. Figure 11 3. Set the COOL DOWN TIME for the number of minutes (from 0-15) desired. -
Page 27: Electronic Opl Control
Electronic OPL Control H, L, P, S, U, X and Y Models with RM Control Suffix 1. To use an Automatic Cycle, press an ON/ SELECT pad. Select HIGH, MEDIUM, MED LOW, LOW or NO HEAT for items that should not be dried with heat. A light to the left of the selected pad lights up. - Page 28 Installation/Operation Supplement G and K Models with RM Control Suffix 1. To use an Automatic Cycle, press a TEMPERATURE pad. Select HIGH, MED, LOW, DELICATE or NO HEAT for items that should not be dried with heat. A light to the left of the selected pad lights up.
-
Page 29: Ignition Control Operation
Ignition Control Operation Diagnostic LED (DGN LED) / Error Codes The Diagnostic LED or DGN LED is located by the power connector on the ignition control. Refer to Figure 24. The Diagnostic LED will indicate the status of the ignition control. Refer to Table 5. LED Color Description Orange-Yellow... -
Page 30: Disposal Of Unit
Installation/Operation Supplement Disposal of Unit This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
