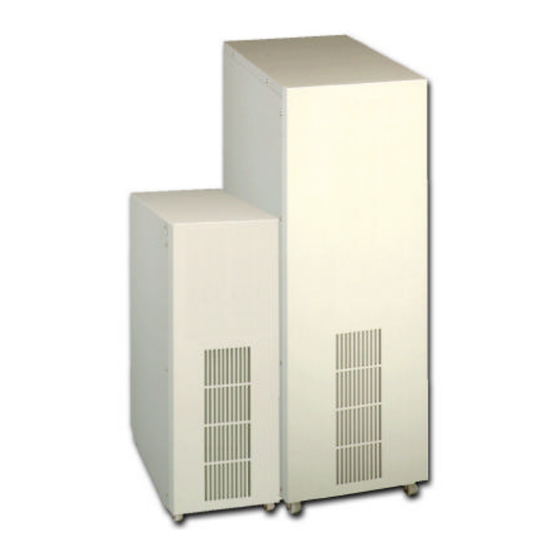

- Page 1 UPStation GXT™ 6 & 10 kVA Optional Battery Cabinet ANUAL English...
-
Page 2: Important Safety Instructions
AND MAINTENANCE OF THE BATTERY CABINET AND UNINTERRUPTIBLE POWER SYSTEM (UPS). This battery cabinet option is designed for use with Liebert Uninterruptible Power System (UPS) models GXT 6/10 kVA and for installation by qualified electrical personnel only. The battery cabinet must be installed in accordance with local/national electrical codes. -
Page 3: Glossary Of Symbols
GLOSSARY OF SYMBOLS Indicates Caution: Note the accompanying instructions Requests the user to consult the manual for additional information Indicates that the unit contains a valve regulated lead PbH2SO4 acid battery Indicates Caution: Risk of electrical shock SYSTEM DESCRIPTION AND OPERATION Congratulations on your choice of the UPStation GXT™... -
Page 4: Installation Instructions
CAUTION: The GXT240VBATT models weigh up to 160 kg (353 lbs) and the GXT240VLRT models weigh up to 395 kg (871 lbs). Use adequate handling aids when moving or installing the UPS. - Page 5 ELECTRICAL CONNECTIONS The UPS and battery cabinets are supplied with battery terminals on the rear of the UPS within a cable box. (see outline drawing) The cable box (gland plate) can be removed to enable knockouts to be removed, or new holes drilled, to secure the cables.
-
Page 6: Stabilizers / Leveling Feet
NOT LOOSEN THE LARGER NUT ABOVE, AS THIS FIXES THE LEVELING FEET TO THE CHASSIS. Attach the stabilizing brackets as follows. GXT240VBATT or GXT240VBATTUL models: Using a Phillips-head screwdriver, remove the screws (4) from each of the bottom corners of the side panels. -
Page 7: Commissioning The Ups With Optional Batteries
UPS and closing all circuit breakers on the rear of the optional battery cabinets. Finally, check the UPS with all battery circuit breakers closed. The system is now ready for normal operation. SPECIFICATIONS GXT240VBATT GXT240VBATTUL GXT240VLRT GXT240VLRTUL Model... -
Page 8: Limited Warranty
(4) to six (6) months when not in use. If the Battery Cabinet fails to conform with the above warranty within the two year warranty period, Liebert will repair or replace the Battery Cabinet, at Liebert's option. Repairs or replacements are warranted for the remainder of the original warranty period. -
Page 9: Technical Support
The Company Behind The Products While every precaution has been taken to With more than 500,000 installations around ensure accuracy and completeness of this the globe, Liebert is the world leader in literature, Liebert Corporation assumes no computer protection systems. Since its...
